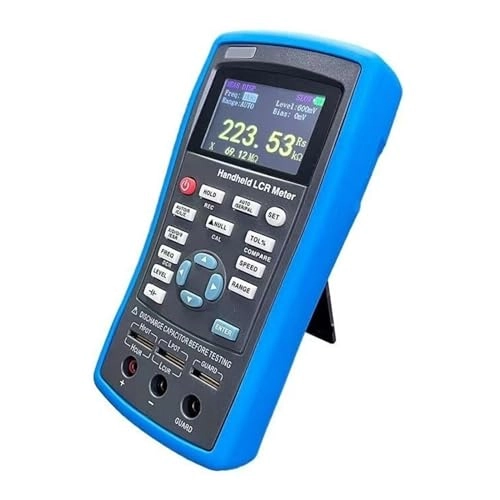

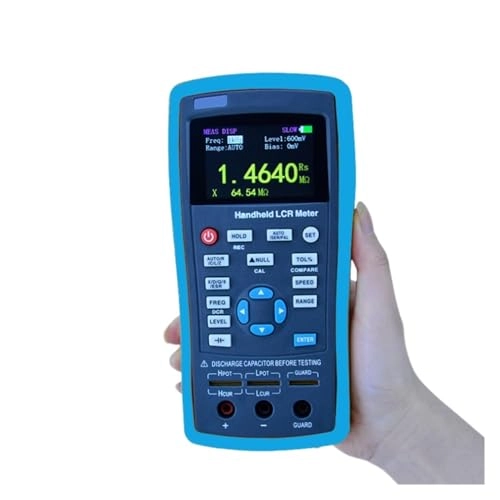

WESLNN LCD Tester Digital Bridge Meter - 2.8 inch TFT High Precision

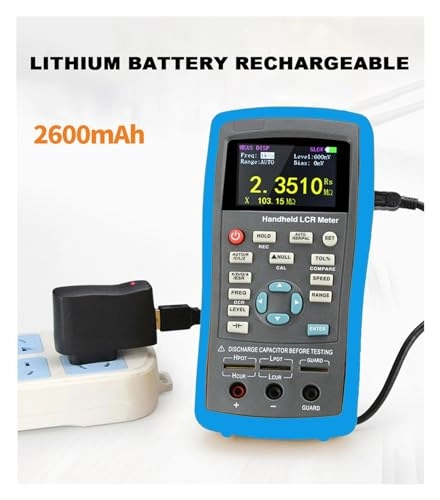

Portable LCR Meter Overview Product description: Portable LCR 2.8 inch TFT display, easy key operation and USB communication. Its high capacity lithium battery ensures a long service life. It can measure complete parameters and supports screening and measurement of deviation, with continuously adjustable output frequency. The basic accuracy reaches 0.2%/0.3%; Inductance: 0.000µH-2000H, Capacity: 0.000pF-20,000mF, Resistance: 0.0001-20.000M 430: test frequency: 100Hz-100kHz, accuracy: 0.3%, 6 test frequency point; automatic identification function of component access; 2 test level points, electrolytic capacitor function; 431: test frequency: 100Hz-10kHz, accuracy: 0.2%, 4 test frequency point; automatic identification function of component access; electrolytic capacitor function, DC resistance function (DCR); 4 test level points, 4.5 digit accuracy display; 432: Test frequency: 100Hz-100kHz, Accuracy: 0.2%, 6 test frequency points; Automatic identification function of component access; Electrolytic capacitor function, DC resistance function (DCR); 6 test level points, 4.5 digit accuracy display; 433: Test frequency: 100Hz ~ 100kHz; Accuracy: 0.2%, 4.5 accuracy display; Test frequency: 1Hz by adjustable continuous step; level 10mV~1100mV, 1mV continuous step adjustable; automatic identification function of component access; electrolytic capacitor function, DC resistance function (DCR); Product features: uMeasurable frequency up to 100 kHz, continuously adjustable in steps of 1 Hz. ; uSpecial function: automatic identification and measurement after connecting components; uInternal bias voltage output (0mV-500mV),
