WESLNN LCR-TC1 - 1.8" TFT LCD Multimeter Transistor Tester

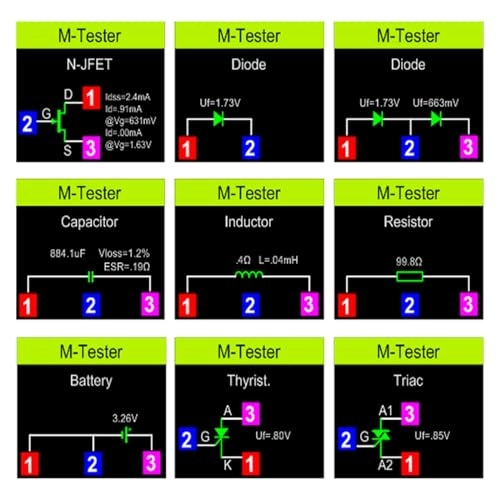

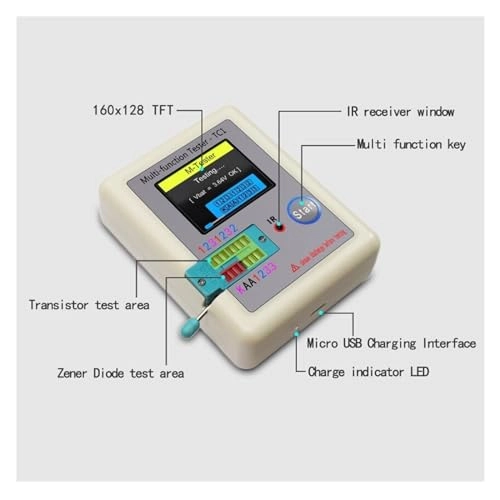

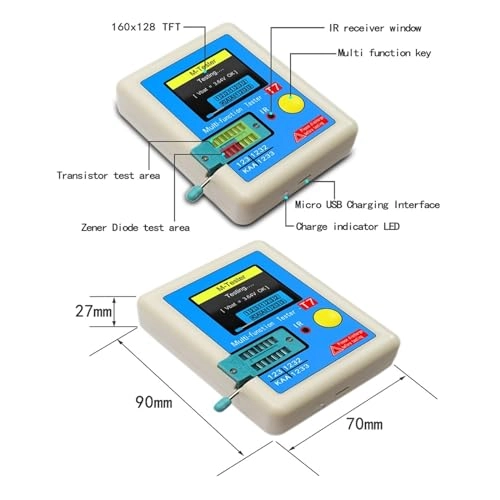

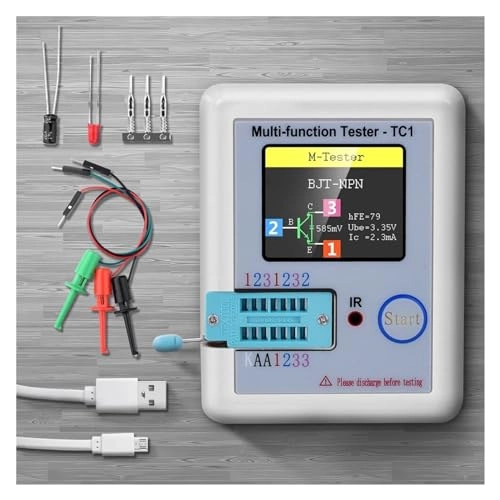

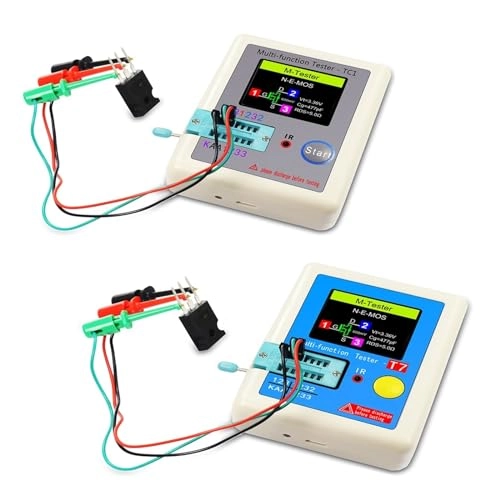

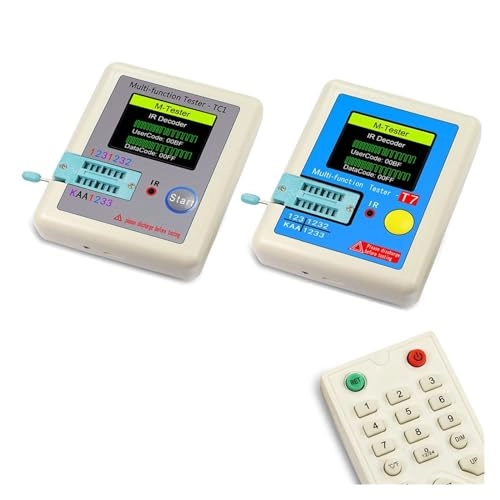

Note: Iceo, lces and Uf are only displayed when they are valid. Note: Junction capacitance and reverse leakage current are only displayed when they are valid. Note: Only displayed when a protective diode is present Note: ESR and Vloss are only displayed when they are valid. Note: When only one resistor and the resistance value is less than 2.1k, test the inductor. Transistor Tester: Automatic detection of NPN and PNP bipolar transistors. N channel and P channel MOSFET, JFET diodes (including dual diodes) N.et P-IGBTS, resistors, inductors, capacitors, thyristors, triacand battery (0.1-4.50V) Automatic detection of zener diode (0.01-20v) Self-test with automatic calibration IR decoder: Support for lR encoding -Display of the waveform lR Other: Measurement results using TFT graphic display (160x128) Auto power off (adjustable delay) Built-in rechargeable Li-ion battery Li-ion Battery Voltage Detection - 160x128 TFT Display Attention: Built-in Li-ion battery, it is strictly forbidden to immerse the tester in water, or near a heat source! Warning: For your personal safety, please strictly observe the specifications and precautions for using the Li-ion battery! Turn on: In the power off state, short press the multifunction key, the tester is turned on and measured automatically. Power on and measurement interface Detect the transistor In the power off state or the test is completed, place the test element in the test area of the test seat transistor and press the lock handle, short press the multifunction key, the tester automatically measures, graphical display of measurement results when the test is completed. Ave
