VSDISPLAY VS103ZJ03T-133 - 10.3 inch

Specifications:

Model No.:VS103ZJ03T-133

Case: Black Iron Metal Case

Screen Size:10.3 inch

Touch Screen: Capacitive Touch Sensor

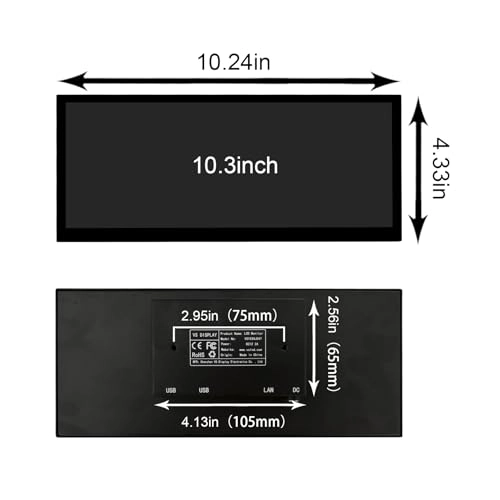

Outline Size 261×111×40(H×V×D)mm

Display Area 243.6×91.4 (H×V)mm

Screen Resolution: 1920x720 Pixels

Screen Brightness: 850cd/m2

Screen Contrast: 1000:1

View Angle: 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Response Time: <8ms

Input Voltage: 12Vdc

Input Current: 2A

Standby Consumption: 1W

Consumption: 12W

RAM: 1GB

HDD: 32GB

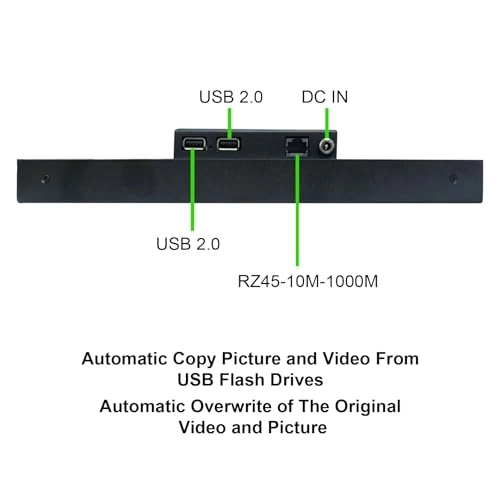

Video Input: 2 x USB 2.0

USB Support: Auto-Copy Auto-Play

File Format RMVB,FLV,MPEG1/2/4,AVI,DIVX,XDIV,WMV9,H.264,VC-1, MOV,MKV, MP4,TS,M2T,VOB

BMP/PNG/GIF/JPEG

P3,WMA,WAV,EAAC+, MP2 dec,Vorbis(Ogg),AC3,FLAC(lossless audio),APE(lossless audio),BSAC

Support 0°90°180°270 degree Image rotate

USB Support Autoplay video When Turn on Power Supply

Operating Temperature: 0 degree to 45 degree

Storage Temperature: -20 degree to 60 degree

N.W. :0.77kg/1.70lb

G.W. :1.2kg/2.65lb

Features and Applications:

Automatic Copy Picture and Video From USB Flash Drives

Automatic Overwrite of The Original Video and Picture

Screen Support 0° 90° 180° 270° Rotation

Elevator Restaurants Supermarket Store and so on Product Display

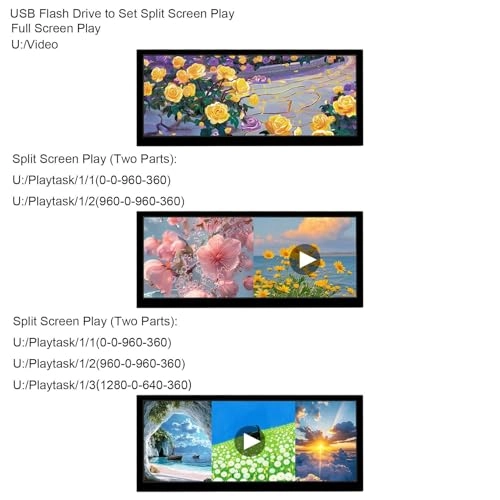

USB Flash Drive to Set Split Screen Play:

Full Screen Play :

U:/ Video

Split Screen Play(Two Parts):

U:/ Playtask / 1 / 1(0-0-960-360)

U:/ Playtask / 1 / 2(960-0-960-360)

Split Screen Play(Three Parts):

U:/ Playtask / 1 / 1(0-0-640-360)

U:/ Playtask / 1 / 2(640-0-640-360)

U:/ Playtask / 1 / 3(1280-0-640-360)

1(X-Y-W-H)

X is Set Horizontal axis Y is Set Vertical axis W is Set Width H is Set Height

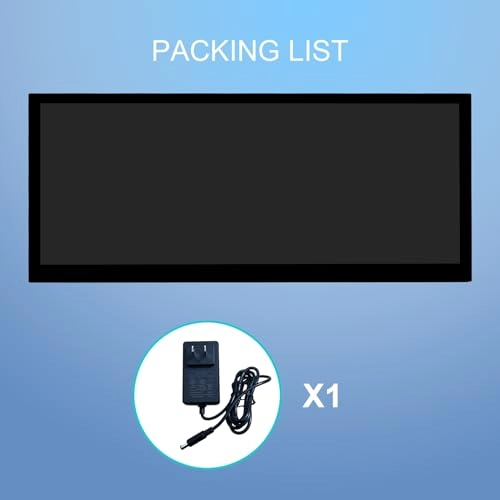

Packing list:

1× 10.3 inch 1920x720 VS103AT04T-133 Capacitive Touch Android LCD Monitor

1× 12V 2A Power Adapter
