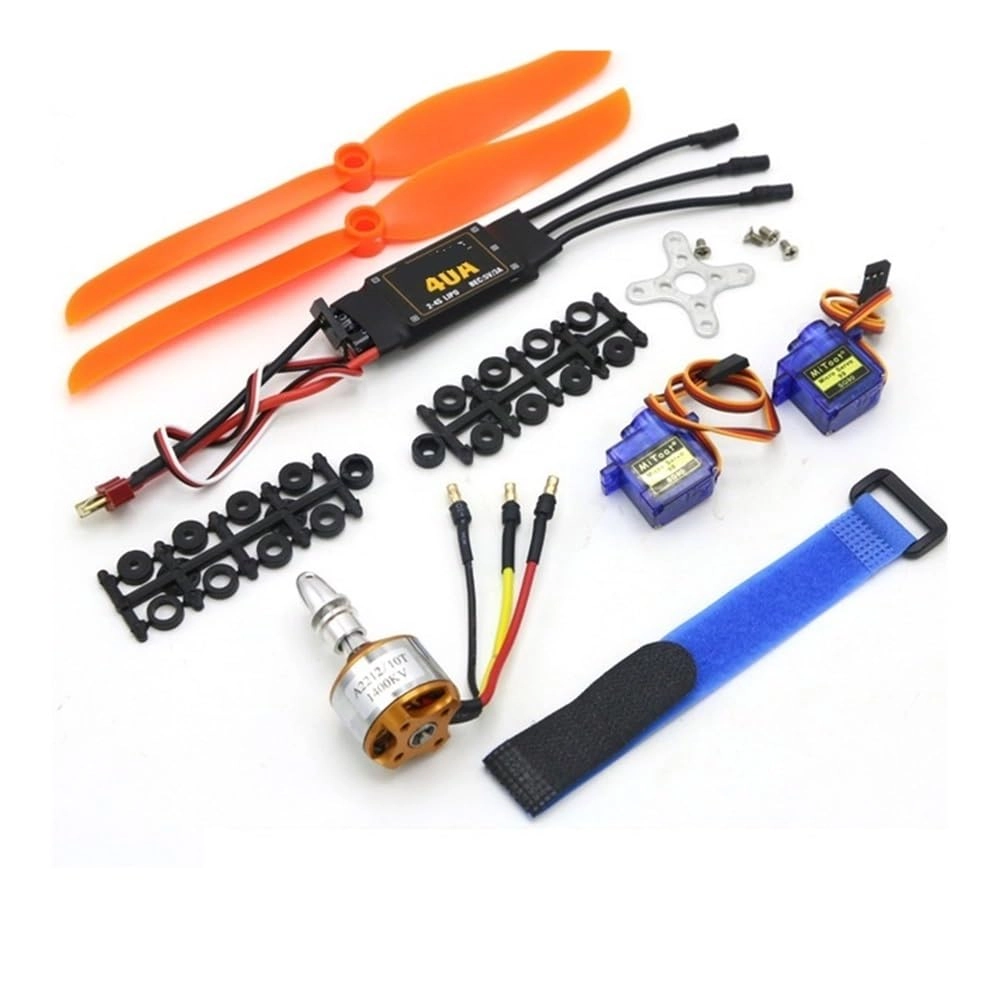

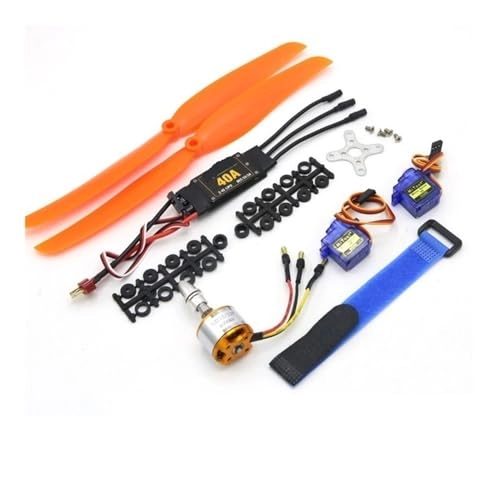

SxRakiO A2212 - Brushless

9G servo Dimensions: 21.5mm x 11.8mm x 22.7mm Weight: 9 g No-load speed: 0.12s/60°C (4.8V) Draught torque: 1.5-1.7 kg/cm² (4.8 V-6 V) Operating Temperature: -30°C to +60°C Dead band: 5 µs Operating voltage: 4.8V-6V 1000KV A2212 Brushless Motor: KV Rating: 1000 Maximum efficiency: 80% Maximum efficiency current: 4-10A (>75%) Current capacity: 12A/60s No-load current at 10V: 0.5A Number of batteries: 2-3 lithium polymer batteries Motor dimensions: 27.5 x 27 mm / 1.1 x 1.1 inches. Shaft diameter: 3.17 mm / 0.1 inches. Weight: 48g / 1.7oz A2212 2200kv Engine Specifications: KV: 2200 Ri(M): 0.033 Batteries: 2-3 lithium polymer batteries Maximum power: 342 W. Test propellers: 7x3/7x4 Motor dimensions: 27.5 x 38 mm (1.08 x 1.5 inches) Shaft Diameter: 3.17mm/0.12" A2212 1400kv Engine Specifications: KV: 1400 Maximum efficiency: 80% Maximum efficiency current: 4-10A (>75%) Current capacity: 12A/60 seconds No-load current at 10V: 0.5A Number of batteries: 2-3 lithium polymer batteries Motor dimensions: 27.5 x 30 mm. Shaft Diameter: 3.175mm Weight: 47g 30A Brushless Speed Controller Compatible with: 400-450 helicopters/aircraft or quadcopters -Output: 30A continuous, 40A burst, up to 10 seconds -Input voltage: 2-3 lithium batteries or 5-9 NiCd/NiMH batteries -BEC: 2A/5V (linear mode) Maximum speed: 210,000 rpm for 2-pole BLM motors, 70,000 rpm for BLM 6-pole motors and 35,000 rpm for BLM 12-pole motors. (BLM: Brushless Motor) Equipped with T-connector and 3.5mm banana plug. ESC 40A: Continuous Current/Peak: 40A/55A Battery Cells: 2-3 LiPo Batteries BEC Output: Linear Mode: 5V, 3A Power: Red, 16AWG, 100mm*1; Black, 16AWG, 100mm*1 Output: Blue, 16 AWG, 75 mm x 3 Power plug: T-plug (customizable on request) Output Connector: 3.5mm Banana Plug (Female)
