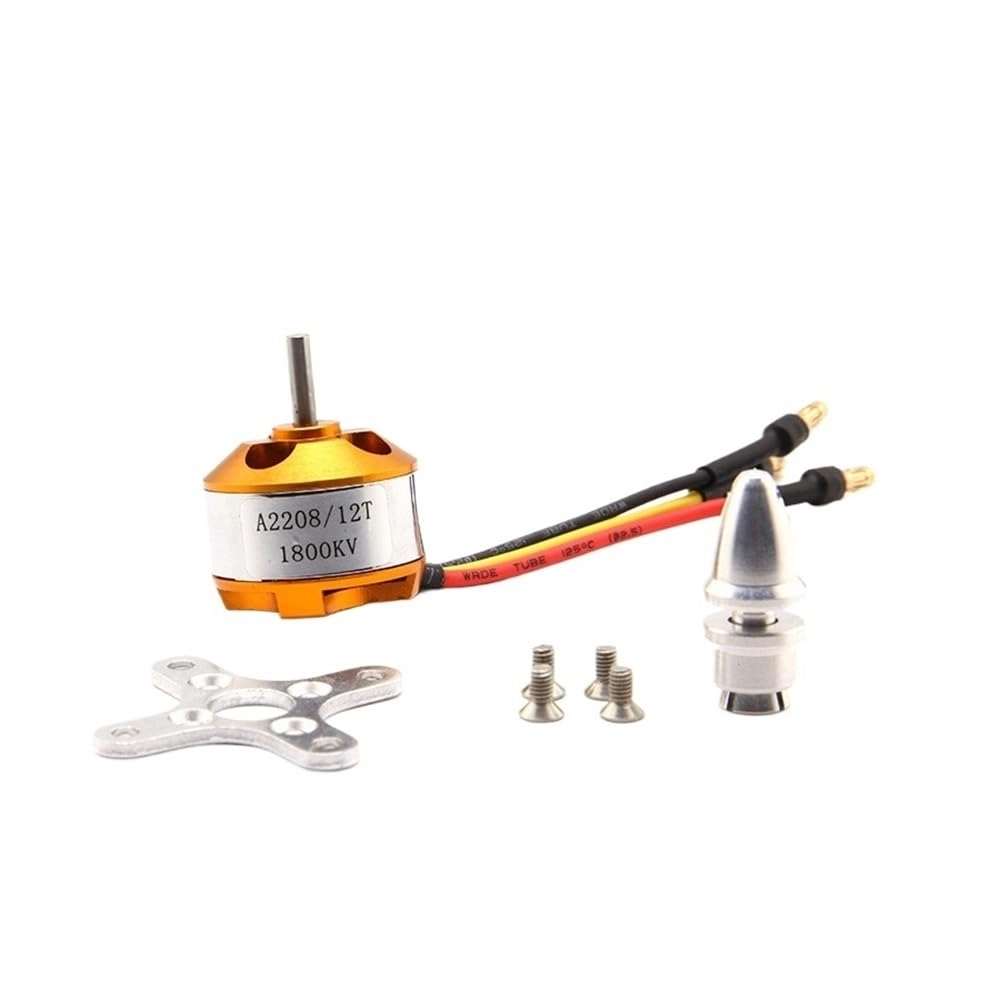

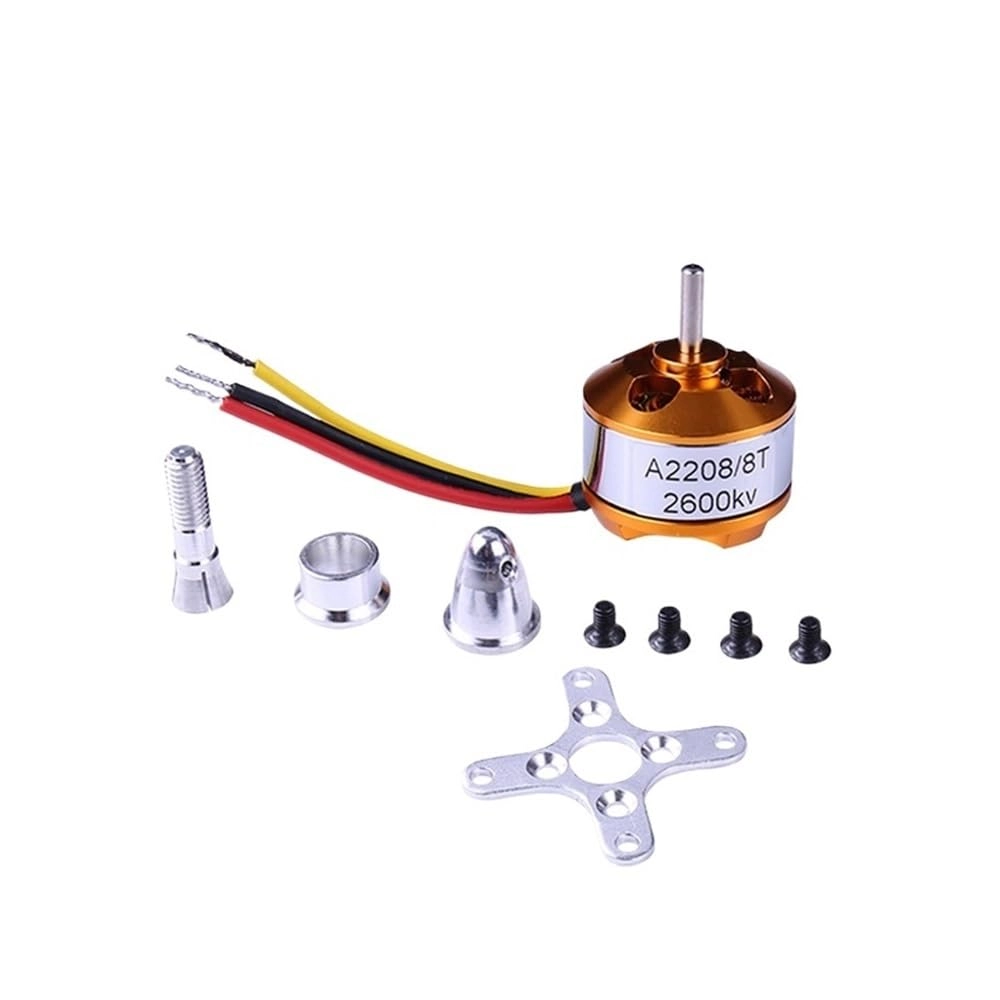

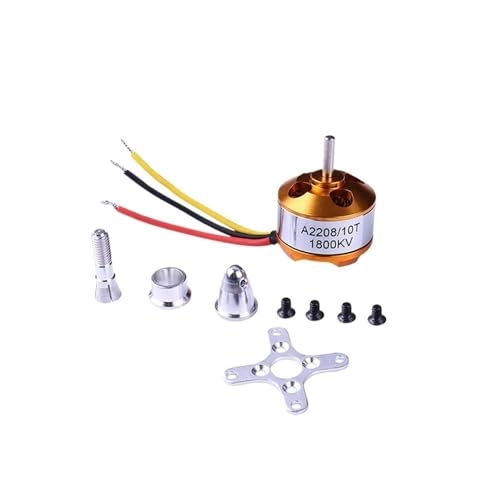

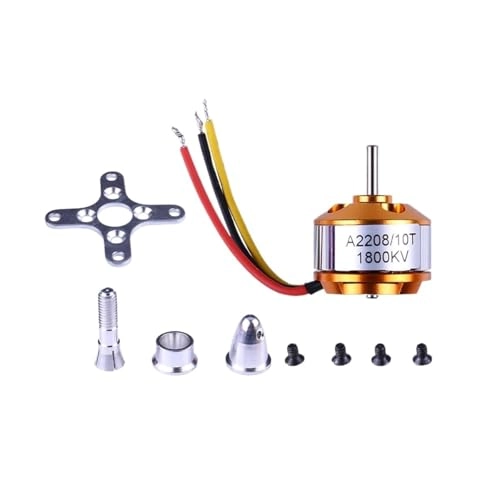

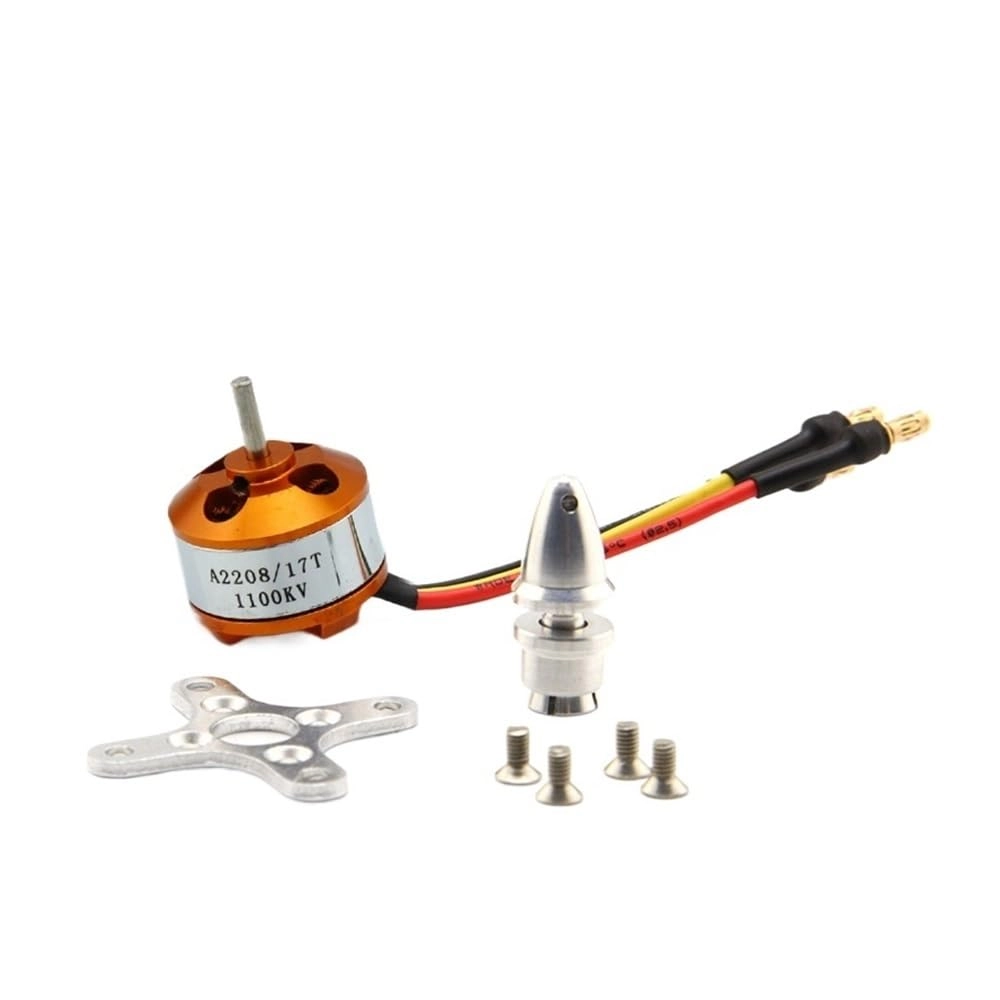

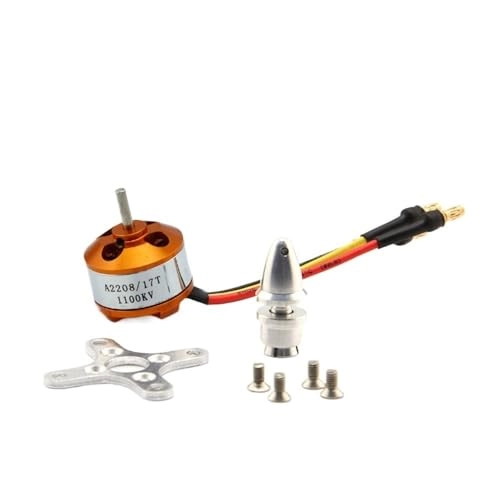

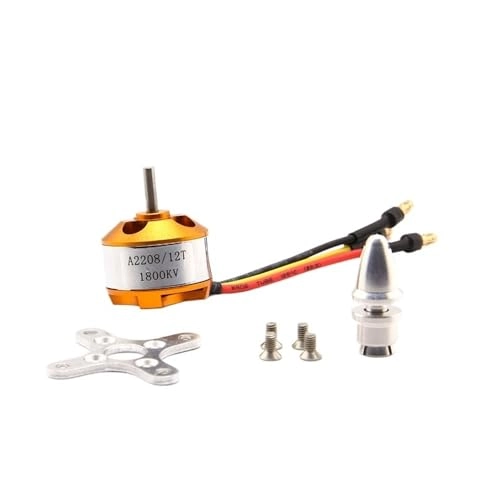

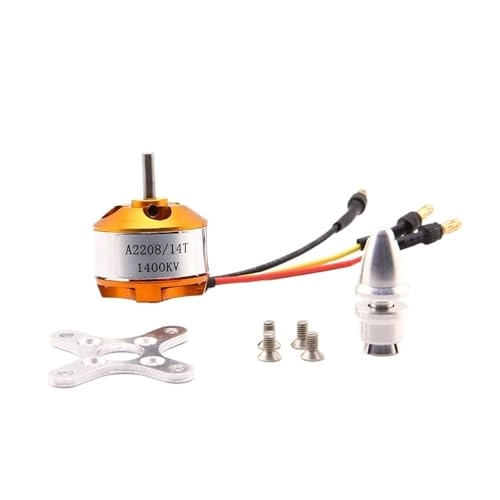

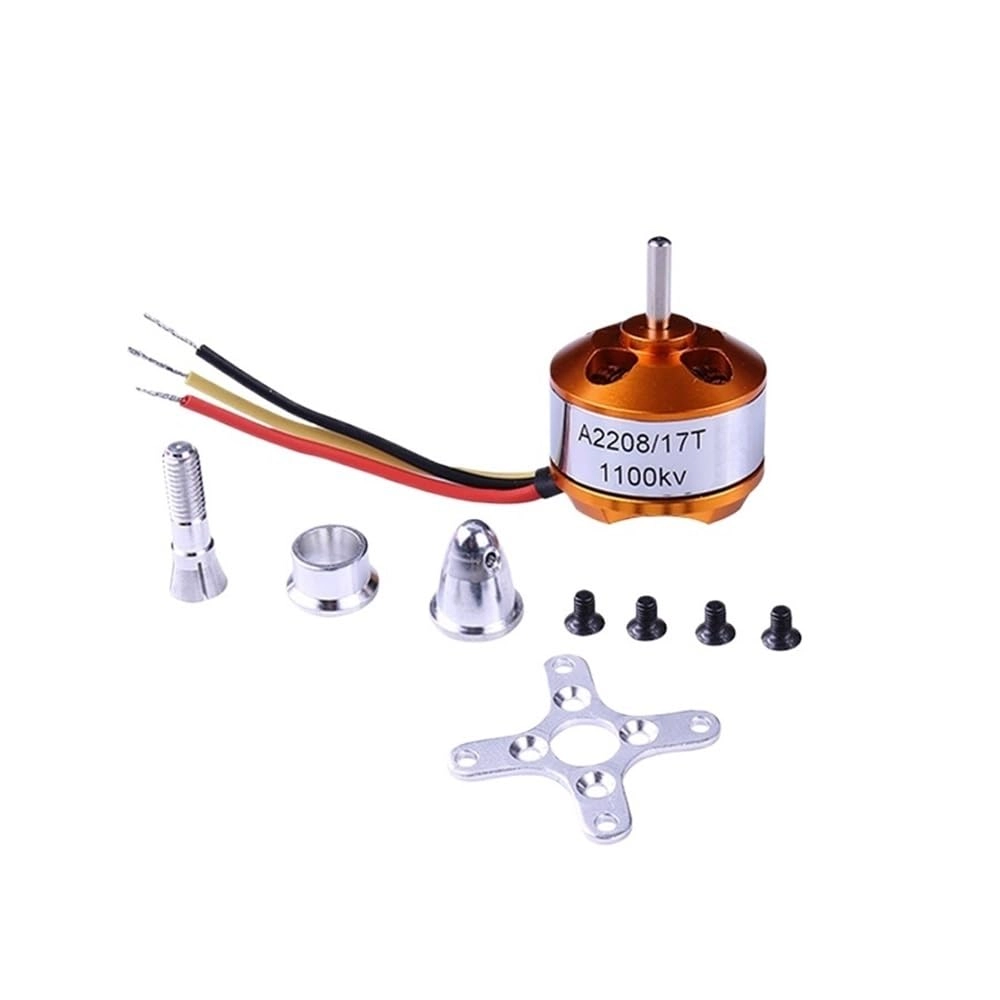

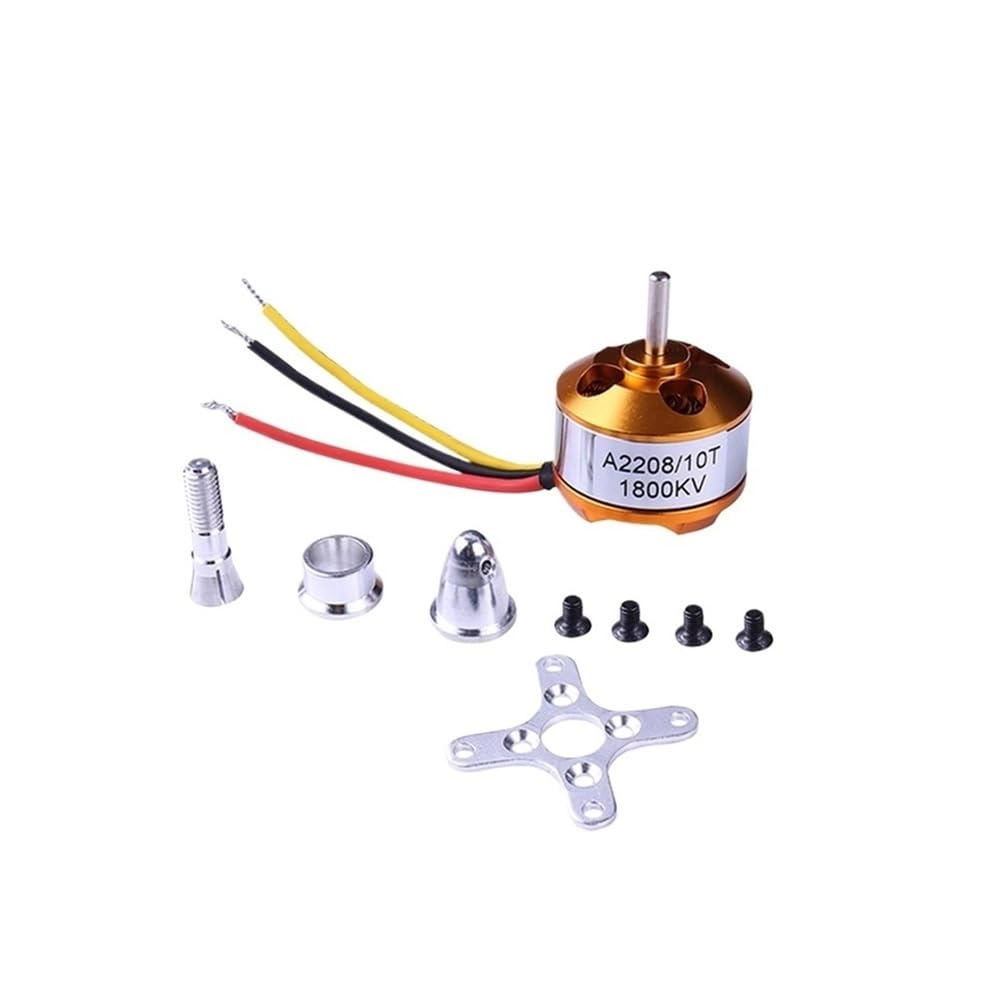

SxRakiO A2208 - Brushless Motor

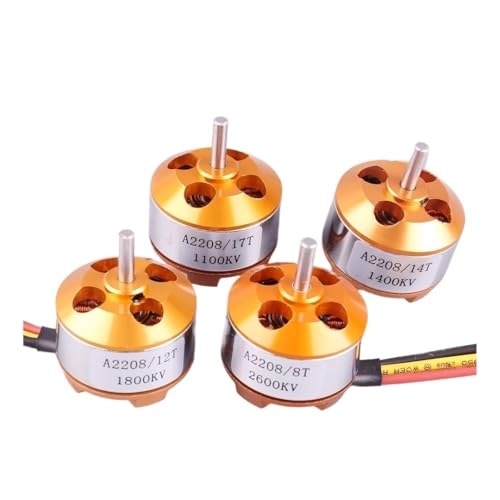

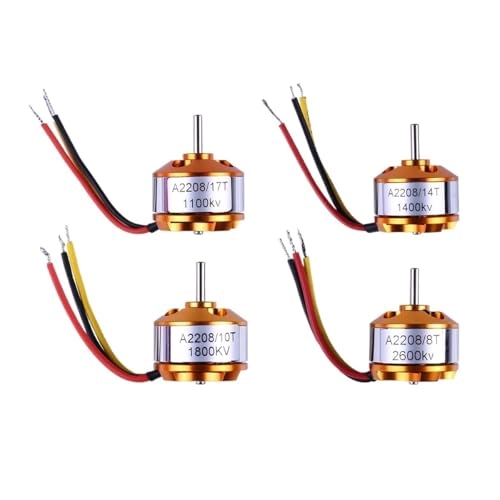

A2208 KV1100/1400/1800/2600 Multicopter UAV Brushless Motor Propeller Selection Recommendations for the 2208 Motor at General 3S 11.1V Operating Conditions The following parameters are for reference only: (Not included) 1100 kV motors are suitable for 1060 and 9050 propellers for forward pull training aircraft 1400 kV motors are suitable for 9050, 8060, and 8040 propellers for forward pull 3D aerobatic aircraft/WWII aircraft 1800 kV motors are suitable for 7040 and 6030 propellers for pushback training aircraft 2600 kV motors are suitable for 5030 propellers for pushback high-speed aircraft Propeller Selection Recommendations for the 2208 Motor at General 2S 7.4V Operating Conditions The following parameters are for reference only: 1147 propellers for 1100 kV Motor 1400 kV Motor for 1060/9050 Propellers 1800 kV Motor for 8060/8040 Propellers 2600 kV Motor for 6035 Propellers Efficiency: 80% Maximum Efficiency Current: 6-13A (>74%) No-load Current/10V: 1.1A Maximum Current: 18A/60s Suitable for quadcopters, multicopters, fixed-wing aircraft, KT aircraft, etc. Dedicated fixed-wing brushless motor. and affordable, suitable for entry-level operators. Warm Tip: Due to batch variations in motor output shaft diameter, the dimensional accuracy of each motor output shaft may not be exactly the same! The motor must be with the appropriate propeller. When installing and using the propeller , be careful not to break them. Broken propeller can create a crash hazard!
