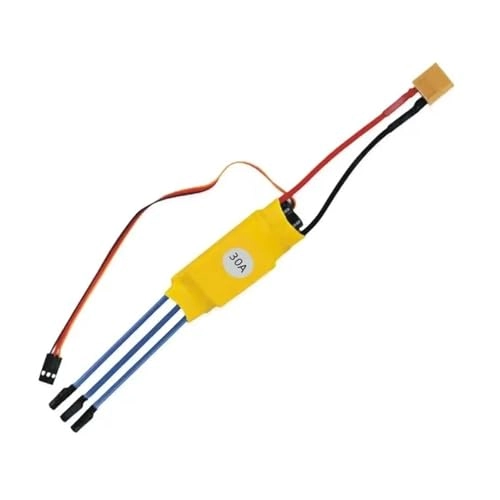

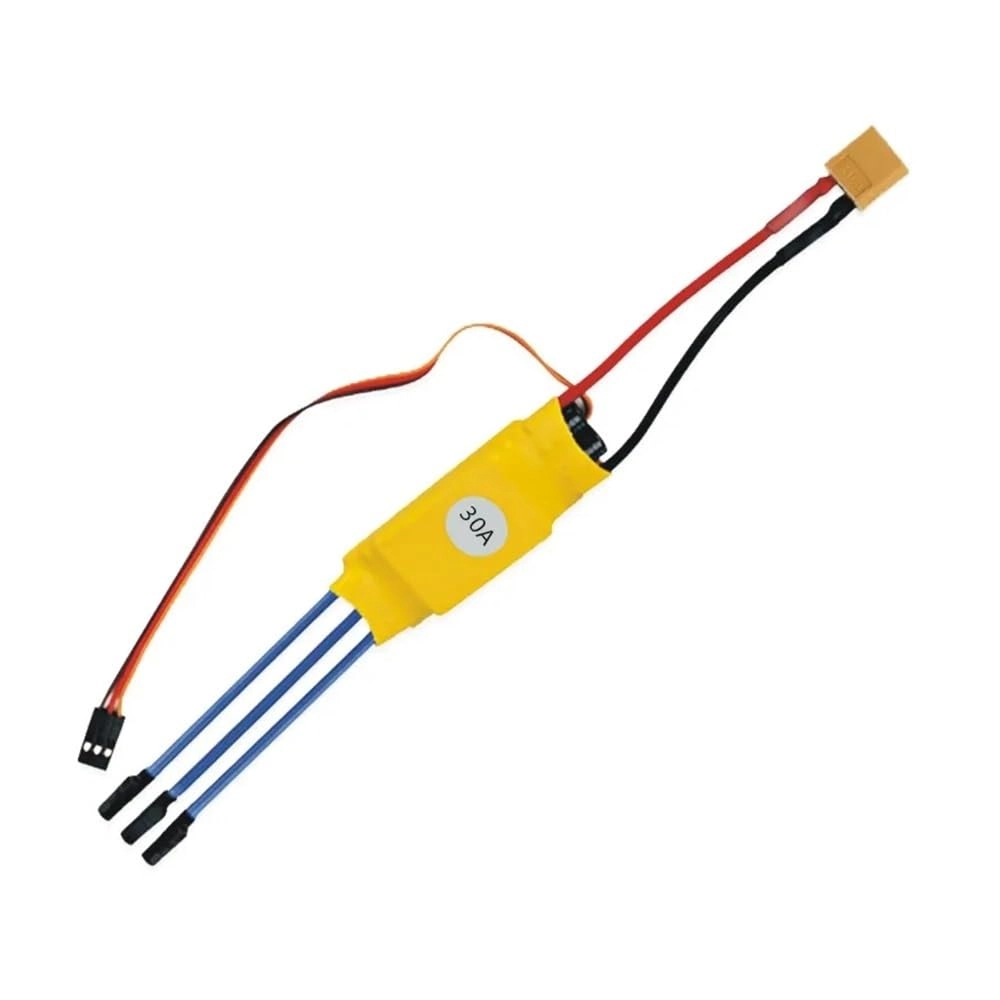

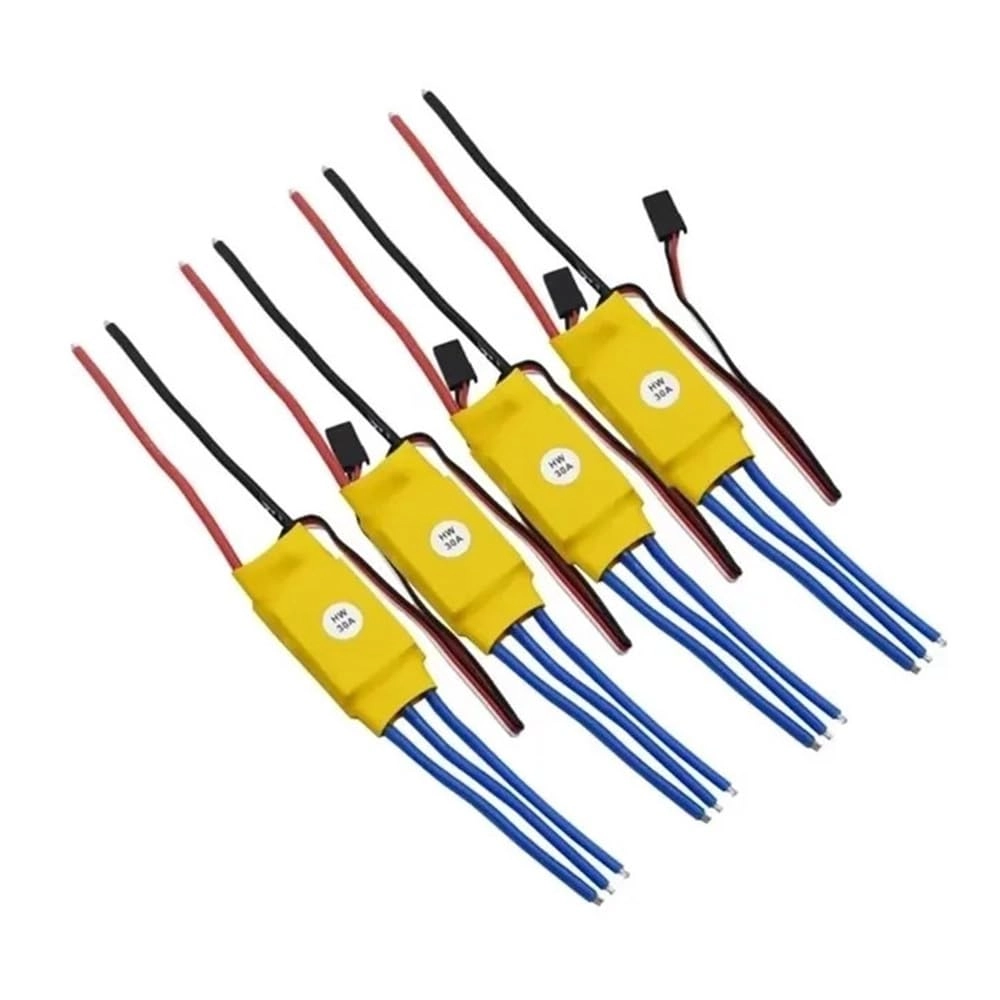

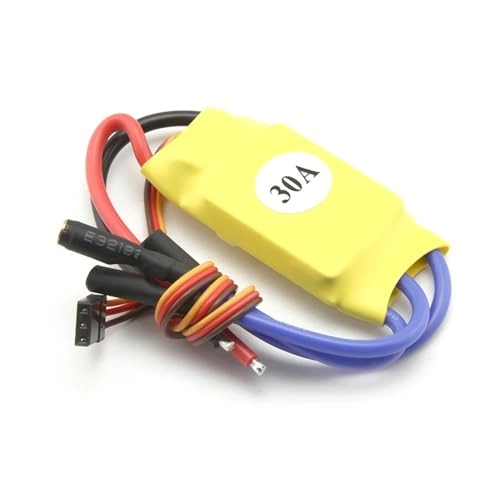

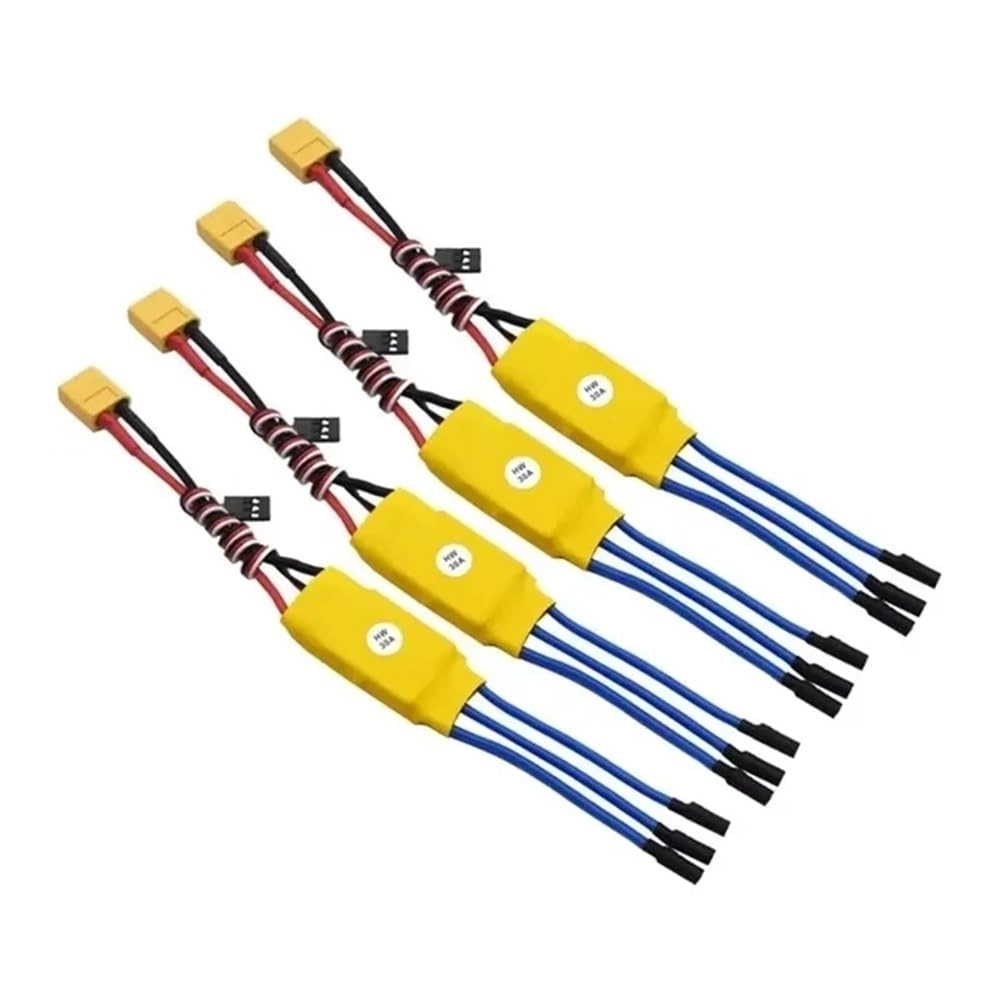

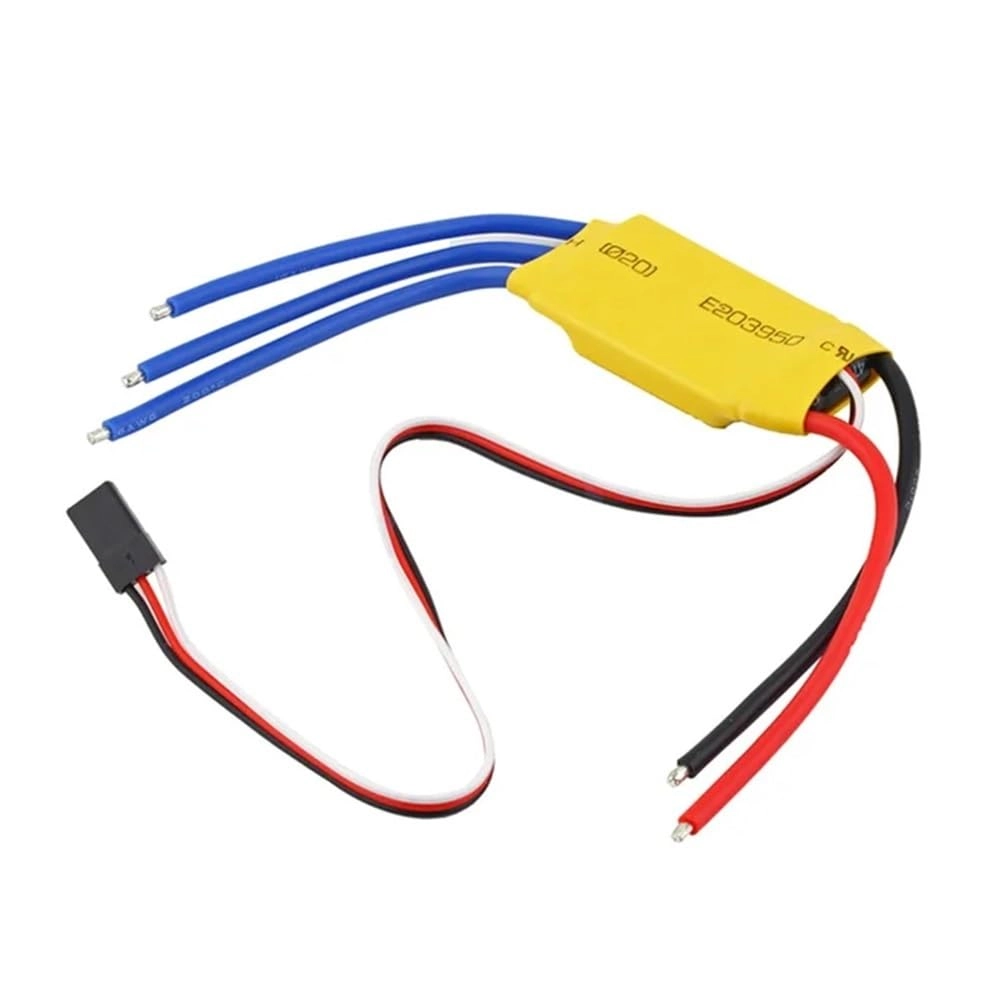

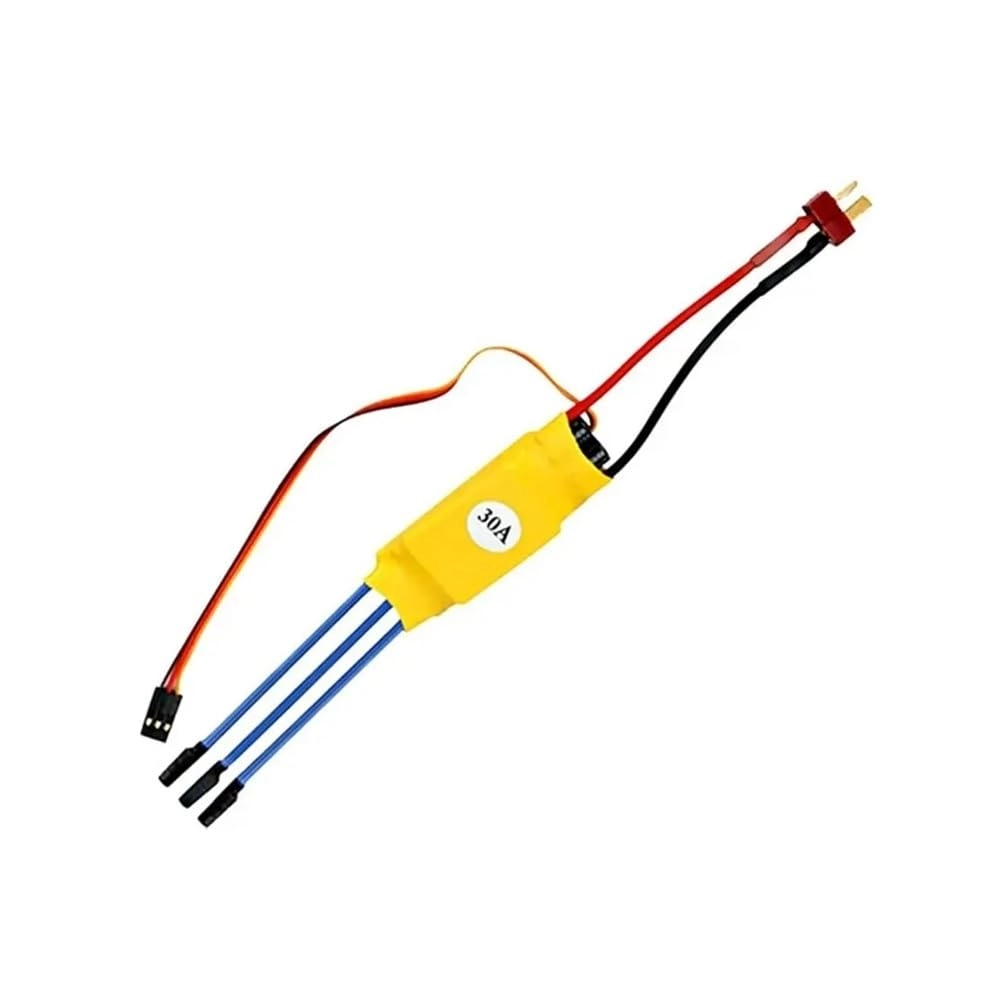

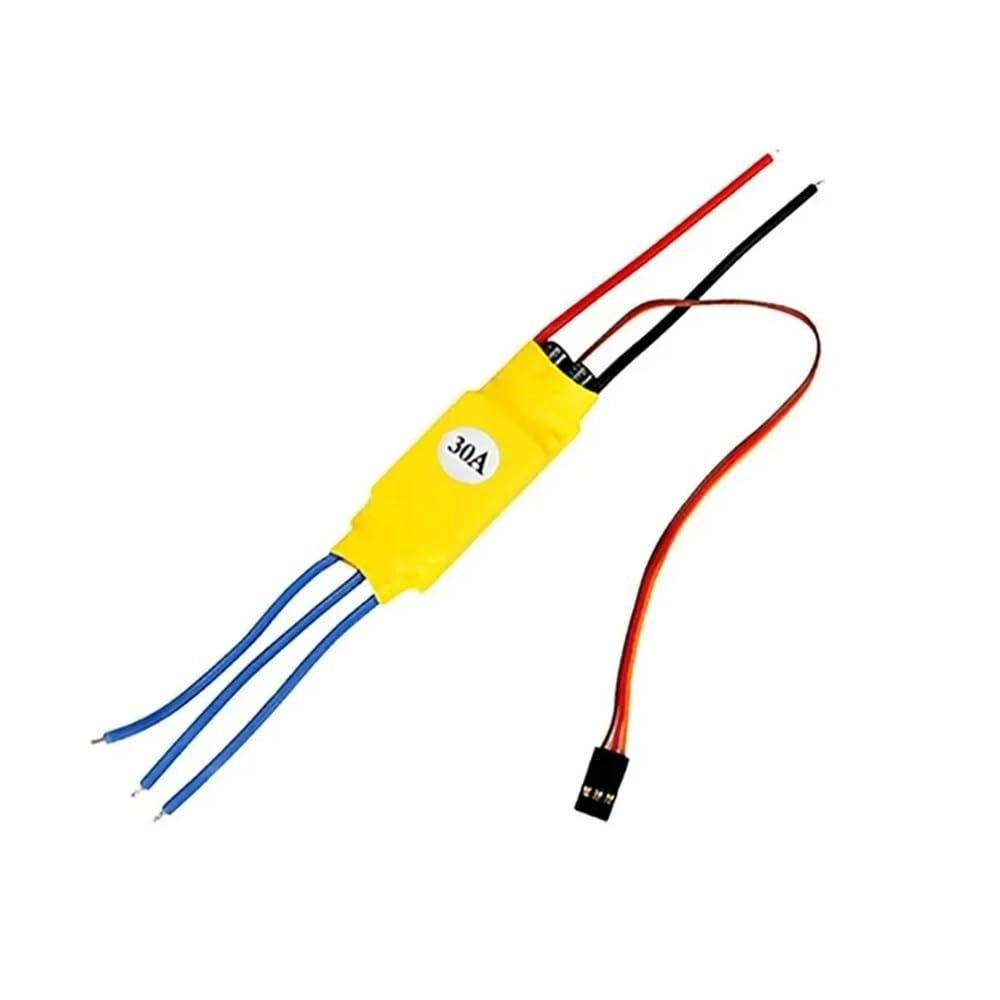

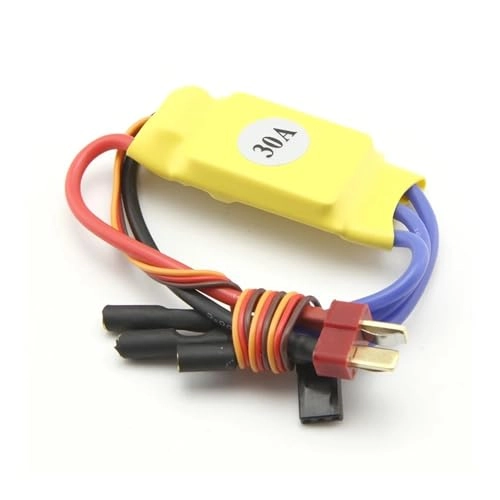

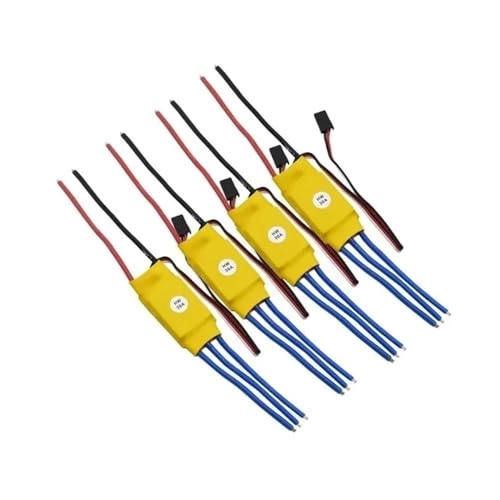

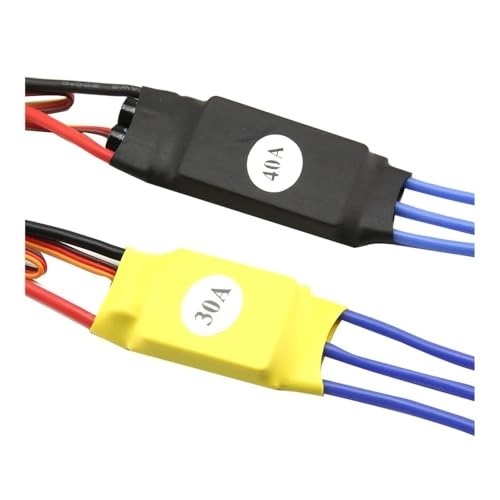

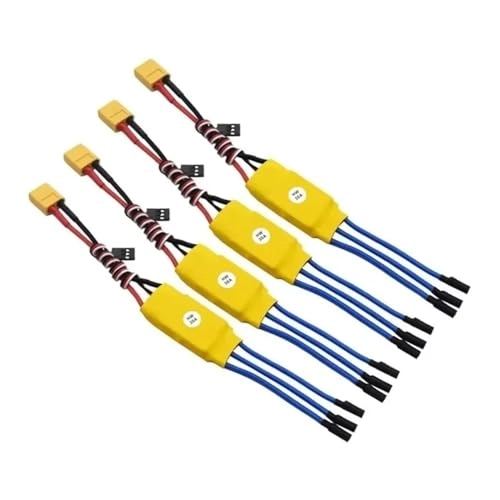

SxRakiO 30A ESC - XT60 Brushless

Continuous current: 30A Momentary current: 35A, 40A for 10 seconds. Dimensions/Weight: 32x24x7mm, 13g (excluding cable), 20g (including cable) Voltage Range: 4V-16V Battery Quantity:4-12 NIMH Batteries,2-3 LIPO Batteries(4 LIPO Batteries do not support BEC output) BEC Output: 2A Continuous, 3A Momentary 2 LIPO batteries support 4-5 micro servo 3 LIPO batteries support 3-4 micro servo Protection features: Automatically selects 2-3 LIPO batteries, with protective voltages of 6V and 9V respectively; Automatically selects NIMH batteries with a protection voltage of 0.8V per battery; Safe start: Disables start if the throttle mode is incorrect; Temperature protection: Automatically switches off at temperatures above 110 °C; Error proof: Shuts off after 1 second without . Performance description: Speed limit: 300,000 rpm for 2-pole, 50,000 rpm for 12-pole, 42,000 rpm for 14-pole. 8kHz PWM control with speed control curve. Adaptive throttle compatibility with a wide range of remote control devices. Uses BEC with independent MCU power supply for more stable operation.
