CPU : i7-7500U Processor (2 cores 4 threads, 2.70 GHz, up to 3.50 GHz)
Processor Graphics :HD Graphics 620
Color :Black
Memory :DDR4
Storage :1xSSD
Network Card :1000M Gigabit LAN
Audio cards :HD audio
WiFi :2.4G and 5G dual-band WiFi.IEEE 802.11 protocol.Support Bluebooth

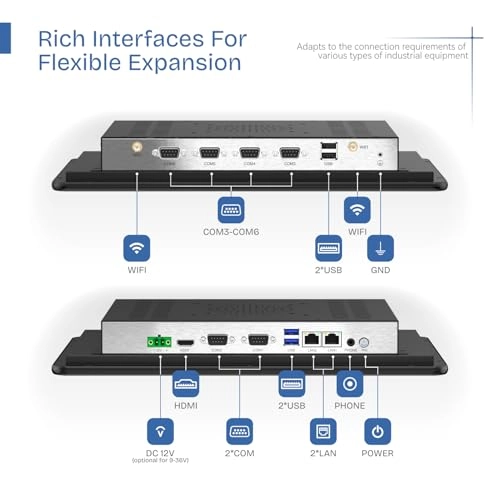

I/O port : POWER+1* DC±12V + GND+WIFI+PHONE+1*HDMI+2*LAN+4*USB+6*COM (COM1~COM2 :2*RS485, COM3~COM6 : 4*RS232 as default. COM1/COM2 selectable to RS232, if you have requirement of RS232, please leave a message to us)
Operating temperature : -5~60°C.
Storage Temperature : -20~75°C
Humidity : 5%-95%
Power :Output 12V-5A
Plug :Default standard according to your country (European standard / American standard / British standard) (If you have requirement for plug, please leave a message to us)
Operating System :Default Windows 10 pro in English version
ATTENTION : Other options, Windows 10 IoT Enterprise LTSC/ Linux or other system, other system language, do leave message on the order.
Display type :LCD screen
Display Size : 13.3 inch
Resolution : 1920×1080
Brightness : 300 cd/m² (Typ.)
Aspect Ratio : 16 :9 (H :V)
Contrast Ratio : 1200 :1
Response Time : ≤20ms(Typ.)

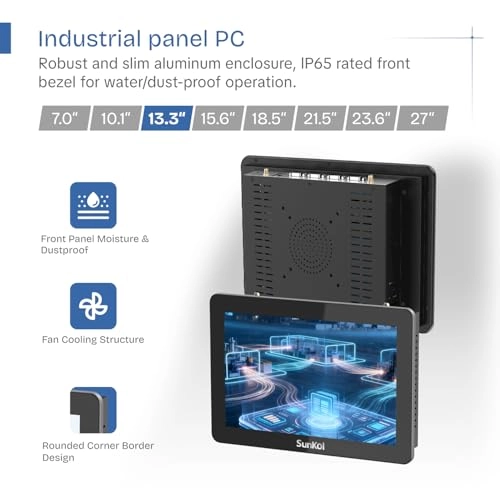

Front Panel Protection Class : IP65

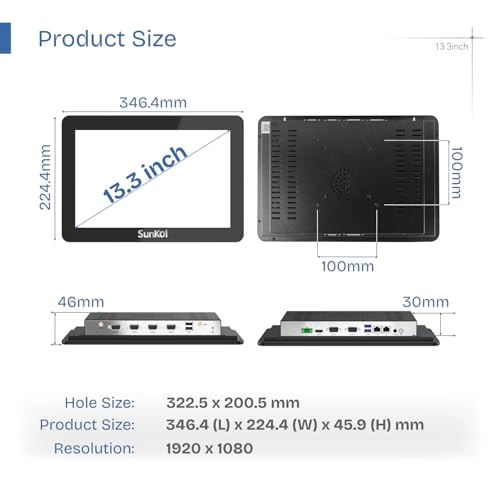

Physical Dimension : 346.4*224.4*45.9mm (L*W*H)
Recommended pre-cutting hole size : 326.5*200.5mm
Installation Method : Embedded (Recommended)/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
