CPU : i5-7200U Processor (2 cores 4 threads, 2.50 GHz,up to 3.10 GHz)
Processor Graphics : HD Graphics 620
Color :Black
Memory :DDR4
Storage :1xSSD
Network Card :1000M Gigabit LAN
Audio cards :HD audio
WiFi :2.4G and 5G dual-band WiFi.IEEE 802.11 protocol.Support Bluebooth

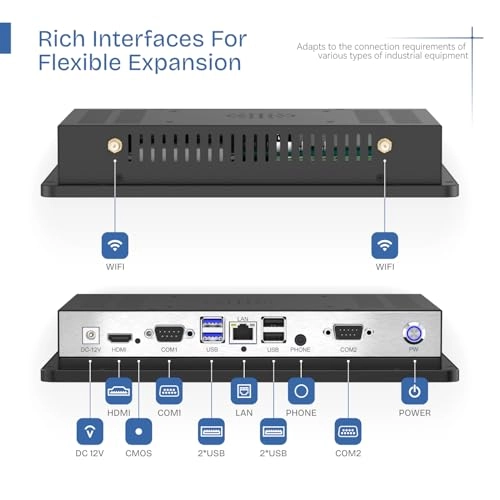

I/O port : AUDIO+POWER+1* DC±12V + WIFI+1*HDMI+1*LAN+4*USB+2*COM(2*RS232 as default)+PHONE+CMOS Clear Button
Cooling System : Fan Cooling
Operating temperature : -5~60°C.
Storage Temperature : -20~75°C
Humidity : 5%-95%
Power :Output 12V-5A
Plug :Default standard according to your country (European standard / American standard / British standard) (If you have requirement for plug, please leave a message to us)
Operating System :Default Windows 10 pro in English version
ATTENTION : Other options, Windows 10 IoT Enterprise LTSC/ Linux or other system, other system language, do leave message on the order.

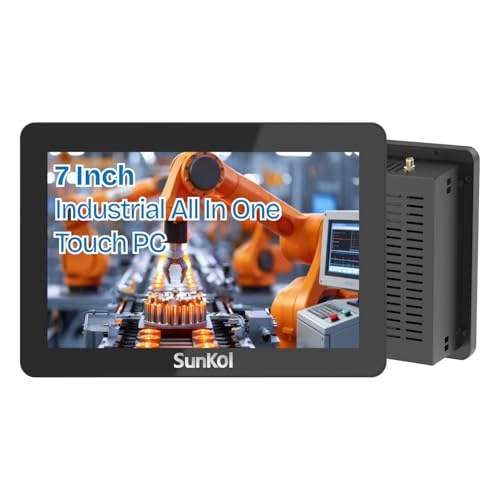

Display type :LCD screen
Display Size : 7 inch
Resolution : 1024×600
Brightness : 350 cd/m² (Typ.)
Aspect Ratio : 17 :10 (H :V)
Contrast Ratio : 500 :1
Response Time : ≤20ms(Typ.)

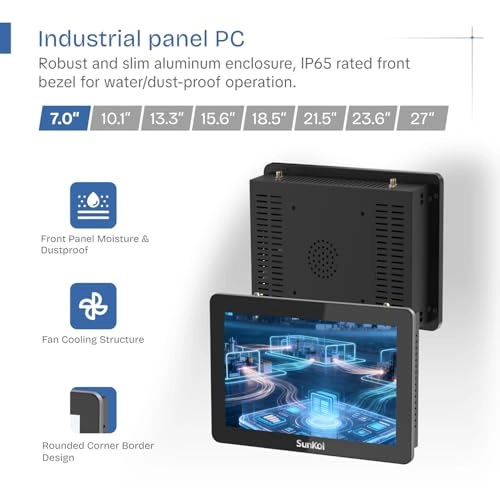

Front Panel Protection Class : IP65

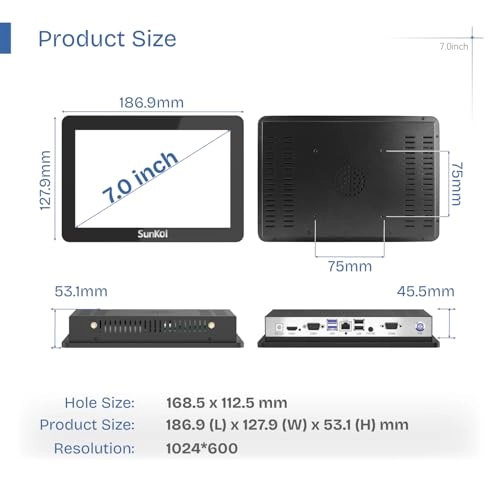

Physical Dimension : 186.9*127.9*53.1mm (L*W*H)
Recommended pre-cutting hole size : 168.5*112.5mm
Installation Method : Embedded (Recommended)/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
