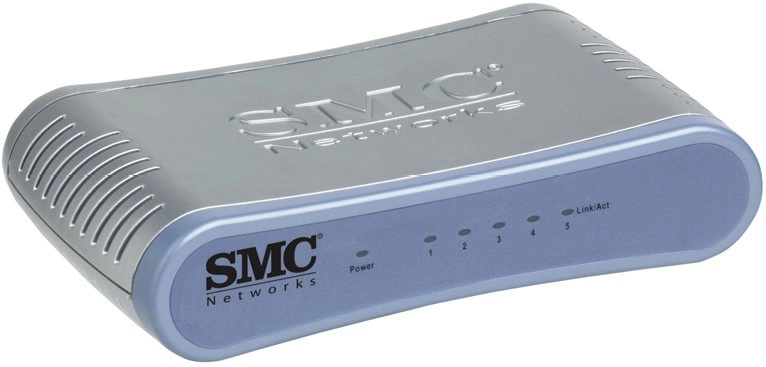

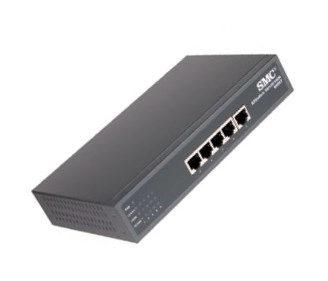

SMC105DT - 5-ports

Name: SMC SMC105DT - 5-ports
Brand: SMC
SKU: 852834
Availability: InStock

Best offer

AED

194⁰⁰

Key Features

Basic switching RJ-45 Ethernet ports quantity: 5
Data transfer rate: 1000Mbit/s
Switching capacity: 10Gbit/s
Full duplex: Yes
Maximum data transfer rate: 0.1, 1Gbit/s
MAC address table: 8000entries
Packet transfer speed: 7.4 Mpps
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Flow control support: Yes
Packet buffer memory: 0.384MB
Connectivity technology: Wired
LED indicators: Link, Power
Power over Ethernet (PoE): No
Stackable: No
Dimensions (WxDxH): 36.5 x 198 x 117mm

Specifications

Features

Safety

TUV/GS (EN60950-1)

Stackable

✗

Connectivity technology

Wired

Packet buffer memory

0.38 MB

Data transfer rate

1000 Mbit/s

Switching capacity

10 Gbit/s

Full duplex

✓

Maximum data transfer rate

0.10Gbit/s, 1Gbit/s

MAC address table

8000 entries

Weight & dimensions

Weight

600 g

Power

Power connector

DC-in jack

Power requirements

DC 12V/1.0A

Power consumption (typical)

9 W

Power over Ethernet (PoE)

✗

Other features

I/O ports

5x Auto-MDIX Ethernet (RJ-45) 1x Power, 5x Ethernet (RJ-45) 1x DC Power, 5x Ethernet RJ-45 1x DC Power

Electromagnetic emissions

EN 61000-3-2/3

Dimensions (WxDxH)

198 x 117 x 36.50 mm

Supported data transfer rates

10/100/1000 Mbps

Packet transfer speed

7.4 Mpps

Ergonomics

Connectivity LEDs

Design

LED indicators

Link, Power

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

Flow control support

✓

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Technical details

Switch type

Unmanaged

Product Details

The SMC8505T is a feature-rich, high-performance 5-/8-port 10/100/1000 unmanaged switch that maximizes your network’s potential while efficiently migrating your network to Gigabit speed. Delivering a combination of Ethernet, Fast Ethernet, and Gigabit connectivity in one compact solution, the SMC8505T removes server bottlenecks and speeds up access time for your users in just one move. Each port supports auto-MDI/MDI-X to simplify integration into a network. The SMC8505T also supports Jumbo Packets of up to 9K, complies with the IEEE802.3, IEEE802.3u, and IEEE802.3ab/Gigabit Ethernet standards, and features store-and-forward mode with wire-speed filtering to ensure data integrity. Automatic Source Address Learning and Aging ensure superior delivery of data., while broadcast storm control and runt and CRC filtering prevent erroneous packets from propagating, optimizing the network bandwidth. The SMC8505T also features IEEE802.3x-compliant full-duplex flow control and HOL blocking prevention. At A Glance LEDs show ongoing switch status and simplify troubleshooting.
