This desktop switch is designed for small offices and large workgroups. All ports automatically sense the network speed of computers and hubs to work at either 10Mbps or 100Mbps. Ports also automatically negotiate between full and half duplex and support flow control. Expansion is easy through the upward MDI port. You can put multiple switches together through this port to get more ports. IEEE 802.3x flow control allows your servers to connect directly to this switch for fast, reliable data transfer.
Power saving depending on number of connected ports and link status
Computers do not require Internet access all the time; switches do not use all ports at all times. When your computer or network is turned off, the switches often stay on and continue to consume large amounts of power. With D-Link Green technology, D-Link switches can automatically detect link status and reduce power usage for idle ports. However, computers or any terminals set to standby (not off) will not provide significant energy savings.
Power saving depending on cable length
Verified D-Link Green Switches have the ability to analyze the length of any Ethernet cable connected to them to adjust power usage accordingly. Shorter lengths require less energy.
Total Energy Saving Per Day
For a traditional switch, the power consumption remains constant even when the ports are not in use. In a standard workday scenario where computers are used for 10 hours a day and off 14 hours a day, and connected to the switch using 20-meter cables, D-Link Green technology can save up to 25% of the power used for each system.

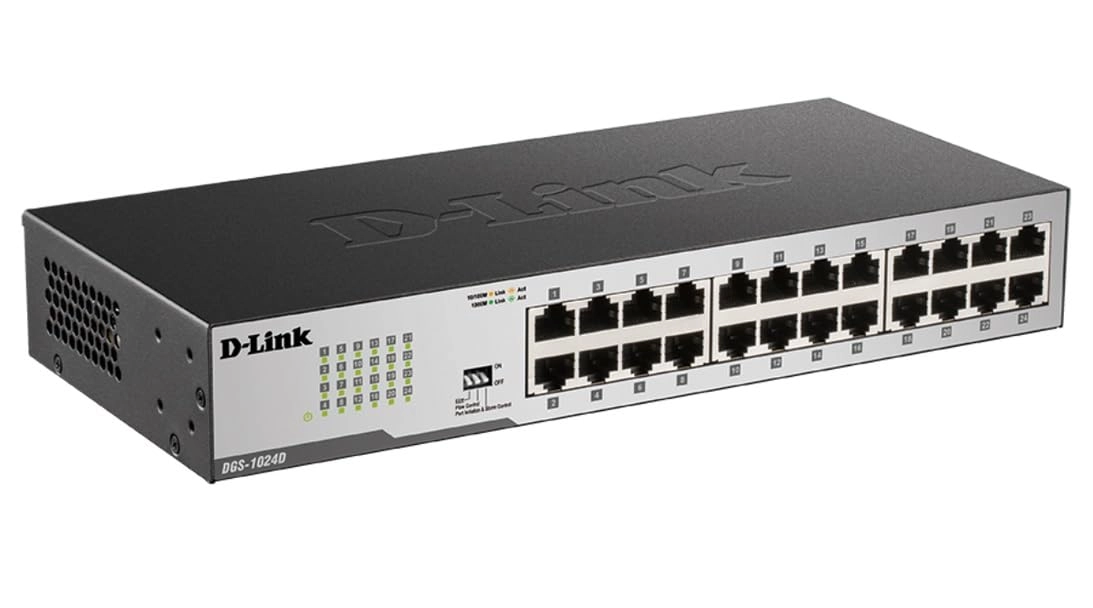

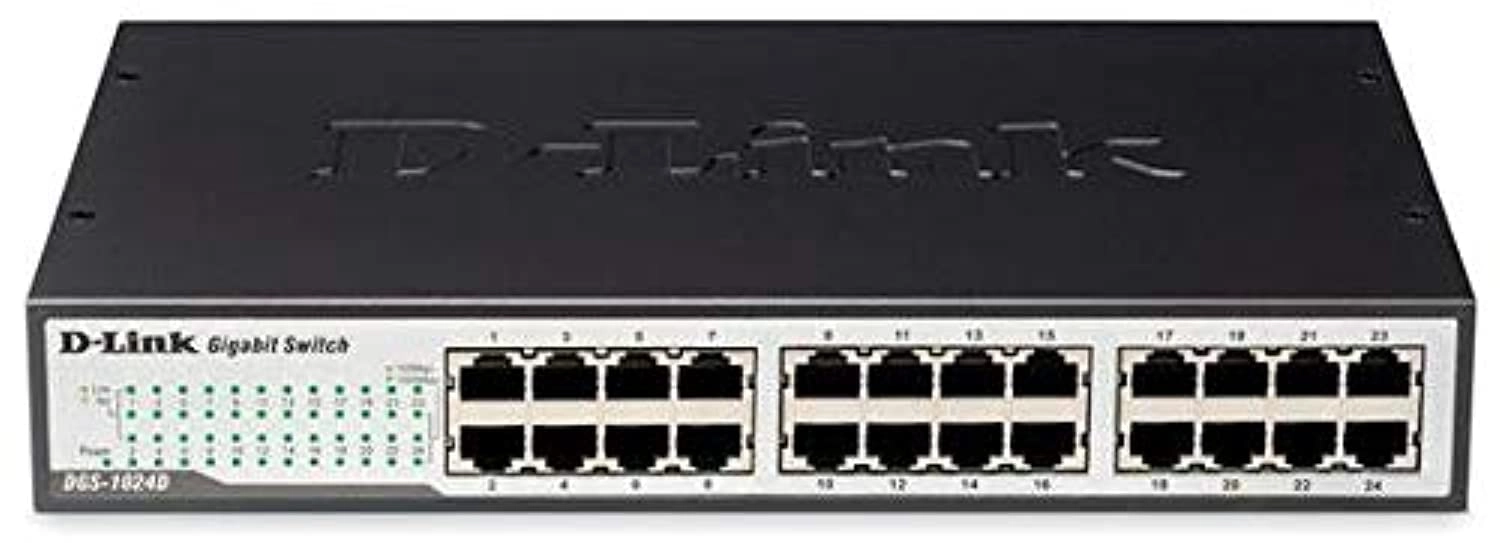

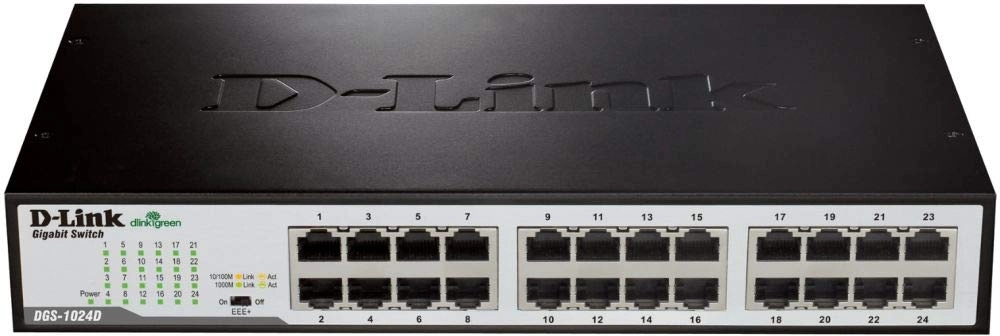

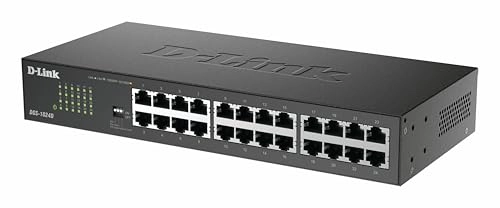

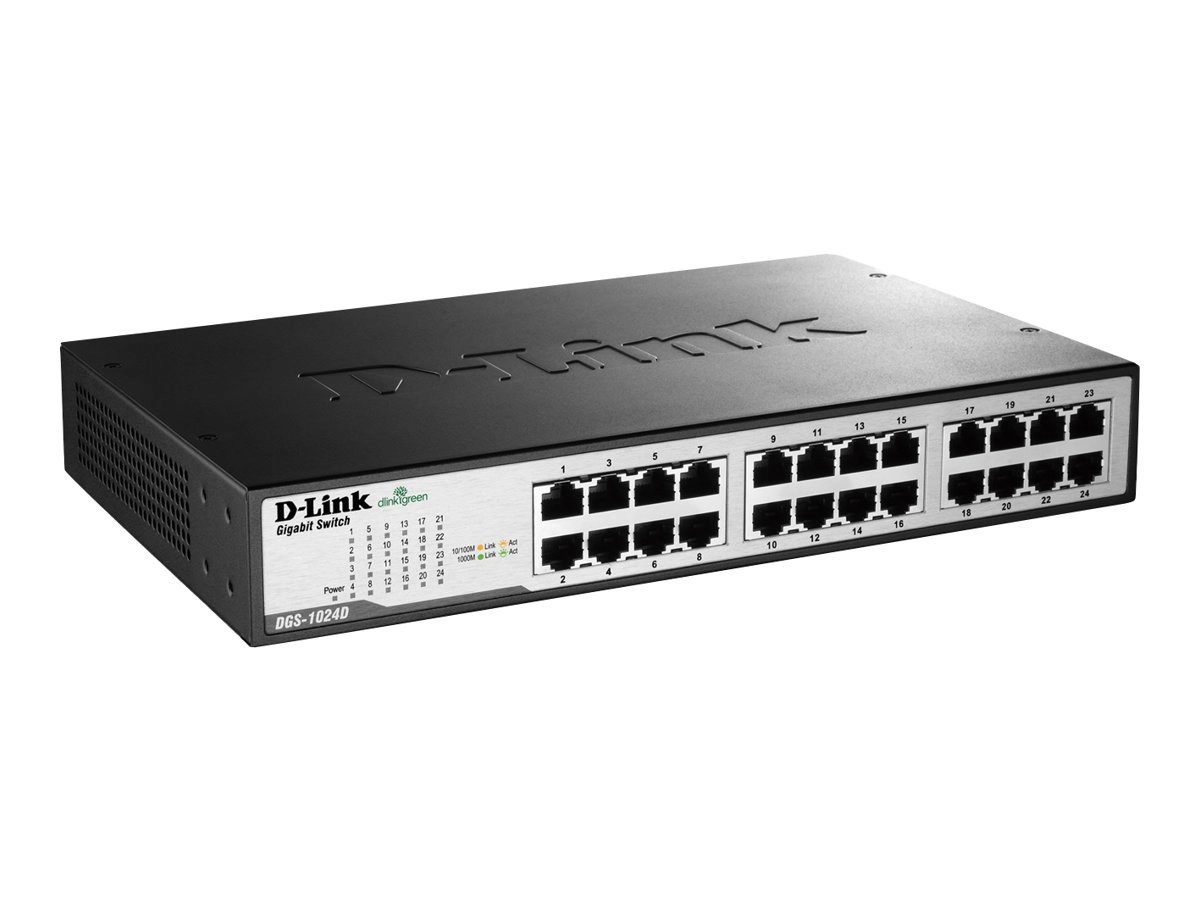

Get the ultimate speed of Gigabit Ethernet with the DGS-1024D Gigabit Express Switch, a 24-port 10/100/1000Mbps Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase network server speed and backbone connections, or make Gigabit to desktop a reality.
Users working in an office, workgroup, or creative production environment can now transfer large bandwidth-intensive files faster. Transfer graphics, CGI, CAD or multimedia files over the network instantly. The versatile, compact 1RU height design enables the DGS-1024D to be mounted on a standard 19" shelf, while conserving valuable shelf space.
Packed with energy
Features a non-blocking switching structure that filters and forwards packets at full wire speed for maximum throughput. The 8K Mac address table offers scalability to even the largest networks. Learn addresses and aging, 802.3x flow control for full duplex mode, backpressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transfer.
Designed using industry standards, it is compatible with almost all 10, 100, 1000Mbps Ethernet devices and other vendor equipment. The DGS-1024D 10/100/1000Mbps Gigabit Switch protects your existing network investments while providing a live migration path for faster Gigabit speeds.
Easy to use
The automatic features of this gigabit switch make installation and operation hassle-free. No setup required. Automatic MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, or 1000Mbps) and is intelligently tuned for compatibility and optimal performance.
The switch also features diagnostic LEDs that display status and activity, allowing you to quickly detect and correct problems on the network. Each port also supports cable diagnostics feature that helps detect cable related issues.
Specification:
Port Main Type
1000BASE-T Gigabit Ethernet
Number of Ports
16 to 28 Ports
Switching Capacity
32Gbps
Form Factor
Desktop
Can be mounted on shelf
Housing
Metal
Fanless
MAC Address
8K
Jumbo Frame
QoS per port
4
Cable Diagnostics
D-Link Green
802.3az energy-saving Ethernet support
Mac Address Table Size
8K
switch fabric
48Gbps Forwarding Capacity
Transportation Method
Storage and Forward
LED Diagnostic Lights
Per unit: power
Per port: activity/link, speed
Packet Cache
Charging: buffer memory 512KB per device
Maximum Power Consumption
19.1W
Quality of Service
802.1p (4 lines)
Acoustics
0dB
mtbf
784,286 hours
Interface Options
RJ-45
10BASE-T, 100BASE-TX, 1000BASE-T
Network Protocol & Standards
aee
Ethernet 802.3, Fast Ethernet 802.3u, Flow Control 802.3x, Gigabit Ethernet 802.3ab, Priority Queue 802.1p
Electricity & Emissions Summary
Emissions
FCC Class A, CE Class A

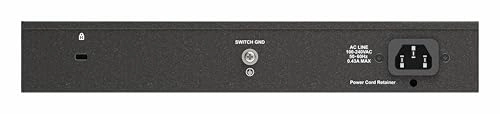

Power Supply
100-240V AC, 50/60Hz Internal Universal Power
Environmentally friendly
RoHS compliant
Safe and environmentally friendly
Safety
CSA, NRTL/C
TEMPERATURE
Operation:32° to 104°F (0° to 40°C)
Storage: 14° to 131°F (-10° to 55°C)
Humidity
Operation:5% to 95%RH (non-condensing)
Physical Specifications
Dimensions (W x D x H)
11.1" x 7.1" x 1.75" (281.9mm x 180.3mm x 44.5mm)
Weight
3.64 lbs (1.65 kg)
Power Plug
United Kingdom
Order Information
dgs-1024d
24 Port Gigabit Switch, Desktop/Shelf Mountable, Green
