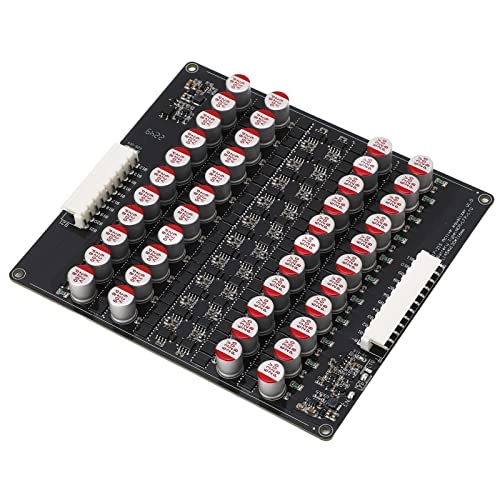

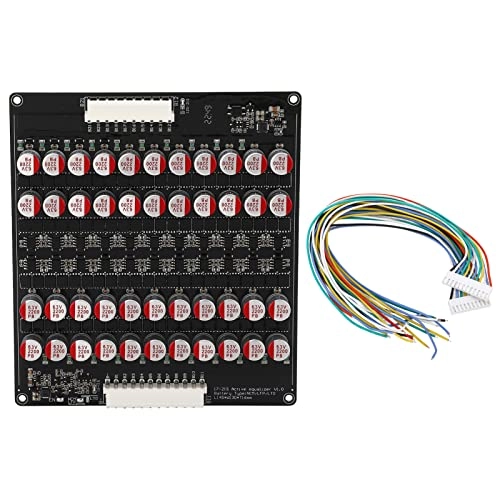

RE5WQH1H Battery Balance Board

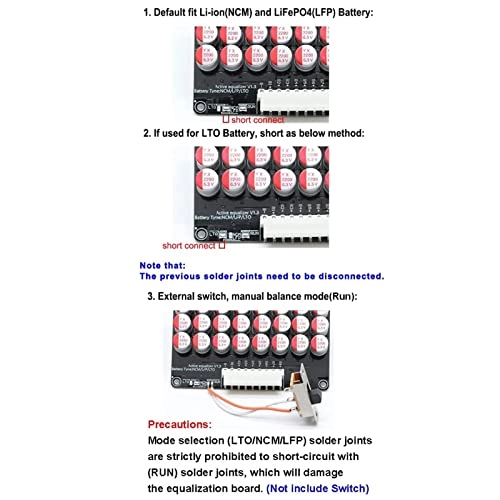

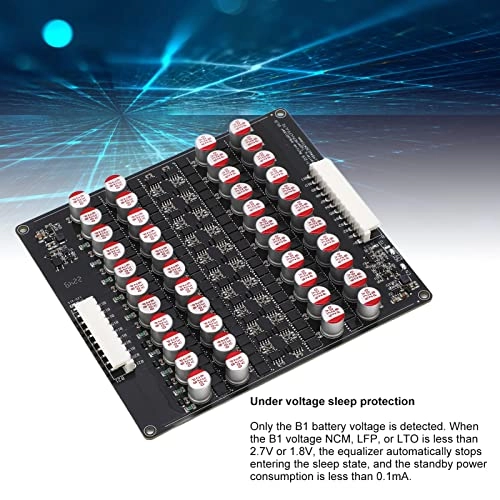

Feature: 1. WORK DETAIL: The working voltage is 1.8V?4.5V, suitable for NCM ternary polymer lithium batteries (Li ion), lithium iron batteries, and lithium titanate batteries (LTO). 2. USAGE TIPS: The voltage difference of each battery must be within 0.5V. When the battery voltage difference does not arrive above 0.1V, the lamp on the balance board is mistakenly triggered. When a lamp is lit, there is actually no balanced current, and after a period of time it will automatically go out. Therefore, we recommend reinserting and unplugging the data cable to solve the problem. 3. BALANCE DETAIL: The balance current is 0?5.5A, and the more balanced the battery current is, the smaller the battery current is. The connection position of the sleep switch is reserved. The working current in the sleep power off mode is less than 0.1mA, and the balance voltage accuracy is within 5mv! 4. UNDERVOLTAGE PROTECTION: The battery balance board only detects the B1 battery voltage. When the B1 voltage NCM LFP less than 2.7V or LTO less than 1.8V, the equalizer automatically stops entering the sleep state, and the standby power consumption is less than 0.1mA. 5. PCB BOARD: Made of PCB board, this battery balance board is wear resistant, and corrosion resistant, and has a long life span. How to Use: Install and use! Specification: Item Type: Lithium Battery Balance Board Material: PCB Working Voltage: 1.8V-4.5V Suitable Batteries: NCM ternary polymer lithium battery (Li ion), lithium iron battery, lithium titanate battery (LTO) Package List: 1 x Lithium Battery Balance Board 2 x Cable Note: 1. Before connecting the balance wire to the balance board, be sure to check whether the connection of each part of the battery pack is correct, and do a good job of insulating the board bottom and the battery string connecti
