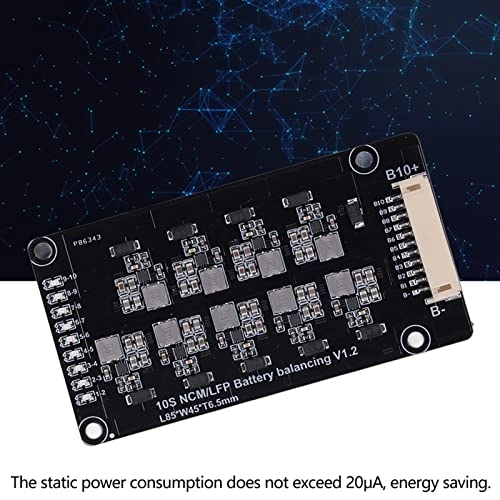

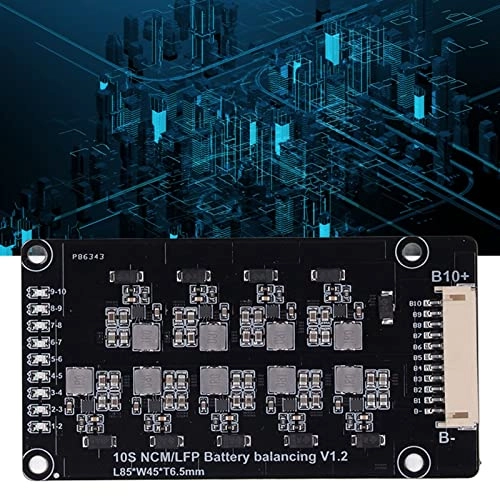

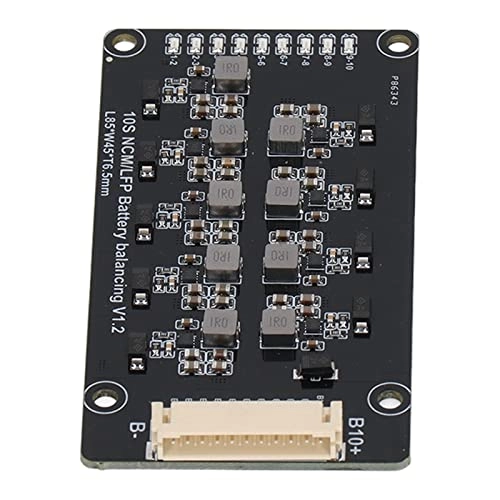

Spacnana 10S Battery Balancer

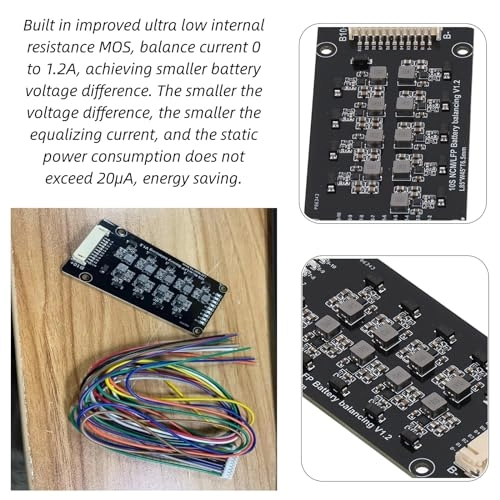

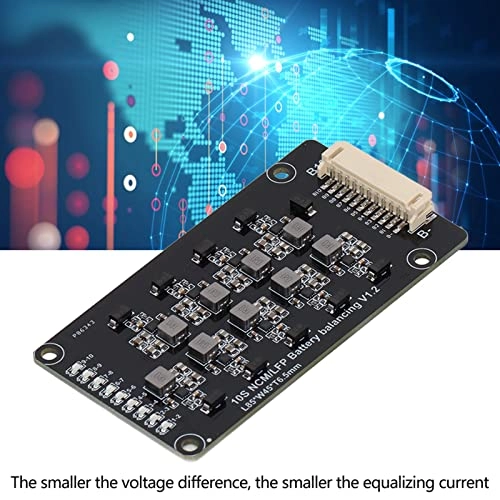

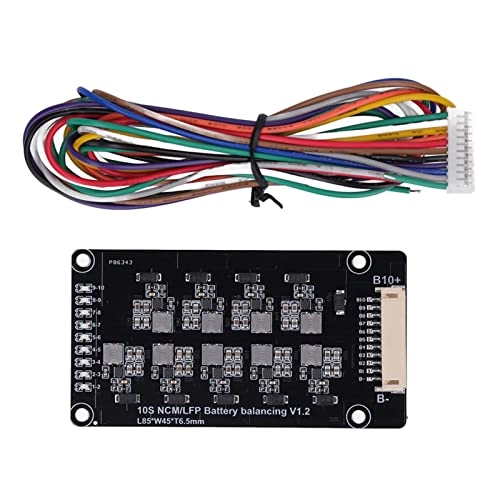

Specification: Item Type: Battery Balancer Material: PCB Harness Specification: 22AWG Technical parameter: The working voltage is 2.0V-4.5V, the Ternary Iron Lithium battery is common, and the LTO lithium titanate battery is not suitable. Balance current: The adjacent voltage difference is more than 0.1V (the current is about 0.5-0.7A); The adjacent voltage difference is more than 0.2 V (the maximum equilibrium current is 1.2 A); The smaller the voltage difference, the smaller the equalization current. Wiring Definition: B -, the total negative terminal of the battery pack (the negative terminal of the first battery) B1, the positive terminal of the first battery B2, the positive terminal of the second battery B3 , the positive terminal of the third battery B4, the positive terminal of the fourth battery B5, the positive terminal of the fifth battery B6, the positive terminal of the sixth battery B7, the positive terminal of the seventh battery B8, the positive terminal of the eighth battery How to use: Balance Instructions: 1. When the leveling light is on, the leveling work is turned on, 2. The leveling light is off, the equalization circuit is in sleep mode, 3. The equalization light flashes to indicate that the string has dropped or the circuit is faulty. Package List: 1 x Battery Balancer. 1 x Cable
