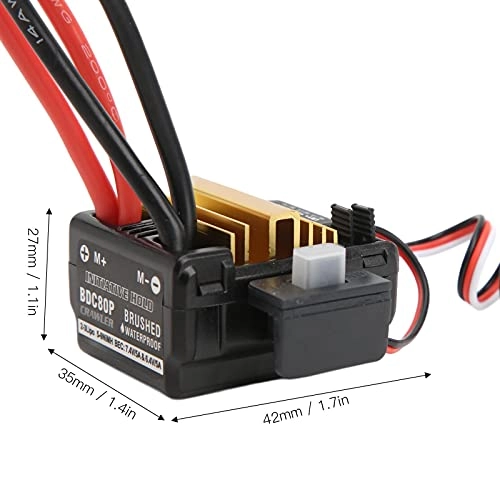

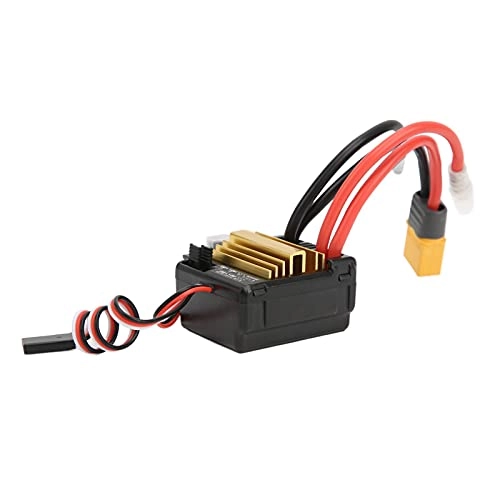

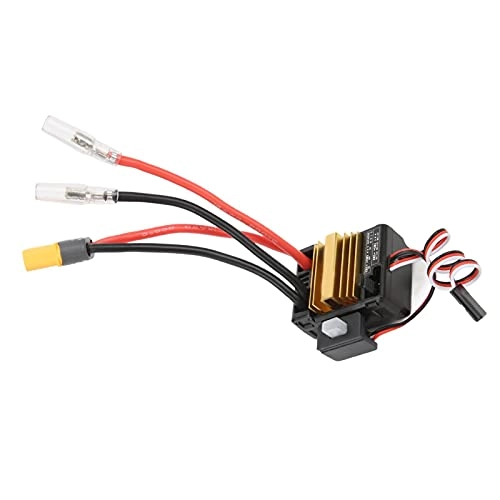

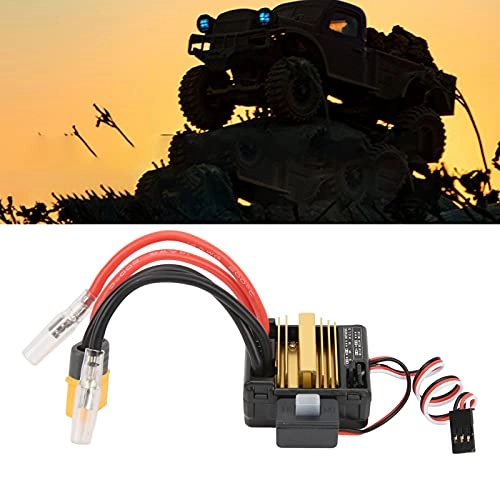

NFG1AWQES 80A PLUS V2

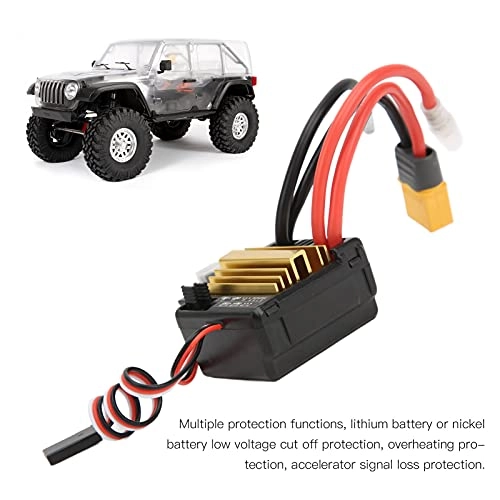

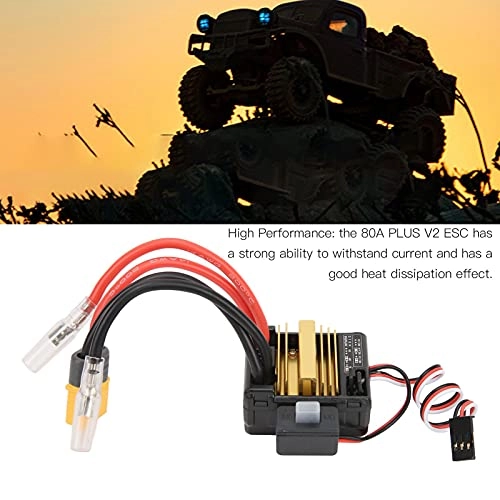

Feature: 1. Applicable Model: Designed specifically for 1/10 RC brushed Crawler, with excellent throttle linearity and driving experience, suitable for different vehicles, tracks and different control feelings. 2. Active Brake: The active brake can provide unprecedented ramp parking capability and is compatible with brushed motors. 3. High Performance: The 80A PLUS V2 ESC has a strong ability to withstand current and has a good heat dissipation effect. 4. BEC: Built in super switch mode BEC with 6.4V / 7.4V voltage and 5A current. Continuous 5A current can easily drive powerful steering gears, high voltage steering gears and winches, etc. 5. Multiple Protection Functions: The ESC has multiple protection functions, such as lithium battery or nickel battery low voltage cut off protection, overheat protection, and accelerator signal loss protection. How to Use: How to Use ESC: 1. Connect the BEC cable to the receiver. 2. Connect the motor cable to the ESC. 3. Turn on the remote controller. 4. Connect the battery plug to the ESC and turn on the ESC switch. 5. When the battery motor is connected, the motor will beep once. 6. If you hear a motor beep again, it means that the ESC has received the correct remote control center signal. 7. The ESC is successfully connected. Specification: Item Type: 80A ESC Model: 80A PLUS V2 Material: Plast
