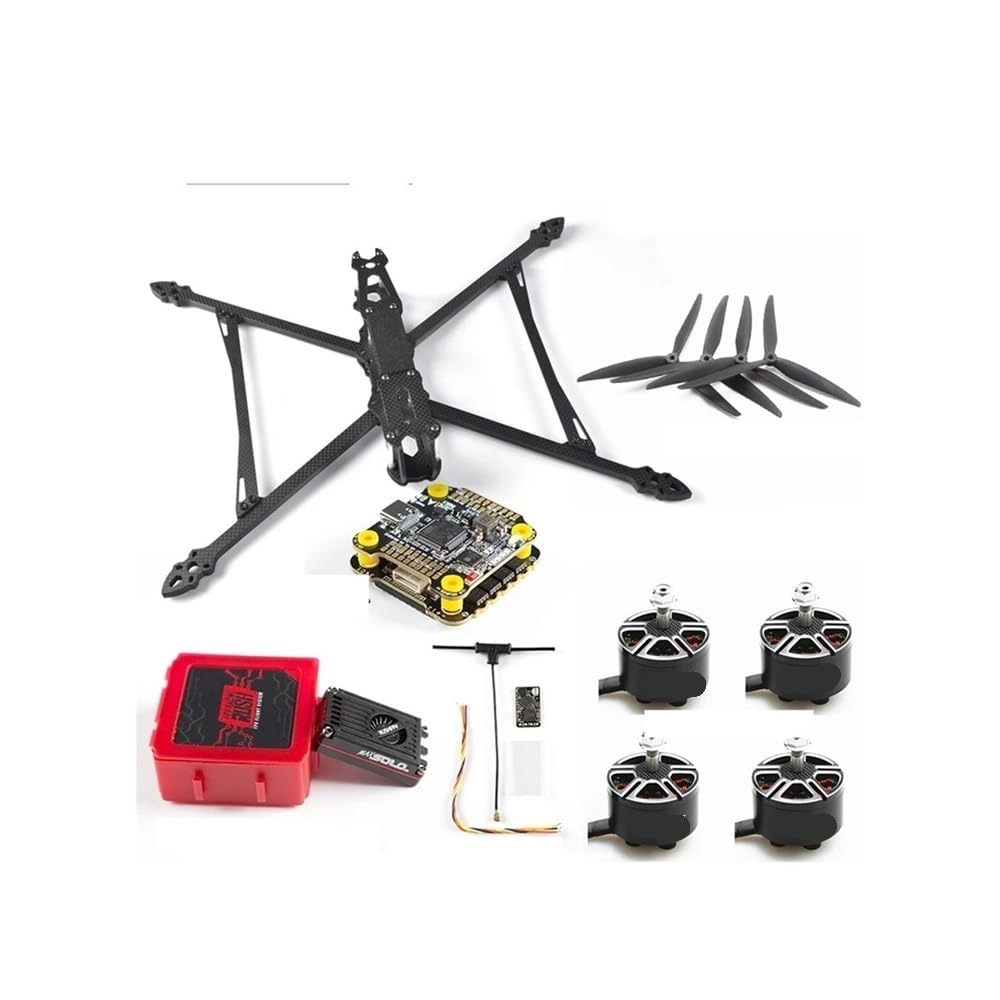

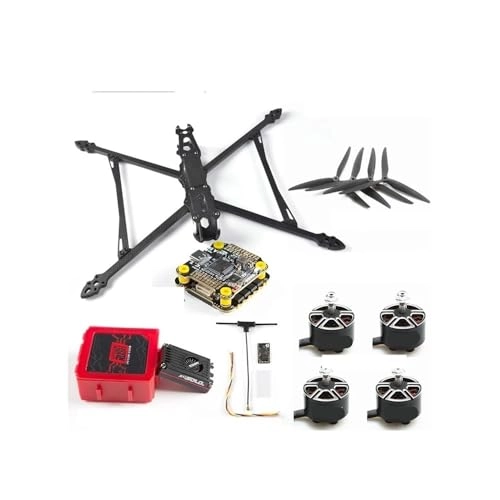

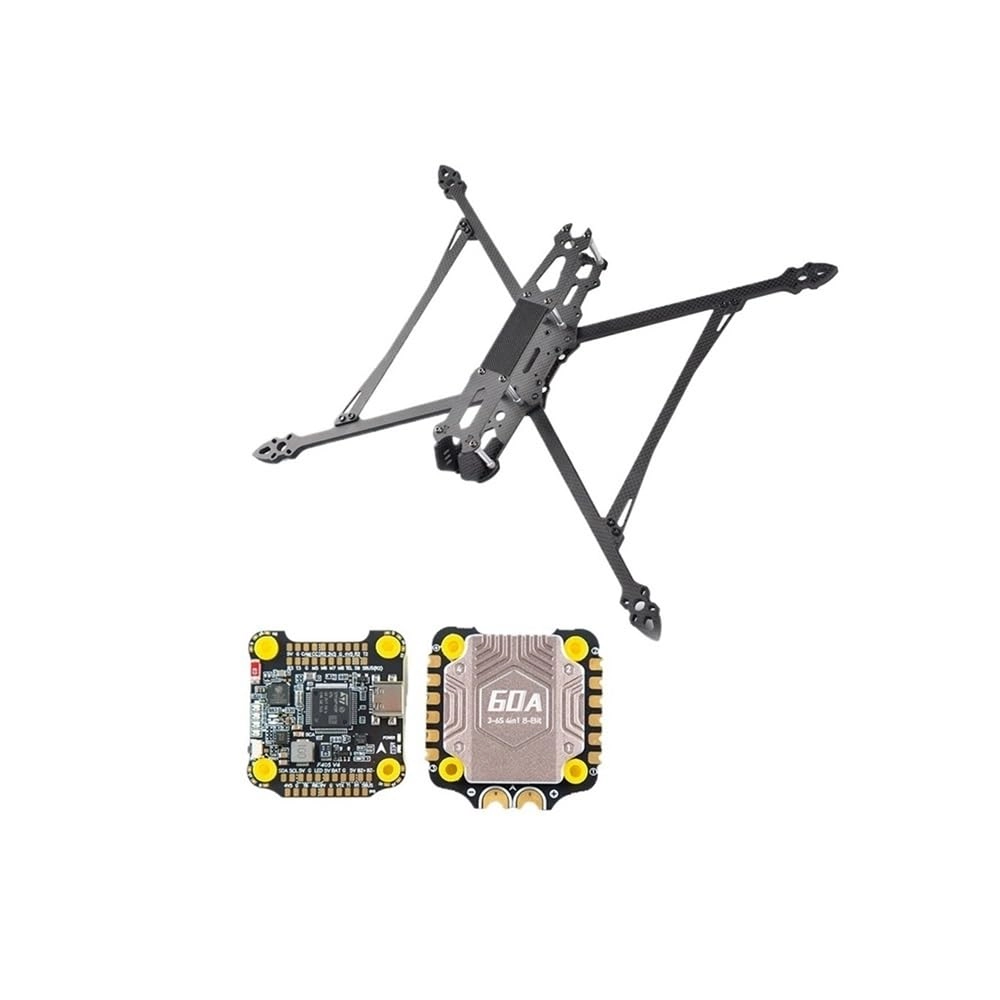

SxRakiO MAK4 V2 - 3115 900KV

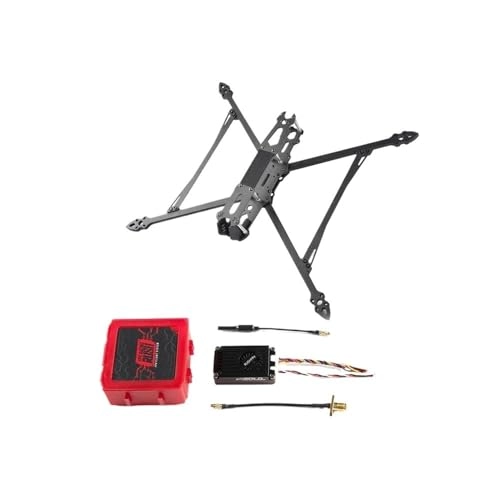

Model: MAK4 V2 10 inch Wheelbase: 427 mm. Weight: approx. 227 g. Base plate thickness: 3 mm. Top plate thickness: 2 mm. Camera Arm Thickness: 6mm Camera sidewall thickness: 2.5 mm. Camera mounting hole distance: 19mm Assignment of mounting hole spacing: 20 x 20 mm and 305 x 305 mm. Distance between mounting holes for flight control: 305 x 30.5 mm. Inner distance: 35 mm. Distance between the motor mounting holes: 16 x 16 mm and 19 x 19 mm. 3115900KV Motor Nut type: 12N14P : N52SH A-type. Shaft diameter: 5 mm. Operating voltage: 6-8S. Mounting material: 6061-T6. Weight (g): 108 g Bearing: 11 x 5 x 5 mm. Number of lithium batteries: 3-6S. Power: 1525 W. Maximum current (60S): 60.5A. Model: 10X5X3 (CW/CCW) Length: 10 inches. Pitch: 5 inches. Blades: 3 blades. Weight: 25g Mounting: 5 mm. Colour: black. Support plate diameter: 254 mm. Centre thickness: 9 mm. Maximum support width: 26 mm. Product: RUSHFPV MAX SOLO 2.5W video transmitter. Parameters: Channels: 48 channels. Power level: PIT - 25mW - 500mW - 100mW - MAX* Input: DC 7-36V (6S lithium battery) Output: DC 5V (maximum 500mA) Video input: CVBS PAL / NTSC Audio input: 6.5 m mono Antenna connection: MMCX 50. External control: audio Dimensions: height 40 mm x width 24 mm, 10.5 mm x 10.5 mm thickness. Weight: 15g (without cable) Product Name: BLS 60A 30x30 4-in-1 Regulator Firmware: BLHeli_S JH-50. Continuous current: 60 A x 4. Peak current: 80A (10 seconds) External capacitor: 1000µF low ESR capacitor (included) ESC protocol: DSHOT300/600 Power Input: 3-6S Li-Po Battery Power output: VBAT Current sensor: supports (scale = 400, offset = 0). ESC telemetry: not supported Assembled dimensions: 30.5 x 30.5 mm (4 mm opening). Dimensions: 45.6 (L) x 44 (W) x 8 mm (H). Weight: 23.5g Product Name: F405 V4 30x30 Flight Controller MCU: STM32F405. IMU (gyroscope): ICM42688P USB port: Type C Barometer: Built-in. OSD chip: AT7456E. BLE: Support Used for flight control configuration (requires enabled MSP, UART4 baud rate 115200). WiFi: Not supported. Air system connector: support two methods: 6 pin connector or direct soldering. 6 Pin D-Sub Air System Connector: Support Fully compatible with D-Sub/Link/Vista/D-Sub Air System V1, no cable modifications required. Quantity: 1
