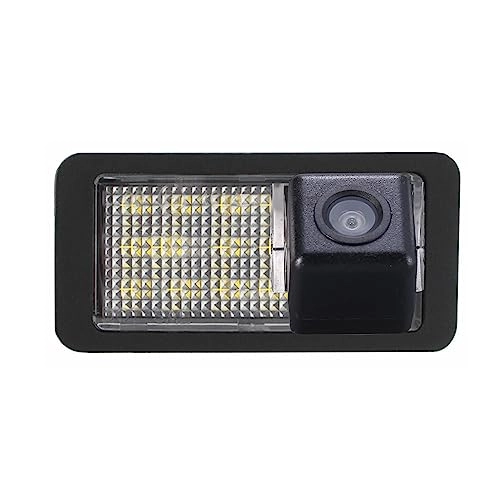

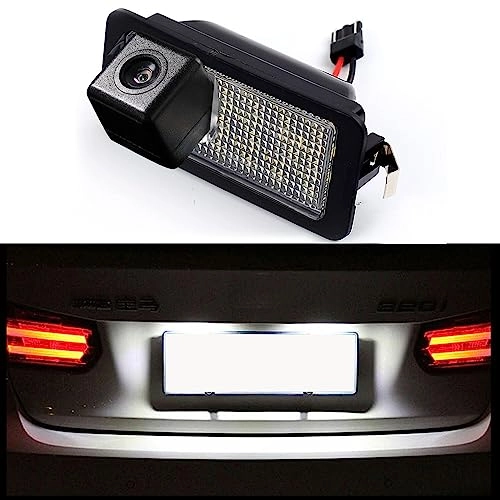

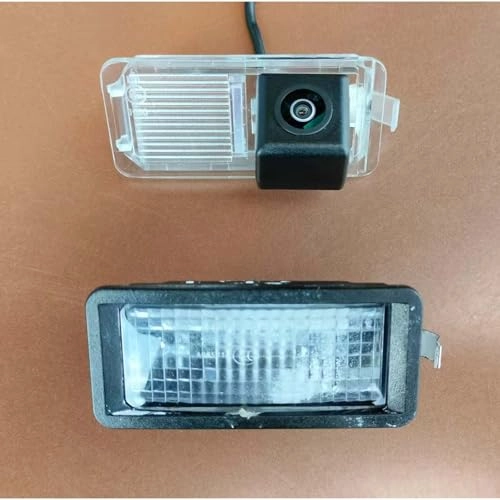

Navinio Rear View Camera - Night Vision RCA video input 628 x 586 pixels

Suitable for all models below:

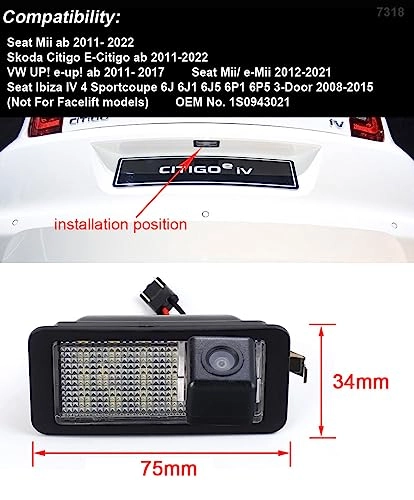

Replacement for VW UP! e-up! from 2011 - 2017; Seat Mii from 2011 - 2022 Skoda Citigo E-Citigo from 2011-2022; Seat Mii/e-Mii 2012-2021; Seat Ibiza IV 4 Sportcoupe 6J 6J1 6J5 6P1 6P5 3-Door s 2008 -2015 (Not for Facelift models) OEM No. 1S0943021

Product features:

1st TV System: NTSC (if you want PAL, please email us)

2nd Resolution: 480/520 TV lines

3rd Lens Angle: 140~170 degree

4th S/N ratio: More than 48 dB (AGC-OFF)

5. Video Color: Night Vision Color (Night Version)

6th Video Output: 1.0Vp-p, 75Ω

7th Image Device: 1/3 inch color

8th Measurement area: 5.8 x 4.2 mm

9th Sync. System: internal

10. Voltage: DC 12 V + -1

11. White balance: Auto

12. Waterproof: IP67

13. Effective pixels: 628 x 586

14. Electronic shutter: 1/60-1/10000 second

15. Current consumption: ≤ 150 mA

16. Current use: 90 mA max

17. Temperature: -40°C to +60°C, RH95% max.

18. Minimum illumination: 0.3 lux/F1.2

19. Operating temperature: -30°C to +50°C, RH95%

20. Top quality 1/3" color sharp LCD, other sellers have cheap 1/4" color CMOS LCD

Installation Diagram:

Our package including child diagram

Content:
