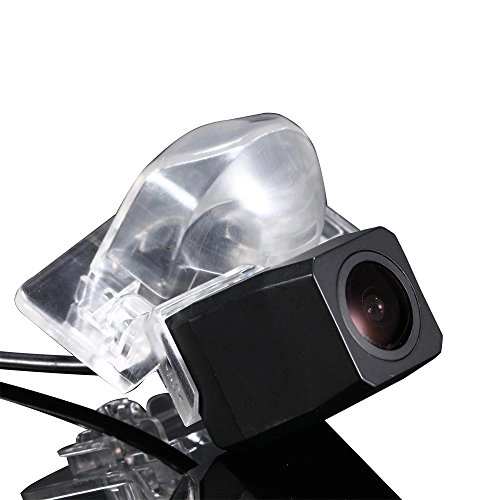

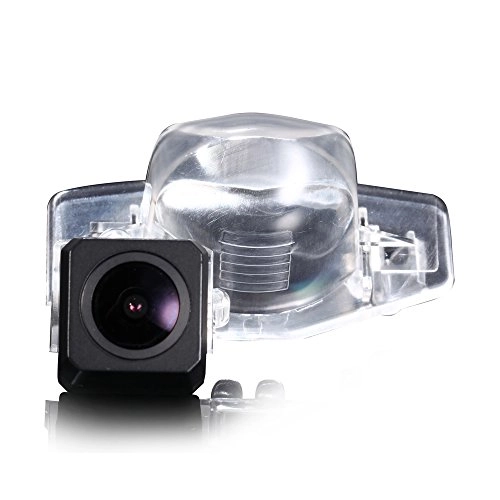

Navinio Rear View Camera - night vision colour RCA video input 480/520 TV lines

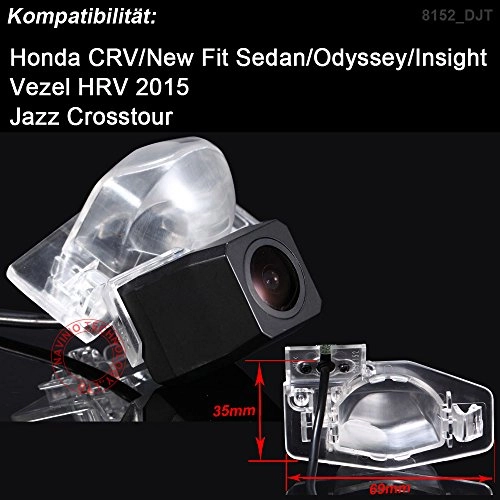

Fits all below models:

Honda CRV/New Fit Sedan/Odyssey/Insight/Vezel HRV 2015.

For Honda CR-V 2000 2001 2002 2003 2004 2005 2006 2007 20008 2009 2010 2011 2012 2013 2014

For Honda Fit 2006 2007 2008 2009 2010 2011 2012 2013 2014

For Honda Odyssey 2009 2010 2011 2012 2013

For Honda Crosstour 2012 2013 2014 2015

Product parameters:

1. TV system: NTSC (if you want PAL, please email us).

2. Resolution: 480/520 TV lines.

3. Lens angle: 140 ~ 170 degrees.

4. S/N ratio: more 48 dB (AGC-OFF).

5. Video colour: night vision colour (night version).

6. Video output: 1.0Vp-p, 75Ω.

7. Image device: 1/3 inch colour.

8. Sensing area: 5.78 x 4.19 mm.

9. Sync. System: internal

Voltage: DC 12 V + -1.

11. White balance: Auto

12. Waterproof: IP67.

Effective pixels: 628 x 586.

Electronic shutter: 1/60-1/10000 second.

Current consumption: ≤ 150 mA.

Current consumption: 90 mA max.

Temperature: -40°C to +60°C, RH95% max.

Minimum illumination: 0.3Lux/F1.2.

19. Operating temperature: -30°C to +50°C, RH95%.

20. Top quality 1/3 inch colour sharp LCD, other sellers are cheap 1/4 inch colour CMOS LCD.

Installation diagram:

Our package includes children's easy diagram.

Package includes:
