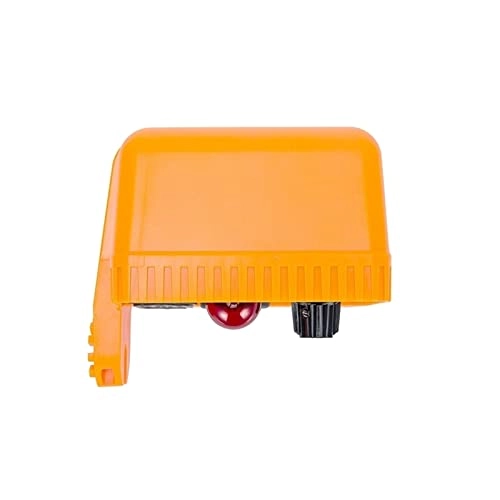

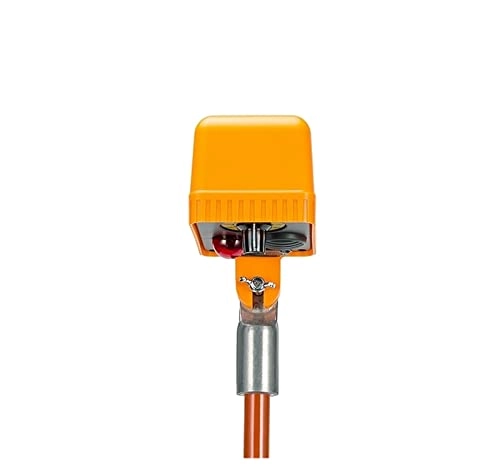

MKHFP ETCR1820 - Digital Ammeter Non-Contact High Voltage

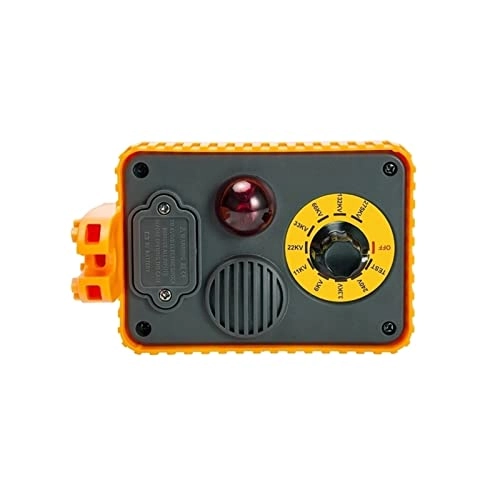

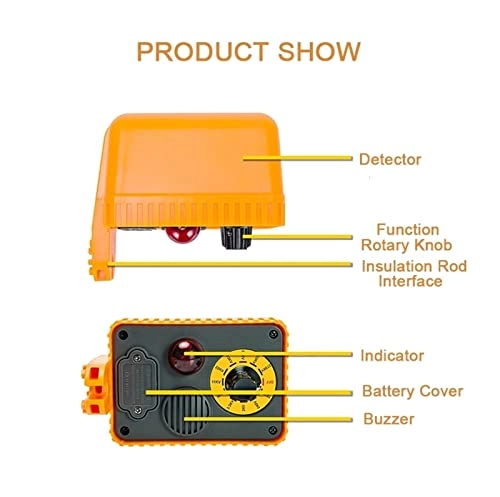

Product Function Applied on-site high-voltage line electricity, identify the voltage level of high voltage system, inspect the failure of high voltage line, repair inspection Induced voltage of neon lamp, high voltage sodium lamp, inspect residual high voltage or induced voltage, etc. Specification Electricity Gear and Voltage Grade Test Model Gear ETCR1820 OFF-Test-380V-6.6kV-10kV-35kV-66kV-1110kV-220kV-330kV-500kV ETCR1820B OFF-Test-240V-3.3kV-6kV-11KV-22KV-33KV-66KV-132KV-275KV Technical specifications Function On-site high-voltage line electricity test, identify the voltage level of high voltage system, inspect the high voltage line failure, repair induced inspection Neon lamp voltage, high voltage sodium lamp, inspect residual high voltage or induced voltage, etc. Power Supply ZN-MN Dry Battery 6F22, 9V Voltage Gear Nine gears Electricity Test Range 11 0V-500kV (Optinal) Electricity Test Level 380V, 6.6kV, 10kV, 35kV, 66kV, 110kV, 220kV Ground voltage display range 0.1kV-150kV (voltage to ground) Electricity Test Indication Red Flashes DIRECT Light Indication "Beep - Beep - Beep" buzz. Self-inspection function Turn the knob to "TEST" The gear, indicator light on and chime will make the sound of "beep". Low battery voltage indication When the detector battery voltage is less than 7.2V ± 0.1V, the green power indicator flashes; When the receiver voltage lower than 4.8V ± 0.1V, the low battery voltage symbol will be displayed and remember to replace the battery. Protection level IP65 Instrument Weight In
