Mercusys Technologies Co., Ltd. MS110GMP - 10-ports

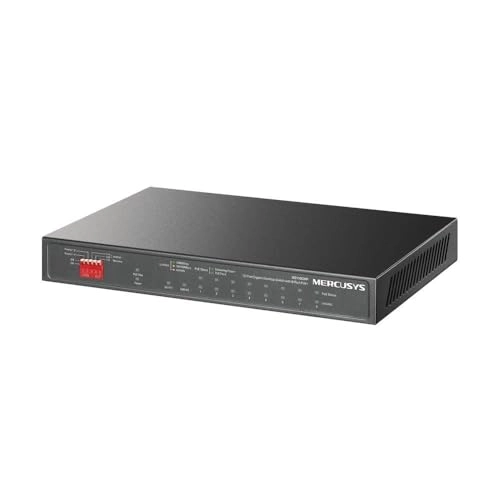

Mercusys MS110GMP 10-Port Gigabit Desktop Switch is built to support demanding network configurations that require both high-speed connectivity and Power over Ethernet in a single device. It provides eight 10/100/1000 Mbps PoE Plus ports and two additional 10/100/1000 Mbps uplink ports, delivering Gigabit Ethernet performance with a 20 Gbps switching capacity and a 14.88 Mpps packet forwarding rate. With a PoE budget of 111 W and each PoE Plus port supporting up to 30W, it can power IP cameras, wireless access points and other powered devices while simultaneously transferring data, simplifying cabling across the site. Features such as auto-negotiation, auto uplink, auto MDI/MDIX, flow control, full- and half-duplex store-and-forward switching and automatic MAC address learning and aging help optimize performance and reliability. Jumbo frame support up to 16 KB improves efficiency for larger data packets, while port-based priority and PoE auto-detection assist in allocating bandwidth and power to critical devices. The fanless enclosure enables quiet operation suitable for desktop use or rack/rail mounting and compliance with standards including IEEE 802.3af, 802.3at, 802.3x, 802.3i, 802.3ab and 802.3u ensures broad compatibility. An external power adapter rated at 53.5 V/2.43 A supports operation from AC 100–240 V, 50/60 Hz, while environmental ratings of 0 Degree celsius to 40 Degree celsius operating temperature and 10 Percent to 90 Percent non-condensing humidity, along with wide storage limits, make it a robust choice for varied installations.
