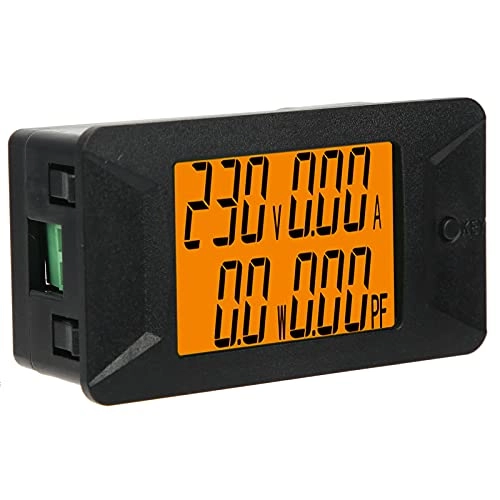

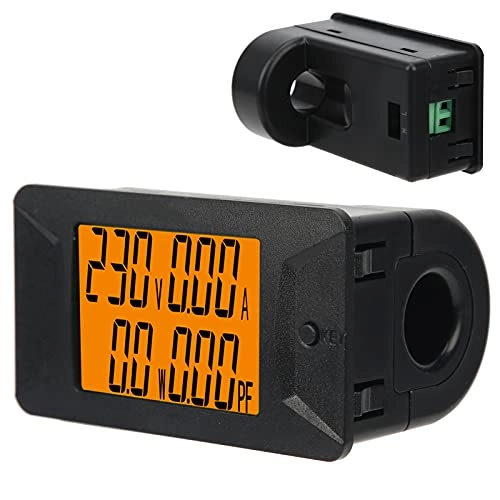

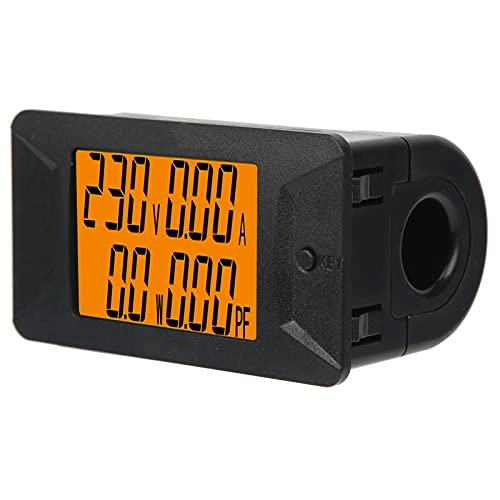

Mavaol PZEM - 028 - 40-400V 0~100A

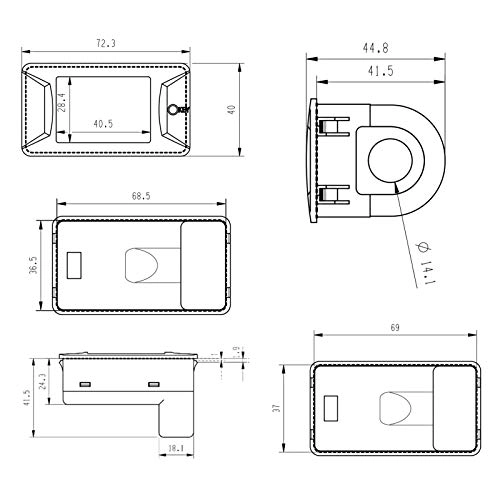

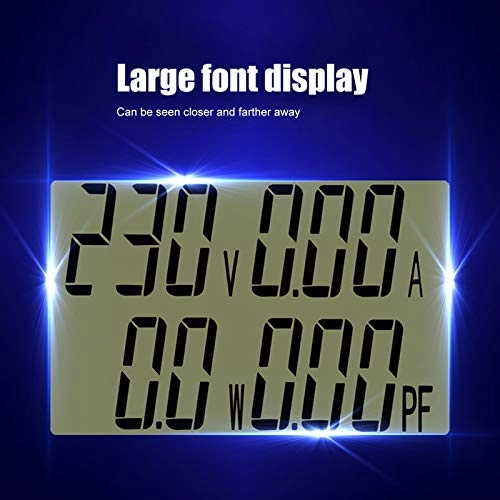

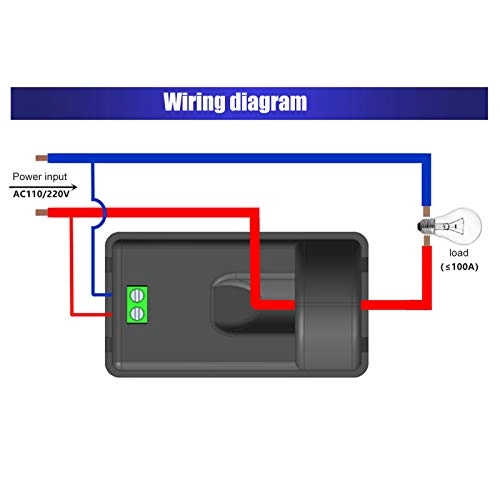

Multifunctional display: the digital AC meter displays voltage, current, power and power factor. Measuring range: 40-400V voltage, 0-100A current Flexible installation: integrated design for safety and durability. Recessed voltage connection to prevent electric shock. Powerful functionality: innovative integrated transformer design. Easy wiring, no distinction between neutral and live conductor. Safe non-measurement: current measurement without heating. Ideal for high and low power distribution cabinets, assembly line testing. Wide application: suitable for electronic maintenance, photovoltaic inverters and DIY projects. Brand new industrial design for a wide range of applications. Specification: Item Type:AC Digital Meter Material: ABS Colour: as shown in the picture. Total size: approx. 72.3 x 40 x 41.5 mm / 2.85 x 1.57 x 1.63 inches. Model: PZEM - 028. Function: AC voltage, current, active power, power testing. Display: STN Full Screen LCD Screen; Voltage + Current + Active Power + Power Factor Voltage: Test range: 40~400V Display format: measuring accuracy: ±1%. Power supply: AC: 110-220V 50/60HZ Current: Measuring range: 0~100A. Display format: Power: Test range: 0 ~ 22 kW. Display format: <1000W display such as: 500W, <10000W display such as: 5.00kW, 10000W display such as: 22.0kW. Starting power: 2.2 W. Measuring accuracy: ±1%. Power factor: Measuring range: 0~1 Display format: as 1.00PF. Other Functions: Backlight control: The backlight can be switched on or off by briefly pressing the button Error function: Normally, the calibration is: , and the user can adjust the error manually. Working voltage: both input and output voltage
