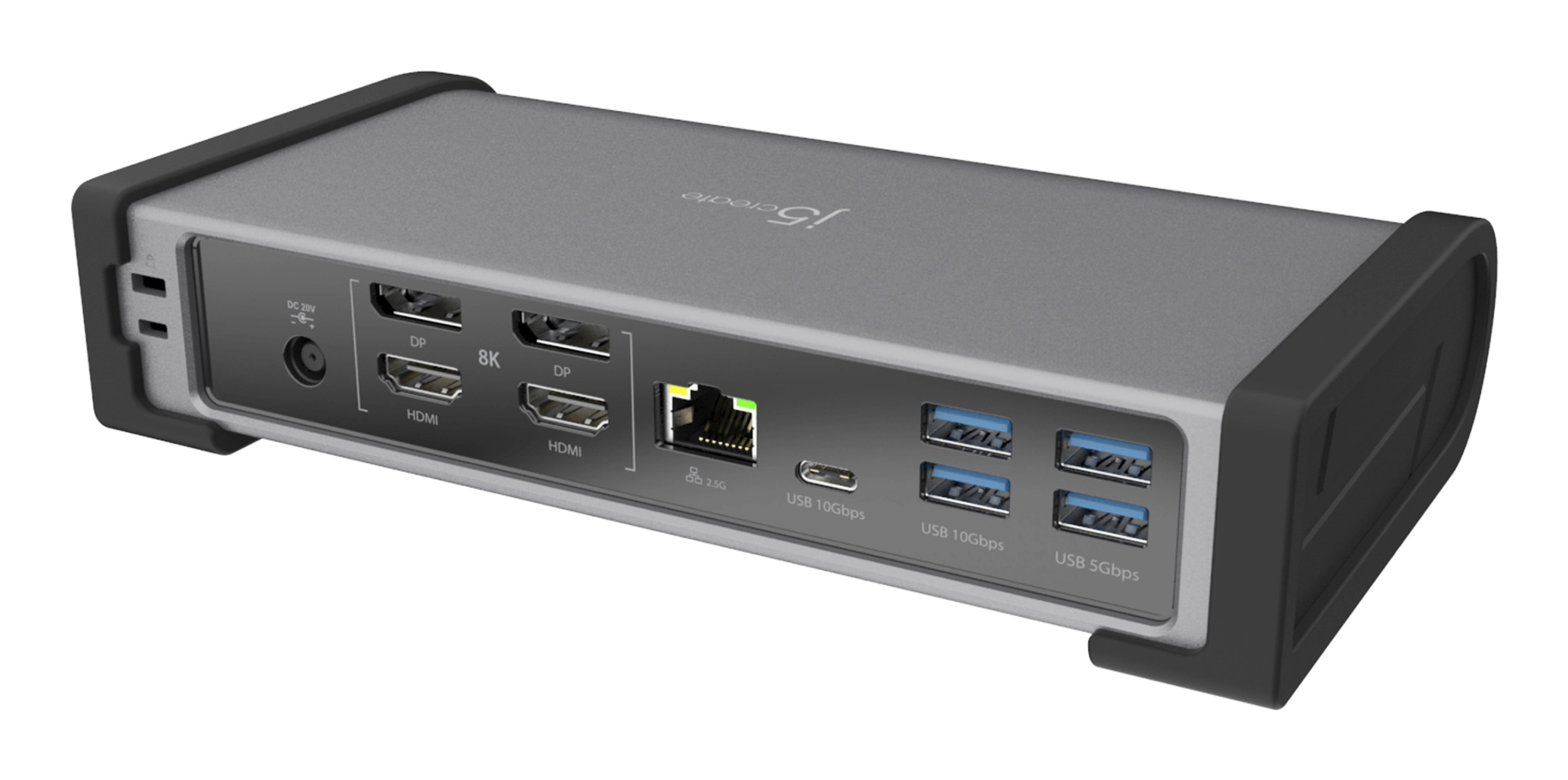

JTD568 - J5-JTD568 Thunderbolt 4 Quad display Docking Station

j5create JTD568 - J5-JTD568 Thunderbolt 4 Quad display Docking Station

Unavailable

Key Features

Thunderbolt 4 cable length: 0.8m
Colour name: Dark / Space Grey
Host interface: Thunderbolt 4
Data transfer rate: 10Gbit/s
Charging function: Yes
Maximum digital resolution: 7860 x 4320pixels
Compatible power plug types: EU, UK
Ethernet LAN data rates: 10, 100, 1000, 2500Mbit/s
Ethernet LAN: Yes
DisplayPort version: 1.4
DisplayPorts quantity: 2
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Specifications

Features

Country of origin

Taiwan

Card reader integrated

✓

On/off switch

✓

Connectivity technology

Wired

Maximum refresh rate

240 Hz

Product colour

Grey

Colour name

Dark / Space Grey

Host interface

Thunderbolt 4

Data transfer rate

10 Gbit/s

Charging function

✓

Maximum digital resolution

7860 x 4320 pixels

Packaging data

Package weight

1690 g

Package height

94 mm

Package depth

237 mm

Package width

122 mm

Weight & dimensions

Weight

681 g

Height

43 mm

Depth

109 mm

Width

201 mm

Power

Power supply

135 W

Input current

6.75 A

Power source type

Compatible power plug types

EU, UK

Thunderbolt 4 cable length

0.80 m

Other features

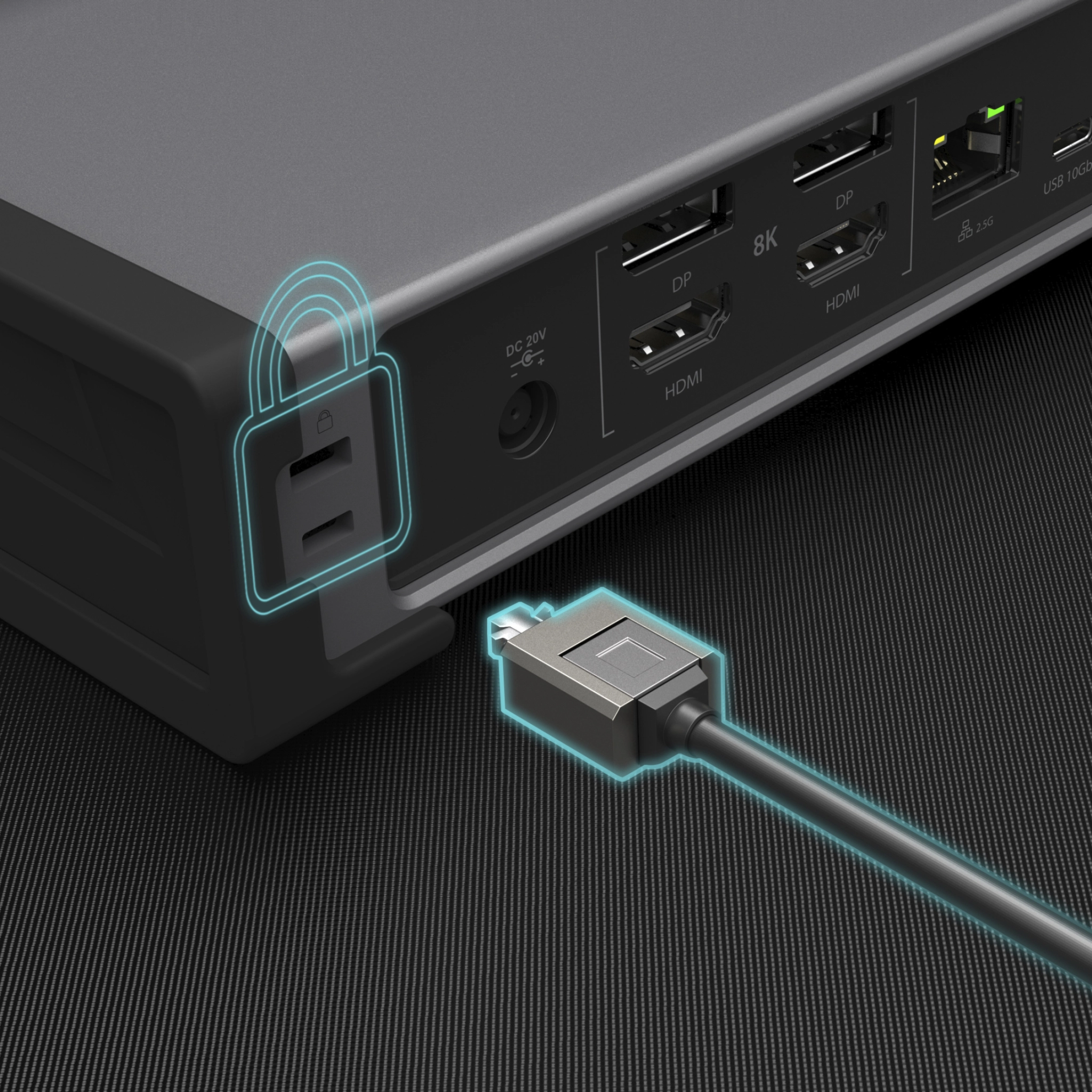

Cable lock slot type

Kensington

Storage

Compatible memory cards

MicroSD (TransFlash), SD

Design

Housing material

Aluminium

LED indicators

Yes

Cable lock slot

✓

Packaging content

1 - JTD568 Thunderbolt™ 4 Quad display Docking Station 1 - 135W AC adapter with up to 98W PD charge 1 - Thunderbolt™ 4 Cable (2.6 ft / 80 cm) 1 - Quick Installation Guide (QIG)

Quick start guide

✓

Manual

✓

Cables included

Thunderbolt

AC adapter included

✓

Network

Ethernet LAN data rates

10, 100, 1000, 2500

Ethernet LAN

✓

Ports & interfaces

DC-in jack

✓

USB Power Delivery (USB PD)

✓

Interface

Thunderbolt 4

Ethernet LAN (RJ-45) ports

Microphone in

✓

Headphone connectivity

3.5 mm

DisplayPort version

1.4

DisplayPorts quantity

HDMI version

2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

HDMI ports quantity

USB 2.0 ports quantity

USB Power Delivery up to

98 W

Combo headphone/mic port

✓

Mounting

Number of displays supported

Operational conditions

Operating temperature (T-T)

0 - 48 °C

Operating relative humidity (H-H)

0 - 85 %

Storage relative humidity (H-H)

0 - 85 %

Technical details

Sustainability compliance

✓

Compliance certificates

CE, REACH, RoHS

Video

HD type

8K Ultra HD

Logistics data

Export Control Classification Number (ECCN)

EAR99

Master (outer) case net weight

3600 g

Master (outer) case GTIN (EAN/UPC)

24712795088315

Master (outer) case height

155 mm

Master (outer) case length

275 mm

Master (outer) case width

207 mm

Product Details

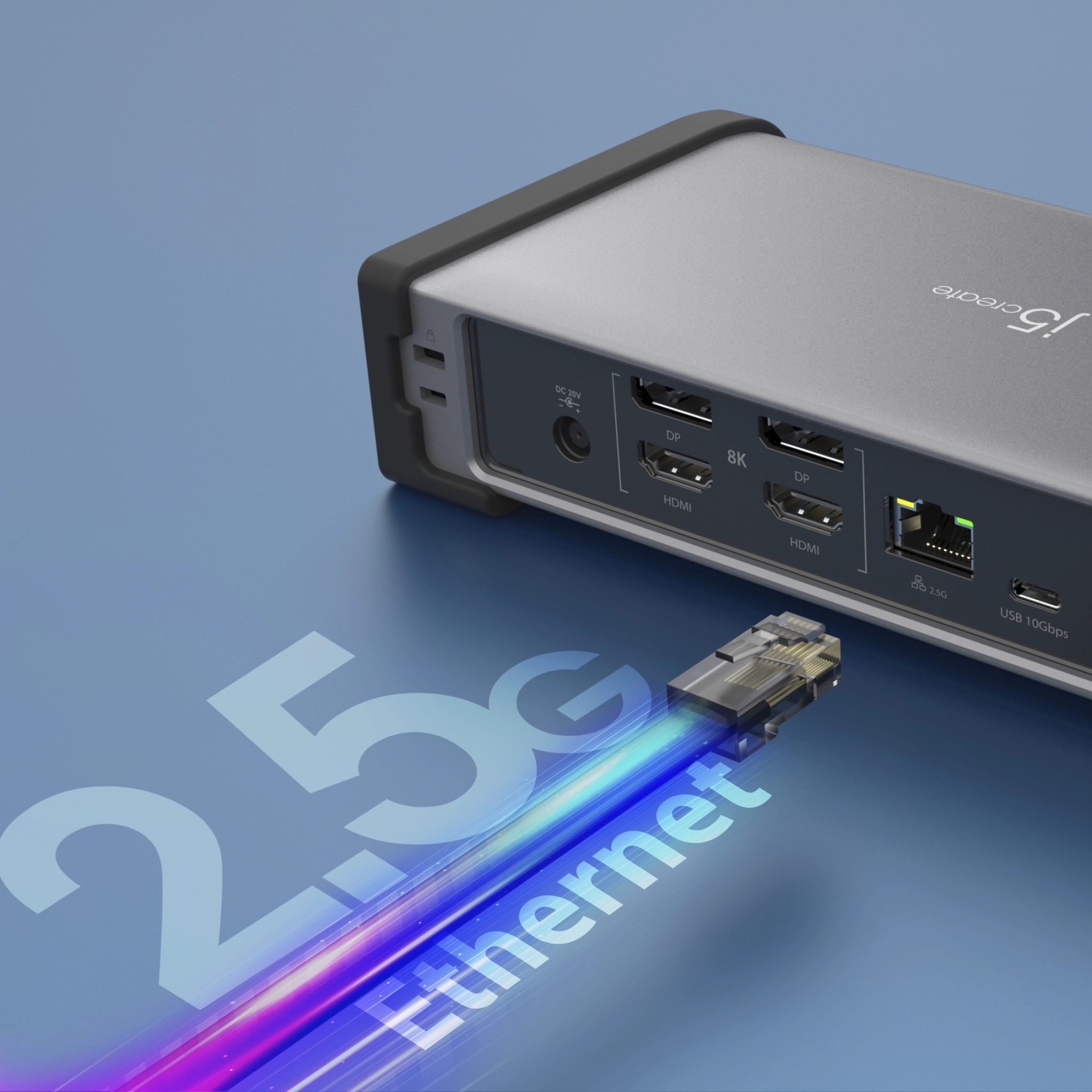

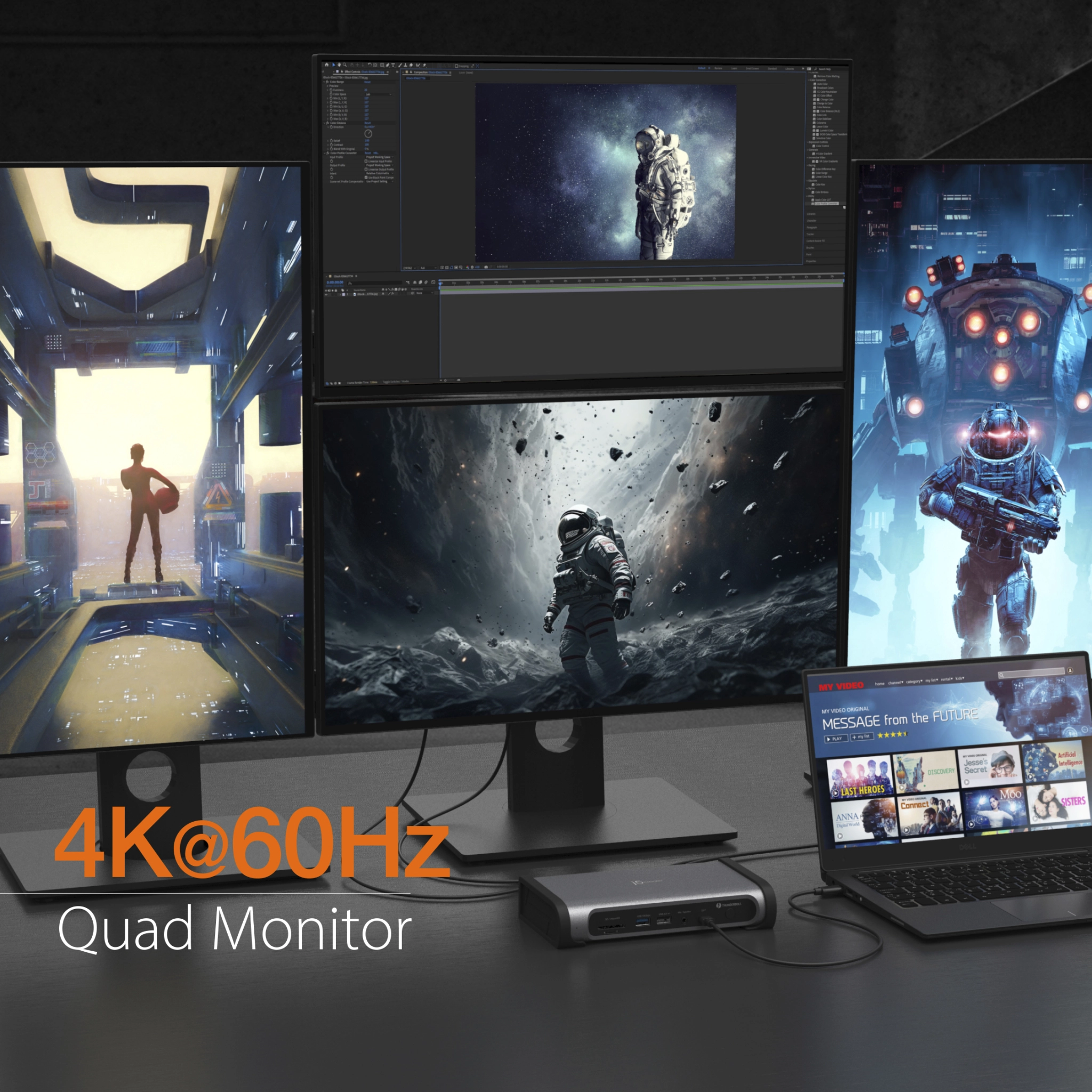

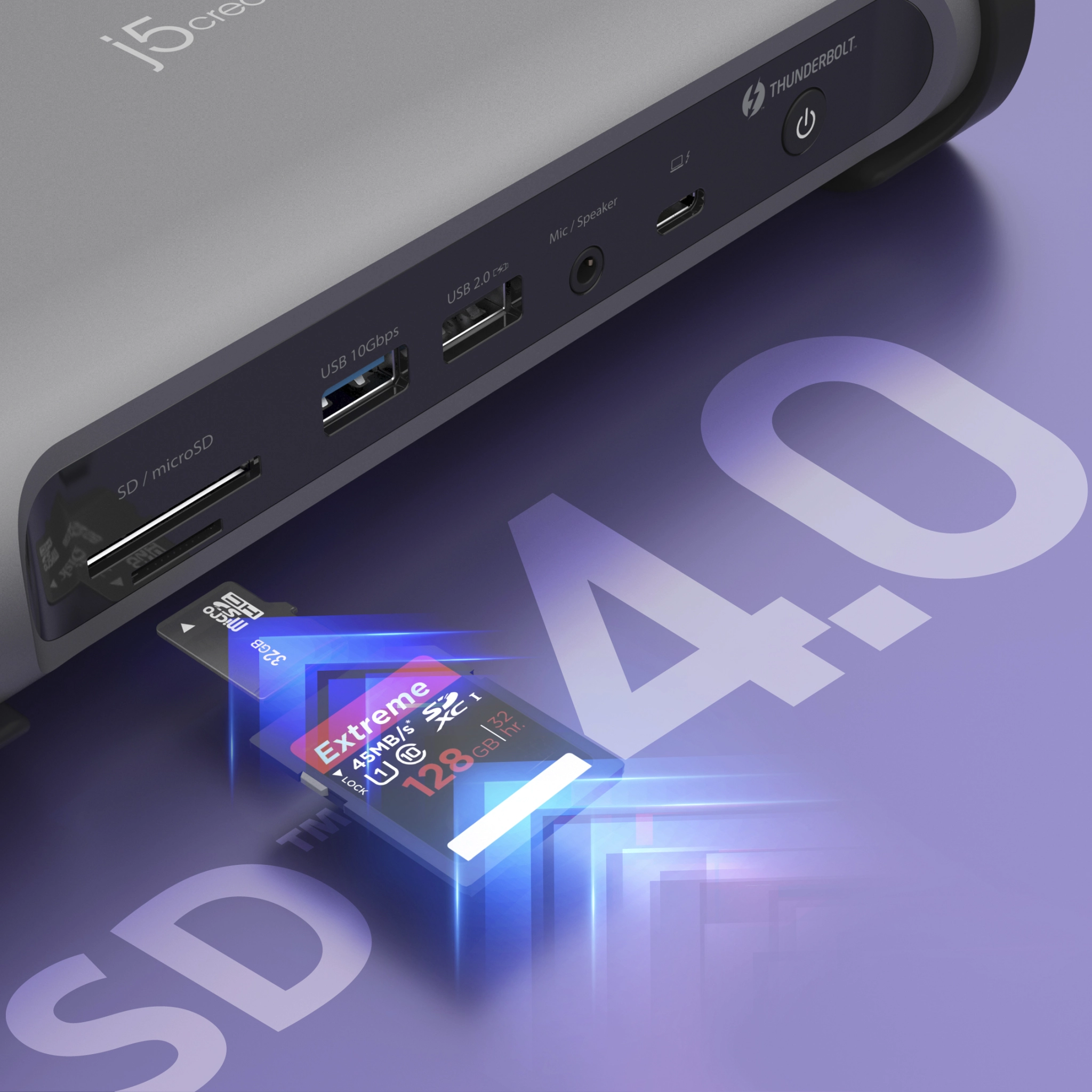

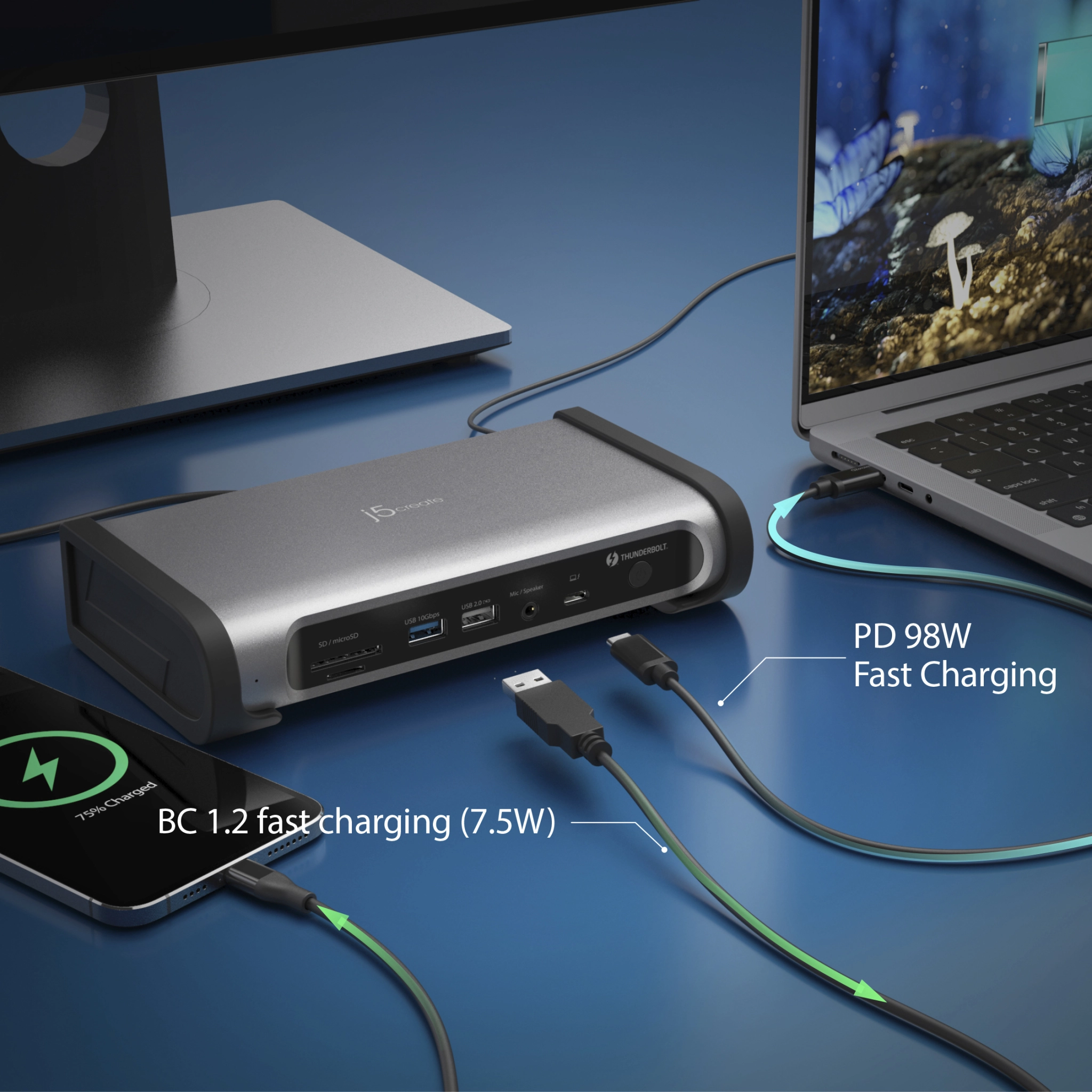

This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity. All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!
