SD3650 K33997WWBlack - USB 3.0 Dual Display Docking Station

Kensington SD3650 K33997WWBlack - USB 3.0 Dual Display Docking Station

Name: Kensington SD3650 K33997WWBlack - USB 3.0 Dual Display Docking Station
Brand: Kensington
SKU: 782833
Availability: InStock

Best offer

AED

454²⁰

AED

463⁸⁵

-2%

Key Features

Data transfer rate: 5Gbit/s
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Maximum digital resolution: 2560 x 1600pixels
Compatible power plug types: AU, EU, UK, US
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 1000Mbit/s
USB ports quantity: 6
HDMI ports quantity: 1
DisplayPort version: 1.1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
HDMI version: 1.3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Number of displays supported: 2
Compliance certificates: RoHS

Specifications

Features

Country of origin

China

Compatible operating systems

Windows 7 or above, macOS 10.14 or above

Connectivity technology

Wired

Product colour

Black

Data transfer rate

5 Gbit/s

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

Maximum digital resolution

2560 x 1600 pixels

Packaging data

Package weight

860 g

Package height

84 mm

Package depth

165 mm

Package width

249 mm

Weight & dimensions

Height

34 mm

Depth

80 mm

Width

198 mm

Power

Output current

4 A

AC input voltage

100 - 240 V

Output voltage

5 V

AC input frequency

50 - 60 Hz

Input current

0.8 A

Compatible power plug types

AU, EU, UK, US

Other features

Cable lock slot type

Kensington

Design

VESA mounting

✓

Housing material

Acrylonitrile butadiene styrene (ABS)

LED indicators

Yes

Cable lock slot

✓

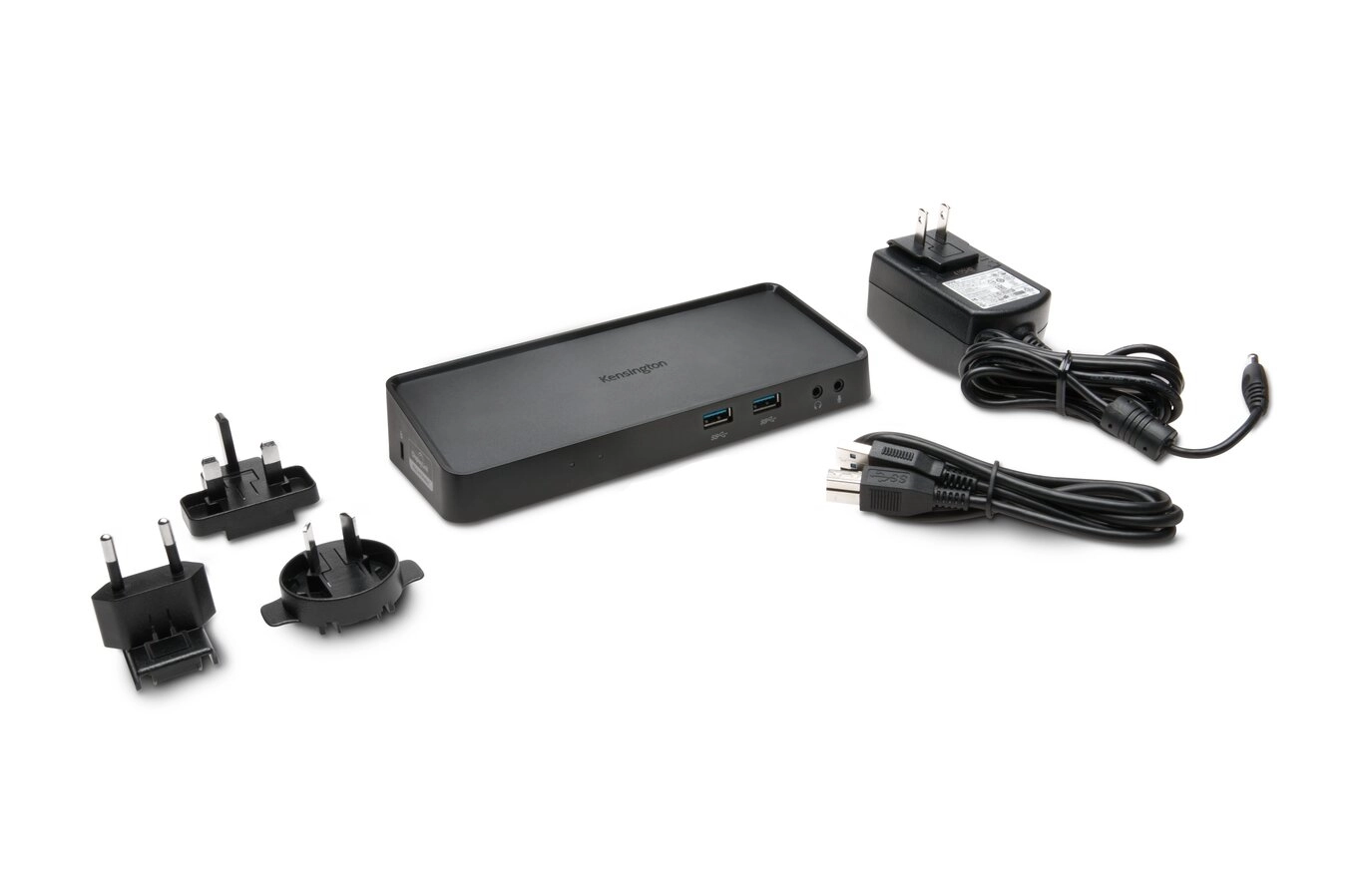

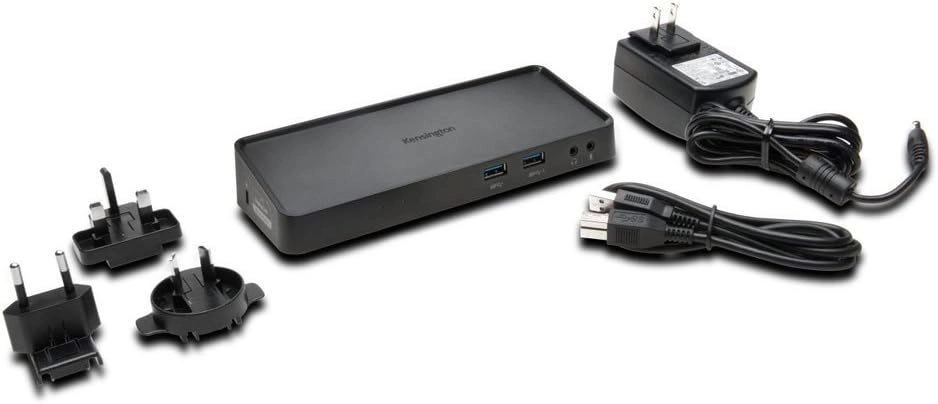

Packaging content

Warranty card

✓

Quick start guide

✓

Cables included

USB Type-A to USB Type-B

AC adapter included

✓

Network

Ethernet LAN

✓

Ethernet LAN data rates

10, 1000

Ports & interfaces

USB Power Delivery (USB PD)

✓

Interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

Ethernet LAN (RJ-45) ports

Headphone outputs

Microphone in

✓

USB ports quantity

HDMI ports quantity

DisplayPort version

1.1

USB 2.0 ports quantity

DisplayPorts quantity

HDMI version

1.3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

Mounting

Number of displays supported

Operational conditions

Operating temperature (T-T)

10 - 40 °C

Operating relative humidity (H-H)

5 - 95 %

Technical details

Certification

C-Tick, CE, FCC, REACH, WEEE

Compliance certificates

RoHS

Video

HD type

2K Ultra HD

Product Details

Preserve the convenience of one-cable connectivity to your entire desktop setup with the SD3650 Universal USB 3.0 Docking Station from Kensington, a trusted leader in productivity solutions for more than 30 years. What makes the SD3650 unique from the SD3600 is that you can output dual HD video using DisplayPort and HDMI ports, plus we increased the USB 3.0 accessory expansion ports to four, ideal for a flash drive so it can transfer data at 5Gbps. The dock also features Zero Footprint Mounting, so it can be mounted to the back of a VESA-compatible monitor using a Docking Station Mount (sold separately), perfect for desks with limited space. Best for: USB 3.0 Laptops, Ultrabooks & Windows Tablets and Monitors that support up to 2K Optimised for your Windows 11 docking station needs, including support for Snap Layouts and Snap Groups. Connection technology: USB 3.0 (DisplayLink) Compatibility: Windows 7 or above, macOS 10.14 No of monitors supported: 2 Video ports: 1 x HDMI v1.3 and 1 x DisplayPort v1.1 ++ (Passive cables/adapters for HDMI or DVI conversion) Resolution: Single monitor: 2560 x 1600 @ 60Hz and Dual monitors: 2048 x 1152 @ 30Hz DisplayLink driver installation required Download software from Kensington.com or via Windows update. System requirements: CPU: Dual-Core i3 2.8GHz or better and RAM: 2GB or higher Warranty: 2 Years

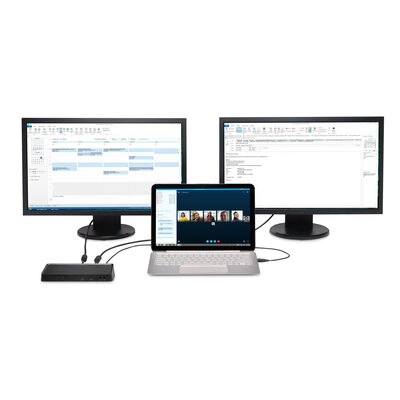

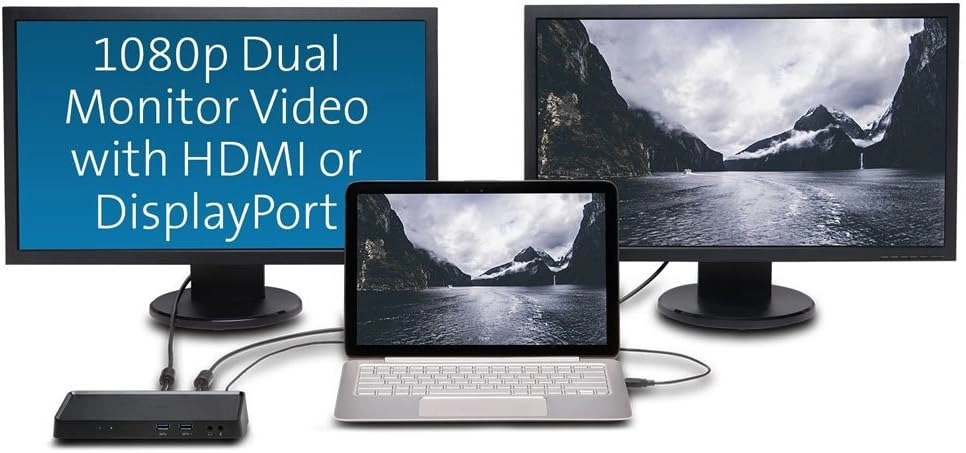

Dual HD Video Output

With DisplayPort and HDMI ports, you can expand your workspace and increase productivity by adding 2 external screens.

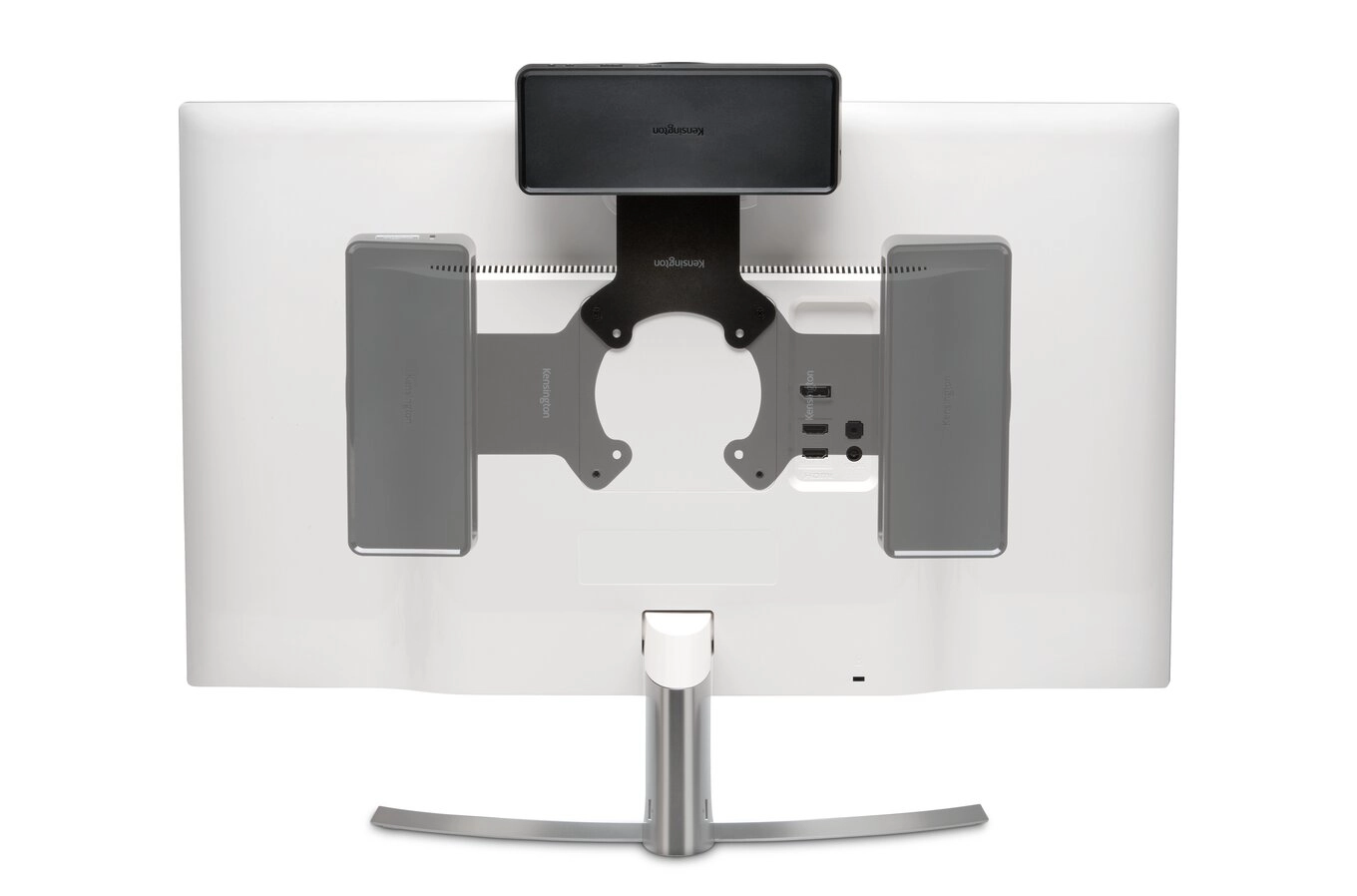

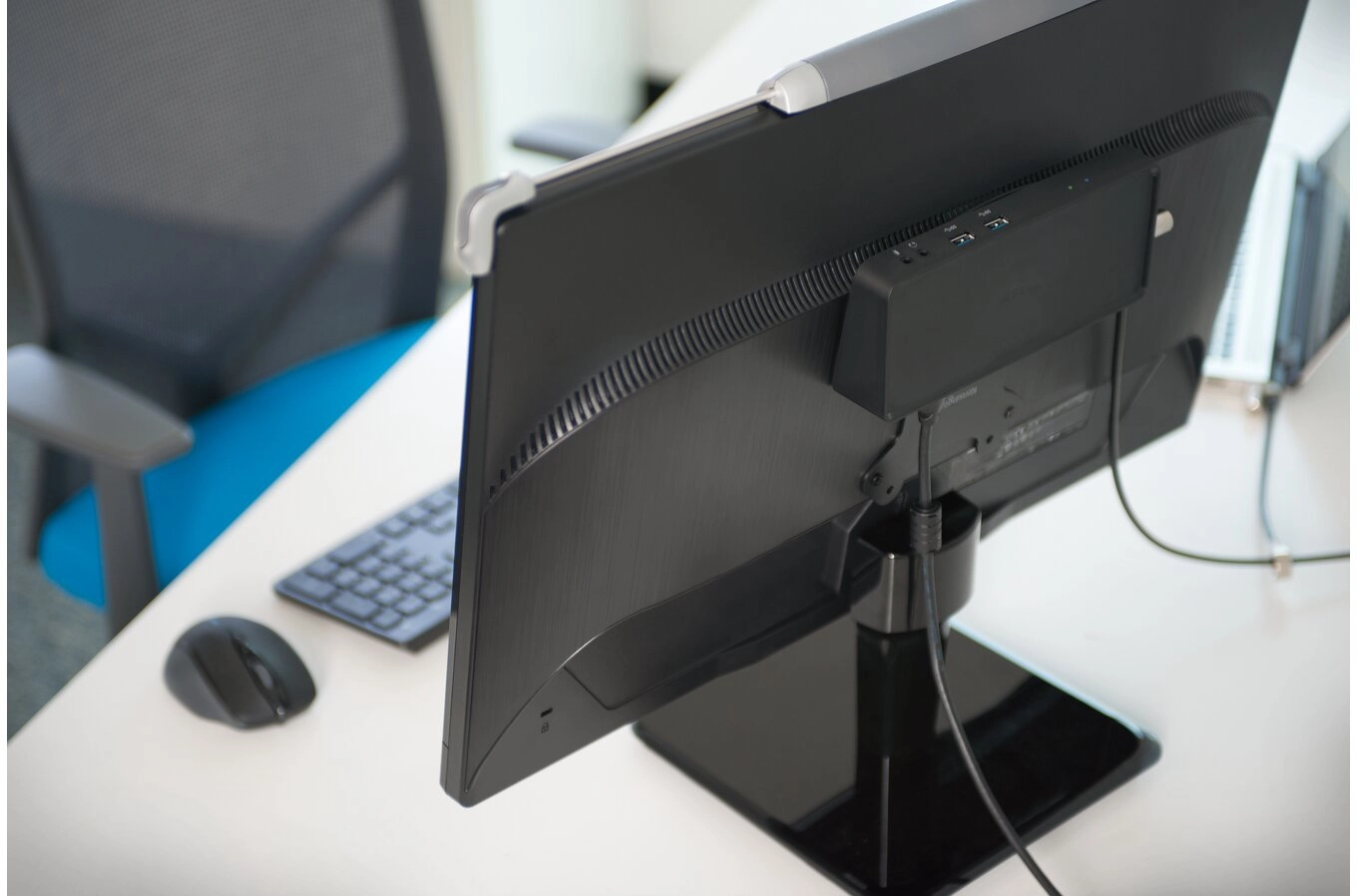

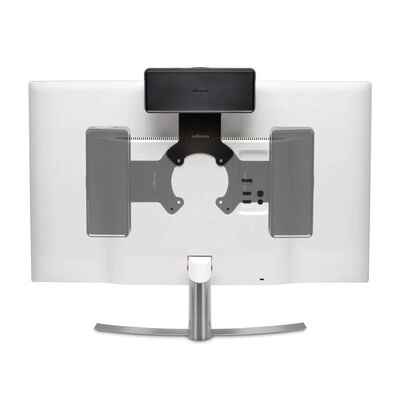

Zero Footprint Mounting

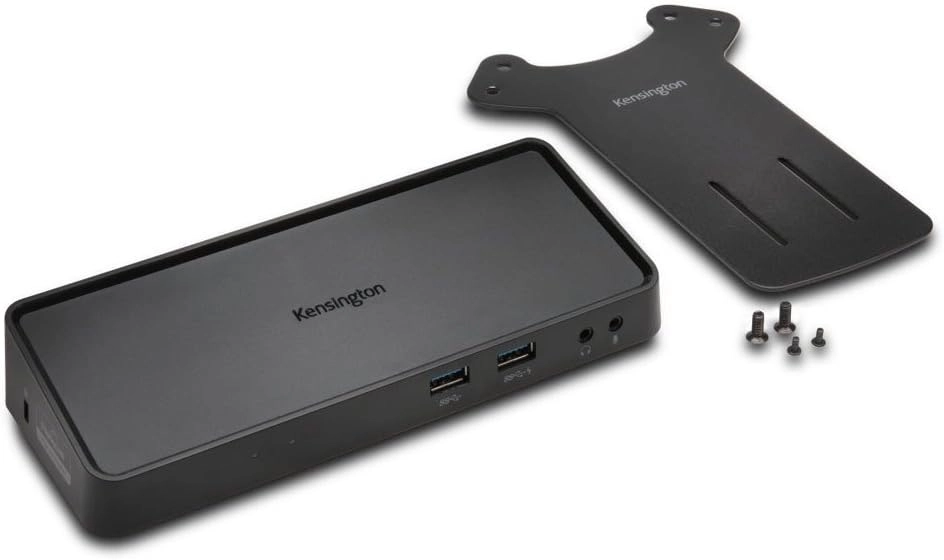

The dock can be mounted to the back of a 75mm or 100mm VESA-compatible external monitor (Dock Mounting Plate K33959WW sold separately), allowing you to keep your desktop less cluttered

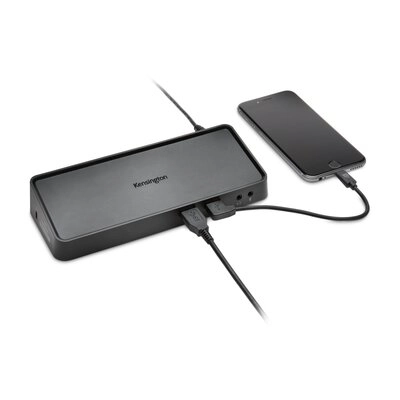

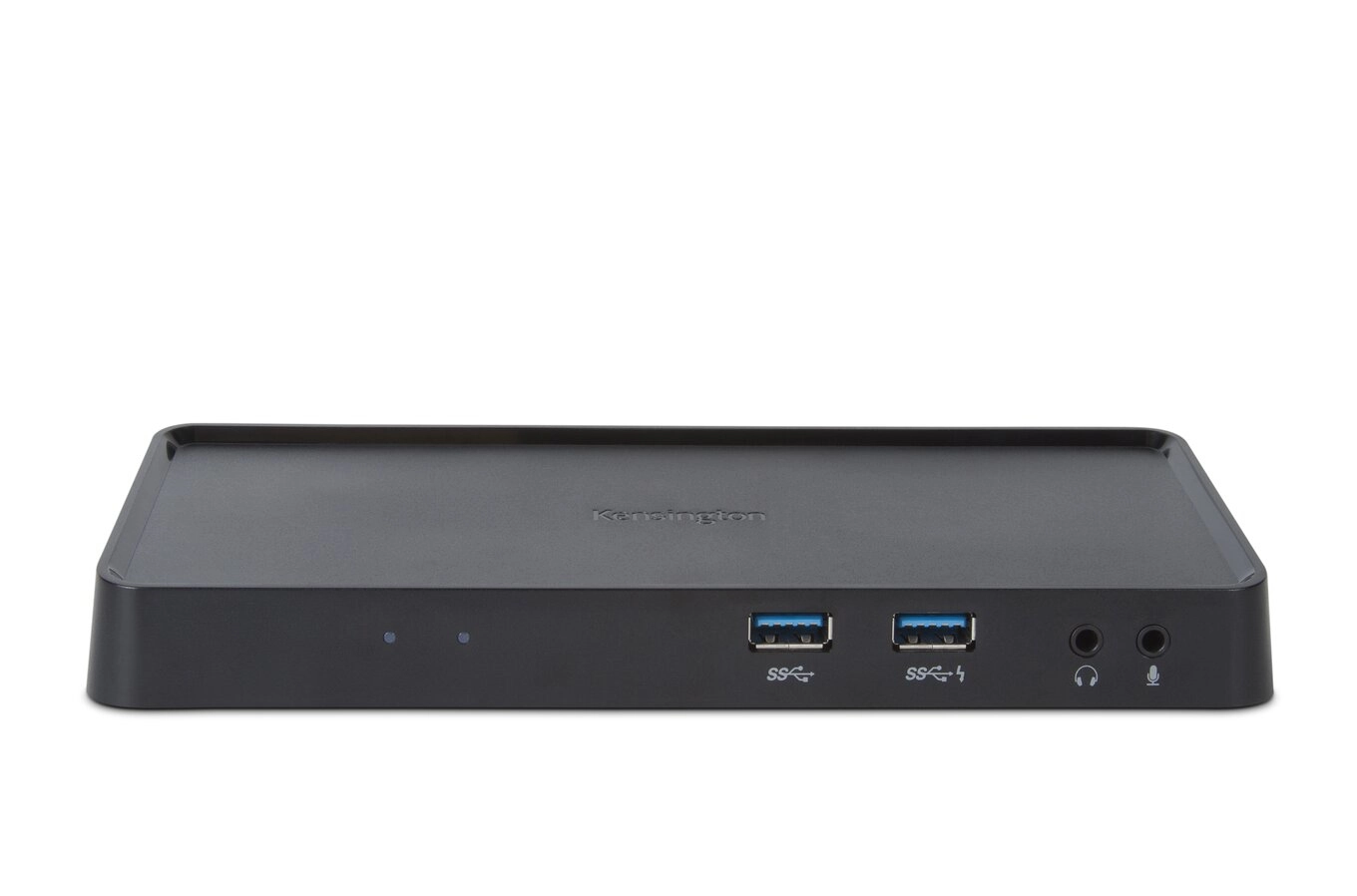

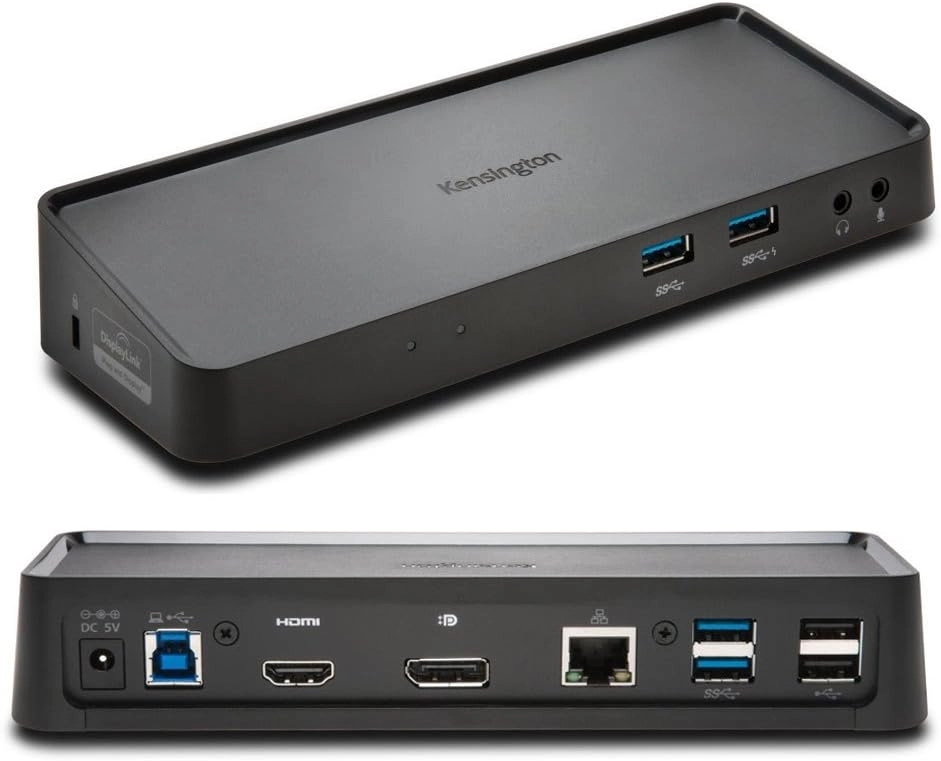

4 USB 3.0 Ports

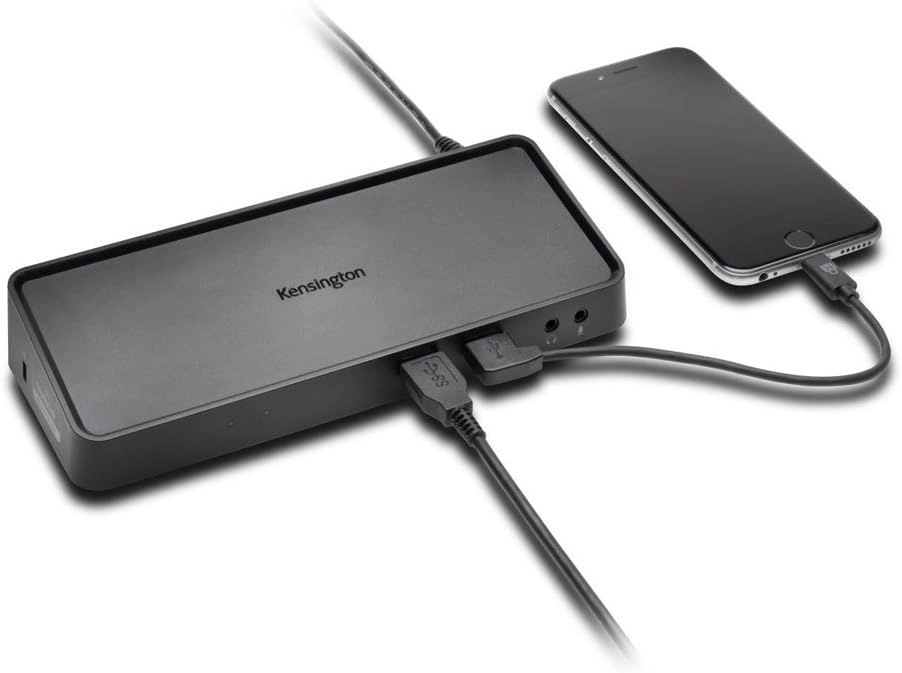

Transfer data at up to 5Gbps with the fast and powerful ports, two of which are on the front of the dock, the other two are in the back. One of the front ports doubles as a 2.1A fast charge port that can power a smartphone or tablet.

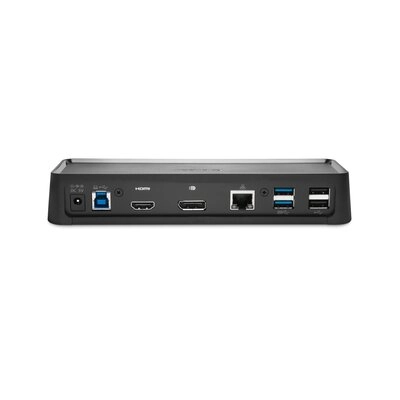

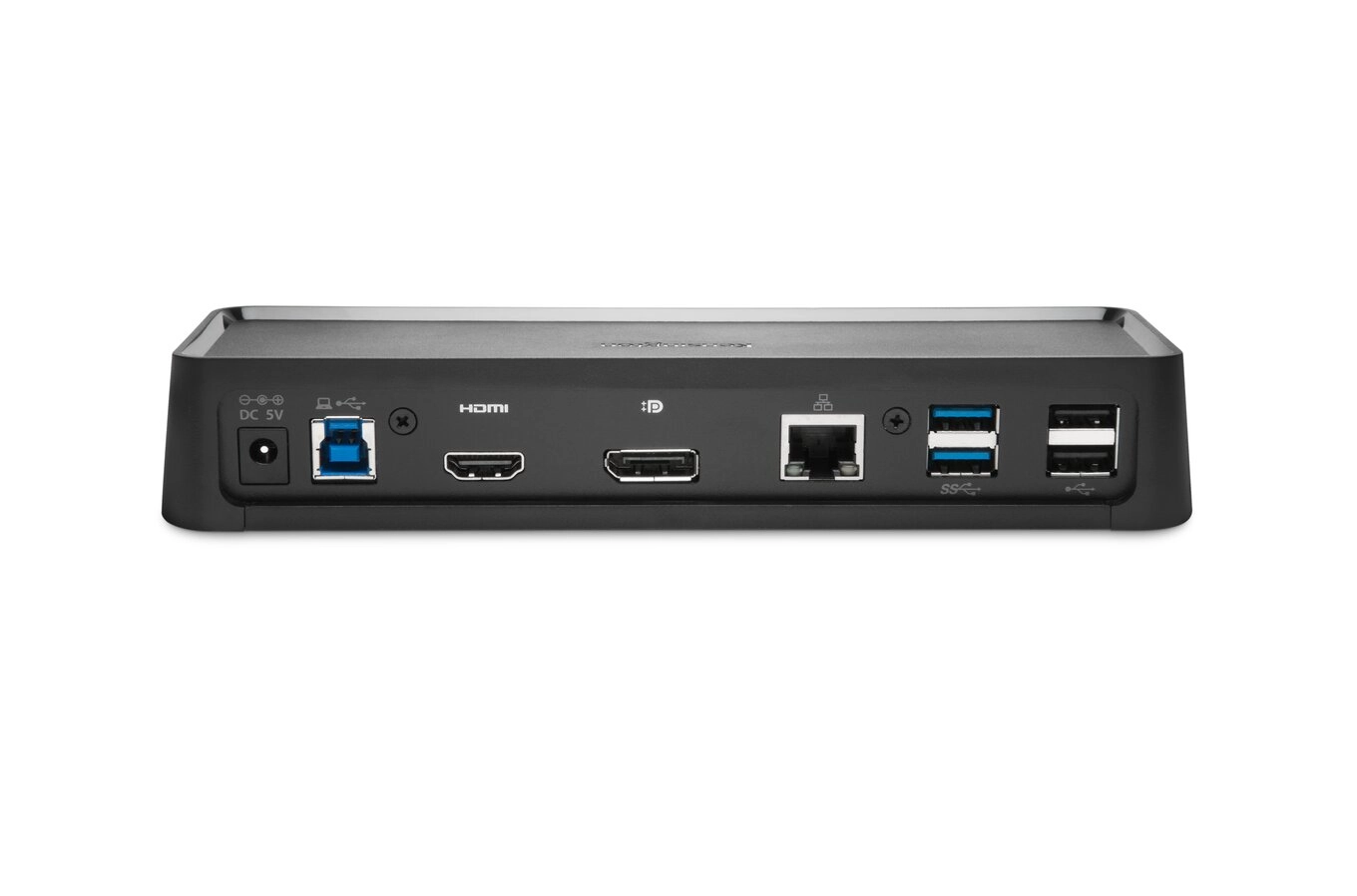

2 Rear USB 2.0 Ports

The ideal place to plug in accessories like a keyboard or mouse to help keep cables or wireless receivers hidden from view

Extend or Mirror Modes

Extend mode allows you to drag an open application to an external monitor so you can work across multiple screens, while Mirror mode allows you to replicate the content that’s on your computer display to an external screen

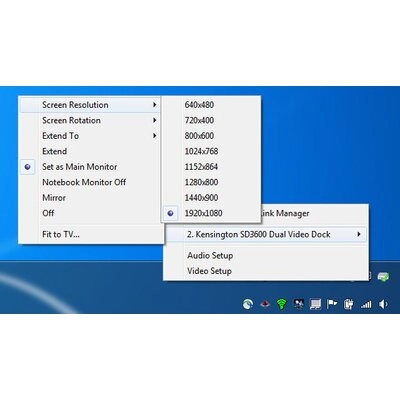

Display Settings Software

Allows you to easily switch display modes, change the master monitor, or adjust the alignment and position of your screens. Our corporate install support provides for mass installation via the Microsoft® server.

Gigabit Ethernet Port

Provides a reliable wired connection to a network or the Internet

Free Kensington DockWorks™ Software

Enables the best connection, performance and security from your Kensington dock.

Files

User manual

mmo_32422124_1574946277_7845_16486.pdf

PDF• 359.2 KB

Product Brochure

mmo_32422124_1688889960_5532_2854225.pdf

PDF• 54.8 KB
