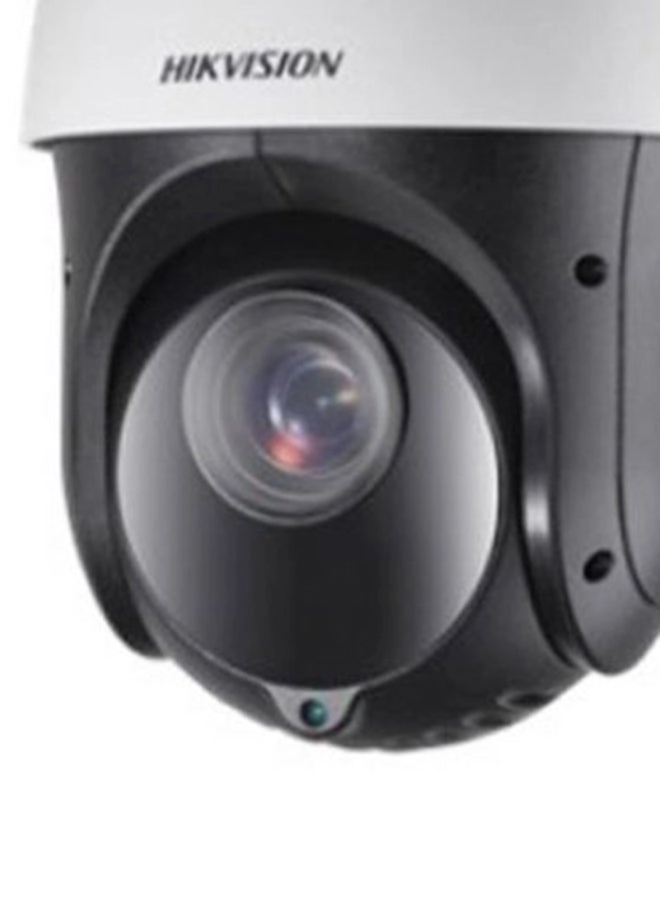

Hikvision DS-2AE4225TI-D

Name: Hikvision DS-2AE4225TI-D
Brand: Hikvision
SKU: 357493

Best offer

AED

1 298⁰⁰

Key Features

Camera tilt control: Yes
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 34.4°°
Lens viewing angle, diagonal: 64.5°°
Pan preset speed: 100°/sec
Type: IP security camera
Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
DC output voltage: 12
Pan speed: 100°/sec
Tilt speed: 80°/sec
Built-in HDD: No
Form factor: Dome
Composite video out: 1
RS-485 ports: 1

Specifications

Features

Number of sensors

Security algorithms

HTTPS

Connectivity technology

Wired

Product colour

Black

Video streaming

✓

Type

IP security camera

Weight & dimensions

Weight

2000 g

Height

179.50 mm

Diameter

165 mm

Management features

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection

Power

Power consumption (max)

12 W

Power source type

DC output voltage

Performance

Pan speed

100 °/sec

Tilt speed

80 °/sec

Camera pan control

✓

Other features

Noise reduction

✓

Storage

Built-in HDD

✗

Design

International Protection (IP) code

IP66

Placement supported

Outdoor

Mounting type

Ceiling/Wall

Form factor

Dome

Ports & interfaces

Composite video out

RS-485 ports

Operational conditions

Operating relative humidity (H-H)

0 - 90 %

Lens system

Number of lenses

Digital zoom

16 x

Optical zoom

25 x

Minimum aperture number

1.60

Maximum aperture number

3.50

Noise reduction technology

3D noise reduction

Video

Privacy masking

✓

Security

IP address filtering

✓

Focusing

Closest focusing distance

1.50 m

Camera

Day/night mode

✓

Back Light Compensation (BLC)

✓

Camera shutter speed

1-1/10000 s

Focal length range

4.8 - 120 mm

Total megapixels

8 MP

Number of cameras

Sensor type

CMOS

Lens viewing angle, horizontal

57.6°

Progressive scan

✓

White balance

Indoor

Zoom capability

✓

PTZ control

✓

Wide Dynamic Range (WDR)

✓

Auto focus

✓

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

64.5°

Lens viewing angle, vertical

34.4°

Camera tilt control

✓

Pan-tilt unit

Tilt angle range

5 - 90 °

Pan range

0 - 360 °

Pan preset speed

100 °/sec

Image sensor

Maximum resolution

1920 x 1080 pixels

Minimum illumination

0 lx

Night vision

✓

LED type

Product Details

Hikvision DS-2AE4225T-D3(C) Turbo 4-Inch Speed Dome is able to capture high quality images in poor light environment. The embedded CMOS chip makes WDR, and real-time 1920 × 1080 resolution possible. With the help of the 25× optical zoom, and IR cut filter, the camera offers more details over an expansive area.
