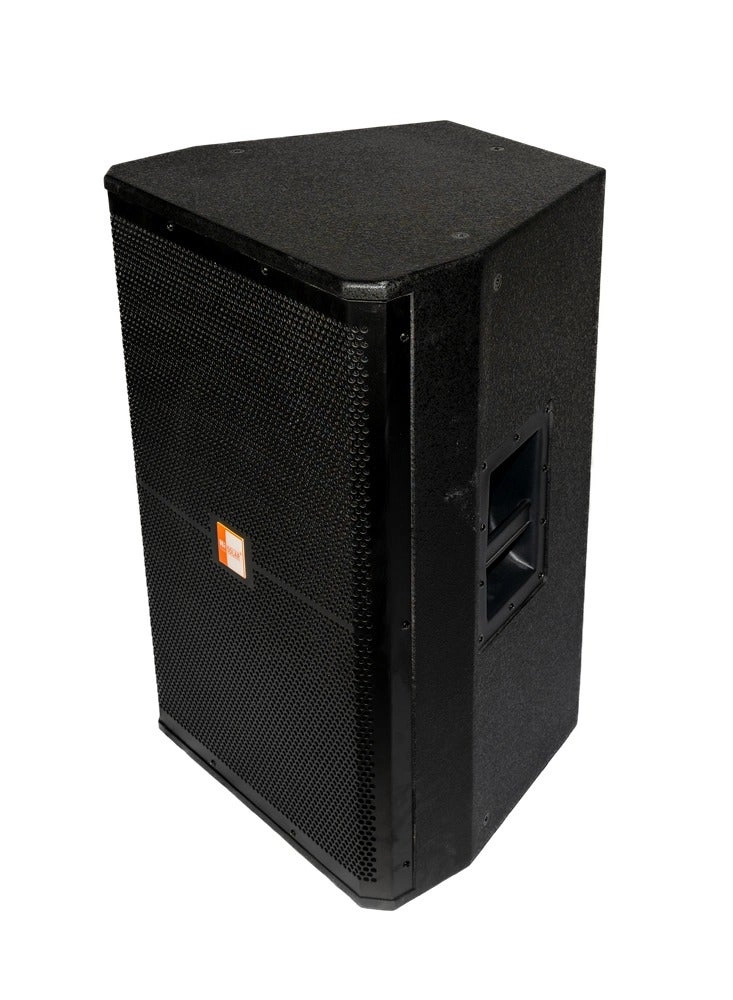

HI TONE SOLAR SRX 715 - 800W

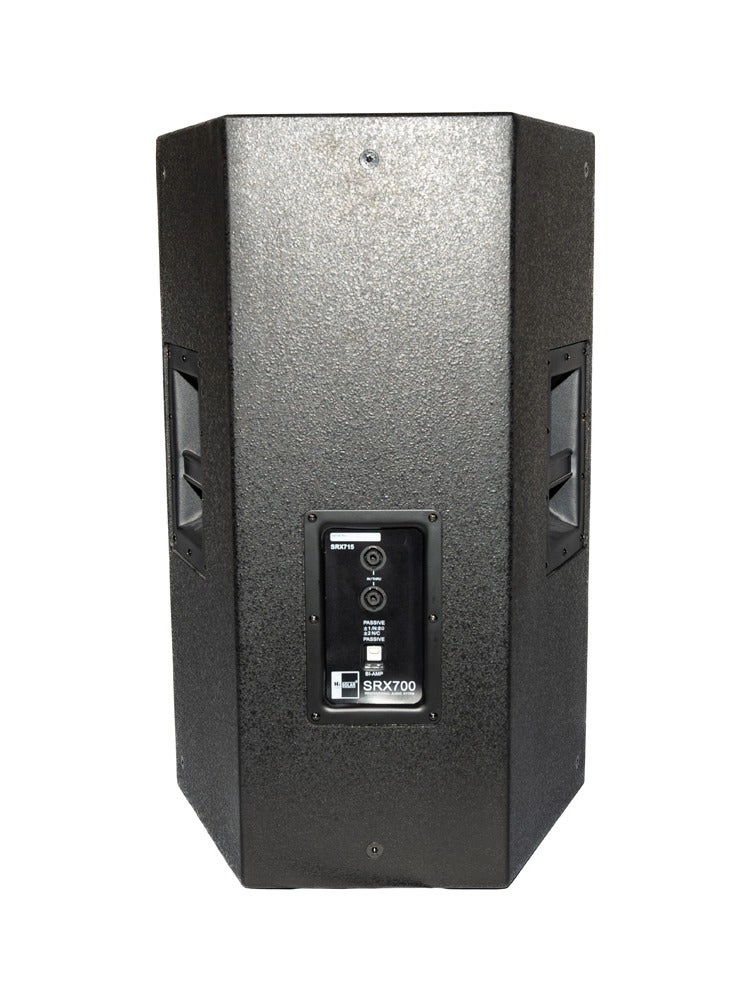

Speaker connection 1.SRX725 cable connection adopts standard Neutrik four core interface, each The interface has two positive 1 + and 2 +, and two negative 1 – and 2 -. because SRX725 has no Bi amp design, so 1 + and 2 + and 1 – and 2 – are connected together. So you just need to make Use a standard two core speaker cable. 2. You need to purchase another connector compatible with Neutrik four core interface. Suggestion Install the positive and negative poles of the speaker cable on 1 + and 1 – of the connector respectively. After the Neutrik interface is connected, rotate it clockwise and The lock can be used normally. 3. As for the selection of speaker cable, we suggest to purchase no less than 16awg If you need to transmit a longer distance, you should choose the standard cable Cables not less than 14AWG. Product parameters Drive unit LF 1X15”(450mm) Sub Response frequency 45Hz-20KHz (± 3dB) Sensitivity(1W/1M) 101dB Maximum sound pressure 135dB Rated power 800W maximum power 1600W impedance 8 ohm Connector 2X NEUTRIK NL4 size 715*455*403 mm weight 23KG *The recommended maximum power of the amplifier will ensure that the system has appropriate dynamic margin in case of instantaneous peak. It is not recommended to operate at maximum power for a long time.
