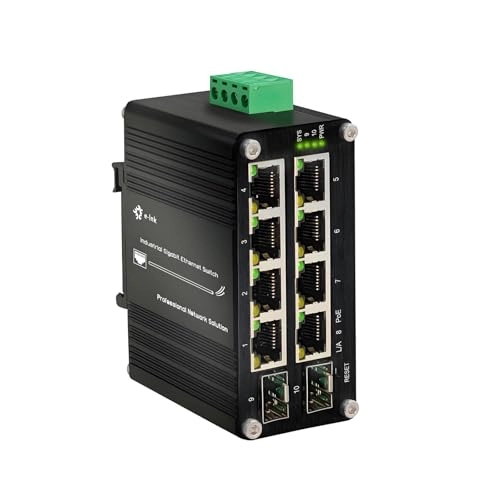

Elenzk 2G8DP 8-ports

Overview:

The industrial passive PoE switch features 2 x 100/1000Base-FX and 8 x 10/100/1000BASE-T Ethernet ports. It supports 24VDC power input and 24V PoE output. It also can operates in extreme temperatures (-40°C to 80°C) with its IP40 metal Al case, it's ideal for harsh industrial environments.

Features:

• 2 x 100/1000Base-FX
• 8 x 10/100/1000BASE-T ports
• 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
• 24VDC range power input, 24V PoE output

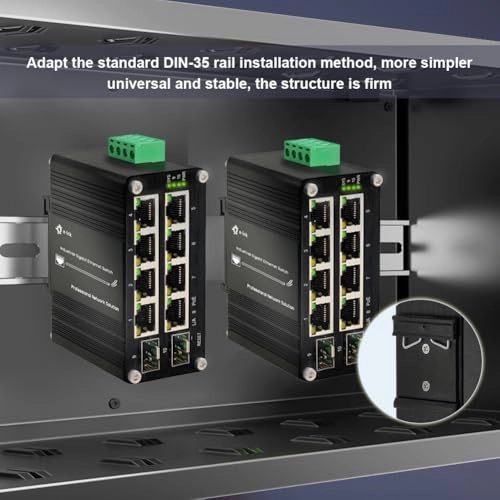

• Supports DIN-Rail installation
• Industry standard design, dustproof and close design IP40, rugged high-strength metal case

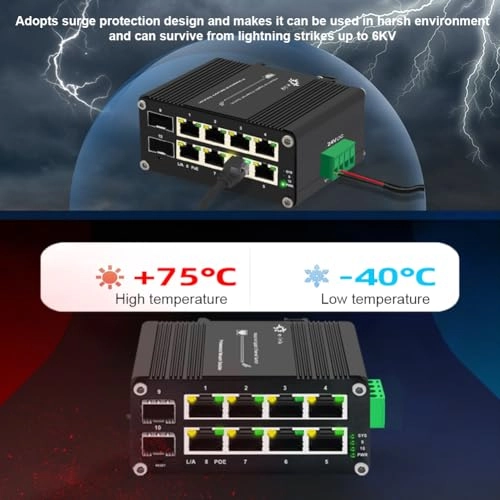

• -40°C to 80°C (-40°F to 176°F) operating temperature

Specifications:

1. Packet Buffer: 2.75Mbits
2. Packet Length: 9K
3. MAC Address Table: 4K
4. Forward & Filtering Rate: 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)

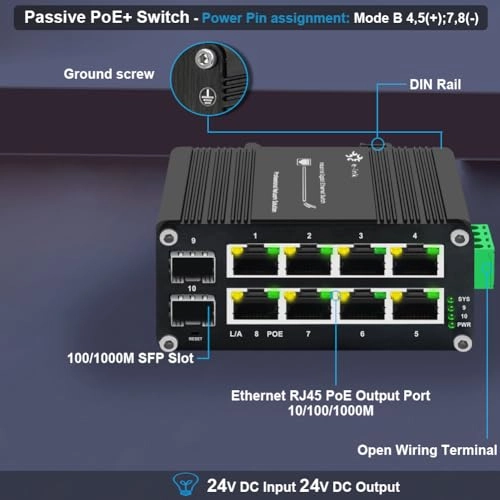

5. Power Pin Assignment: 4/5(+), 7/8(-)

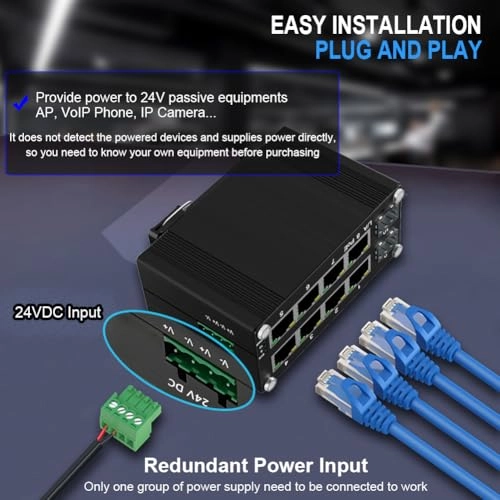

6. Input Power: 24VDC (Terminal Block)
7. Power Input Overload: Automatic Resettable
8. Reverse Polarity: Present
9. Power Consumption: 124W Max. (PoE in use) & <5W (Non-PoE)
10. Material: Aluminum Case
11. ltem Dimensions LxWxH :3.74x 2.76 x 1.85 inches
12. Mounting Type: DIN Rail

Package:

• 1*Passive 8 port poe switch with SFP
• 1*4-pin terminal
• 1*manual
