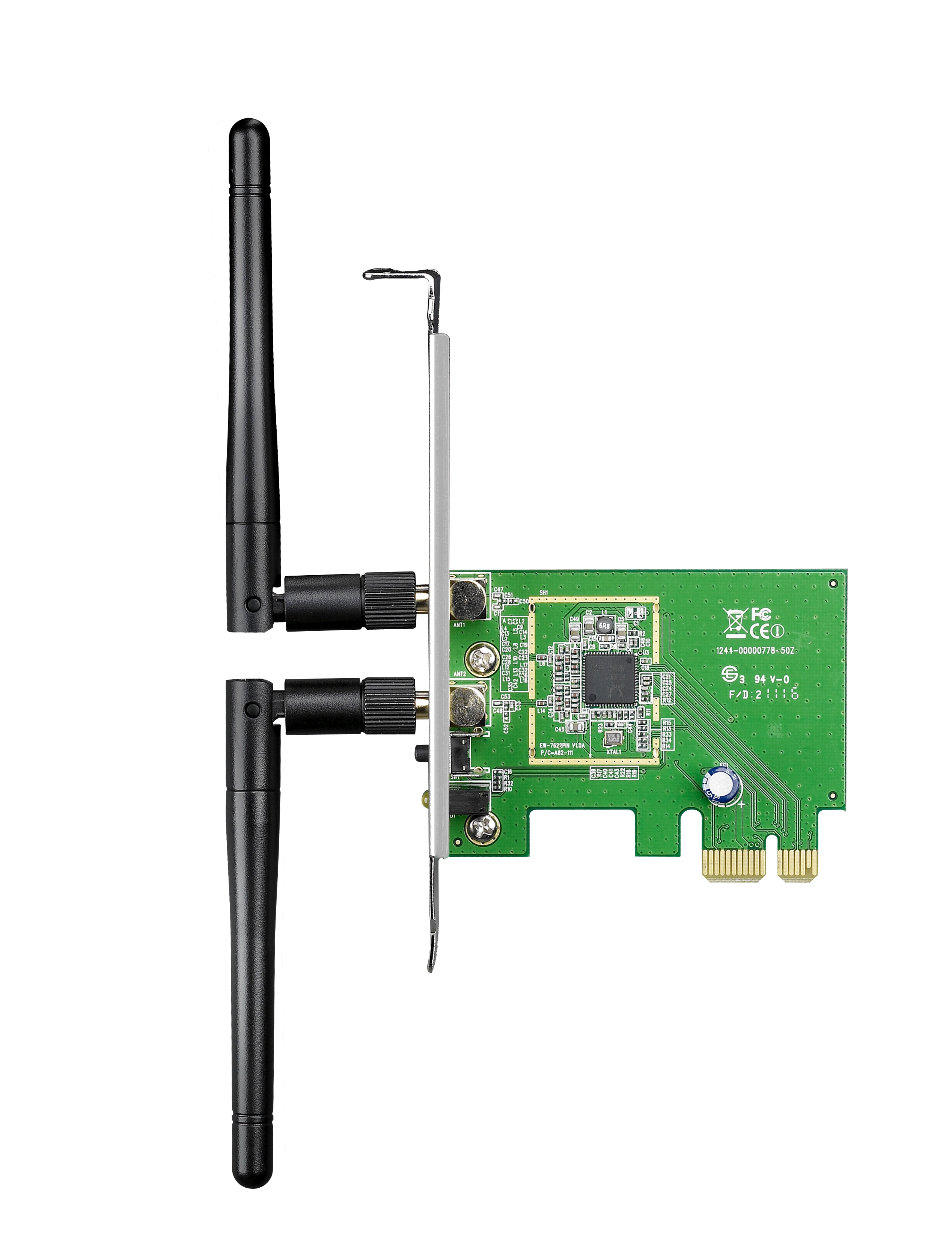

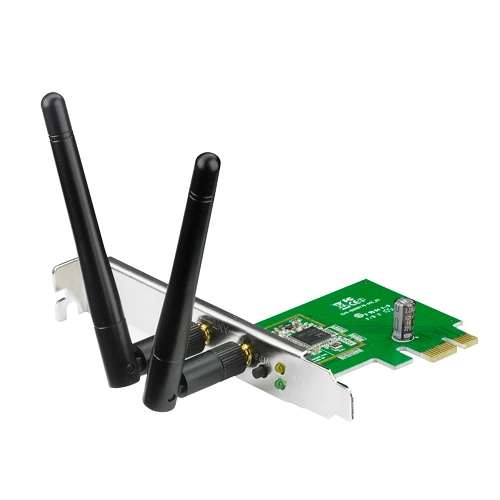

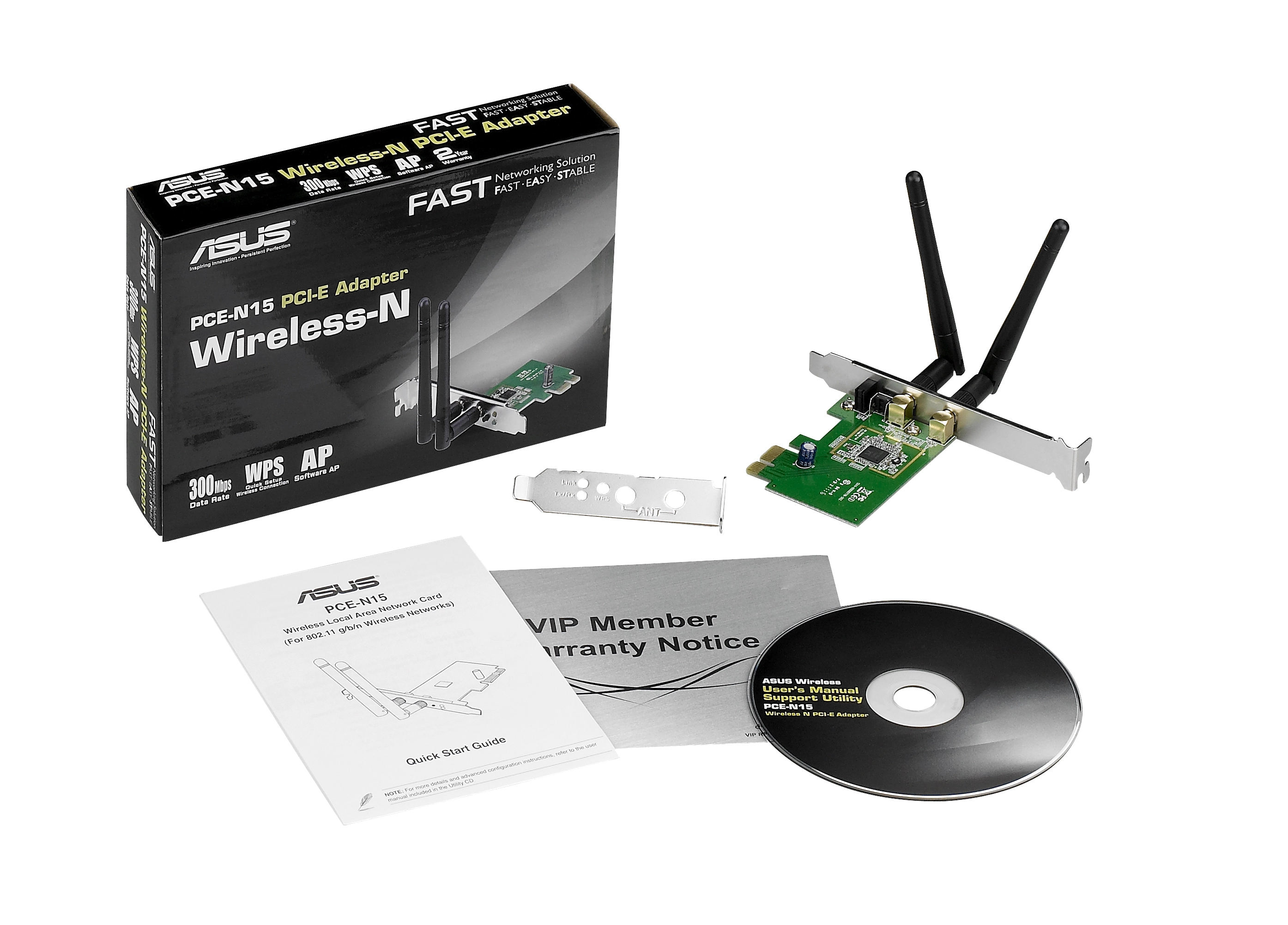

ASUS PCE-N15 - PCI Express Wireless-N300

Name: ASUS PCE-N15 - PCI Express Wireless-N300
Brand: ASUS
SKU: 768811
Availability: InStock

Unavailable

Best offer

AED

95⁰⁰

Key Features

Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Host interface: PCI Express
Maximum data transfer rate: 300Mbit/s
Channels quantity: 13channels
Antenna connector type: R-SMA
Internal: Yes
Wi-Fi band: Single-band (2.4 GHz)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Modulation: OFDM
Connectivity technology: Wireless
Security algorithms: 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Width: 120.5mm
Depth: 21.6mm
Height: 22mm
Interface: PCI Express, WLAN

Specifications

Features

Security algorithms

128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS

Connectivity technology

Wireless

Host interface

PCI Express

Maximum data transfer rate

300 Mbit/s

Channels quantity

13 channels

Antenna connector type

R-SMA

Weight & dimensions

Weight

62.60 g

Height

22 mm

Depth

21.60 mm

Width

120.50 mm

Performance

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

System requirements

Windows operating systems supported

Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Other features

Output power description

g: 13 - 17 dBm

Design

Internal

✓

Network

Wi-Fi

✓

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wi-Fi band

Single-band (2.4 GHz)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ports & interfaces

Interface

PCI Express, WLAN

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

5 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Technical details

Certification

C-Tick, CE, FCC, IC

Logistics data

Harmonized System (HS) code

85176990

Radar

Modulation

OFDM

Product Details

WPS(Wi-Fi Protected Setup) button For quickly setting up a secure wireless connection. Press the Hardware WPS button on PCE-N15 about 3 seconds, then press the WPS button on router as well. Either you can choose to use software WPS, enabling the WPS utility in the WPS Wizard interface. And finish the setup with 3 steps Software AP Software AP mode allows the WLAN card to act as a virtual access point. The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN client.

Files

User manual

mmo_9457537_1538680818_1344_26720.pdf

PDF• 5.6 MB
