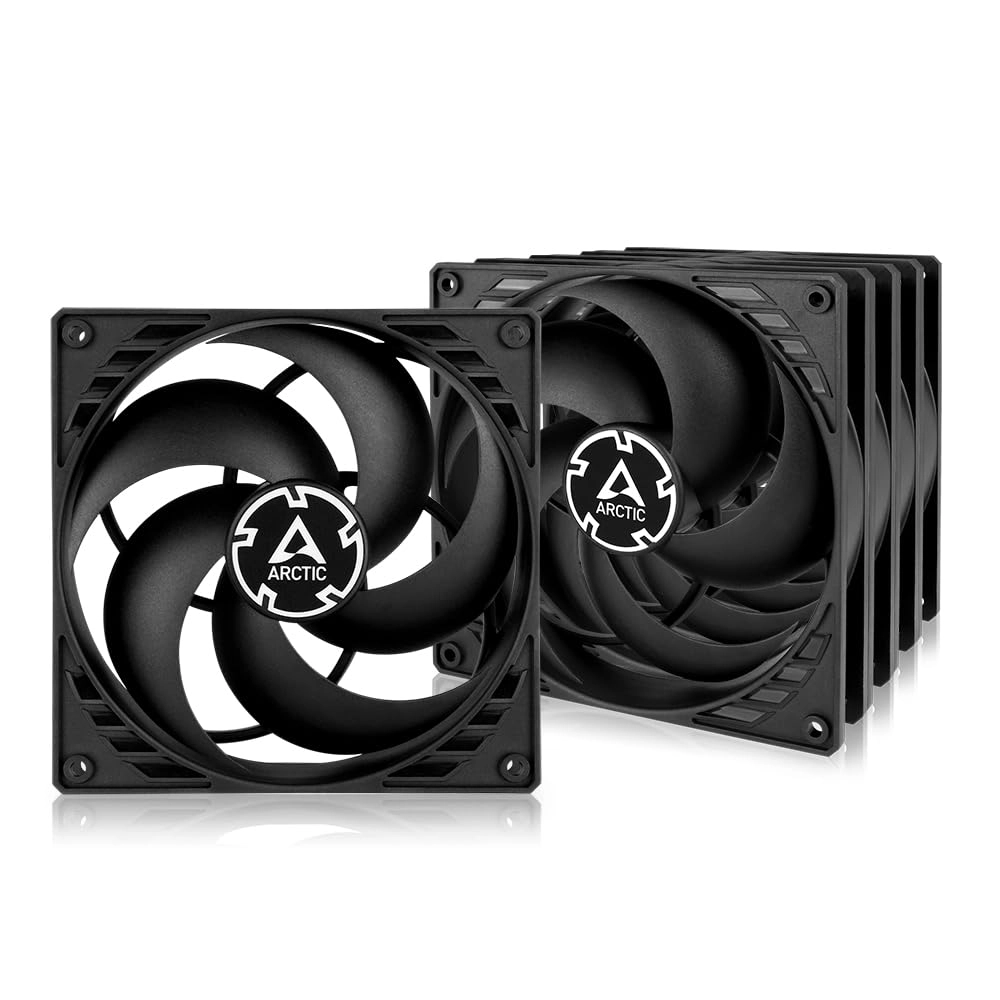

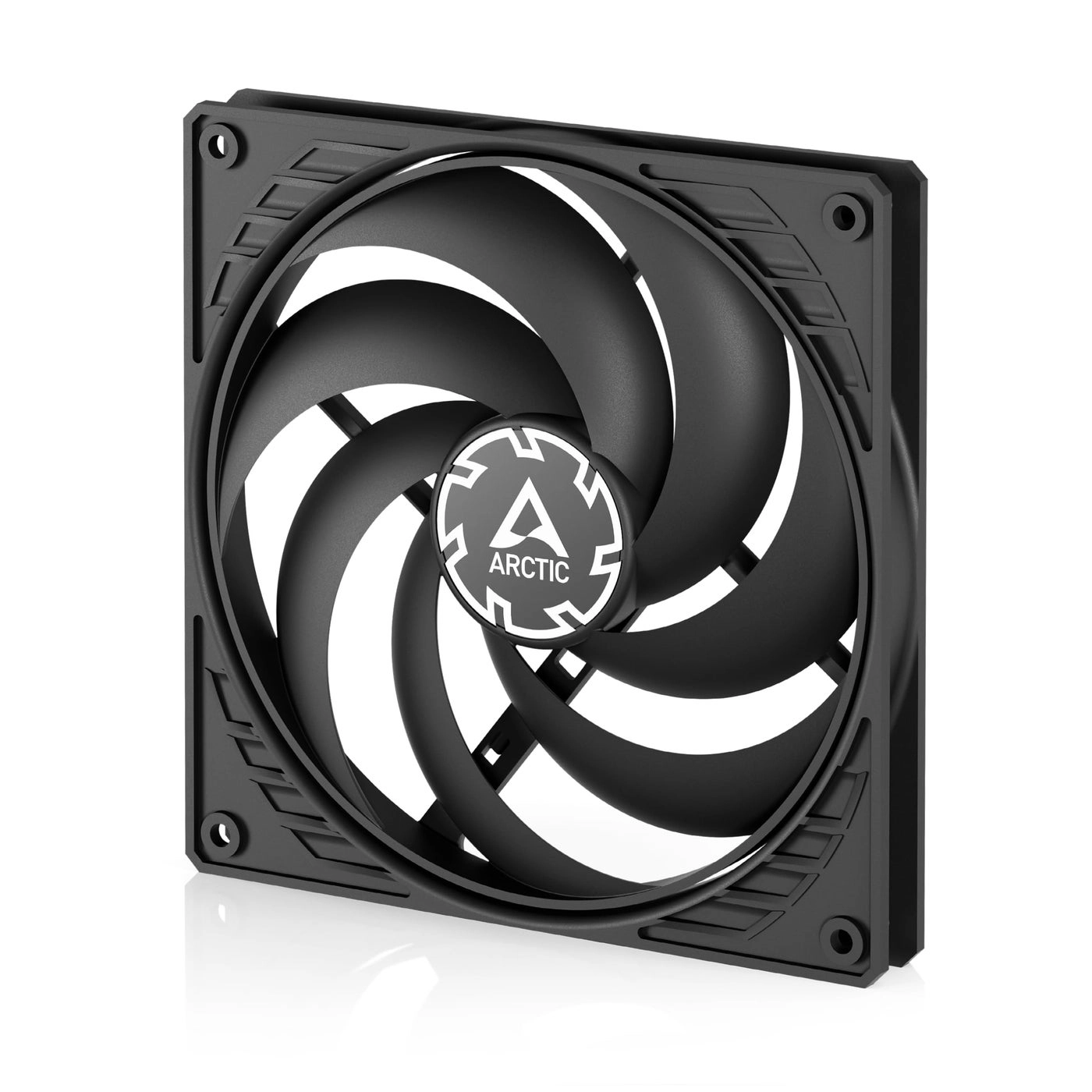

ARCTIC P14 - 140 mm

Name: ARCTIC P14 - 140 mm
Brand: ARCTIC
SKU: 467582
Availability: InStock

Best offer

AED

146⁰⁰

AED

228⁶⁰

-36%

Key Features

Noise level: 0.3sone
LED connector type: 3-pin
Starting voltage: 5V
Number of fan blades: 5
Fan dimensions (W x D x H): 27 x 140 x 140mm
Fan weight: 242g
Maximum air pressure: 2.4mmH2O
Type: Fan
Illumination LED: Yes
Noise level (high speed): 24.5dB
Airflow: 186m³/h
Maximum airflow: 72.8cfm
Rotational speed (max): 1700RPM
Bearing type: Fluid Dynamic Bearing (FDB)
Illumination colour: Multi

Specifications

Features

Country of origin

China

Screws included

✓

Pulse-width modulation (PWM) support

✓

Fan diameter

140 mm

Suitable location

Computer case

Supported processor sockets

Not supported

Product colour

Black

Maximum air pressure

2.40 mmH2O

Type

Fan

Illumination LED

✓

Noise level (high speed)

24.50 dB

Airflow

186 m³/h

Maximum airflow

72.80 cfm

Rotational speed (max)

1700 RPM

Bearing type

Fluid Dynamic Bearing (FDB)

Illumination colour

Multi

Number of fan blades

Starting voltage

5 V

Packaging data

Package type

Box

Package weight

230 g

Package height

29 mm

Package depth

143 mm

Package width

143 mm

Weight & dimensions

Weight

194 g

Mounting hole pattern (W x D)

125 x 125 mm

Height

27 mm

Depth

140 mm

Width

140 mm

Cable length

0.40 m

Fan weight

242 g

Fan dimensions (W x D x H)

140 x 140 x 27 mm

Power

Power consumption (typical)

1.44 W

Voltage

12 V

Rated current

0.35 A

Rated voltage

12 V

Fan voltage

12 V

Fan current

0.17 A

LED voltage

12 V

Performance

Fan static pressure

2 mmH2O

Noise level

0.30 sone

Other features

Airflow

117.06 m³/h, 123.69 m³/h, 123.76 m³/h, 131.92 m³/h, 161.4 m³/h, 186 m³/h, 50.66 m³/h, 88.35 m³/h

Design

LED connector type

3-pin

Packaging content

Number of screws

Quantity per pack

1 pc(s)

Mounting kit

✓

Manual

✓

Ports & interfaces

Fan connector

4-pin + 4-pin

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Processor

Compatible processor series

Not supported

Lighting

Number of LEDs

Logistics data

Harmonized System (HS) code

84733080

Circular saw

Rotational speed (min)

200 RPM

Product Details

BioniX P140 Pressure-optimised 140 mm Gaming Fan with PWM PST The BioniX P140 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the BioniX P140 is especially effective when used on heatsinks and with higher air resistance. The wide RPM range from 200 to 1950 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST). The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.

Addressable RGB for Full Colour Control

The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

0dB Mode - Zero RPM

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

Maximum Smoothness, Minimum Vibration

The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

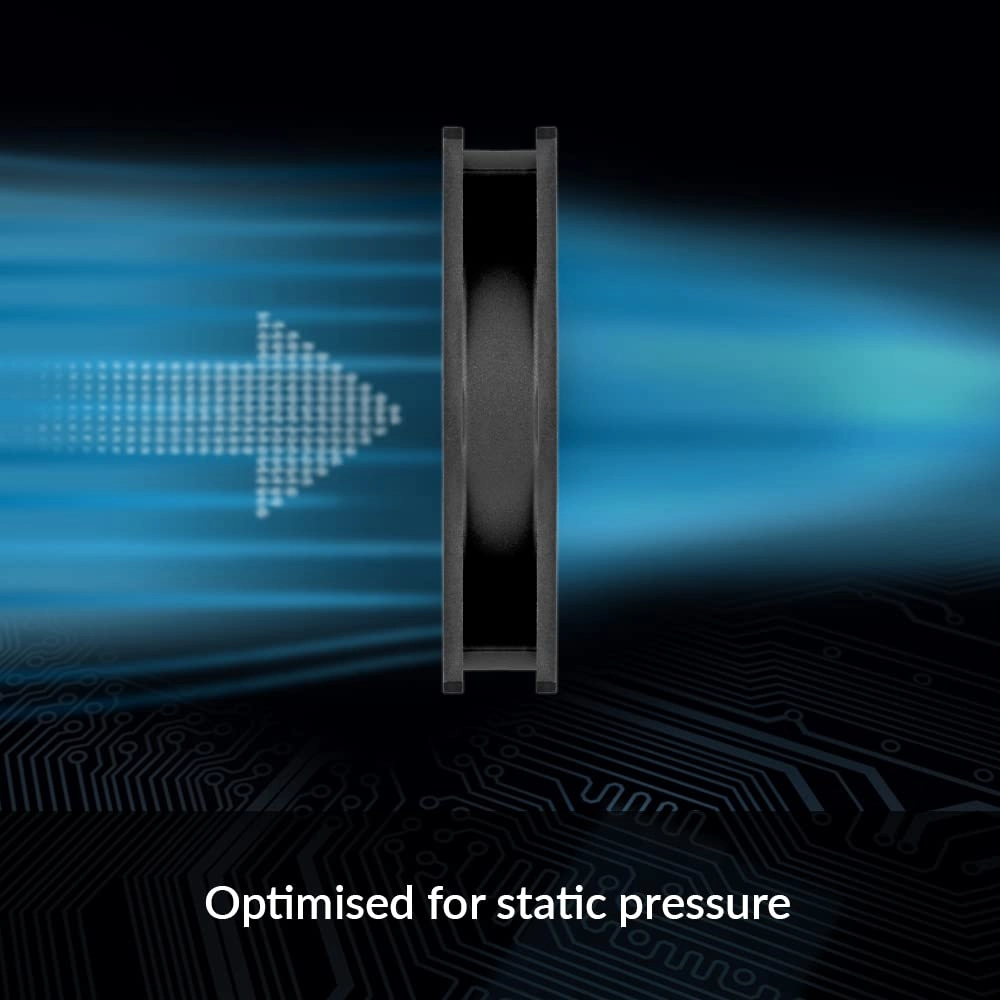

Optimised for High Static Pressure

The P14 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

200 to 1900 RPM Controlled via PWM PST

With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14 PWN PST A-RGB.

Files

Product Brochure

mmo_108045649_1674581657_2083_18005.pdf

PDF• 635.7 KB

Reviews

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

ARCTIC P14 - 140 mm

Best offer

AED

146⁰⁰

AED

228⁶⁰

-36%

Key Features

Noise level: 0.3sone
LED connector type: 3-pin
Starting voltage: 5V
Number of fan blades: 5
Fan dimensions (W x D x H): 27 x 140 x 140mm
Fan weight: 242g
Maximum air pressure: 2.4mmH2O
Type: Fan
Illumination LED: Yes
Noise level (high speed): 24.5dB
Airflow: 186m³/h
Maximum airflow: 72.8cfm
Rotational speed (max): 1700RPM
Bearing type: Fluid Dynamic Bearing (FDB)
Illumination colour: Multi

Offers (2)

2 offers

From

AED

146

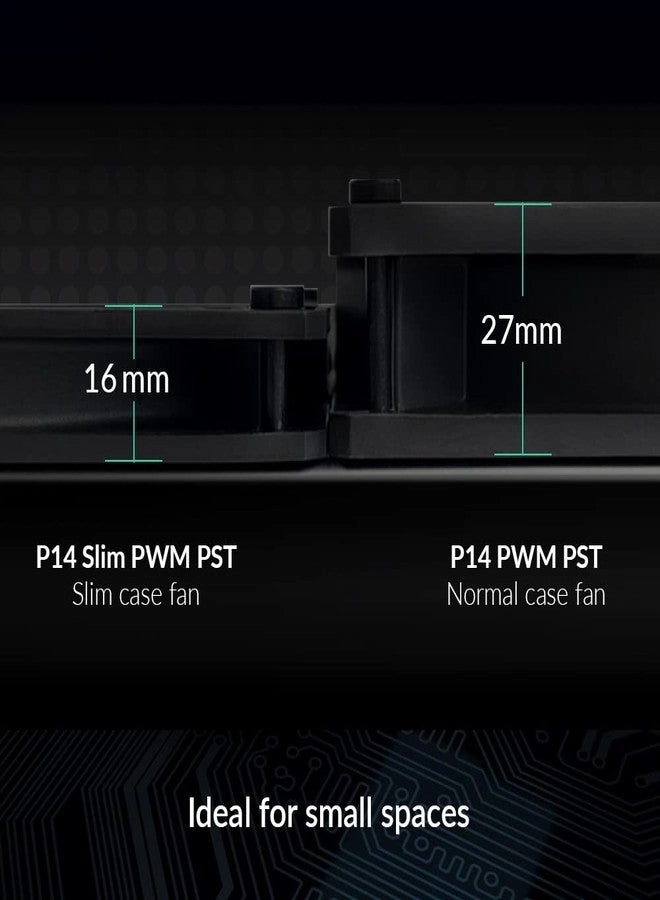

ARCTIC P14 Slim PWM PST - PC Fan, 140mm Case Fan, with PWM Sharing Technology (PST), Pressure-optimised, Quiet Motor, Computer, Extra Slim, 150–1800 RPM - Black
