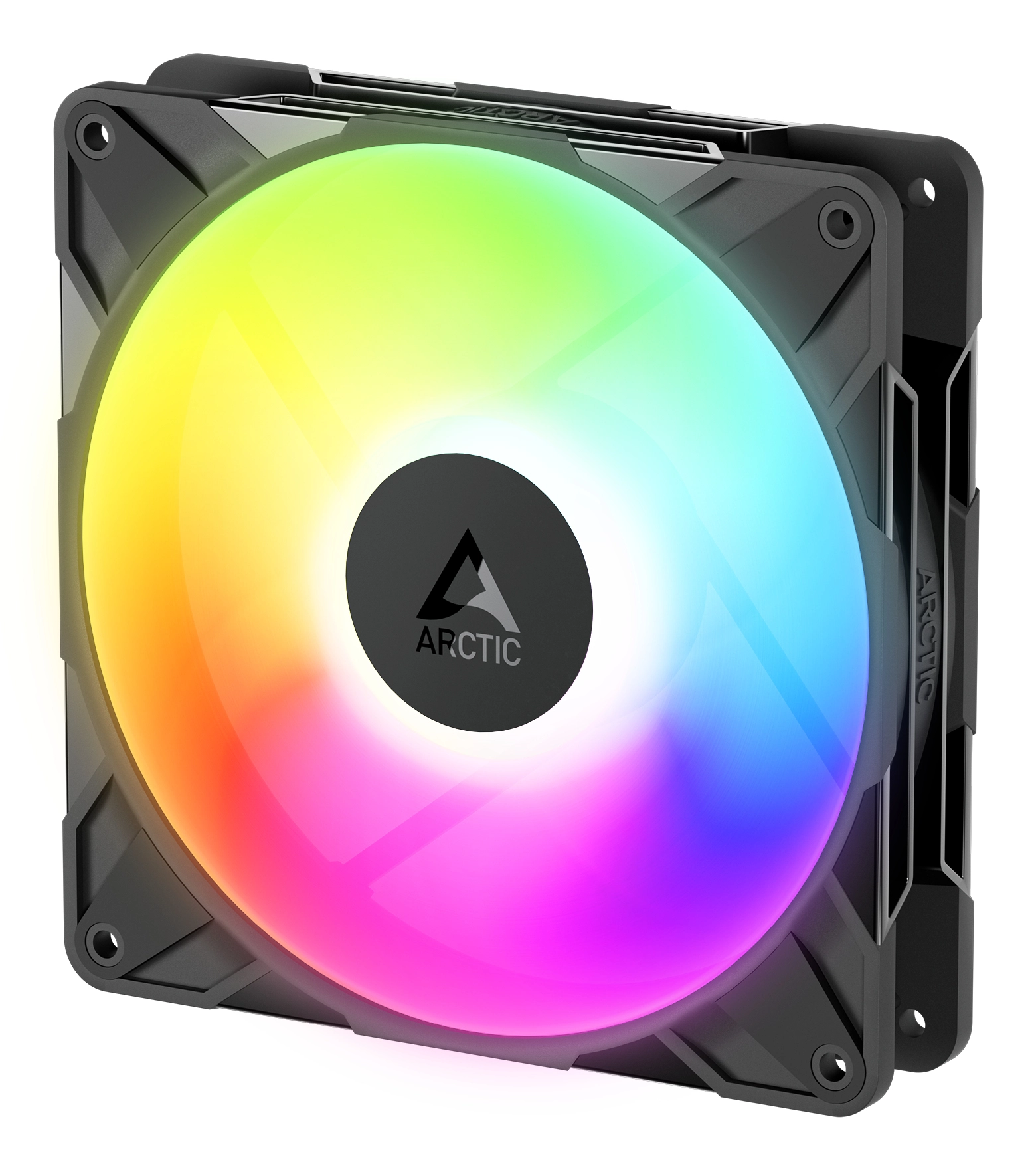

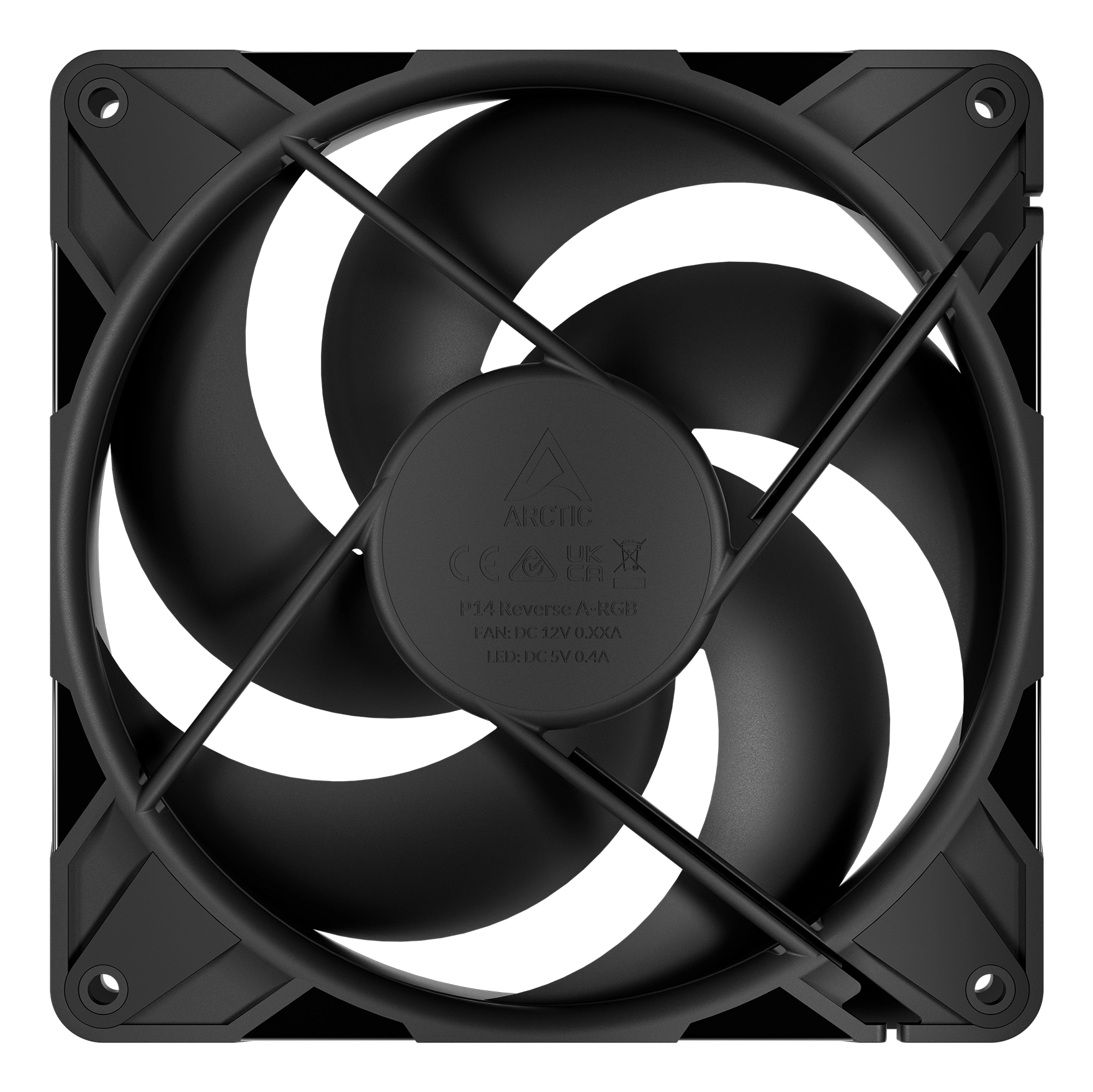

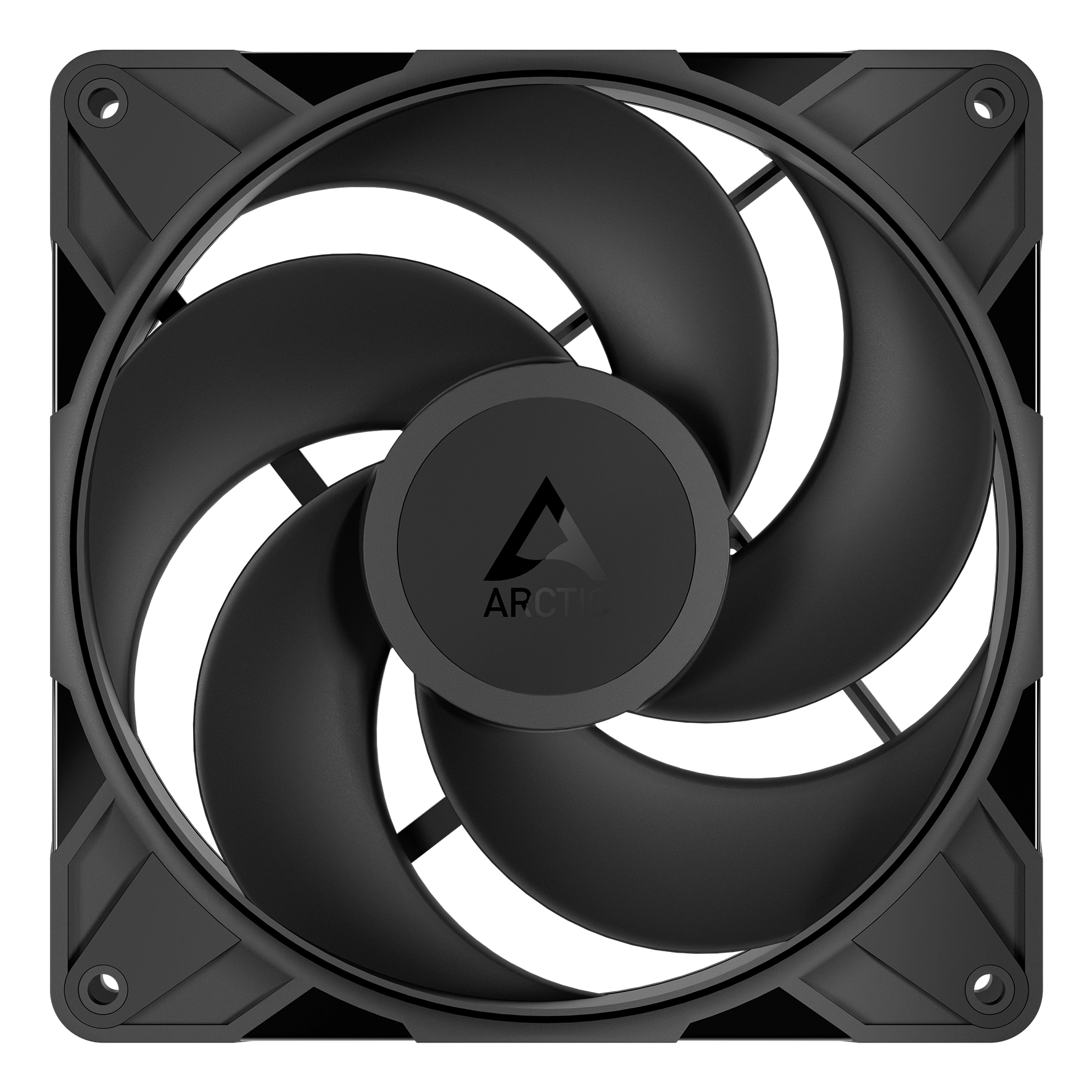

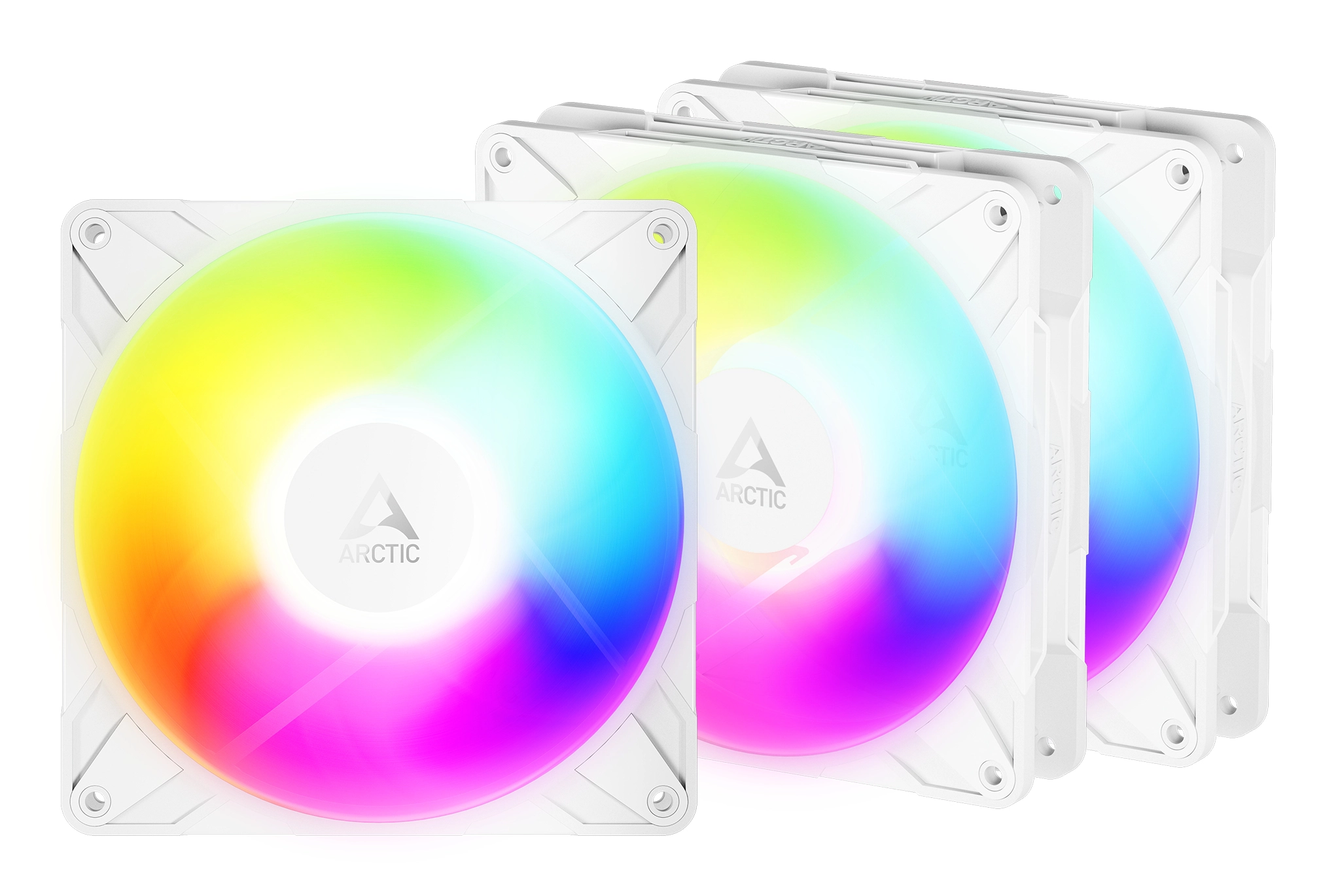

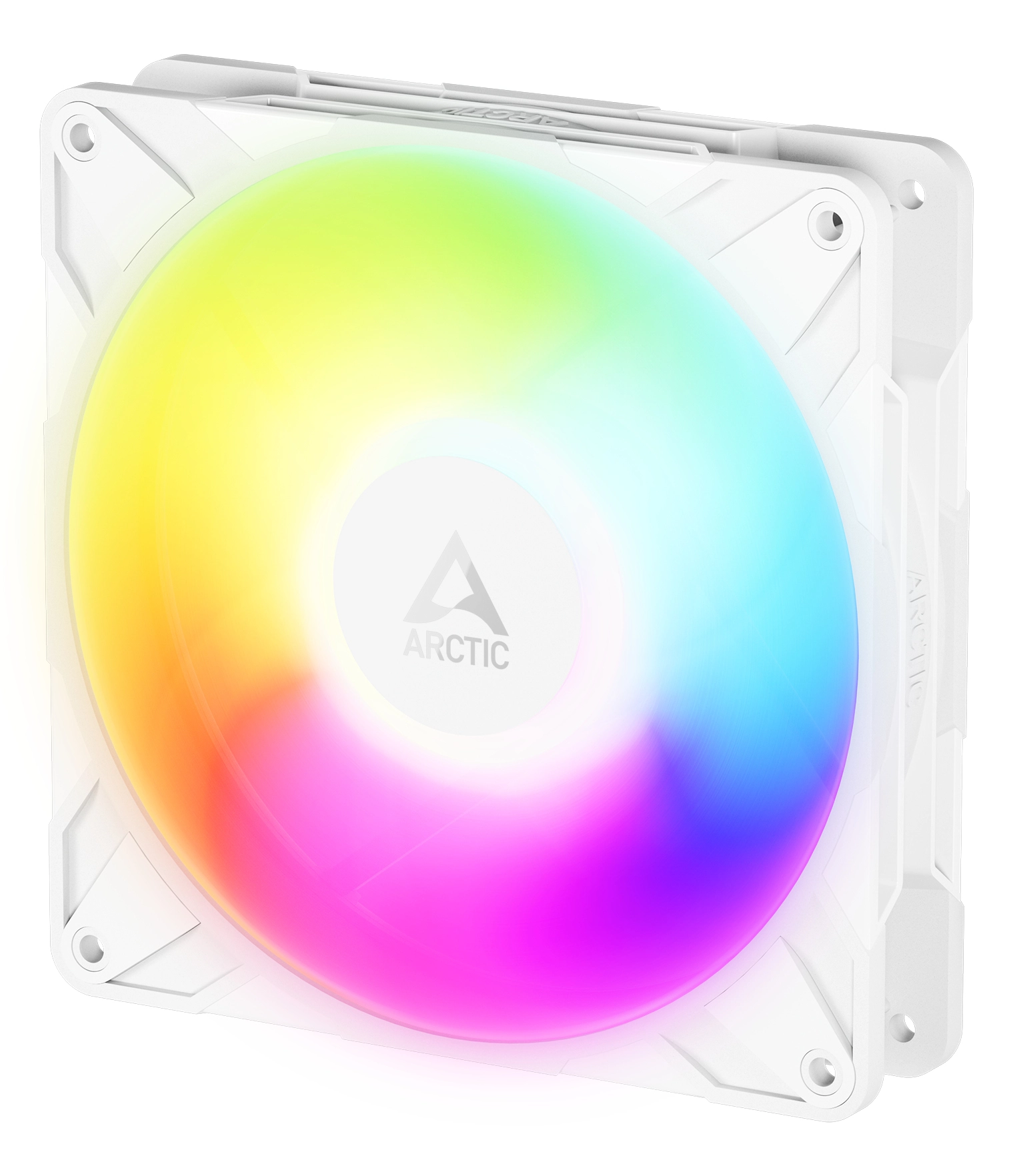

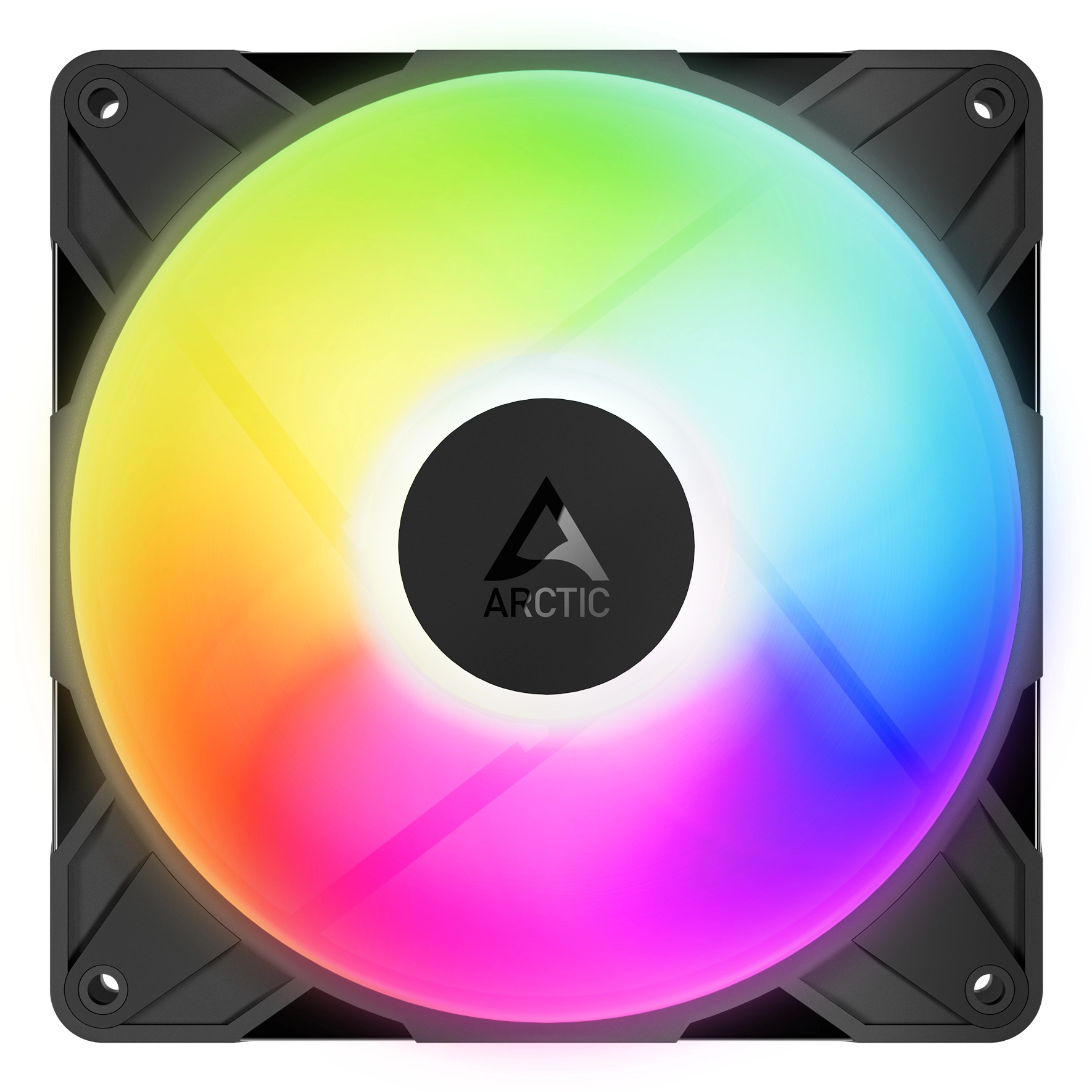

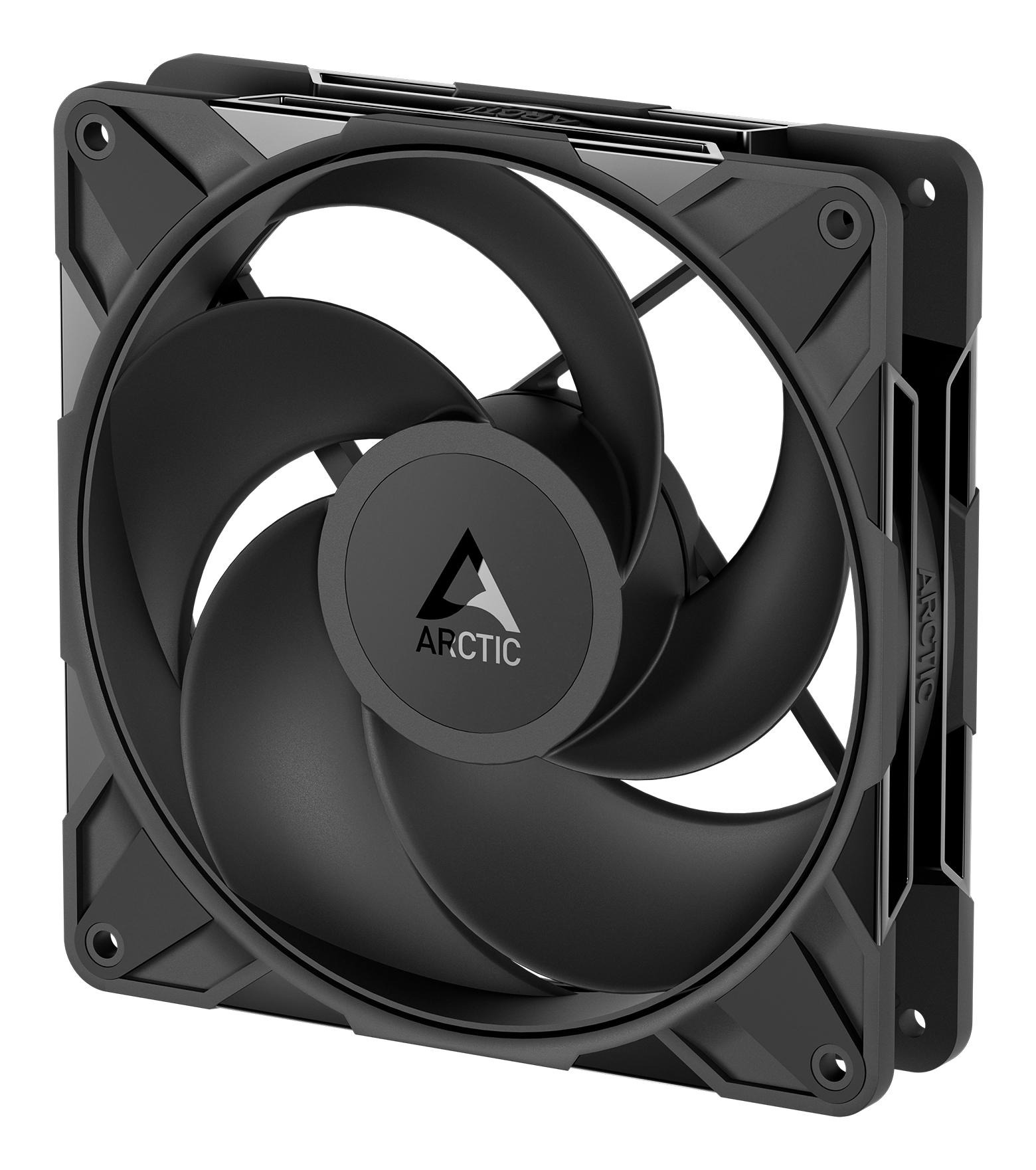

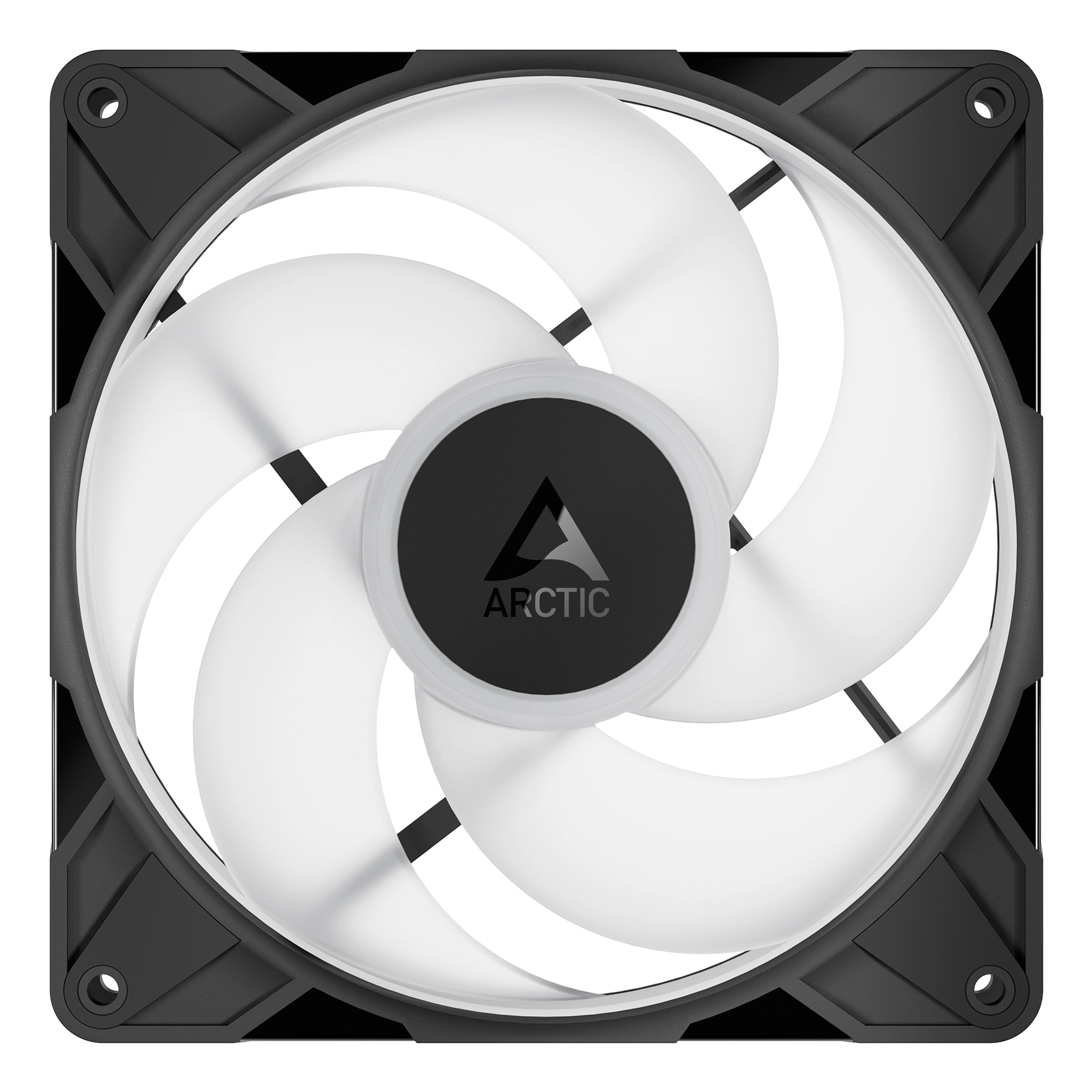

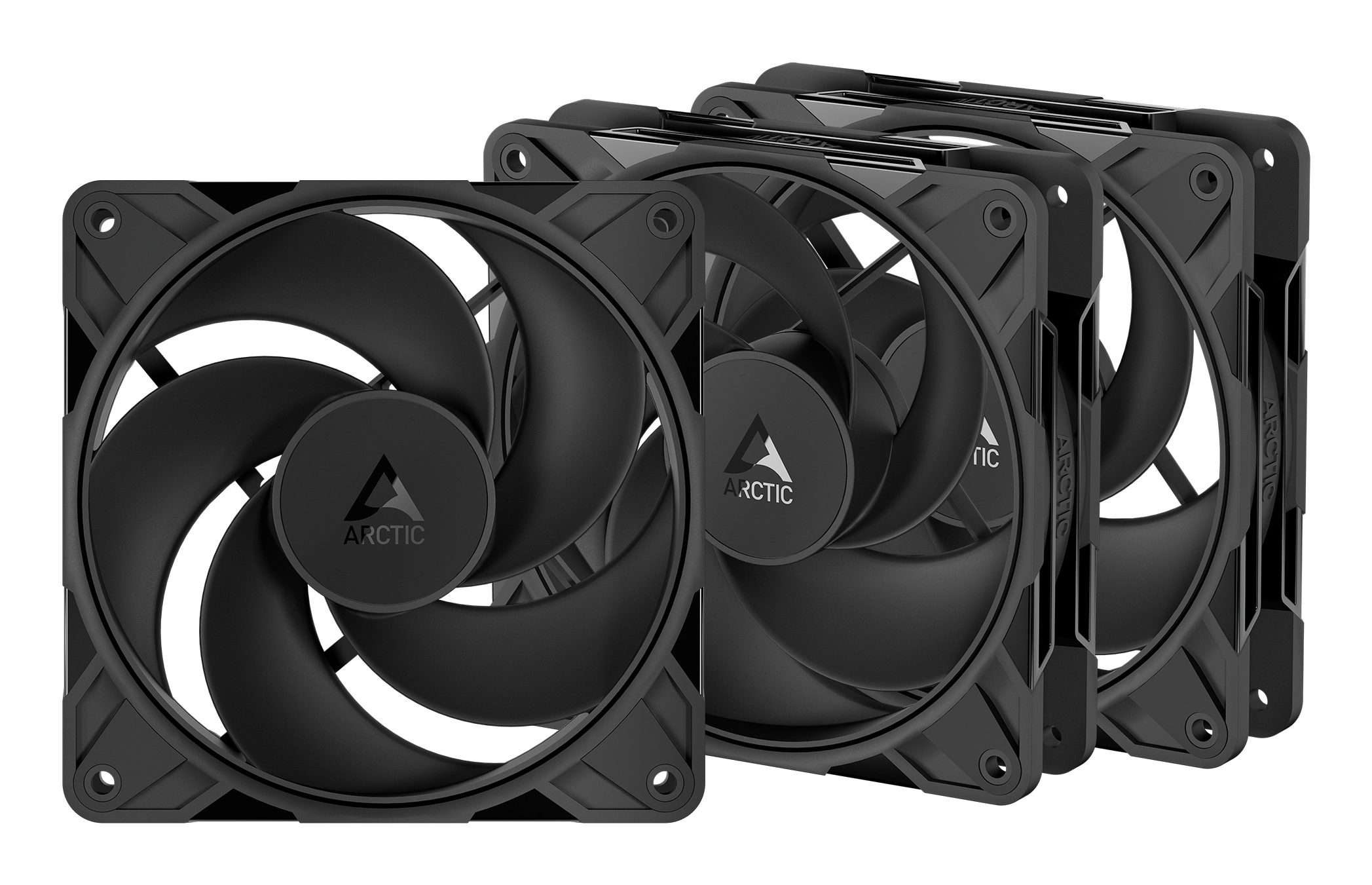

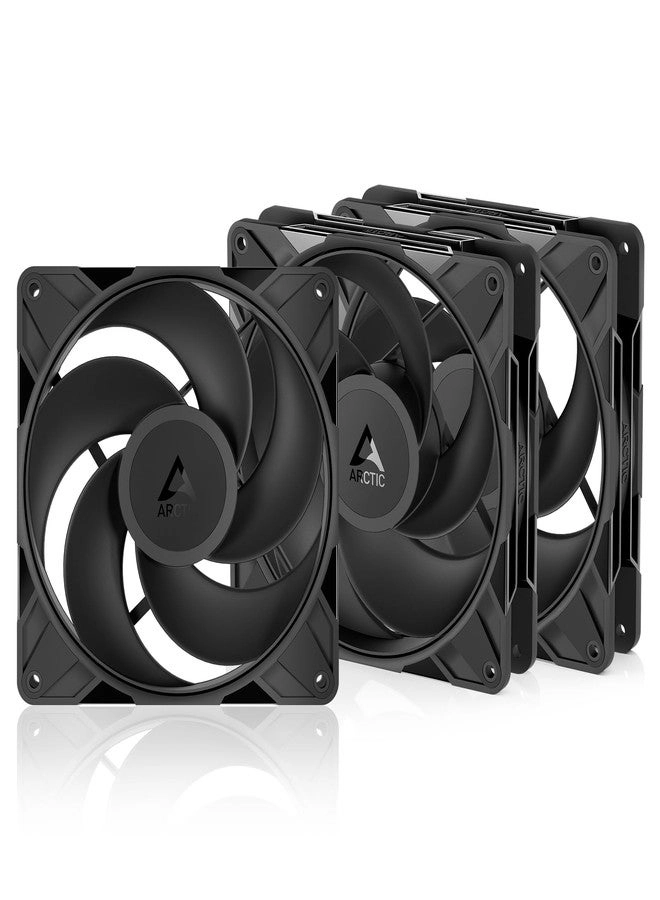

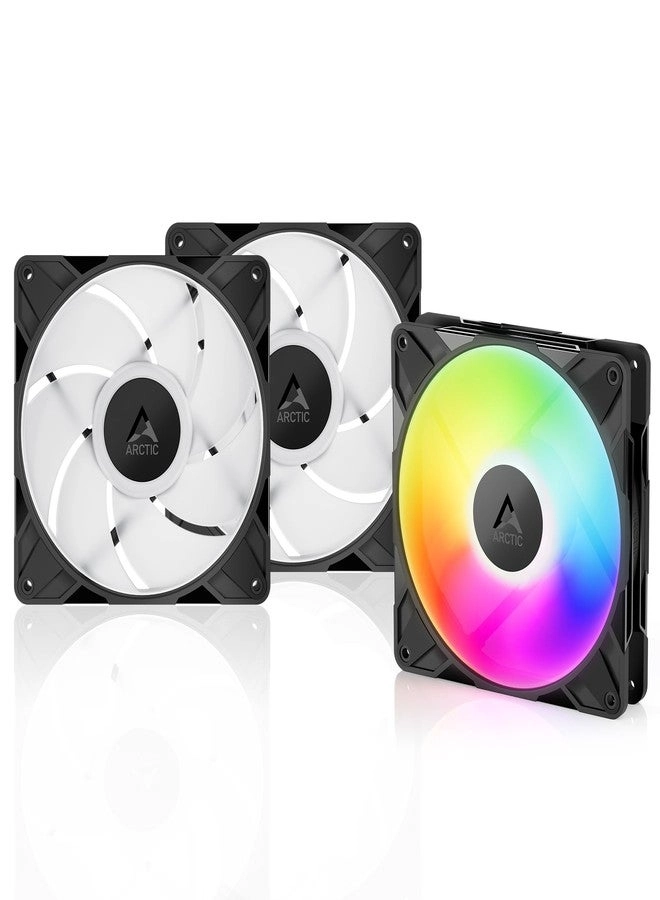

ARCTIC P14 PWM PST A-RGB - 3 Pack 140mm

Name: ARCTIC P14 PWM PST A-RGB - 3 Pack 140mm
Brand: ARCTIC
SKU: 870738
Availability: InStock

Best offer

AED

308⁶⁸

AED

308⁶⁹

<1%

Key Features

Noise level: 0.3sone
LED connector type: 3-pin
Starting voltage: 5V
Number of fan blades: 5
Fan dimensions (W x D x H): 30 x 140 x 140mm
Fan weight: 253g
Maximum air pressure: 2.4mmH2O
Type: Fan
Fan speed (max): 2650RPM
Fan speed (min): 400RPM
Illumination LED: Yes
Noise level (high speed): 24.5dB
Airflow: 117.06m³/h
Maximum airflow: 68.9cfm
Rotational speed (max): 1700RPM

Specifications

Features

Country of origin

China

Screws included

✓

Pulse-width modulation (PWM) support

✓

Fan diameter

140 mm

Suitable location

Computer case

Supported processor sockets

Not supported

Product colour

Black

Maximum air pressure

2.40 mmH2O

Type

Fan

Fan speed (max)

2650 RPM

Fan speed (min)

400 RPM

Illumination LED

✓

Noise level (high speed)

24.50 dB

Airflow

117.06 m³/h

Maximum airflow

68.90 cfm

Rotational speed (max)

1700 RPM

Bearing type

Fluid Dynamic Bearing (FDB)

Illumination colour

Multi

Number of fan blades

Starting voltage

5 V

Packaging data

Package type

Box

Package weight

230 g

Package height

100 mm

Package depth

148 mm

Package width

144 mm

Weight & dimensions

Weight

194 g

Height

27 mm

Depth

140 mm

Width

140 mm

Cable length

0.48 m

Fan weight

253 g

Fan dimensions (W x D x H)

140 x 140 x 30 mm

Power

Power consumption (typical)

1.44 W

Voltage

12 V

Rated current

0.12 A

Rated voltage

12 V

Fan voltage

12 V

Fan current

0.17 A

LED voltage

5 V

Performance

Fan static pressure

2 mmH2O

Noise level

0.30 sone

Other features

Airflow

117.06 m³/h, 123.69 m³/h, 123.76 m³/h, 166.5 m³/h, 186 m³/h

Design

LED connector type

3-pin

Packaging content

Number of screws

Quantity per pack

1 pc(s)

Mounting kit

✓

Manual

✓

Ports & interfaces

Fan connector

4-pin + 4-pin

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Processor

Compatible processor series

Not supported

Lighting

Number of LEDs

Logistics data

Harmonized System (HS) code

84733080

Circular saw

Rotational speed (min)

200 RPM

Product Details

Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.

0dB Mode - Zero RPM

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

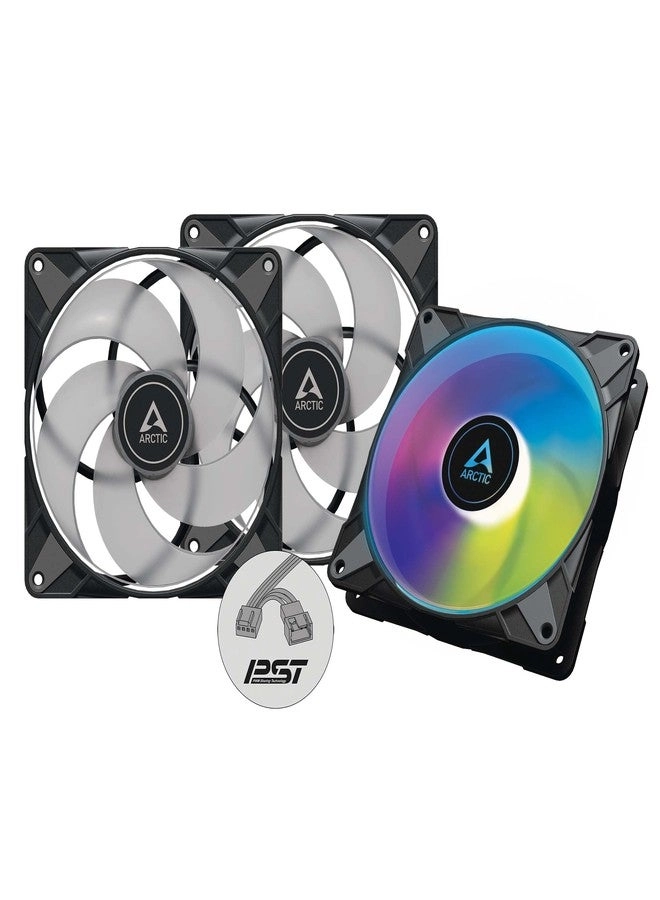

200 to 1900 RPM Controlled via PWM PST

With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

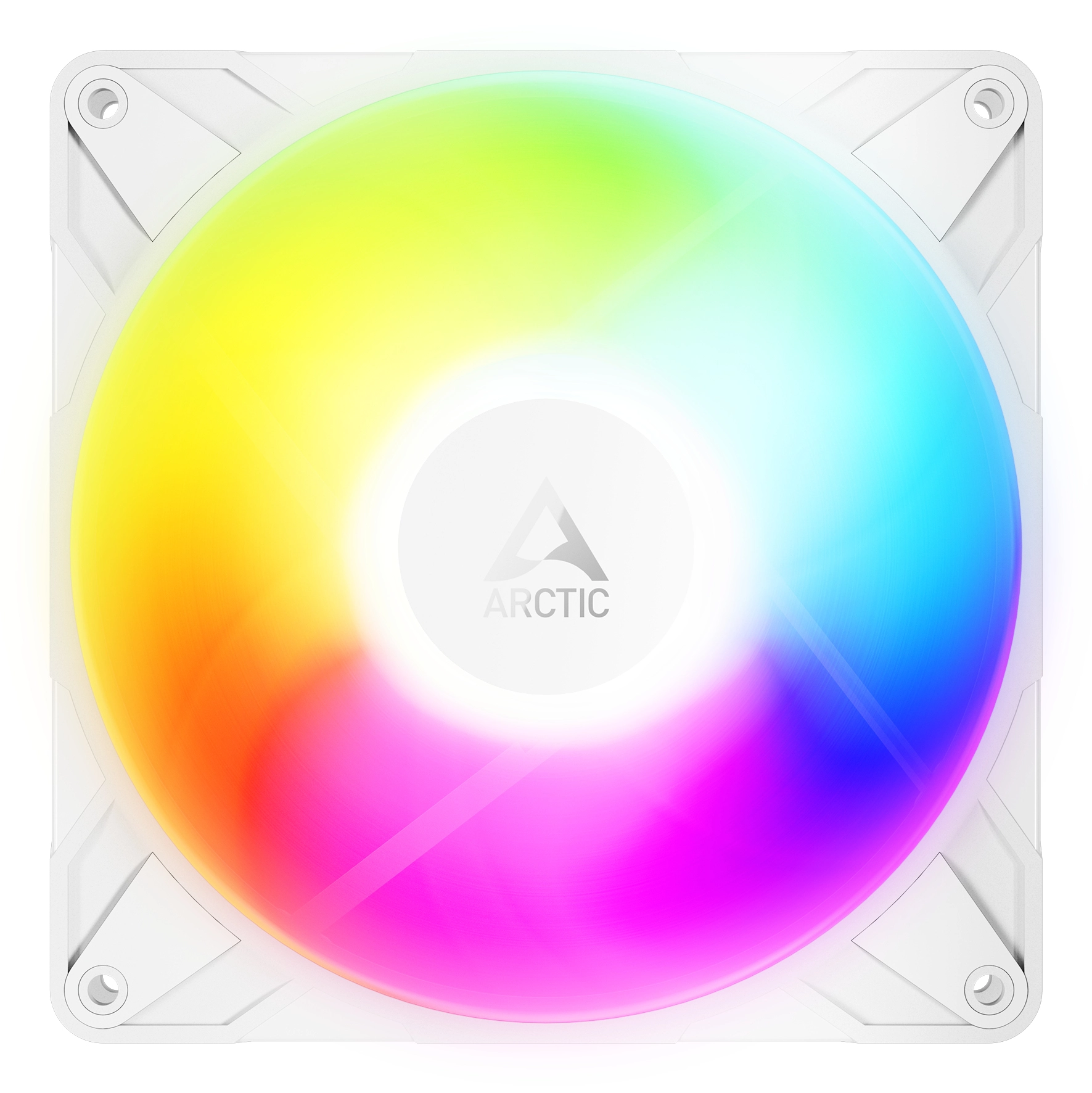

Addressable RGB for Full Colour Control

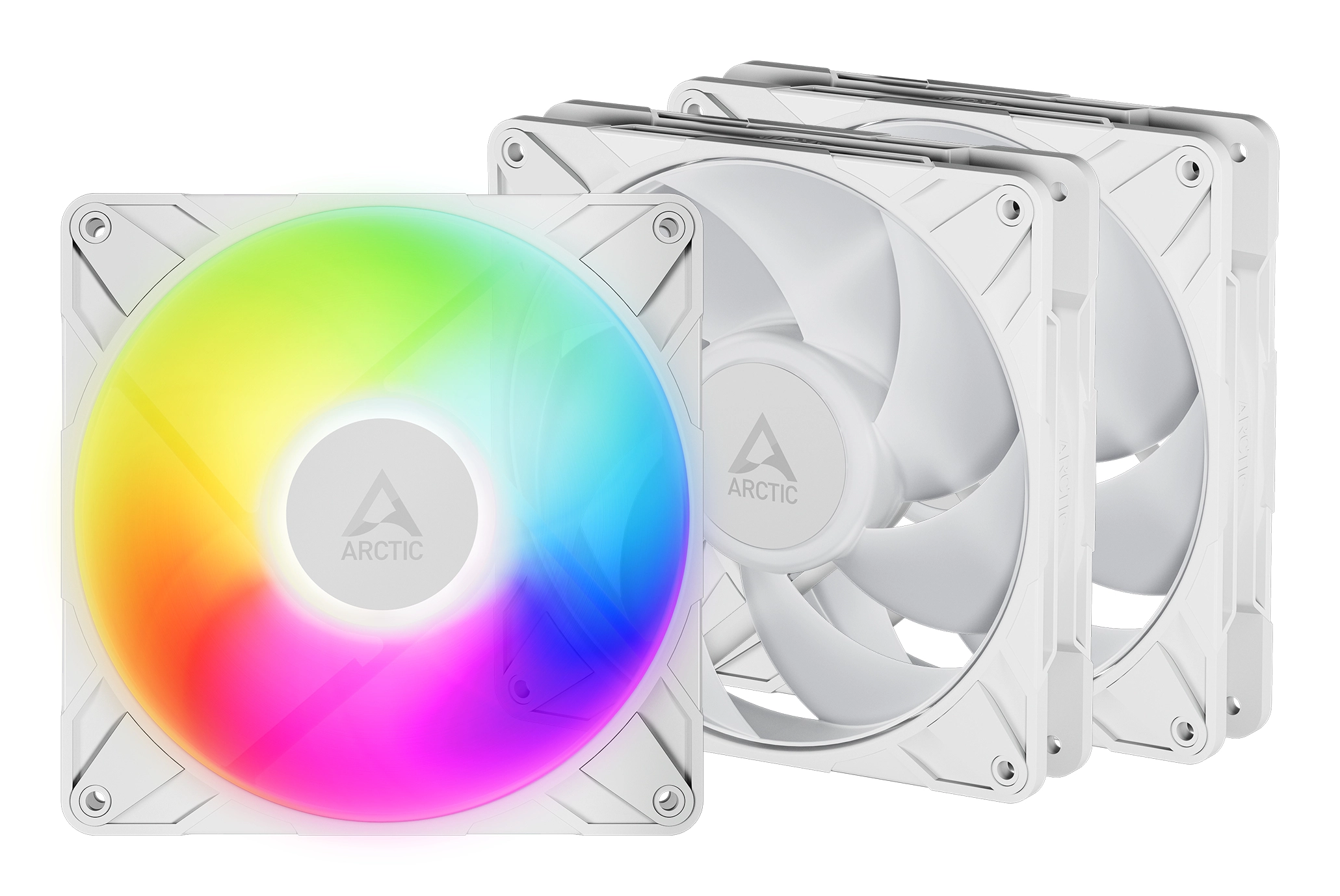

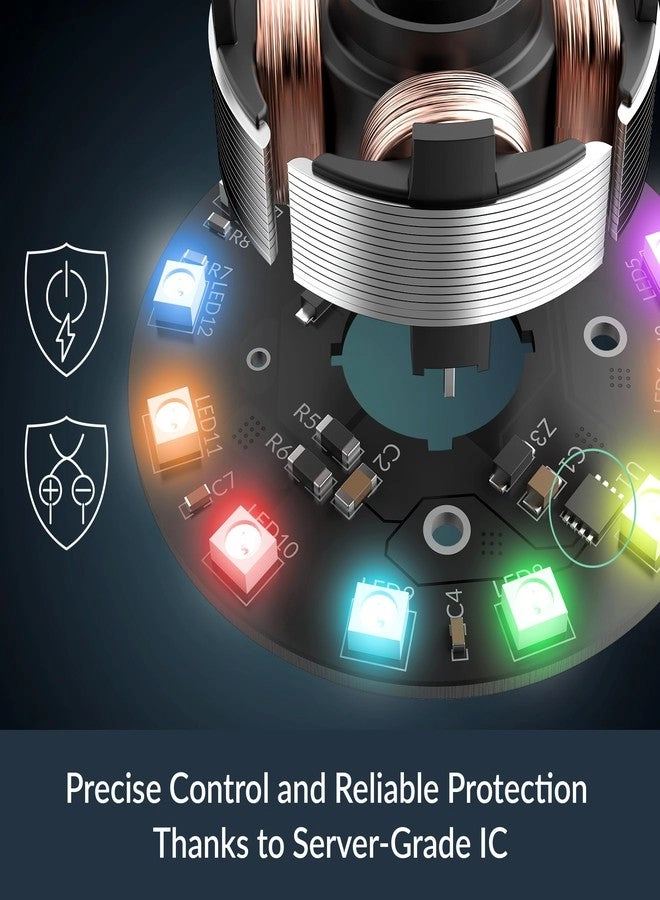

The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

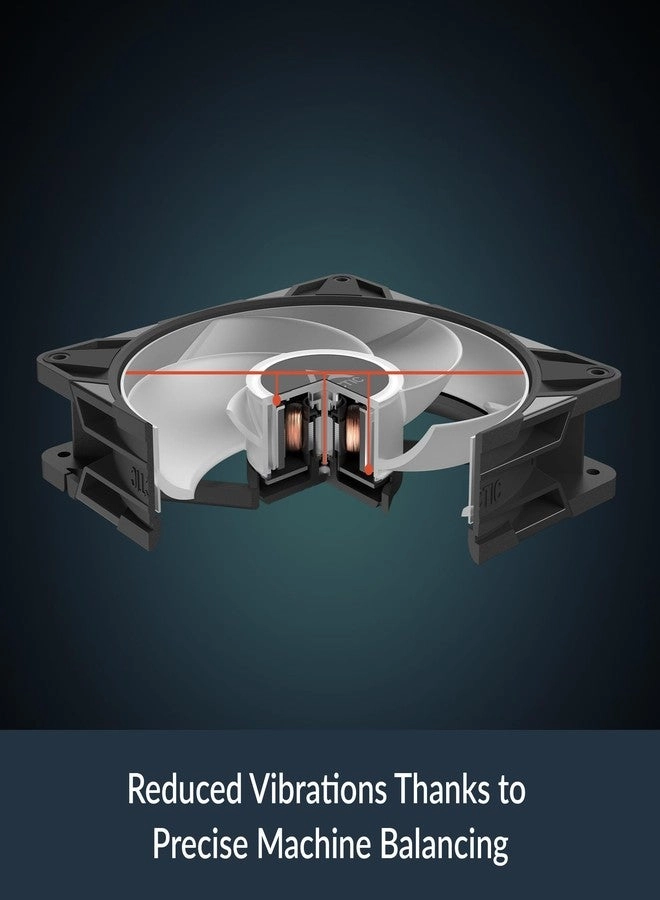

Maximum Smoothness, Minimum Vibration

The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

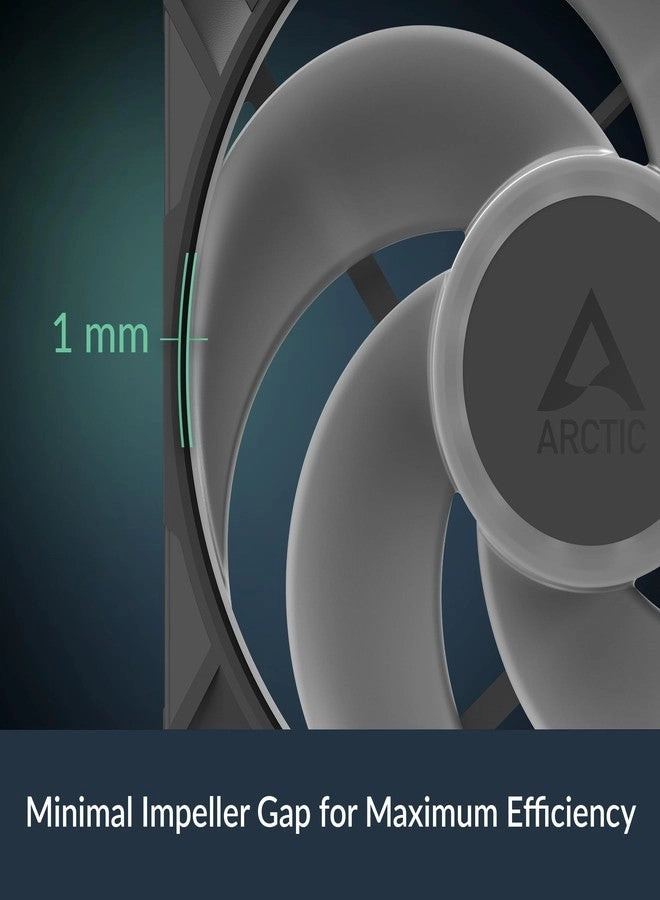

Optimised for High Static Pressure

The P14 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

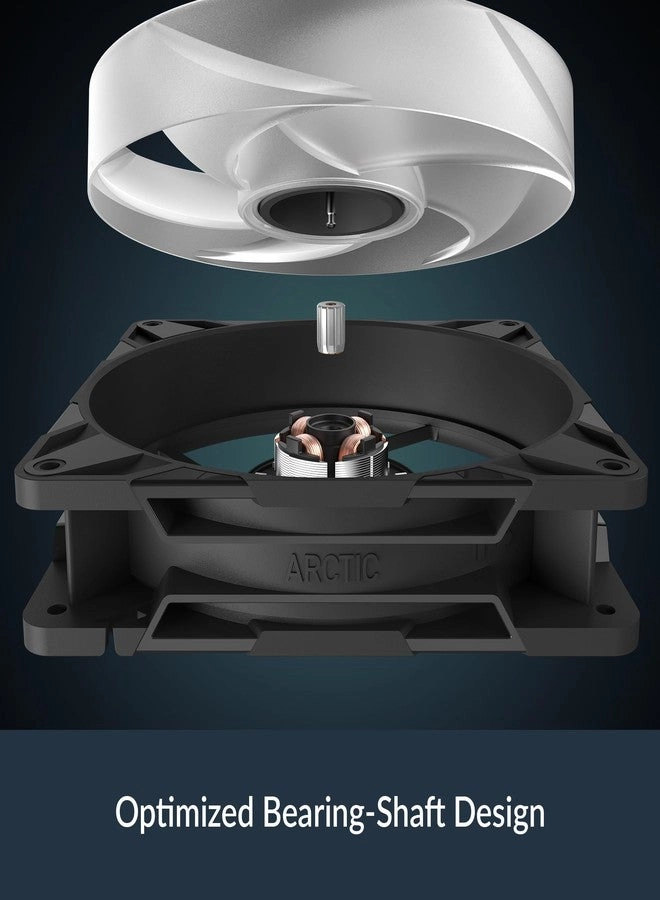

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14 PWN PST A-RGB.

Files

Product Brochure

mmo_108045649_1674581657_2083_18005.pdf

PDF• 635.7 KB
