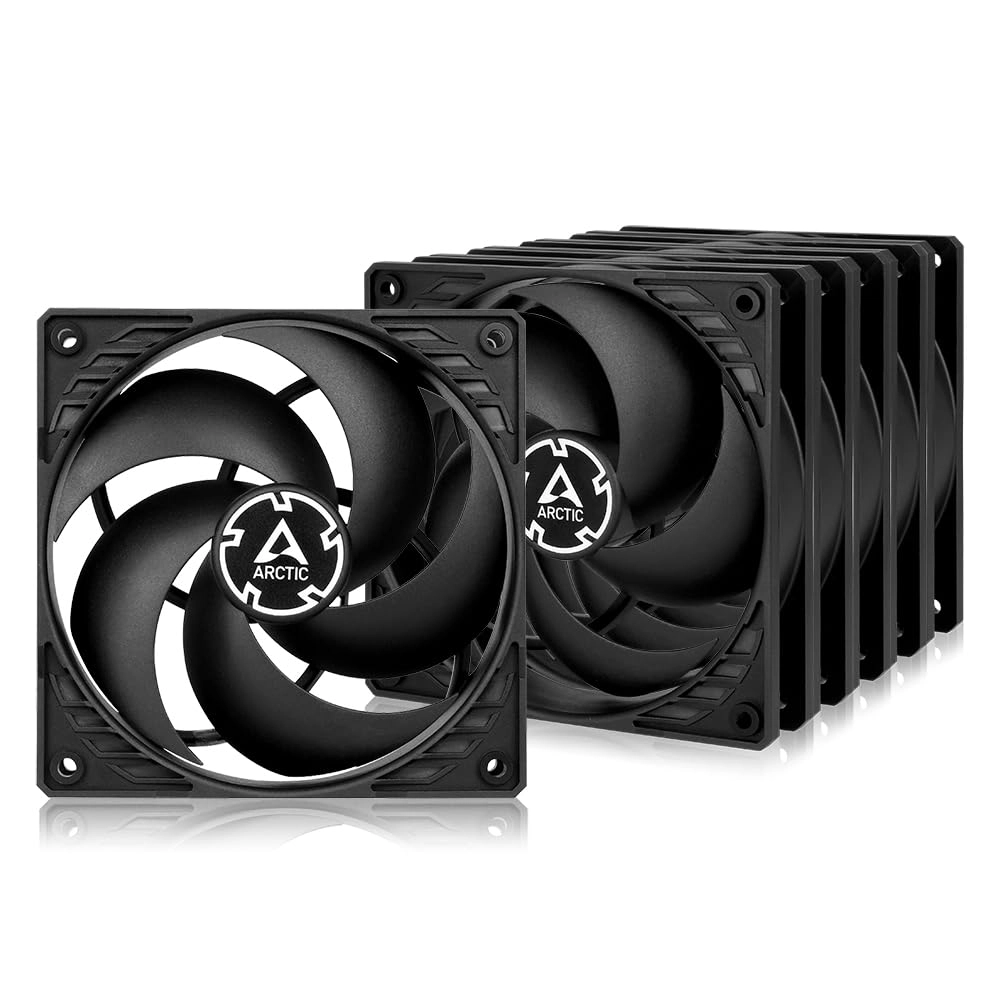

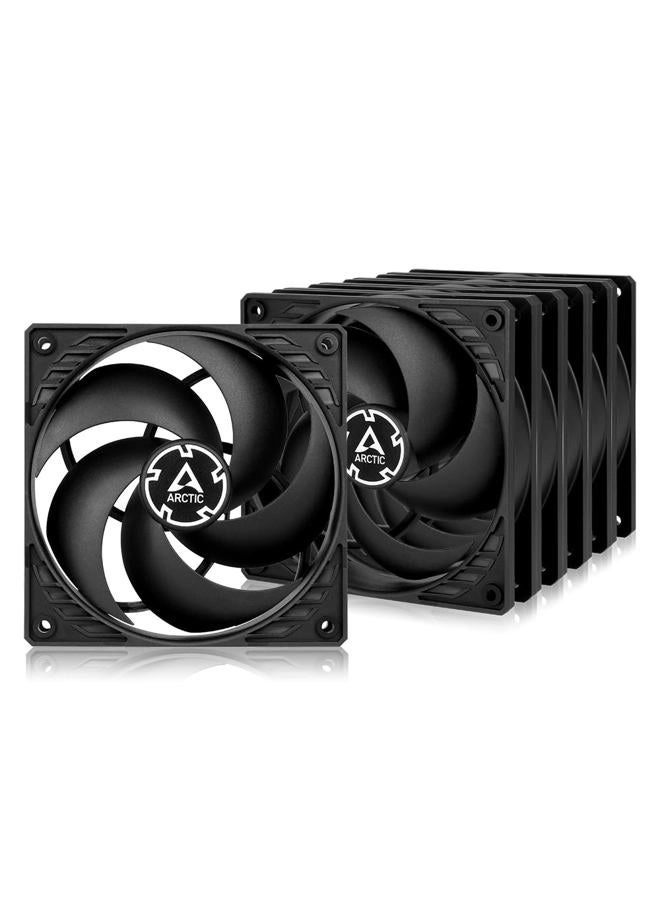

ARCTIC P12 PWM PST - 5 Pack 120 mm

Name: ARCTIC P12 PWM PST - 5 Pack 120 mm
Brand: ARCTIC
SKU: 467613
Availability: InStock

Best offer

AED

305⁹⁰

Key Features

Noise level: 0.3sone
Starting voltage: 3.9V
Fan bearing technology: Fluid Dynamic Bearing (FDB)
Number of fan blades: 5
Fan dimensions (W x D x H): 25 x 120 x 120mm
Fan weight: 185g
Maximum air pressure: 2.2mmH2O
Type: Fan
Fan speed (max): 3000RPM
Fan speed (min): 600RPM
Illumination LED: Yes
Noise level (high speed): 24.5dB
Airflow: 95.65m³/h
Maximum airflow: 56.3cfm
Rotational speed (max): 1800RPM

Specifications

Features

Country of origin

China

Material

Plastic

Screws included

✓

Pulse-width modulation (PWM) support

✓

Fan diameter

120 mm

Suitable location

Computer case

Supported processor sockets

Not supported

Product colour

Black

Maximum air pressure

2.20 mmH2O

Type

Fan

Fan speed (max)

3000 RPM

Fan speed (min)

600 RPM

Illumination LED

✓

Noise level (high speed)

24.50 dB

Airflow

95.65 m³/h

Maximum airflow

56.30 cfm

Rotational speed (max)

1800 RPM

Bearing type

Fluid Dynamic Bearing (FDB)

Number of fan blades

Starting voltage

3.90 V

Packaging data

Package type

Box

Package weight

176 g

Package height

27 mm

Package depth

123 mm

Package width

123 mm

Weight & dimensions

Weight

145 g

Height

25 mm

Depth

120 mm

Width

120 mm

Cable length

0.40 m

Fan weight

185 g

Fan dimensions (W x D x H)

120 x 120 x 25 mm

Power

Power consumption (typical)

0.96 W

Voltage

12 V

Rated current

0.08 A

Fan voltage

12 V

Fan current

0.33 A

LED voltage

12 V

Performance

Fan static pressure

6.90 mmH2O

Fan bearing technology

Fluid Dynamic Bearing (FDB)

Noise level

0.30 sone

Other features

Airflow

131 m³/h, 71.53 m³/h, 82.91 m³/h, 90.1 m³/h, 95.65 m³/h

Packaging content

Number of screws

Quantity per pack

1 pc(s)

Mounting kit

✓

Ports & interfaces

Fan connector

4-pin + 4-pin

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Processor

Compatible processor series

Not supported

Lighting

Number of LEDs

Logistics data

Harmonized System (HS) code

84733080

Circular saw

Rotational speed (min)

200 RPM

Product Details

Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.

6-Year Warranty – Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

Files

Product Brochure

mmo_132629731_1752154115_873_2561865.pdf

PDF• 770.7 KB

YouTube

Reviews
