ARCTIC 12 A-RGB - 3 Pack 120 mm

Name: ARCTIC 12 A-RGB - 3 Pack 120 mm
Brand: ARCTIC
SKU: 467695
Availability: InStock

Best offer

AED

369⁰⁰

Key Features

LED connector type: 3-pin
Starting voltage: 3.3V
Number of fan blades: 7
Fan dimensions (W x D x H): 25 x 120 x 120mm
Fan weight: 185g
Type: Fan
Bearing type: Fluid Dynamic Bearing (FDB)
Fan speed (max): 3000RPM
Fan speed (min): 600RPM
Illumination LED: Yes
Illumination colour: Multi
Airflow: 131m³/h
Maximum airflow: 77cfm
Fan voltage: 12V
Fan current: 0.33A

Specifications

Features

Screws included

✓

Pulse-width modulation (PWM) support

✓

Fan diameter

120 mm

Suitable location

Computer case

Product colour

White

Type

Fan

Bearing type

Fluid Dynamic Bearing (FDB)

Fan speed (max)

3000 RPM

Fan speed (min)

600 RPM

Illumination LED

✓

Illumination colour

Multi

Airflow

131 m³/h

Maximum airflow

77 cfm

Number of fan blades

Starting voltage

3.30 V

Packaging data

Package type

Hanging box

Package weight

633 g

Package height

86 mm

Package depth

127 mm

Package width

124 mm

Weight & dimensions

Cable length

0.40 m

Fan weight

185 g

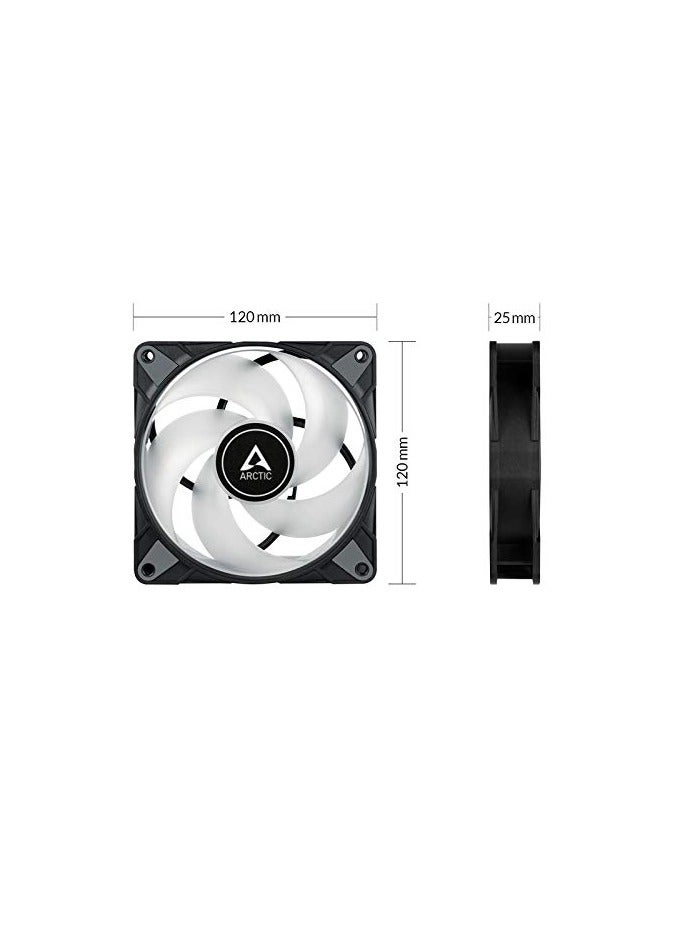

Fan dimensions (W x D x H)

120 x 120 x 25 mm

Power

Fan voltage

12 V

Fan current

0.33 A

LED voltage

5 V

Performance

Fan static pressure

6.90 mmH2O

Other features

Airflow

131 m³/h

Design

LED connector type

3-pin

Packaging content

Number of screws

Ports & interfaces

Fan connector

4-pin + 4-pin

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Product Details

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Balancing

An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

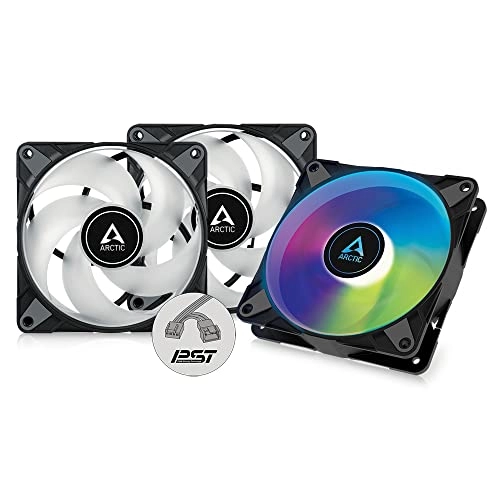

PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.

6-Year Warranty – Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

Files

Product Brochure

mmo_133176750_1760271289_9082_1999583.pdf

PDF• 645.9 KB
