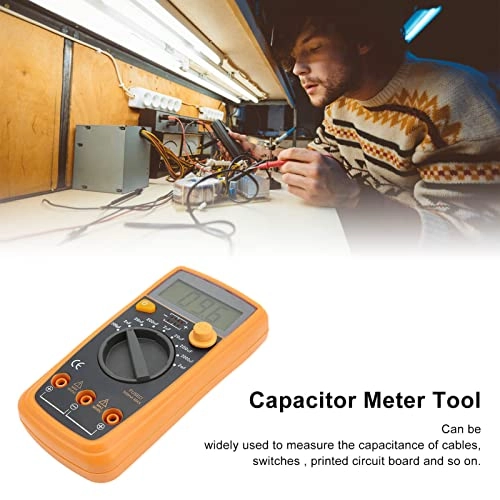

Raitron LVC1500

Specification: Item Type: Capacitor Meter Model: LVC1500 Material: ABS Battery: 1 x 6F22 9V (not included) Application: Widely used in measuring circuits for blocking, coupling, bypassing, filtering, tuning loops, energy conversion, control, etc.; in fact, it includes all aspects of electronic engineering laboratories, production lines, maintenance points and teaching capacitance. Can be used to check tolerance values, classification values, select accuracy values, and can be used to measure the capacitance of cables, switches or printed circuit board circuit designs. Display: LCD display, maximum reading 1999. Range: 9 kinds of measuring ranges, full range value from 0.1pF to 20000uF. Overload Protection: Display 1. Calibration Adjustment: 2pcs built in adjusters to ensure accuracy, a panel adjuster, the value of the display, and the adjustment by the external adjustment knob. Adjustment: Adjust the range to ±25pF. Over Range Display: Display 1. Sampling Time: 0~5 seconds. Working Temperature: 0~40℃ Relative Humidity: Electrical Characteristics: 200pF, 2nF, 20nF, 200nF, 2uF, 20uF, 200uF, 2000uF, 20000uF (2mF). How to
