BAEJM-E0915 M6013

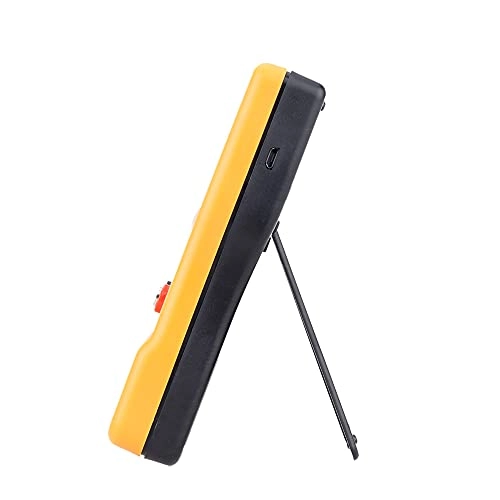

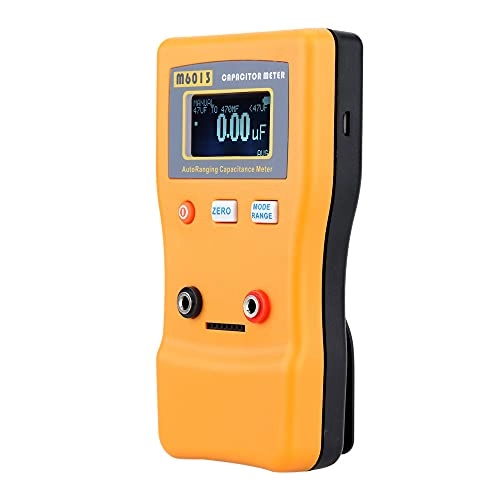

The M6013 V2 is an automatic range densitometer. Using the 128 x 64 dot matrix LCD screen, 5 digits reading can be displayed. Large range of capacity measurement 0.01pf to 470mfd (470,000uF which is enough for home use and professional engineers. Specification: Color:Orange Range accuracy (after zero, refresh time (manual mode) Tested with 1,10,100R Auto Mode Takes 0-2 Seconds, More Time Resistor) depends on capacitance value. 0.01pf to 47.000nF 1%+2 digits 0.2s to 1s 47.00nF to 47.000uF 1%+1digit, 0.2s to 2s 47.00uF to 470.00mF 1 to 3%+1 digit, 0.2s to 30s. Accuracy: up to 1% (details in table above) High accuracy: 5 digits Measuring voltage: <0.8V Clamping voltage:1.25V (open voltage) External Power:5V Micro USB Working current:0.02A Battery:2 * 1.5V AA battery(not included) Battery life: >80 hours Product size: approx.14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in Product weight: about 138.3g / 4.9oz Package size: about 17 x 9 x 5cm / 6.7 x 3.5 x 2.0 inches Package weight: about 216g / 7.6oz Packing List: 1 * Capacitance Meter 2 * Test Clips 1 x User Manual
