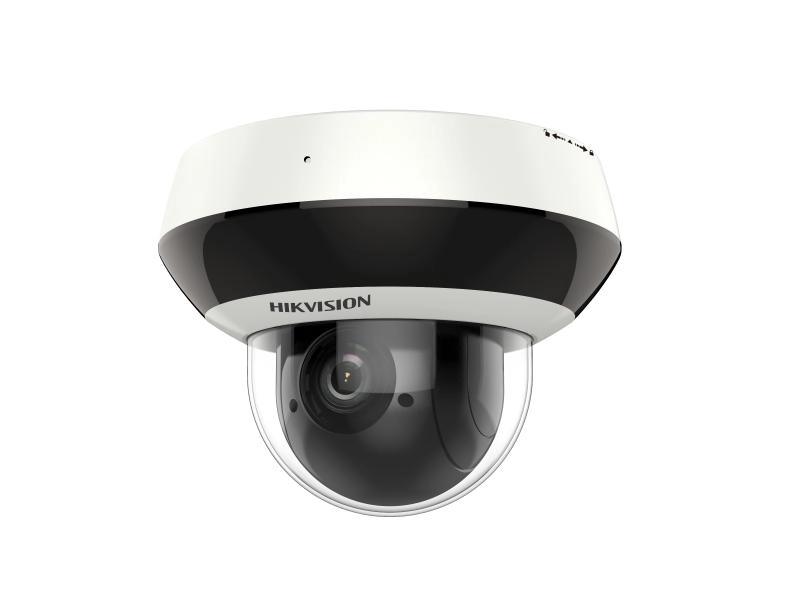

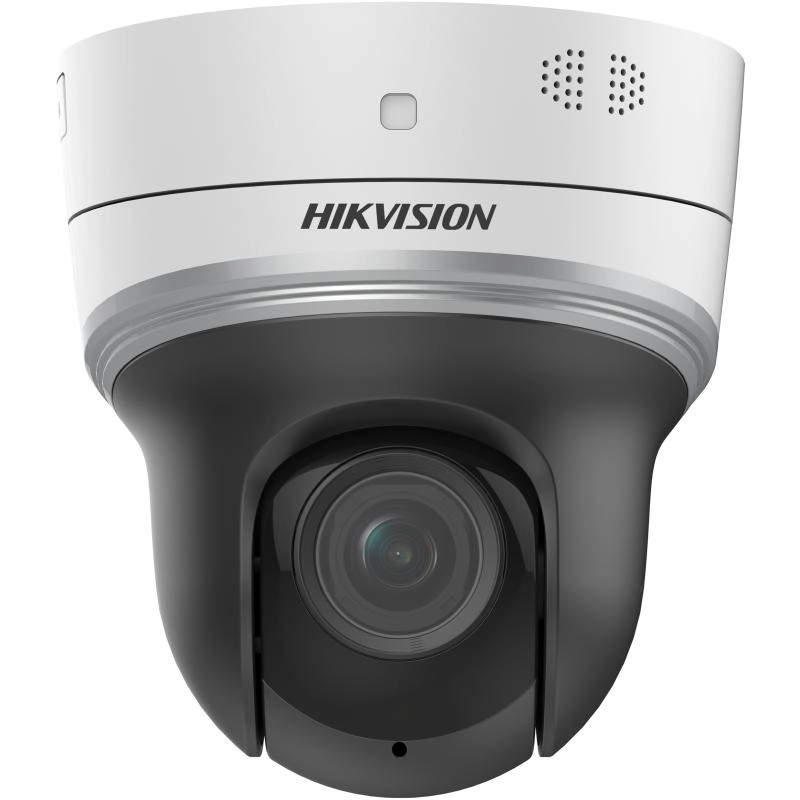

Hikvision DS-2DE2A404IW-DE3
Best offer
AED
69900
Key Features
- PTZ status display: Yes
- Camera tilt control: Yes
- B/W night vision distance: 6m
- Megapixels per lens: 4MP
- Zoom speed: 2 ss
- Proportional zoom: Yes
- Video intelligence analytic: Yes
- Detect distance: 120, 130.9, 180m
- Observe distance: 47.6, 51.9, 71.4m
- Preset points: Yes
- Preset freezing function: Yes
- Recognize distance: 24, 26.2, 36m
- Infra-red LEDs life: 30000h
- Camera pan control: Yes
- Noise reduction technology: 3D noise reduction
Specifications
Features
Web browser
✓
Antennas quantity
2
Protection features
Dust resistant, Vandal proof, Water resistant, Waterproof
Plug and Play
✓
Voice codecs
AAC, G.711alaw, G.711ulaw, G.722, G.722.1, G.726, MP2L2, PCM
Number of sensors
1
Built-in microphone
✓
Remotely operated
✓
Audio formats supported
AAC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Card reader integrated
✓
Quality of Service (QoS) support
✓
Maximum memory card size
128GB, 256GB
Password protection type
Supervisor, User
Password protection
✓
Video motion detection
✓
Security algorithms
128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Languages support
Traditional Chinese, Danish, German, Dutch, Finnish, HRV, Hungarian, Italian, Japanese, Korean, LAT, Multi, Polish, Portuguese, RON, Russian, SER, Slovenian, SPA, Swedish, Thai, Turkish, Vietnamese
Number of languages
32
Operating frequency
2400 - 2483 MHz
Connectivity technology
Wired, Wired & Wireless, Wireless
Product colour
Black, White
Video streaming
✓
Audio system full duplex
✗
Digital watermark
✓
Alert notification type
E-mail
Type
IP security camera
Active tampering alarm
✓
Mirror
✓
Audio codecs
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM, G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Fog proof
✓
Motion sensor
✓
Sample rate
64 kHz
Frequency band
2.4 - 2.483 GHz, 2.4 - 2.4835 GHz
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576
Recognize distance (tele)
36 m
Detect distance
120m, 130.90m, 180m
Weight & dimensions
Weight
530g, 650g, 1120g, 2450g
Height
101.70mm, 136.70mm, 161mm, 182mm
Depth
120.50 mm
Width
179.30 mm
Diameter
125mm, 131mm, 169mm
Length
161 mm
Management features
Web-based management
✓
Firmware upgradeable
✓
Behavior analysis
Audio exception detection, Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection
Power
Power consumption (max)
8W, 9W, 9.20W, 10.90W, 11.20W, 12W, 14W, 18W, 19W, 24W
Power over Ethernet (PoE)
✓
DC output current
0.06A, 3.33A
Power source type
DC, PoE
DC output voltage
12
Power consumption (Power over Ethernet (PoE))
12.20 W
Performance
PTZ modes
Preset point, Preset sequence
Pan speed
60°/sec, 100°/sec, 300°/sec
Tilt speed
50°/sec, 60°/sec, 100°/sec, 160°/sec
Camera pan control
✓
Preset freezing function
✓
Preset points
✓
PTZ status display
✓
System requirements
Minimum system requirements
Apple Safari 5.02 and above version, CPU: Intel Pentium IV 3.0 GHz or higher, Display: 1024×768 resolution or higher, Google Chrome 18 and above versions, Mozilla Firefox 5 and above version, Operating System: Microsoft Windows XP SP1 and above version/Vista/Win7/Server 2003/Server 2008 32bits, RAM: 1G or higher, Web Browser: Internet Explorer 8.0 and above version
Minimum processor
3 GHz
Minimum RAM
1000 MB
Other features
Mac compatibility
✓
Browser supported
Chrome 31+, Chrome 57.0+, Firefox 30+, Firefox 52.0+, IE 8-11, IE10-11, Microsoft Edge 41.16299.726.0, Safari 12+
Noise reduction
✓
Storage
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in HDD
✗
Design
International Protection (IP) code
IP54, IP65, IP66
IK code
IK10
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC), Polyoxymethylene (POM)
Placement supported
Indoor, Indoor/Outdoor, Outdoor
Reset button
✓
Mounting type
Ceiling, Ceiling/Wall, Wall
Form factor
Bullet, Dome
Computer system
Antenna type
Internal
Network
Client interoperability
Hik-Connect, Hik-Connect Pro, HikCentral, HikCentral Pro, iVMS-4200
Wi-Fi
✓
Bluetooth
✗
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Supported network protocols
802.1x, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/IPv6, NTP, PPPoE, QoS, Qos, RTCP, RTP, RTSP, SMTP, SNMP, TCP, TCP/IP, UDP, UPnP, Websocket, Websockets
Streaming method
Multicast
Cabling technology
10/100Base-T(X)
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type
Fast Ethernet
Ethernet LAN
✓
Live view
✓
Channel bandwidth
40 MHz
Number of simultaneous live view channels
6channels, 20channels
User access level
Administrator, Operator, User
Ports & interfaces
DC-in jack
✓
Interface
RJ-45
Ethernet LAN (RJ-45) ports
1
Headphone outputs
1
Microphone in
✓
Alarm input channels
1
Alarm output channels
1
Audio output
1
Operational conditions
Operating relative humidity (H-H)
0 - 90 %
Technical details
Remote viewing
✓
Compliance certificates
CB, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS
Audio
Audio system
1-way, 2-way
Automatic gain control
✓
Built-in speaker(s)
✓
Audio detection
✓
Lens system
Digital zoom
16 x
Optical zoom
4 x
Minimum aperture number
1.50, 1.60, 1.80
Maximum aperture number
1.50, 1.60, 1.80, 2.50, 2.70, 2.80
Iris
✓
Number of lenses
1
Detect distance (tele)
180 m
Observe distance (tele)
71.40 m
Identify distance (tele)
18 m
Identify distance
12m, 13.10m, 18m
Noise reduction technology
3D noise reduction
Recognize distance
24m, 26.20m, 36m
Observe distance
47.60m, 51.90m, 71.40m
Proportional zoom
✓
Zoom speed
2 s
Video
Video compression formats
H.264, H.265, M-JPEG
Video formats supported
H.264, H.265, M-JPEG
Frame rate
25fps, 30fps, 60fps
Smart IR
✓
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Video recording
✓
Privacy masking
✓
3D positioning
✓
Supported video modes
1080p, 1440p, 720p
Video intelligence analytic
✓
Megapixels per lens
4 MP
Security
IP address filtering
✓
Privacy protection
✓
Network access storage (NAS)
✓
Automatic Network Replenishment (ANR)
✓
Digest authentication
✓
HTTPS encryption
✓
Focusing
Focus
Manual, Motorized/Manual
Closest focusing distance
0.01m, 1.50m
Camera
Day/night mode
✓
Gain control type
Auto, Auto/Manual
Back Light Compensation (BLC)
✓
Number of Privacy masking areas
24
Camera shutter speed
1 - 1/10000 s, 1 - 1/30000 s, 1 - 30000 s, 1/1 - 1/30000 s, 1/1-1/30000 s, 1/30000 - 1 s
Image stabilizer
✓
3D NR (Noise Reduction)
✓
Region of Interest (ROI) encoding
✓
Total megapixels
2MP, 4MP
Number of cameras
1
Zoom capability
✓
PTZ control
✓
Focal length range
2.8 - 12 mm, 8 - 32 mm
Bit rate
256 Kbps - 16384 Kbps, 32 - 16384 Kbps, 32 Kbps - 16 Mbps, 32 Kbps - 8 Mbps
Analog signal format system
NTSC, PAL
Signal-to-Noise Ratio (SNR)
52 dB
Sensor type
CMOS
Lens viewing angle, horizontal
100°, 36°, 94.5°, 96 - 46°, 96.7 - 31.6°, 96.796°, 96.7°
Progressive scan
✓
White balance
ATW, Auto, Daylight, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Full HD
✓
Wide Dynamic Range (WDR)
✓
Auto focus
✓
Intelligent Video Surveillance (IVS) system features
Crossing line, Face detection, Intrusion, Region entrance detection, Region exiting detection
Alarm input/output
✓
Highlight Compensation (HLC)
✓
Digital Wide Dynamic Range (DWDR)
✓
Auto flip
✓
Lens viewing angle, diagonal
110°, 112 - 55°, 115.1 - 36.3°, 115.13°, 115.1°, 119°, 41.4°
Lens viewing angle, vertical
20°, 51 - 26°, 51.1 - 17.7°, 51.16°, 51.1°, 52°, 53°
Camera tilt control
✓
Amplifier
Sample rates
[object Object],[object Object]
Pan-tilt unit
Tilt angle range
0 - 90 °
Pan range
[object Object],[object Object],[object Object],[object Object],[object Object]
Pan preset speed
60°/sec, 65°/sec, 100°/sec, 350°/sec
Tilt preset speed
50°/sec, 60°/sec, 100°/sec, 200°/sec
Image sensor
Maximum resolution
2560 x 1440, 1920 x 1080
Dynamic range
120 dB
Minimum illumination
0lx, 0.00lx, 0.01lx
Infrared (IR) cut-off filter
✓
Night vision
Night vision
✓
LED type
IR, IR/White
Night vision distance
20 m, 30 m, 50 m
Infra-red wavelength
850 nm
Infra-red LEDs life
30000 h
B/W night vision distance
6 m
Sound module
Preset programs quantity
300
Product Details
Hikvision DS-2DE4A404IW-DE (8-32 mm) Network IR PTZ Camera adopts 1/1.9" progressive scan CMOS chip.
With the 4× optical zoom lens, the camera offers more details over expansive areas.
This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.
