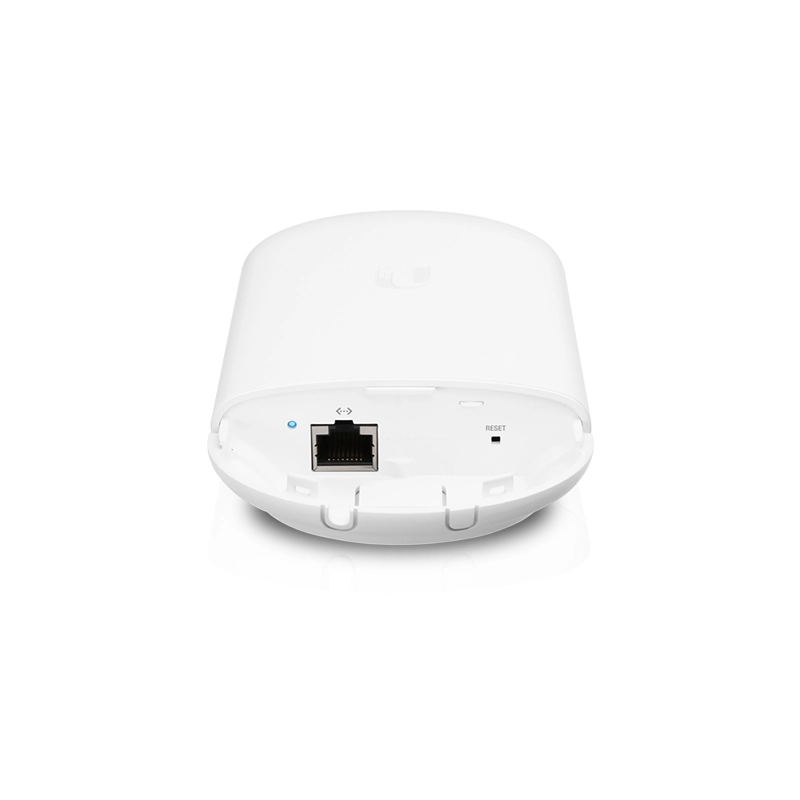

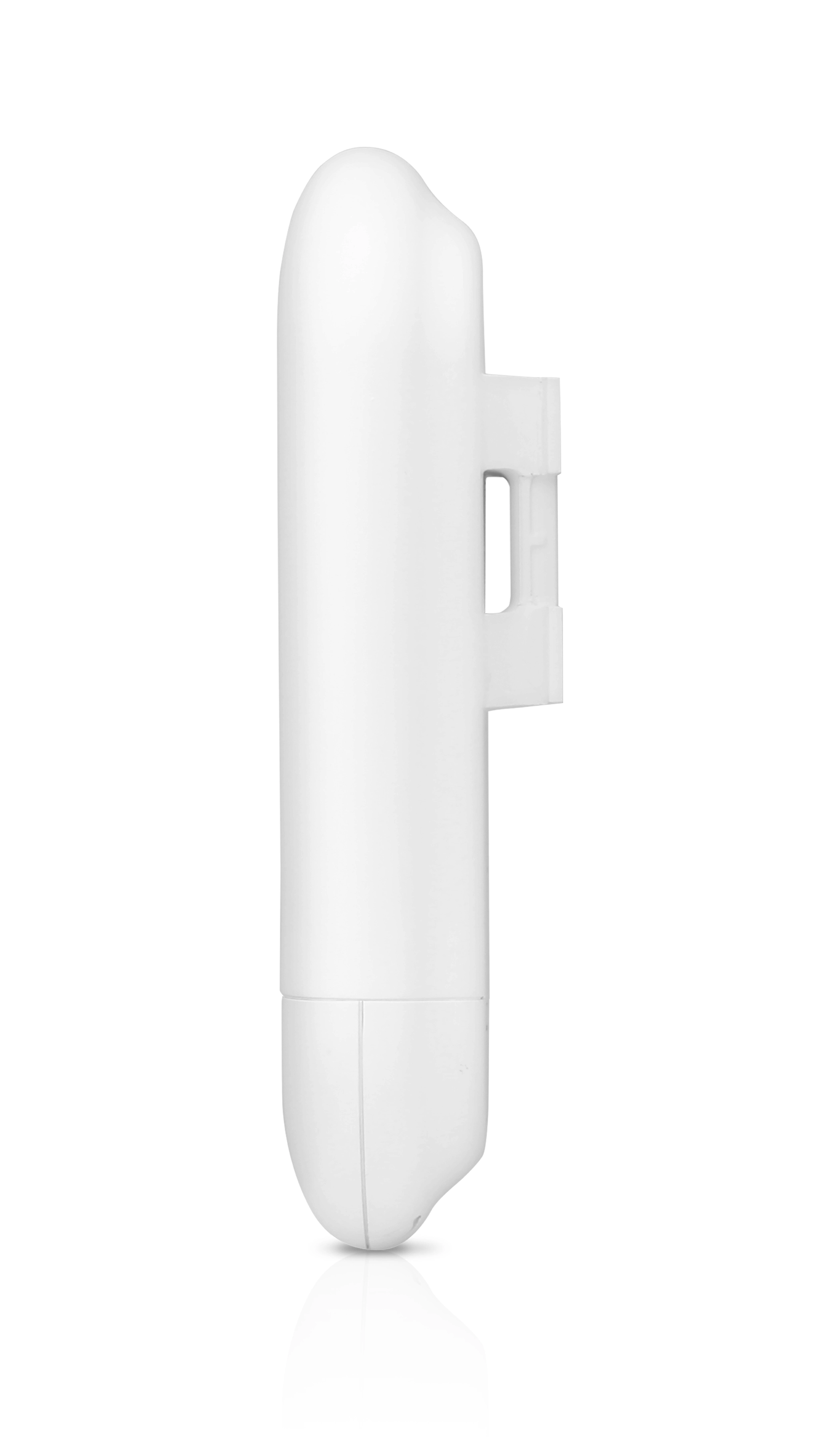

Ubiquiti Loco5AC

Name: Ubiquiti Loco5AC
Brand: Ubiquiti
SKU: 348615
Availability: InStock

Best offer

AED

161⁰⁰

AED

187⁵⁰

-14%

Key Features

5 GHz: Yes
Antenna features: Integrated antenna
Antenna gain level (max): 13dBi
Maximum data transfer rate: 1000Mbit/s
Placement: Ceiling, Pole, Wall
Throughput data rate: 450Mbit/s
Frequency band: 5 GHz, 5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHzGHz
Polarization: Dual polarization
Antenna type: Internal
Ethernet LAN data rates: 10, 100Mbit/s
Modulation: 16-QAM, 256-QAM, 64-QAM, BPSK, QPSK
Product colour: White
LED indicators: Network, Power, Signal strength
MIMO: Yes
Power over Ethernet (PoE): Yes

Specifications

Features

Internal memory

64 MB

Operating system installed

AirOS

Processor frequency

560 MHz

Quality of Service (QoS) support

✓

Security algorithms

WPA2

Maximum outdoor range

10000 m

MIMO

✓

Product colour

White

Antenna gain level (max)

13 dBi

Maximum data transfer rate

1000 Mbit/s

Placement

Ceiling, Pole, Wall

Throughput data rate

450 Mbit/s

Frequency band

5 GHz, 5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz

Polarization

Dual polarization

5 GHz

✓

Weight & dimensions

Weight

180 g

Height

59.10 mm

Depth

77.50 mm

Width

179 mm

Management features

Web-based management

✓

Power

AC input voltage

24 V

Input current

0.5 A

Power consumption (max)

7 W

Power over Ethernet (PoE)

✓

Design

Housing material

Plastic

Reset button

✓

LED indicators

Network, Power, Signal strength

Computer system

Built-in processor

✓

Processor model

Qualcomm Atheros

Processor architecture

MIPS 74Kc

Antenna type

Internal

Packaging content

Mounting kit

✓

Network

Ethernet LAN data rates

10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Technical details

Certification

CE, FCC, IC

Antenna

Antenna features

Integrated antenna

Logistics data

Harmonized System (HS) code

85176990

Radar

Modulation

16-QAM, 256-QAM, 64-QAM, BPSK, QPSK

Product Details

The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management. Sleek Industrial Design The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry. Dual Ethernet Connectivity The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration. Management Wi-Fi Radio Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Improved Surge Protection The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events. Now with airOS®8 airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Files

User manual

mmo_74313176_1571749451_8272_4209

PDF• 6.6 MB
