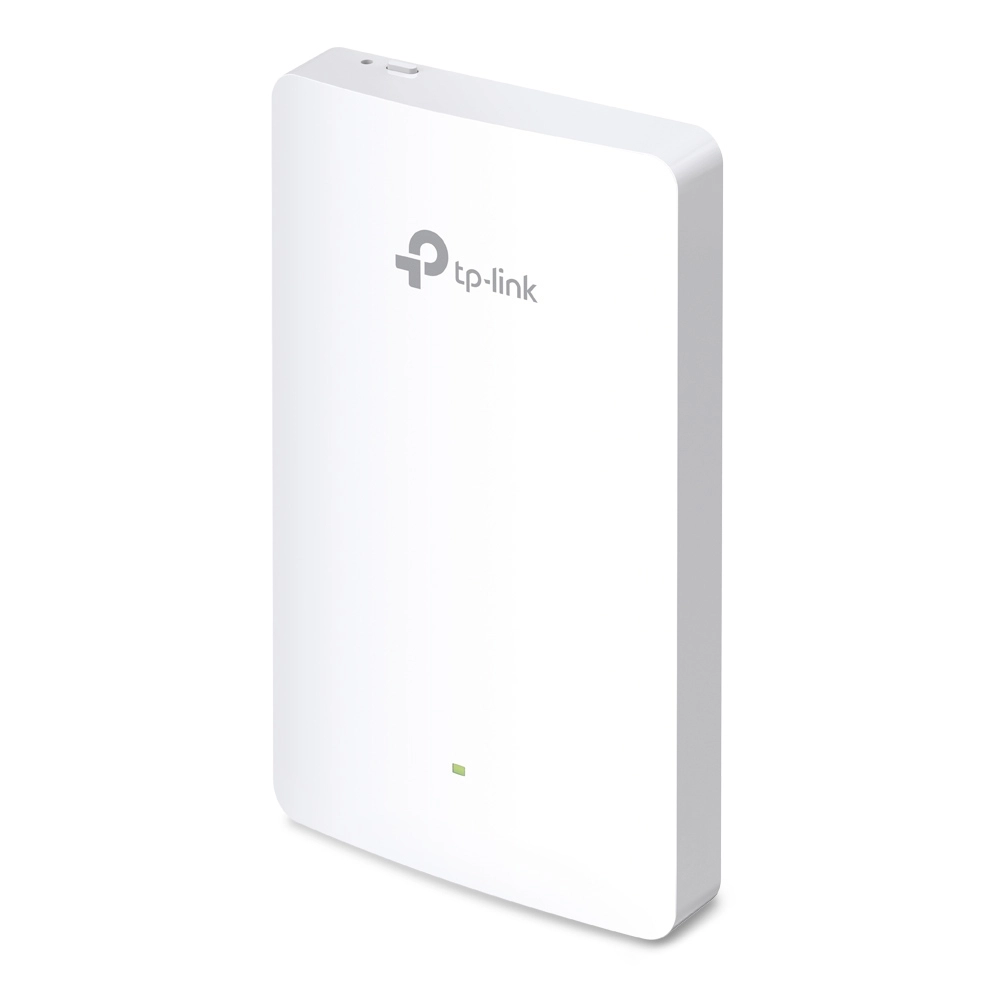

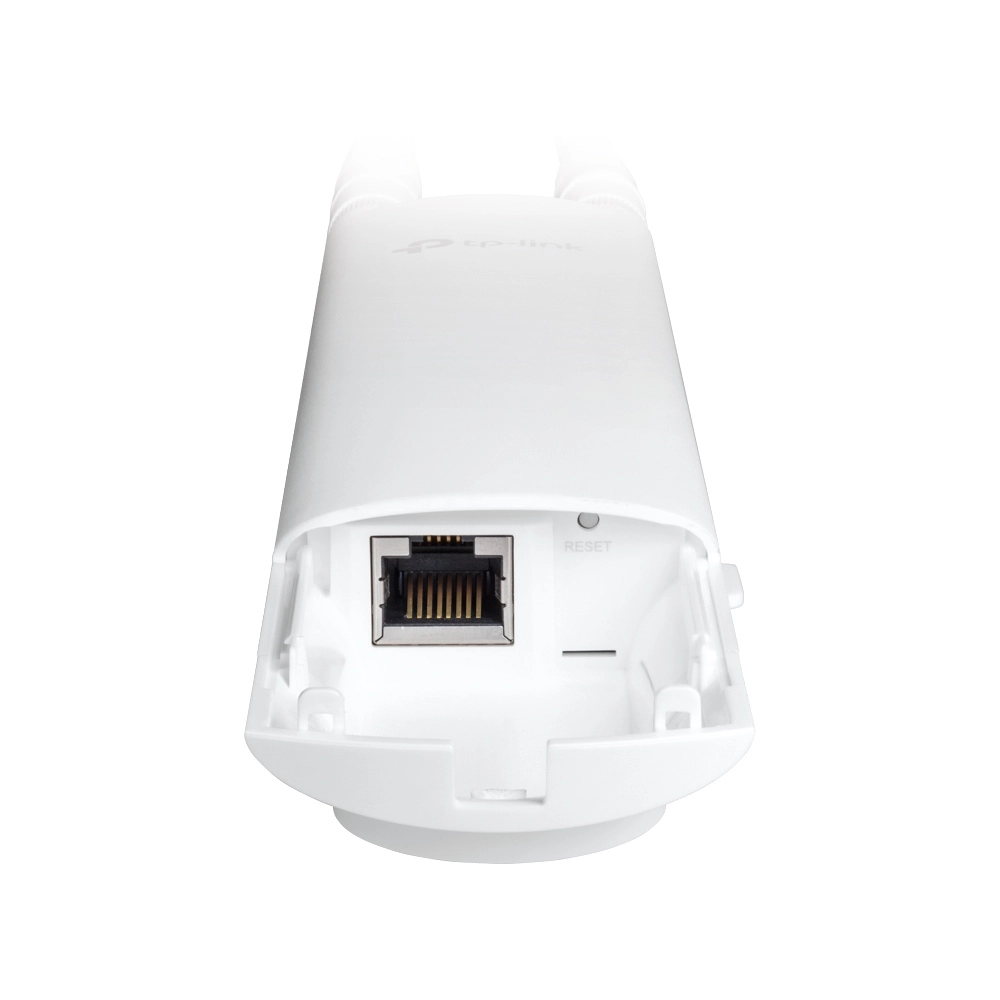

TP-Link EAP225

Best offer
AED
18799

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • 6 GHz: No
  • Maximum data transfer rate (2.4 GHz): 300Mbit/s
  • Maximum data transfer rate (5 GHz): 867Mbit/s
  • Automatic channel scanning: Yes
  • Antenna features: Detachable antenna, Integrated antenna
  • Number of SSID supported: 16
  • Antenna direction type: Omni-directional
  • PoE adapter included: Yes
  • Service Set Identifier (SSID) features: Multiple SSIDs
  • Antenna gain level (max): 4dBi
  • Maximum data transfer rate: 1200Mbit/s
  • Access Control List (ACL): Yes
  • Placement: Ceiling, Pole, Wall
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Compatible operating systems
Linux, Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11
Antennas quantity
2
Quality of Service (QoS) support
โœ“
On/off switch
โœ“
BeamForming
โœ“
Security algorithms
128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, SNMP, SSH, SSID, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MIMO
โœ“
Transmitting power (FCC)
24 dBm
Transmitting power (CE)
23 dBm
Virtual LAN features
VLAN mapping
Product colour
White
Antenna gain level (max)
4 dBi
Maximum data transfer rate
1200 Mbit/s
Access Control List (ACL)
โœ“
Placement
Ceiling, Pole, Wall
Band steering
โœ“
Frequency band
2.4 - 2.4835 GHz, 2.4 - 5 GHz
Maximum data transfer rate (5 GHz)
867 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
5 GHz
โœ“
6 GHz
โœ—
2.4 GHz
โœ“

Packaging data

Package type
Box
Package weight
910 g
Package height
65 mm
Package depth
340 mm
Package width
228 mm

Weight & dimensions

Height
143 mm
Depth
19.70 mm
Width
205.50 mm

Management features

Web-based management
โœ“
Syslog
โœ“
Automatic channel scanning
โœ“

Power

Output current
1.50 A
Output voltage
12 V
Power consumption (typical)
9 W
Power consumption (max)
25.50 W
Power over Ethernet (PoE)
โœ“
Power over Ethernet (PoE) type supported
Passive PoE

Performance

Wi-Fi roaming
โœ“
Airtime Fairness (ATF)
โœ“

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)
โœ“

Other features

Cable lock slot type
Kensington

Design

International Protection (IP) code
IP65
Reset button
โœ“
LED indicators
Power, WLAN, Yes
Cable lock slot
โœ“
Internal
โœ—
Antenna direction type
Omni-directional

Computer system

Antenna type
External, Internal

Packaging content

Quick start guide
โœ“
Mounting kit
โœ“
Cables included
AC
AC adapter included
โœ“
PoE adapter included
โœ“

Network

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3u
Management protocols
HTTP, HTTP/HTTPS, HTTPS, SNMP, Telnet
VLAN support
โœ“
Cabling technology
10/100/1000Base-T(X)
Rate limiting
โœ“
SIM card slot
โœ—
Ethernet LAN data rates
10, 100
Wireless isolation
โœ“
MIMO type
Multi User MIMO
Automatic channel selection
โœ“

Ports & interfaces

DC-in jack
โœ“
Ethernet LAN (RJ-45) ports
1
WAN connection
Ethernet (RJ-45)

Operational conditions

Operating temperature (T-T)
0 - 40 ยฐC
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
5 - 90 %

Technical details

Sustainability compliance
โœ“
Certification
CE, CEใ€FCCใ€RoHS, FCC, RoHS
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Security

MAC address filtering
โœ“
Port-based Network Access Control (PNAC)
โœ“
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16

Antenna

Antenna features
Detachable antenna, Integrated antenna

Logistics data

Harmonized System (HS) code
85176990

Product Details

AC1200 Wave 2 with Mesh Technology for Unlimited Business Wi-Fi Intelligent Self-organization Omada EAPs with Mesh Technology, automatically choose the best route to extend your Wi-Fi further and more flexibly. Self-healing If one link has an issue, the system will automatically reroute data via the other Omada devices to make sure you stay online. Superior Wi-Fi Performance and Long-Range Coverage Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior Wi-Fi peroformance and long-range coverage over 2.4GHz and 5GHz wireless bands. Seamless Roaming 802.11k and 802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted. Specially Designed Weatherproof Enclosure for Outdoor Environment Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition. Excellent Hardware Designs With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors. Detachable Antennas EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. Free Cloud Centralized Management - Anytime, Anywhere Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself. Easy Management with the Omada App Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
