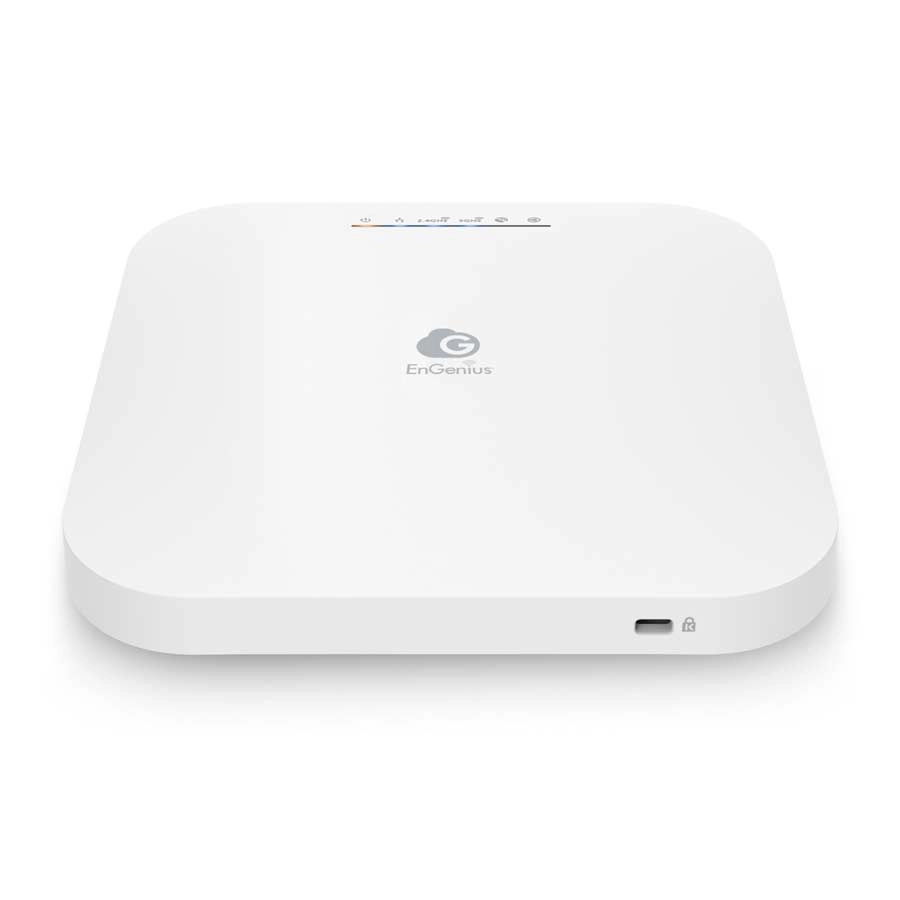

Cloud Managed Wi-Fi 6 4x4 Indoor Wireless Access Point

EnGenius Cloud Managed Wi-Fi 6 4x4 Indoor Wireless Access Point

Name: EnGenius Cloud Managed Wi-Fi 6 4x4 Indoor Wireless Access Point
Brand: EnGenius
SKU: 348379
Availability: InStock

Best offer

AED

1 694⁸⁶

Key Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate (2.4 GHz): 1148Mbit/s
Maximum data transfer rate (5 GHz): 2400Mbit/s
Fit AP mode features: Mesh networking
Antenna features: Integrated antenna
Number of SSID supported: 8
Antenna direction type: Omni-directional
Dynamic Frequency Selection (DFS): Yes
Service Set Identifier (SSID) features: Hidden SSID, Multiple SSIDs
Antenna gain level (max): 3, 6dBi
Maximum data transfer rate: 2400, 3548Mbit/s
Placement: Ceiling, Wall
Frequency band: 2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHzGHz

Specifications

Features

Antennas quantity

Processor frequency

2000 MHz

Quality of Service (QoS) support

✓

Bluetooth version

5.0

BeamForming

✓

Security algorithms

128-bit WEP, 152-bit WEP, 64-bit WEP, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-Enterprise, WPA3-PSK

MIMO

✓

Bluetooth Low Energy (BLE)

✓

Virtual LAN features

Tagged VLAN

Product colour

White

Antenna gain level (max)

3dBi, 6dBi

Maximum data transfer rate

2400Mbit/s, 3548Mbit/s

Placement

Ceiling, Wall

Frequency band

2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz

Fit AP mode features

Mesh networking

Maximum data transfer rate (5 GHz)

2400 Mbit/s

Maximum data transfer rate (2.4 GHz)

1148 Mbit/s

5 GHz

✓

6 GHz

✗

2.4 GHz

✓

Packaging data

Package weight

1130 g

Package height

85 mm

Package depth

245 mm

Package width

245 mm

Weight & dimensions

Weight

597g, 607g

Height

33.20 mm

Depth

210 mm

Width

210 mm

Management features

Dynamic Frequency Selection (DFS)

✓

Power

Power consumption (max)

19.50 W

Power over Ethernet (PoE)

✓

Performance

Transmitting power

23 dBmW

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)

✓

Other features

Cable lock slot type

Kensington

Design

Reset button

✓

LED indicators

Bluetooth, LAN, Power, WLAN, Yes

Cable lock slot

✓

Antenna direction type

Omni-directional

Computer system

Processor model

ARM Cortex-A53

Built-in processor

✓

Antenna type

Internal

Packaging content

Quick start guide

✓

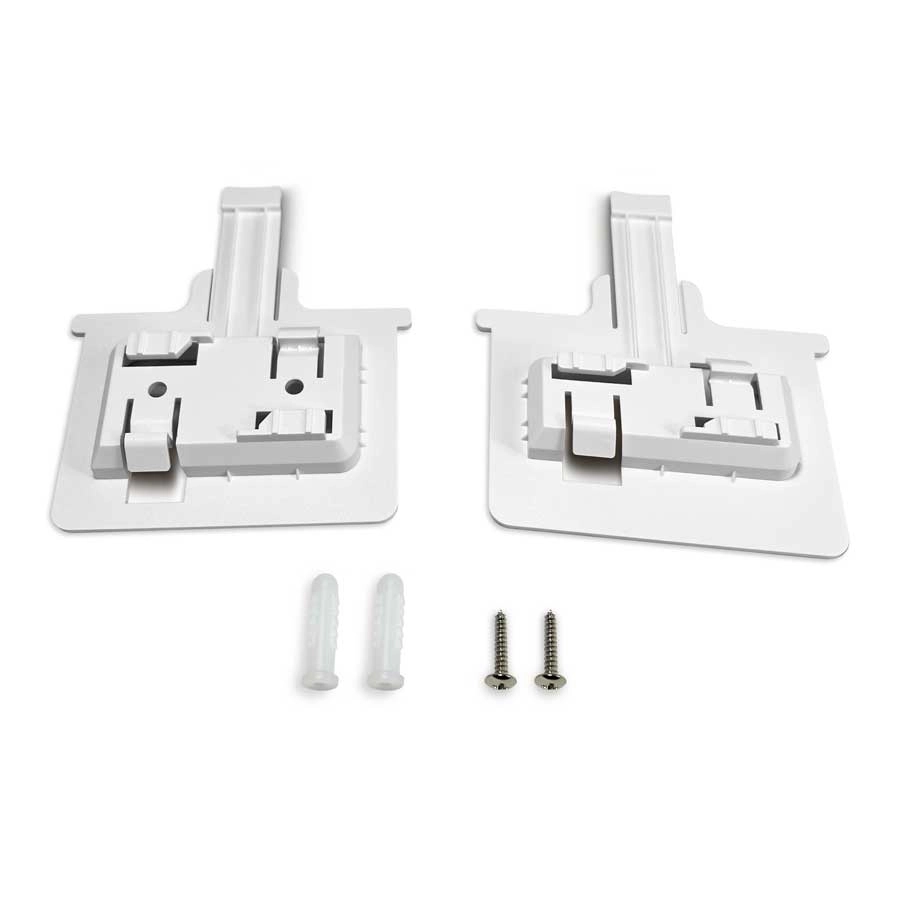

Mounting kit

✓

Network

Bluetooth

✓

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u

Management protocols

SNMP

VLAN support

✓

Ethernet LAN data rates

10, 100, 1000

MIMO type

Multi User MIMO

Ports & interfaces

DC-in jack

✓

Ethernet LAN (RJ-45) ports

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Technical details

Certification

CE, FCC

Spread spectrum method

DSSS, OFDM, OFDMA

Security

MAC address filtering

✓

Wireless Intrusion Detection System (WIDS)

✓

Service Set Identifier (SSID) features

Hidden SSID, Multiple SSIDs

Number of SSID supported

Antenna

Antenna features

Integrated antenna

Logistics data

Harmonized System (HS) code

85176990

Radar

Modulation

1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK

Product Details

EnGenius Cloud Managed Wi-Fi 6 4×4 Indoor Access Point ECW230 S supports dual concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 2,400 Mbps (5 GHz), and up to 1,200 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

Files

Cloud Managed Access Points Datasheet

mmo_78685771_1704811575_4038_2525.pdf

PDF• 11.8 MB

Cloud Management Datasheet

mmo_78685771_1704811587_6082_29471.pdf

PDF• 2.1 MB

EnGenius Cloud Solution White Paper

mmo_78685771_1704811598_9675_11027.pdf

PDF• 1.4 MB

CE Declaration

mmo_78685771_1704811610_8691_6709.pdf

PDF• 129.7 KB

EnGenius Cloud Solution Brochure

mmo_78685771_1704811627_8753_854.pdf

PDF• 23.3 MB

Product Brochure

mmo_78685771_1704811617_4483_1014.pdf

PDF• 856.3 KB
