EnGenius EOC655

Name: EnGenius EOC655
Brand: EnGenius
SKU: 348289
Availability: InStock

Best offer

AED

2 738⁴⁷

Key Features

2.4 GHz: Yes
5 GHz: No
Maximum data transfer rate (5 GHz): 2400Mbit/s
Antenna features: Integrated antenna
Antenna direction type: Omni-directional
PoE adapter included: Yes
Dynamic Frequency Selection (DFS): Yes
Service Set Identifier (SSID) features: Multiple SSIDs
Antenna gain level (max): 23dBi
DHCP server: Yes
Antenna connector type: N-type
Placement: Ceiling, Wall
Frequency band: 5.1 - 5.9 GHzGHz
Syslog: Yes
IGMP snooping: Yes

Specifications

Features

Antennas quantity

Internal memory

1000 MB

Quality of Service (QoS) support

✓

BeamForming

✓

Security algorithms

HTTPS, SNMP, SNMPv2, SNMPv3, SSH

MIMO

✓

Virtual LAN features

Tagged VLAN

Product colour

White

Antenna gain level (max)

23 dBi

DHCP server

✓

Antenna connector type

N-type

Placement

Ceiling, Wall

Frequency band

5.1 - 5.9 GHz

Maximum data transfer rate (5 GHz)

2400 Mbit/s

5 GHz

✗

2.4 GHz

✓

Weight & dimensions

Weight

1910 g

Height

82 mm

Depth

305 mm

Width

305 mm

Management features

Syslog

✓

Dynamic Frequency Selection (DFS)

✓

Power

Power consumption (max)

25 W

Power over Ethernet (PoE)

✓

Wireless LAN features

IGMP snooping

✓

Design

International Protection (IP) code

IP67

Antenna direction type

Omni-directional

Computer system

Processor model

ARM Cortex-A53

Built-in processor

✓

Antenna type

Internal

Packaging content

Mounting kit

✓

PoE adapter included

✓

Network

Bluetooth

✓

Networking standards

IEEE 802.11ax

VLAN support

✓

Channel bandwidth

160 MHz

Ethernet LAN data rates

10, 100, 1000

MIMO type

Multi User MIMO

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 90 %

Storage relative humidity (H-H)

0 - 90 %

Technical details

Certification

CE, FCC

Compliance certificates

CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA, WEEE

Memory

Flash memory

32 MB

Security

IP address filtering

✓

MAC address filtering

✓

Remote Authentication Dial-In User Service (RADIUS)

✓

Service Set Identifier (SSID) features

Multiple SSIDs

Antenna

Antenna features

Integrated antenna

Product Details

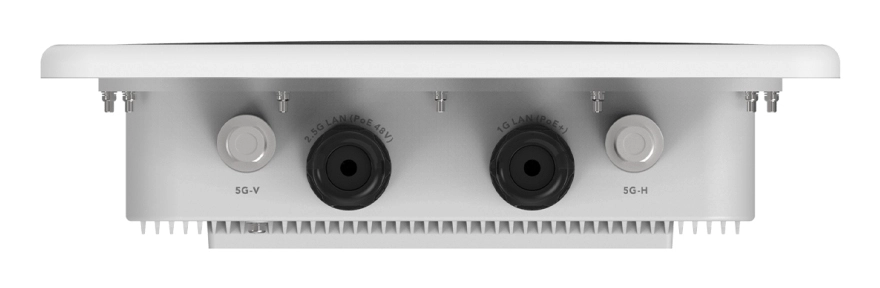

The EOC655-C23, an Outdoor 5GHz Dual Radio 2x2 Access Point with an 23 dBi Panel Antenna, is tailored for ISPs and Smart Cities. It delivers superior throughput in dense RF environments and is versatile for both PtP and PtMP applications. Simplified setup and troubleshooting are facilitated by a 2.4GHz radio and mobile app integration. Featuring built-in GPS for precise device placement and network mapping, it also includes IP67-rated durability and 'dying gasp' power failure detection. With AES-256 encryption for security and SkyPoint NMS for web-based management, the EOC655-C23 excels in performance and ease of use.

Files

Brochure

mmo_128785891_1750358078_534_1825089.pdf

PDF• 10.9 MB

EU Declaration of Conformity

mmo_128785891_1750358307_3826_982590.pdf

PDF• 87.9 KB

Safety Data Sheet

mmo_128785891_1750358238_2266_1576206.pdf

PDF• 3.9 MB
