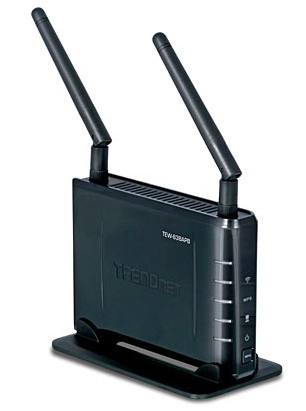

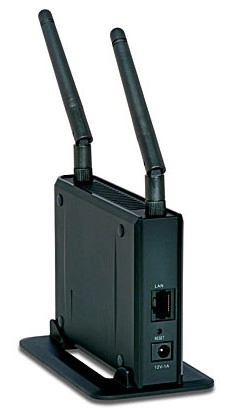

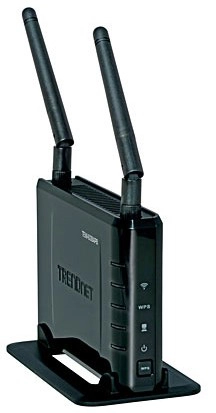

Trendnet TEW-638APB

Key Features

  • Antenna features: Detachable antenna
  • Power LED: Yes
  • Antenna gain level (max): 2dBi
  • Maximum data transfer rate: 300Mbit/s
  • Channels quantity: 13channels
  • Wireless range: 300m
  • Frequency band: 2.412 - 2.472 GHzGHz
  • Networking features: Fast Ethernet
  • Internal: No
  • Ethernet LAN data rates: 10Mbit/s
  • WAN connection: Ethernet (RJ-45)
  • AC adapter included: Yes
  • LED indicators: LAN, Power, WLAN
  • Power over Ethernet (PoE): Yes
  • Security algorithms: 128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Compatible operating systems
Windows 2000/XP/Vista Windows 2003 Server
Antennas quantity
2
Compliance industry standards
IEEE 802.3, IEEE 802.3u
Quality of Service (QoS) support
✓
Security algorithms
128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK
Power LED
✓
Antenna gain level (max)
2 dBi
Maximum data transfer rate
300 Mbit/s
Channels quantity
13 channels
Wireless range
300 m
Frequency band
2.412 - 2.472 GHz

Weight & dimensions

Weight
145 g
Cable length
0.60 m

Power

Power supply type
DC
Power requirements
12V DC 0.5A
Power consumption (typical)
3.12 W
Power over Ethernet (PoE)
✓

System requirements

Minimum system requirements
CD-ROM

Other features

Dimensions (WxDxH)
26 x 120 x 88 mm
Networking features
Fast Ethernet

Ergonomics

Connectivity LEDs
Y

Design

LED indicators
LAN, Power, WLAN
Internal
✗

Packaging content

Cables included
LAN (RJ-45)
AC adapter included
✓

Network

Networking standards
IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.2, IEEE 802.3u
Ethernet LAN data rates
10

Ports & interfaces

DC-in jack
✓
WAN connection
Ethernet (RJ-45)

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95 %
Storage relative humidity (H-H)
5 - 95 %

Technical details

Certification
CE, FCC, RoHS

Security

MAC address filtering
✓

Antenna

Antenna features
Detachable antenna

Receiver

Receiver sensitivity
802.11n: -68dBm (typical) @ MCS15/HT20

Logistics data

Harmonized System (HS) code
85176990

Product Details

- Extend your wireless network with Wireless Distribution System (WDS) technology; - Use Wireless Bridge Mode to wirelessly connect devices such as game consoles, printers and digital video recorders; - Advanced wireless encryption provides robust security; - Intuitive Windows-based setup wizard. The versatile N300 Wireless Access Point is designed to create a scalable high speed wireless n network or to connect a wired device to an existing wireless network. Use multiple 300Mbps Wireless N Access Points together to extend your network using Wireless Distribution System (WDS), Wireless Bridge and AP Client Modes. Expand a wireless network without running additional cabling with Wireless Distribution Service (WDS) technology by connecting multiple access points wirelessly. Use Wireless Bridge Mode to connect devices such as game consoles, printers and digital video recorders (DVR) to your wireless network. Advanced antenna technology (MIMO) increases wireless coverage and WPA / WPA2 encryption protects your wireless network. Features: - Compact high performance wireless n access point; - Wireless Bridge mode for Ethernet-to-wireless bridging function; - Works as an access point and a wireless adapter; - Compliant with IEEE 802.11n (draft 2.0), IEEE 802.11g and 802.11b standards; - compatible with 802.11b/g/n networks; - Up to a 300Mbps data rate using an 802.11n (draft 2.0) connection; - Expand a wireless network using AP client mode or Wireless Distribution System (WDS); - Support for the 802.11e Quality of Service (QoS) standard; - Low interference and high susceptibility deliver reliable performance; - 2 removable antennas to support high speed performance and expanded coverage; - Supports Wi-Fi Protected Setup (WPS) feature allowing you to integrate other WPS devices into your network quickly; - Indoor coverage up to 100 meters (328ft.); - Outdoor coverage up to 300 meters (984ft.); - Supports Windows 2000/XP/2003 server/Vista Operating Systems.

Files

User manual

mmo_14519423_1652245243_055_15774.pdf

PDF• 1.5 MB
