Cisco SG250-10P-K9-NA 10-ports

Name: Cisco SG250-10P-K9-NA 10-ports
Brand: Cisco
SKU: 347737
Availability: InStock

Best offer

AED

2 692⁵²

Key Features

Switch layer: L2/L3
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 14.88Mpps
DHCP features: DHCP client, DHCP relay, DHCP server
Uplink ports quantity: 2
Number of queues: 4
Number of static routes: 32
Multicast Listener Discovery (MLD) snooping: IPv6
Static route: Yes
Number of multicast groups filtered: 4000
Port mirroring: Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Jumbo frames: 9000
Switching capacity: 20Gbit/s

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

205647 h

Internal memory

512 MB

Processor frequency

800 MHz

Quality of Service (QoS) support

✓

On/off switch

✓

Security algorithms

802.1x RADIUS, SSH, SSL/TLS

Rack mounting

✓

Virtual LAN features

Voice VLAN

Product colour

Black

Packet buffer memory

12 MB

Switching capacity

20 Gbit/s

MAC address table

8000 entries

Access Control List (ACL)

✓

Access Control List (ACL) rules

512

Authentication type

RADIUS

Jumbo frames support

✓

Multicast support

✓

Static route

✓

Multicast Listener Discovery (MLD) snooping

IPv6

Switch layer

L2/L3

Packaging data

Package weight

2630 g

Package height

77.30 mm

Package depth

374.40 mm

Package width

308.10 mm

Weight & dimensions

Weight

1200 g

Height

44.50 mm

Depth

279.40 mm

Width

170 mm

Management features

Web-based management

✓

System event log

✓

Number of multicast groups filtered

4000

Power

Power plug type

Type C

AC input voltage

100 - 240 V

Power consumption (typical)

13.25 W

AC input frequency

50 Hz

Power consumption (max)

265.20 W

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

62 W

Wireless LAN features

IGMP snooping

✓

Design

Reset button

✓

LED indicators

Activity, Link, PoE, Speed, System

Form factor

Computer system

Built-in processor

✓

Packaging content

Quick Start guide

Quick start guide

✓

Cables included

Rack mount kit

✓

Network

Switching protocols

IGMP 1/2/3

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

HTTP/HTTPS, IPv4/IPv6, MIB, RMON, SNMP v1/2c/3, SNTP

VLAN support

✓

Number of VLANs

256

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Active link detection

✓

Cable length detection

✓

10G support

✓

Link aggregation

✓

Flow control support

✓

Jumbo frames

9000

Port mirroring

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

SFP module slots quantity

USB 2.0 ports quantity

Combo SFP ports quantity

Power over Ethernet plus (PoE+) ports quantity

Uplink ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

290.68 BTU/h

Technical details

Certification

CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 60950)

Switch type

Managed

Memory

Flash memory

256 MB

Protocols

IPv4 & IPv6 features

Dual stack IPv4/IPv6

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of static routes

Number of queues

Throughput

14.88 Mpps

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

DoS attack prevention

✓

Authentication

Port-based authentication

DHCP features

DHCP client, DHCP relay, DHCP server

Product Details

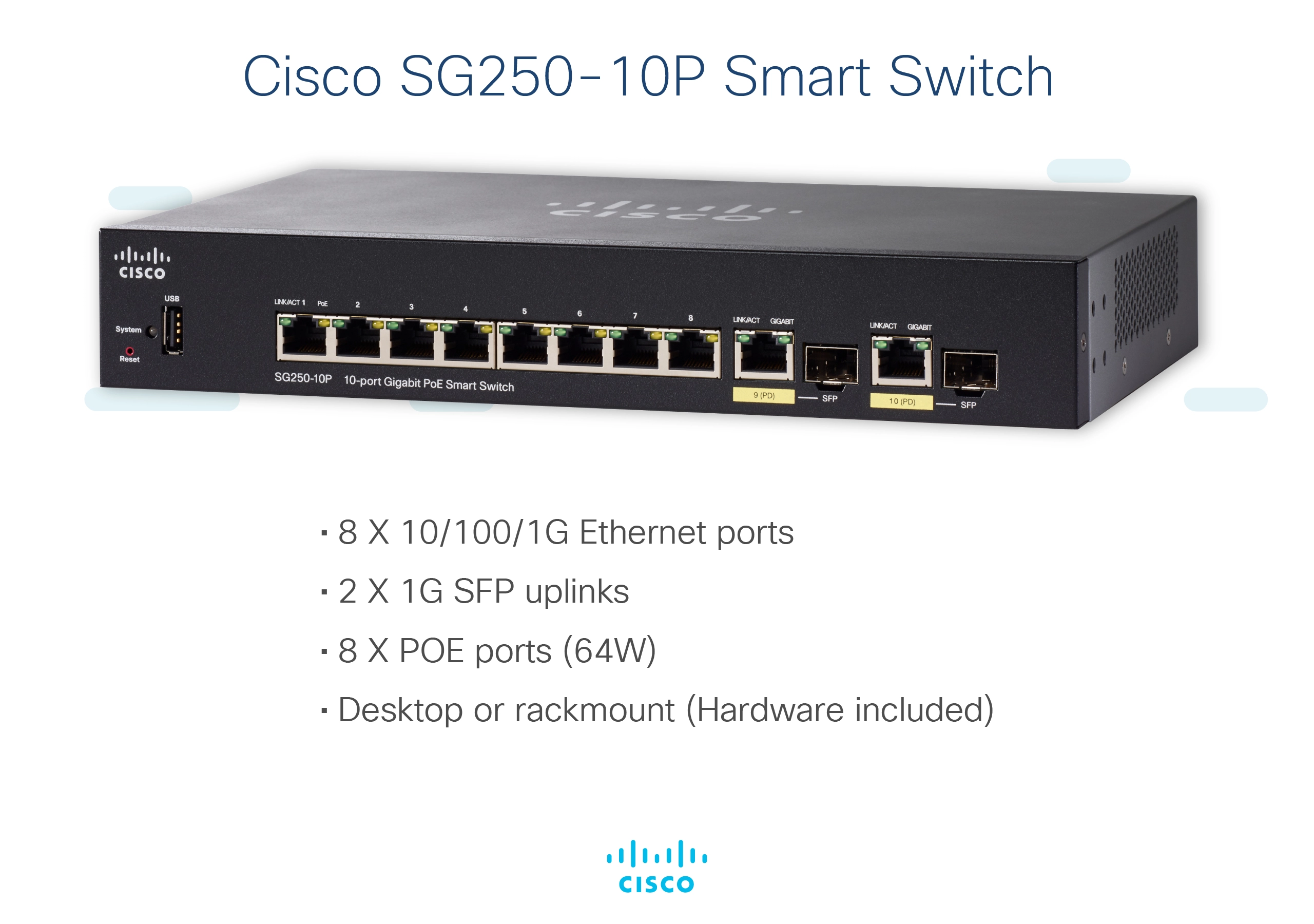

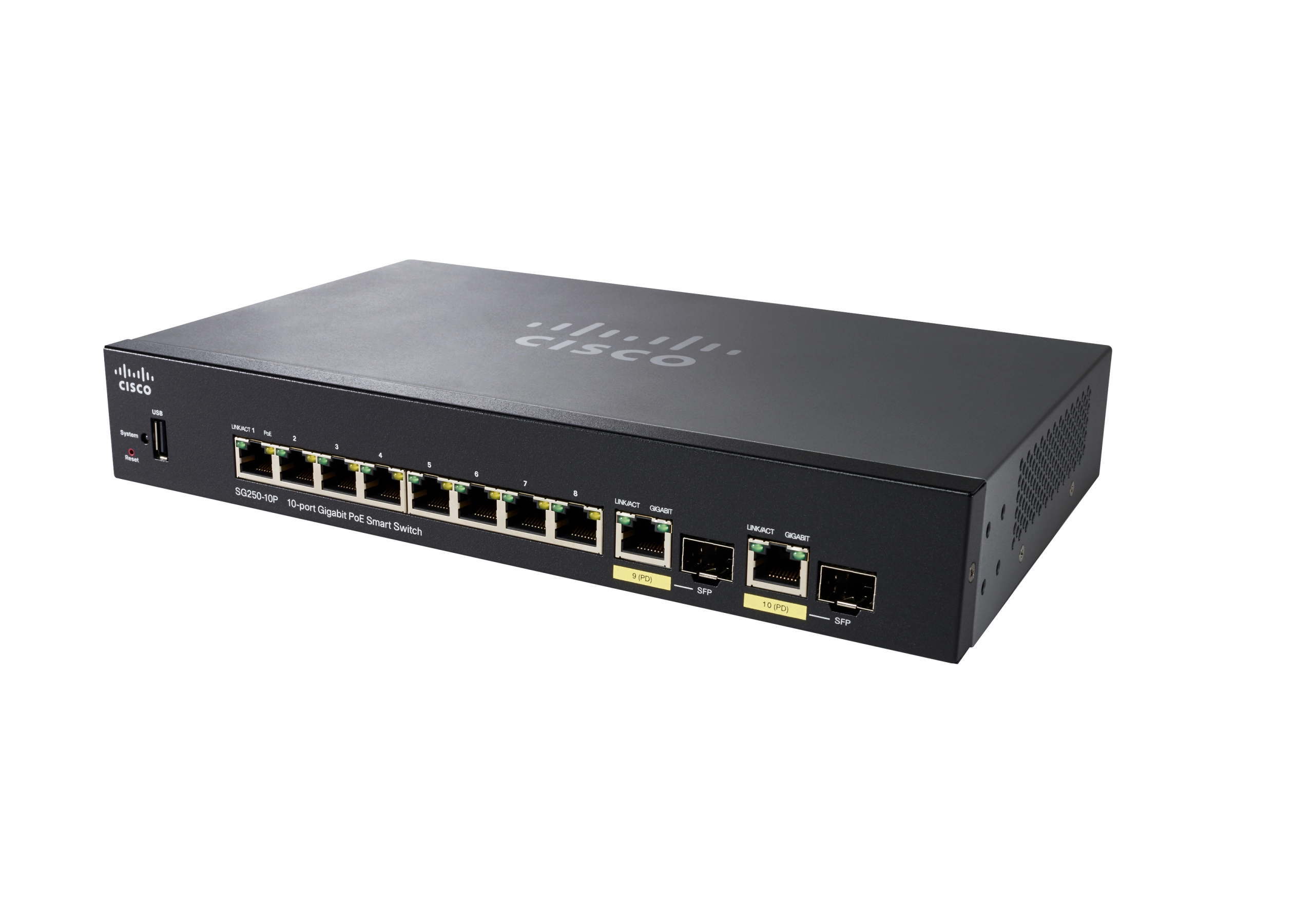

The Cisco SG250-10P Switch is an 8-port Gigabit that delivers network connectivity and reliability for all businesses, without complexity. You can deploy and configure a complete business network in minutes with Smart Network Application, FindIT Network Manager, and Network Plug and Play (PnP) support. Energy-efficient capabilities are embedded, including energy detect and Energy Efficient Ethernet (EEE); all provide an eco-friendly and cost-effective solution without compromising performance. This switch is part of the Cisco small and midsize business portfolio and is an affordable smart switch equipped with security, performance, and ease of use to help build a solid business network.

Files

Product Brochure

mmo_32157814_1515668263_859_16443.pdf

PDF• 668.9 KB

Videos

Portfolio Overview Video

MP4• 8.8 MB
