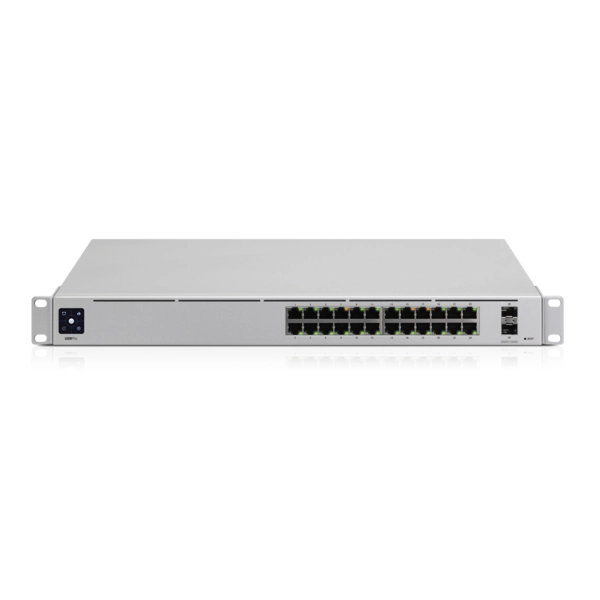

Ubiquiti USW-Pro-24-PoE 24-Ports

Name: Ubiquiti USW-Pro-24-PoE 24-Ports
Brand: Ubiquiti
SKU: 105303
Availability: InStock

Best offer

AED

2 341⁹⁰

Key Features

Switch layer: L2/L3
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 44000Mpps
DHCP features: DHCP server
Static route: Yes
Port mirroring: Yes
Power over Ethernet plus (PoE+) ports quantity: 16
SFP+ module slots quantity: 2
Switching capacity: 88Gbit/s
Full duplex: Yes
Authentication type: IEEE 802.1x, RADIUS
Auto-sensing: Yes
Jumbo frames support: Yes
Forwarding rate: 65.472Mpps

Specifications

Features

Rack mounting

✓

Product colour

Stainless steel

SFP+ module slots quantity

Switching capacity

88 Gbit/s

Full duplex

✓

Authentication type

IEEE 802.1x, RADIUS

Auto-sensing

✓

Jumbo frames support

✓

Forwarding rate

65.47 Mpps

Static route

✓

Switch layer

L2/L3

Weight & dimensions

Weight

3500 g

Height

43.70 mm

Depth

285.40 mm

Width

442.40 mm

Power

Power connector

AC-in jack

AC input voltage

100 - 240 V

DC input voltage

11.5 V

AC input frequency

50 - 60 Hz

Input current

2.61 A

Power consumption (max)

30 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

64 W

Total Power over Ethernet (PoE) budget

400 W

Number of power supply units

Design

Reset button

✓

LED indicators

Activity, Link, PoE, Speed, System

Form factor

Packaging content

Power supply included

✓

Network

Networking standards

IEEE 802.3af, IEEE 802.3at

VLAN support

✓

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Ethernet LAN data rates

10, 100

10G support

✓

Flow control support

✓

Port mirroring

✓

Ports & interfaces

Cable types supported

Cat5

Power over Ethernet plus (PoE+) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Technical details

Certification

CE, FCC, IC

Switch type

Managed

Data transmission

Throughput

44000 Mpps

Security

DHCP features

DHCP server

Logistics data

Harmonized System (HS) code

85176990

Product Details

Second-Generation UniFi Switching We’ve redesigned our UniFi Switches from the ground up. Near Silent Cooling Our new airflow design reduces the need for fan usage. Powerful Hardware and Software UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. Redundant Power System UniFi SmartPower RPS, USP-RPS, is our PSU failover system. Power Supply Failure In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. UniFi SmartPower One UniFi SmartPower device can support up to 6 devices until the failed device is replaced. Touchscreen Display The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Files

Product Brochure

mmo_75809175_1573125113_2567_3515.pdf

PDF• 8.3 MB
