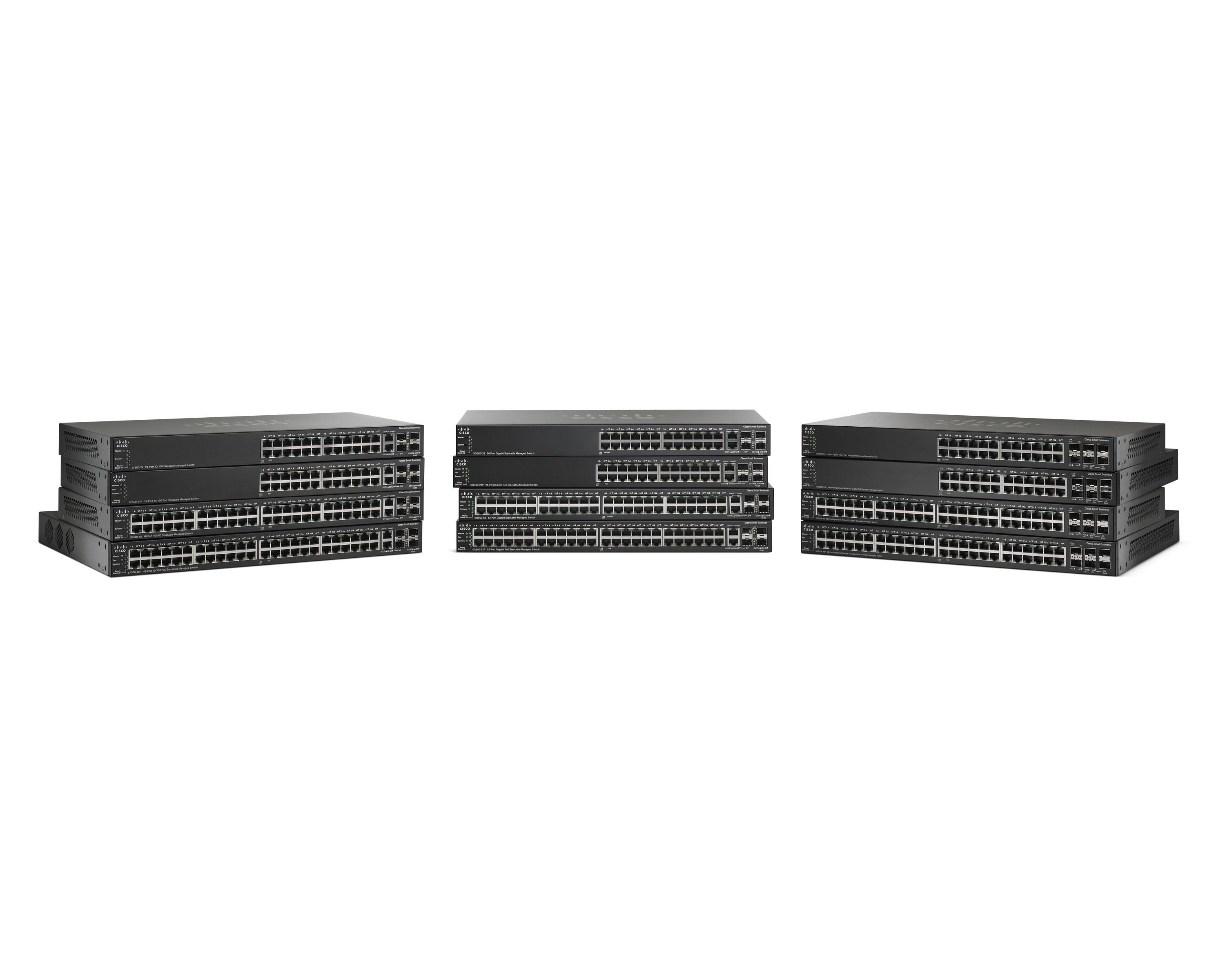

Cisco SG500X-48P 48-ports

Name: Cisco SG500X-48P 48-ports
Brand: Cisco
SKU: 347517
Availability: InStock

Best offer

AED

9 702⁵⁵

This price may no longer be valid

Key Features

Switch layer: L2/L3, L3
Physical stacking (units): 8
Basic switching RJ-45 Ethernet ports quantity: 48
2.5G Ethernet (copper) ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 130.95Mpps
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
Uplink ports quantity: 4
Number of queues: 8
Number of static routes: 2048
Number of IP interfaces: 256
Static route: Yes
Number of multicast groups filtered: 4000
Gigabit Ethernet (copper) ports quantity: 48
Port mirroring: Yes

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

166796.40 h

Compatible operating systems

Linux, Mac OS X, Microsoft Windows, Windows

Plug and Play

✓

Internal memory

512 MB

Processor frequency

800 MHz

MIB support

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS, HTTPS, SSH, SSH-2, SSL/TLS

Rack mounting

✓

Noise level

54.20 dB

Stackable

✓

Operating temperature (T-T)

32 - 104 °F

Virtual LAN features

IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, VLAN mapping, Voice VLAN

Product colour

Black

Packet buffer memory

24 MB

Queue scheduling algorithms

SP, Weighted Round Robin (WRR)

SFP+ module slots quantity

Maximum data transfer rate

10 Gbit/s

Telnet

✓

Access Control List (ACL)

✓

Access Control List (ACL) rules

512

Switching capacity

176 Gbit/s

MAC address table

16000 entries

Authentication type

IEEE 802.1x, RADIUS

Jumbo frames support

✓

Forwarding rate

178.56 Mpps

Multicast support

✓

Static route

✓

Switch layer

L2/L3, L3

Packaging data

Package weight

7170 g

Package height

108 mm

Package depth

545.10 mm

Package width

476 mm

Weight & dimensions

Weight

5820 g

Height

44 mm

Depth

440 mm

Width

350 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

ARP inspection

✓

Number of multicast groups filtered

4000

Power

Power plug type

Type C

Power consumption (typical)

75 W

AC input voltage

100 - 240 V

AC input frequency

50 Hz

Power consumption (max)

494.30 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

60 W

Total Power over Ethernet (PoE) budget

382 W

Number of power supply units

Performance

sFlow

✓

Physical stacking (units)

Wireless LAN features

IGMP snooping

✓

System requirements

Minimum system requirements

Mozilla Firefox 3.6+ IE 7+

Design

Stacking

✓

Reset button

✓

LED indicators

Link, PoE, Yes

Form factor

Computer system

Built-in processor

✓

Packaging content

Quick Start guide

Quick start guide

✓

Resource CD

✓

Cables included

AC, Serial

Power supply included

✓

Mounting bracket(s) included

✓

Rack mount kit

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.5

Supported network protocols

IPv6

Management protocols

CLI, HTTP, HTTP/HTTPS, HTTPS, IPv4, IPv6, MIB, RMON, RMON1, RMON2, RMON3, RMON9, SNMP v1/v2c/v3, SNMPv1, SNMPv2c, SNMPv3, SSH, Telnet

VLAN support

✓

Number of VLANs

4094

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Ethernet LAN data rates

10, 100

Active link detection

✓

Cable length detection

✓

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

✓

Flow control support

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T

10G support

✓

Link aggregation

✓

Jumbo frames

9000

Port mirroring

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Fiber optic connector

SFP

Cable types supported

Cat5, Cat5e, Cat6a

Console port

RJ-45

USB 2.0 ports quantity

Combo SFP ports quantity

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

Uplink ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

2.5G Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

1686.62 BTU/h

Technical details

Certification

CE, CE mark, CSA, CSA (CSA 22.2), FCC, FCC Part 15 (CFR 47) Class A, UL, UL (UL 60950)

Switch type

Managed

Memory

Flash memory

256 MB

Protocols

IPv4 & IPv6 features

Dual stack IPv4/IPv6, IPv6 First Hop Security (FHS)

GARP VLAN Registration Protocol (GVRP)

✓

Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)

✓

Data transmission

Number of IP interfaces

256

Number of static routes

2048

Number of queues

Throughput

130.95 Mpps

Security

IP Source Guard (IPSG)

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

DoS attack prevention

✓

IP-MAC-Port binding

✓

Authentication

Guest VLAN, Port-based authentication, Web-based authentication

Root protection

✓

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping

Ethernet LAN features

IP routing

✓

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Cisco SG500X-48P is a 48-port stackable managed Gigabit Ethernet switch, with 4 Enhanced Small Form-Factor Pluggable (SFP+) slots and optional 10 Gigabit Ethernet connectivity, that provides a solid foundation for your current business applications, as well as those you are planning for the future. It offers Power over Ethernet Plus, true stacking, advanced security, quality of service, energy-saving technology (EEE), IPv6, and network features that deliver the reliability and performance needed by demanding environments. The switch is easy to configure and manage with a choice of management tools and is offered with a limited lifetime warranty, including next- business-day advance replacement and one year of technical support. The Cisco SG500X-48P provides the ideal technology foundation at a price you can afford, and in a solution designed to grow with your business. - Layer 3 - Managed - 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ ports - PoE + - Stackable

Files

Product Brochure

mmo_13619410_1487095830_7195_4289.pdf

PDF• 763.4 KB

SMB Miercom Report: Managed Stackable Switches Comparison

mmo_13619410_1487095970_9049_29956.pdf

PDF• 1.4 MB

Cisco 500 Series Stackable Managed Switches Administration Guide Firmware Release 1.4.0.x

mmo_13619410_1487096024_4566_4687.pdf

PDF• 7.3 MB

User manual

mmo_34353782_1543824140_225_19307.pdf

PDF• 911.2 KB

Videos

Portfolio Overview Video

MP4• 8.8 MB

Reviews
