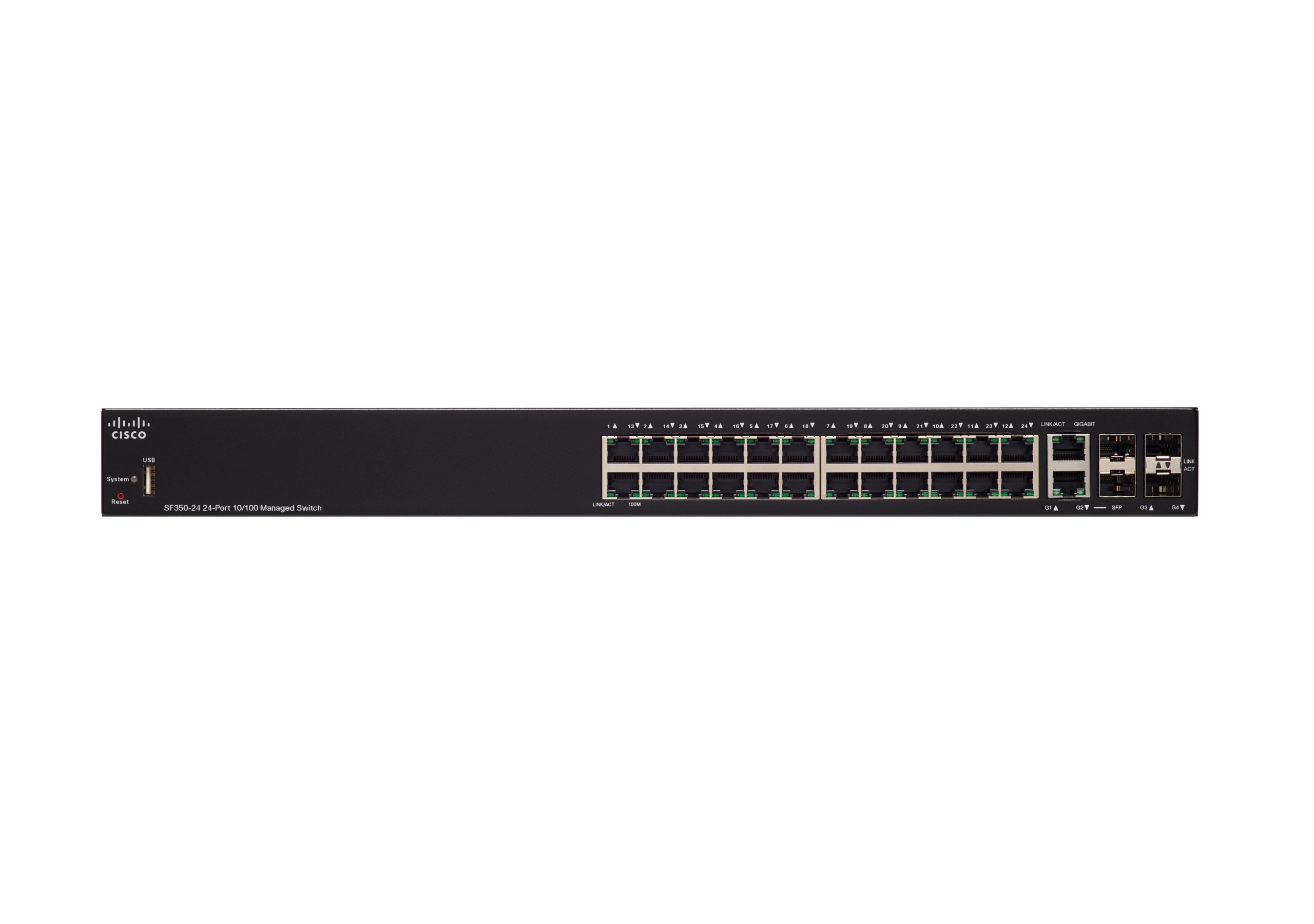

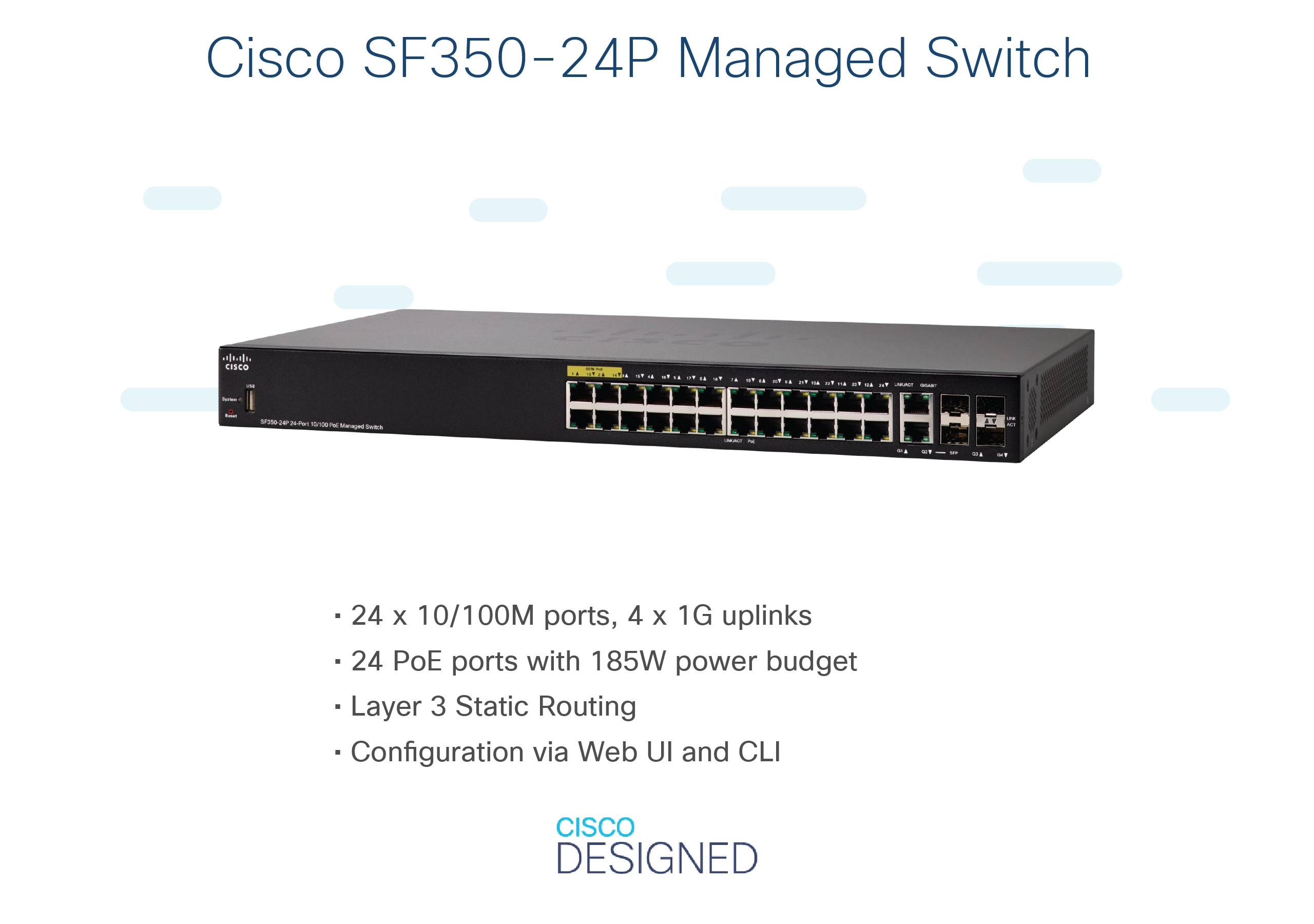

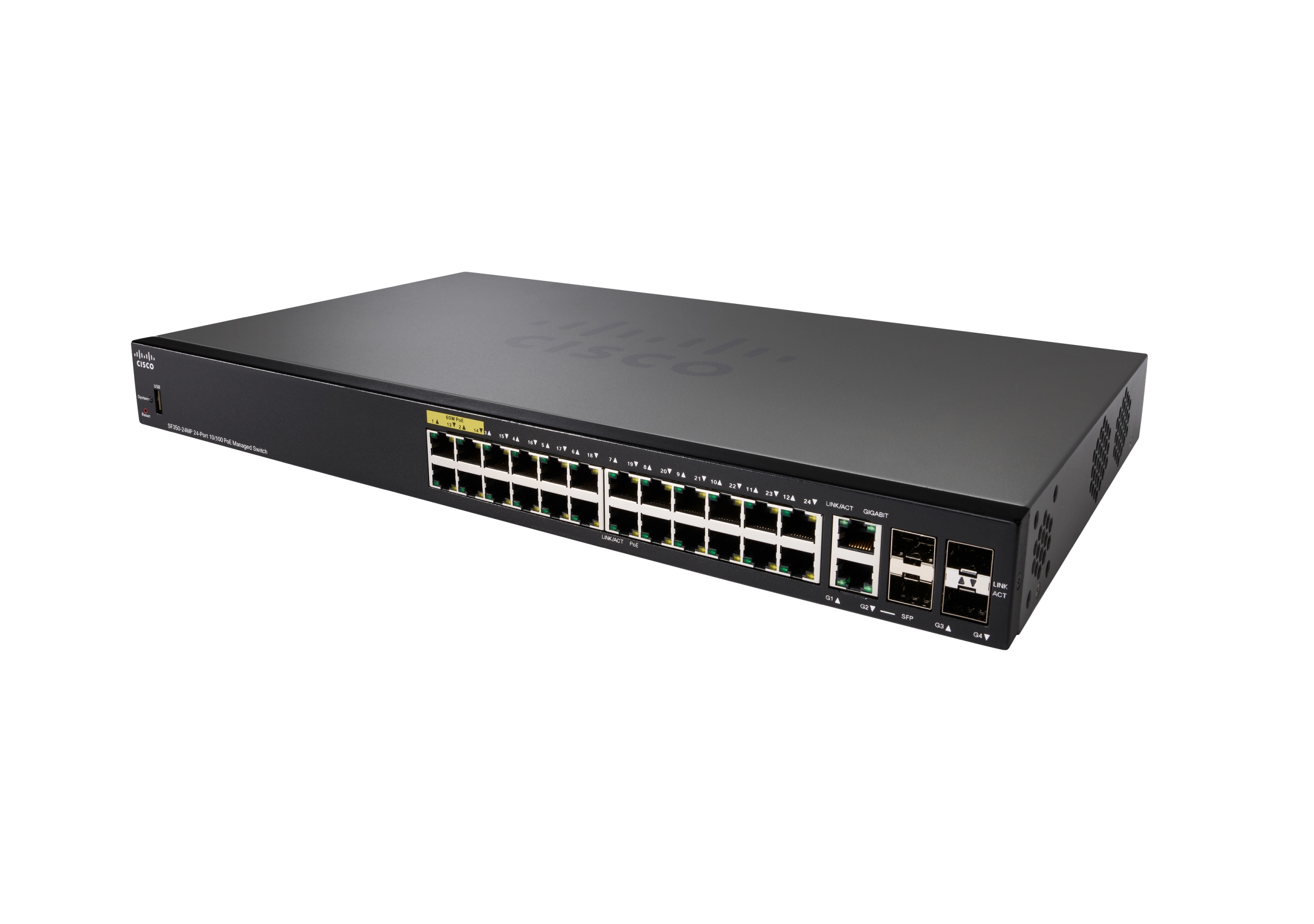

Cisco SF350-24MP 24-Ports

Best offer
AED
4 80236

Key Features

  • Switch layer: L2/L3
  • Physical stacking (units): 4
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Throughput: 9.52Mpps
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
  • Uplink ports quantity: 4
  • Number of queues: 8
  • Number of static routes: 1024
  • Number of IP interfaces: 128
  • Static route: Yes
  • Number of multicast groups filtered: 4000
  • Gigabit Ethernet (copper) ports quantity: 24
  • Fast Ethernet (copper) ports quantity: 24
  • Port mirroring: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Country of origin
China
Mean time between failures (MTBF)
293029 h
Internal memory
512 MB
Processor frequency
800 MHz
Quality of Service (QoS) support
✓
Security algorithms
802.1x RADIUS, HTTPS, MD5, SNMP, SSH, SSL/TLS
Rack mounting
✓
Noise level
52.20 dB
Stackable
✓
Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Product colour
Black
Packet buffer memory
12 MB
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
SFP+ module slots quantity
24
Telnet
✓
Access Control List (ACL)
✓
Traffic classification
✓
Traffic shaping
✓
Access Control List (ACL) rules
512
Switching capacity
12.80 Gbit/s
MAC address table
16384 entries
Authentication type
IEEE 802.1x, RADIUS
Jumbo frames support
✓
Forwarding rate
240 Mpps
Multicast support
✓
Static route
✓
Switch layer
L2/L3

Packaging data

Package weight
3720 g
Package height
108 mm
Package depth
545.10 mm
Package width
388.10 mm

Weight & dimensions

Weight
4080 g
Height
44 mm
Depth
440 mm
Width
440 mm

Management features

Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓
Number of multicast groups filtered
4000

Power

Power plug type
Type C
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
240 W
Power over Ethernet (PoE)
✓
Power over Ethernet (PoE) power per port
60 W
Total Power over Ethernet (PoE) budget
185 W
Number of power supply units
1

Performance

sFlow
✓
Physical stacking (units)
4

Wireless LAN features

IGMP snooping
✓

Design

Stacking
✓
Reset button
✓
LED indicators
Activity, Link, Speed, Status, System, Yes
Form factor
1U

Computer system

Built-in processor
✓

Packaging content

Packaging content
Rubber feet
Quick start guide
✓
Cables included
AC, Serial
Power supply included
✓
AC adapter included
✓
Mounting bracket(s) included
✓
Rack mount kit
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Management protocols
2, 3, SNMP v1
VLAN support
✓
Number of VLANs
4096
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Active link detection
✓
Cable length detection
✓
Flow control support
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T
Neighbor Discovery Protocol (ND) entries
2461
10G support
✗
Link aggregation
✓
Jumbo frames
9216
Port mirroring
✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity
24
Fiber optic connector
SFP
SFP module slots quantity
2
Cable types supported
Cat5, Cat6, Cat7
Console port
RJ-45
USB 2.0 ports quantity
1
Combo SFP ports quantity
2
Power over Ethernet plus (PoE+) ports quantity
24
Gigabit Ethernet (copper) ports quantity
24
Fast Ethernet (copper) ports quantity
24
Uplink ports quantity
4
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
684.10 BTU/h

Technical details

Certification
CE, CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 60950)
Switch type
Managed

Memory

Flash memory
256 MB

Protocols

IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv6 First Hop Security​ (FHS)
GARP VLAN Registration Protocol (GVRP)
✓
Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)
✓

Data transmission

Path MTU discovery
✓
Number of IP interfaces
128
Number of static routes
1024
Number of queues
8
Throughput
9.52 Mpps

Security

MAC address filtering
✓
IP Source Guard (IPSG)
✓
SSH/SSL support
✓
Broadcast storm control
✓
Static port security
✓
Loop protection
✓
BPDU filtering/protection
✓
DoS attack prevention
✓
IP-MAC-Port binding
✓
Authentication
Guest VLAN, Port-based authentication, Web-based authentication
Root protection
✓
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Product Details

The Cisco 350 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable managed switches that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 350 Series provides the ideal combination of affordability and capabilities for small businesses and helps you create a more efficient, better-connected workforce. The Cisco 350 Series is a broad portfolio of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Fast Ethernet and 10 to 52 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco 350 Series Switches support the advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs. Business Applications Whether you need a basic high-performance network to connect employee computers or a solution to deliver data, voice, and video services, the Cisco 350 Series offers a solution to meet your needs. Possible deployment scenarios include: - Secure desktop connectivity: Cisco 350 Series Switches can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive. - Secure wireless connectivity: With its advanced security features, Power over Ethernet, Auto Smartports, QoS, VLAN, and access control features, the Cisco 350 Series Switches are the perfect foundation to add business-grade wireless to a business network. - Unified communications: As a managed network solution, the Cisco 350 Series provides the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for businesses. Cisco 350 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete business solution. - Highly secure guest connectivity. Cisco 350 Series Switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests’ network sessions private from each other.

Files

Product Brochure

mmo_34353775_1543834010_3895_19958.pdf

PDF• 750.4 KB

User manual

mmo_34353775_1543834045_3054_30763.pdf

PDF• 911.2 KB

Videos

Portfolio Overview Video

MP4• 8.8 MB

Reviews

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Sign in to unlock newsletter access and stay in the loop

Allware
info@allware.com
+971522500911
World technology awards winner badge

Allware

  • About Us
  • Terms And Conditions
  • Privacy Policy
  • Contact Us

Partners

  • Why become a partner?
  • How to list your Online Shop?

Newsletter

  • Subscribe

Info

  • How Allware works
All Rights Reserved.
Please enable location access or select an emirate
-
00:00:00
Prayer timings

Offers (1)

Amazon logo

1 offer

From
AED
4 802

Cisco SF350-24Mp 24-Port 10 100 Max PoE Managed Switch

AED
4 80236

Price History

Price History Skeleton
Price History Shimmer Effect
Loading price history...

Similar Products

See all
D-Link DGS-1008A 8-ports

D-Link DGS-1008A 8-ports

AED
5100
13 offers
Ubiquiti USW-Pro-24-PoE 24-Ports

Ubiquiti USW-Pro-24-PoE 24-Ports

AED
2 34300
11 offers
-46%
Linksys LGS108-EU-RTL 8-ports

Linksys LGS108-EU-RTL 8-ports

AED
14900
AED
7900
11 offers
-8%
D-Link DGS-108 8-Ports

D-Link DGS-108 8-Ports

AED
8772
AED
8000
10 offers
-32%
D-Link DGS-1100-08P 8-ports

D-Link DGS-1100-08P 8-ports

AED
34999
AED
23579
8 offers
Linksys LGS105MERTL 5-ports

Linksys LGS105MERTL 5-ports

AED
8150
8 offers
-8%
D-Link DGS-F1210-26PS-E 26-Ports

D-Link DGS-F1210-26PS-E 26-Ports

AED
59900
AED
54900
7 offers
-36%
D-Link DGS-1210-10P 10-ports

D-Link DGS-1210-10P 10-ports

AED
58000
AED
37075
6 offers
D-Link DGS-1210-52MP 52-ports

D-Link DGS-1210-52MP 52-ports

AED
1 53000
6 offers
Mikrotik CRS326-24G-2S+RM 24-ports

Mikrotik CRS326-24G-2S+RM 24-ports

AED
67800
5 offers

More from Cisco

See all
Cisco SF350-48 48-ports

Cisco SF350-48 48-ports

AED
2 99639
1 offer
Cisco IE-2000-8T67P-G-E 8-ports

Cisco IE-2000-8T67P-G-E 8-ports

AED
9 56876
1 offer
Cisco SF11024NA 24-Ports

Cisco SF11024NA 24-Ports

AED
81583
1 offer
Cisco SRW2048-K9 2-ports

Cisco SRW2048-K9 2-ports

AED
3 58892
1 offer
Cisco 1941

Cisco 1941

AED
2 50116
1 offer
Cisco WS-C2960-24TT-L 24-ports

Cisco WS-C2960-24TT-L 24-ports

AED
1 89400
1 offer
Cisco SX550X-16FT 16-ports

Cisco SX550X-16FT 16-ports

AED
15 82169
1 offer

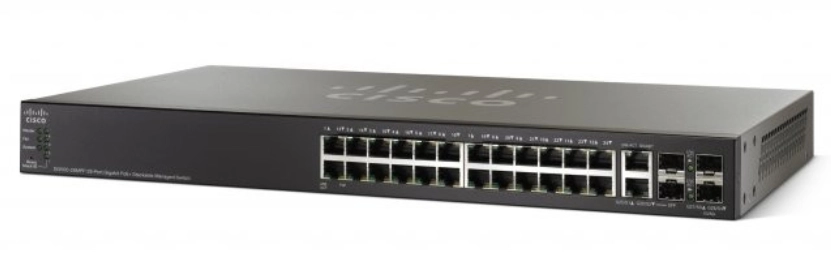

Cisco SG500-28MPP-K9-NA 28-ports
