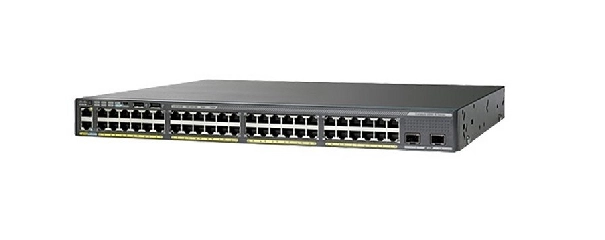

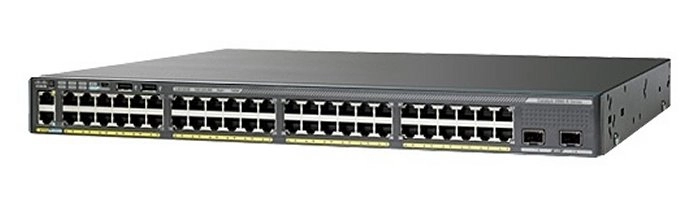

Cisco WS-C2960XR-48FPS-I 48-ports

Name: Cisco WS-C2960XR-48FPS-I 48-ports
Brand: Cisco
SKU: 347724
Availability: InStock

Best offer

AED

6 610⁶⁸

Key Features

Switch layer: L2, L2/L3
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 107.1Mpps
DHCP features: DHCP server
Gigabit Ethernet (copper) ports quantity: 48
Power over Ethernet plus (PoE+) ports quantity: 24
Power LED: Yes
SFP+ module slots quantity: 2
Switching capacity: 216Gbit/s
Full duplex: Yes
MAC address table: 16000entries
Access Control List (ACL): Yes
Jumbo frames support: Yes
Multicast support: Yes

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

230860 h

Safety

CAN/CSA-C22.2 No. 60950-1

Market segment

Business

Internal memory

512 MB

Processor frequency

600 MHz

Quality of Service (QoS) support

✓

Noise level

40 dB

Security algorithms

802.1x RADIUS, SSH

Rack mounting

✓

Stackable

✓

Product colour

Black

Power LED

✓

SFP+ module slots quantity

Switching capacity

216 Gbit/s

Full duplex

✓

MAC address table

16000 entries

Access Control List (ACL)

✓

Jumbo frames support

✓

Multicast support

✓

Switch layer

L2, L2/L3

Packaging data

Package weight

7480 g

Package height

147.60 mm

Package depth

549.40 mm

Package width

469.90 mm

Weight & dimensions

Weight

6700 g

Height

44.50 mm

Depth

408 mm

Width

445 mm

Management features

Web-based management

✓

Power

Power plug type

Type C

AC input voltage

100 - 264 V

Power consumption (typical)

58.50 W

AC input frequency

50 - 60 Hz

Input current

9 A

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

740 W

Number of power supply units

Output power

1025 W

Redundant power supply (RPS) support

✓

Wireless LAN features

IGMP snooping

✓

Design

LED indicators

Yes

Computer system

Processor model

AppliedMicro APM8639

Built-in processor

✓

Packaging content

1 printed document

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

SNMPv3

VLAN support

✓

Number of VLANs

1023

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Rate limiting

✓

10G support

✓

Link aggregation

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

SFP module slots quantity

Console port

RJ-45

USB 2.0 ports quantity

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating altitude (imperial)

0 - 3000 m

Operating relative humidity (H-H)

10 - 95 %

Non-operating altitude

0 - 4000 m

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

10 - 95 %

Technical details

Switch type

Managed

Memory

Flash memory

128 MB

Data transmission

Throughput

107.10 Mpps

Security

SSH/SSL support

✓

Broadcast storm control

✓

DHCP features

DHCP server

Logistics data

Harmonized System (HS) code

85176990

Solid state drive

Memory type

DRAM

Product Details

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features. - 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance. - Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks. - FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional). - Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget. - Reduced power consumption and advanced energy management features. - USB and Ethernet management interfaces for simplified operations. - Application visibility and capacity planning with integrated NetFlow-Lite. - LAN Base or LAN Lite Cisco IOS® software features. - Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
