D-Link DGS-1100-08 8-Ports

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 5, 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 11.9Mpps
DHCP features: DHCP client
Store-and-forward: Yes
Number of queues: 4
Gigabit Ethernet (copper) ports quantity: 5, 8
Port mirroring: Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Half duplex: Yes
Jumbo frames: 9216
IGMP entries: 128
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
Switching capacity: 10, 16Gbit/s

Offers (1)

1 offer

From

AED

Infinity

D-Link Ethernet Switch, Managed Gigabit Network Internet Desktop or Wall Mount 8-Port Gigabit DGS-1100-08

Unavailable

Specifications

Features

Mean time between failures (MTBF)

503585h, 1456992h, 2357475h

Safety

CE LVD, cUL

Quality of Service (QoS) support

✓

Noise level

0 dB

Rack mounting

✓

Virtual LAN features

Management VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

Product colour

Black

Packet buffer memory

0.19MB, 0.26MB, 1MB, 1.50MB

Queue scheduling algorithms

SP, Weighted Round Robin (WRR)

Switching capacity

10Gbit/s, 16Gbit/s

Full duplex

✓

Number of trunks

MAC address table

2000entries, 4000entries, 8000entries

MAC address entries

Static MAC address entries

Jumbo frames support

✓

Forwarding rate

7.44Mpps, 11.90Mpps

Switch layer

Packaging data

Package weight

681g, 2850g

Package height

93mm, 102mm

Package depth

210mm, 391mm

Package width

139mm, 262mm

Weight & dimensions

Weight

340g, 380g, 420g, 1840g

Height

28mm, 44mm

Depth

82mm, 97mm, 98mm, 180mm

Width

145mm, 150mm, 171mm, 280mm

Management features

Web-based management

✓

Power

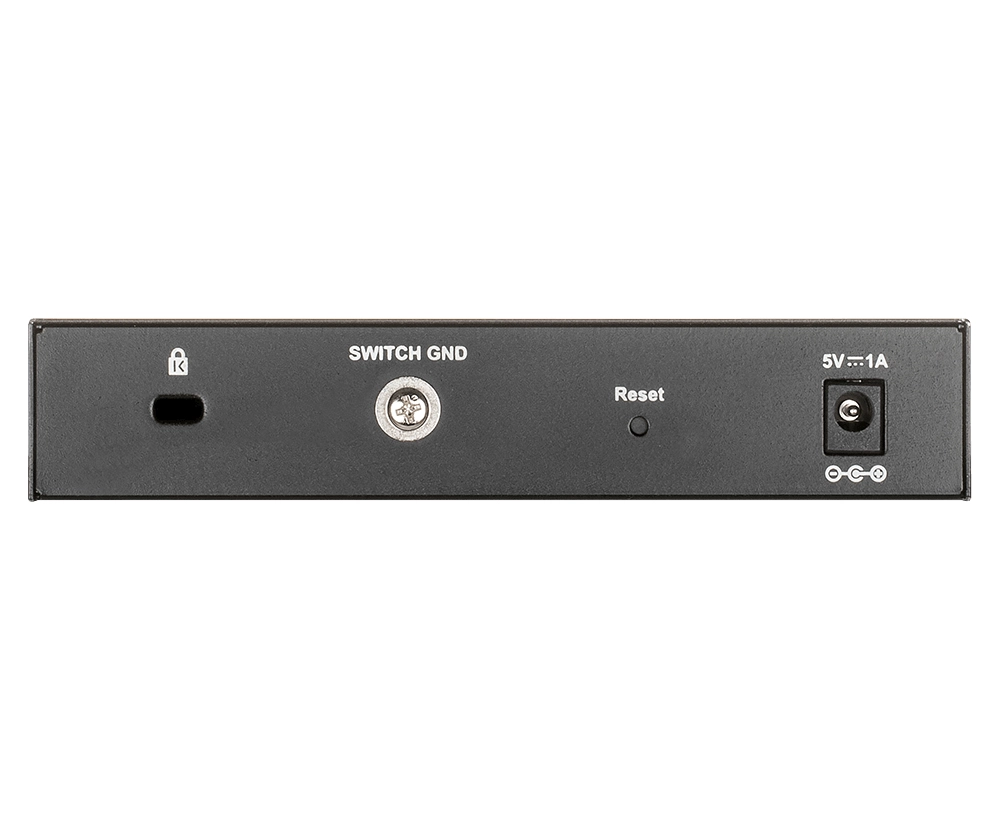

Power connector

DC-in jack

AC input voltage

100 - 240 V

Power consumption (typical)

3.24W, 4.58W, 13.50W

AC input frequency

50 - 60 Hz, 50/60 Hz

DC input voltage

5 V

Input current

1 A

Power consumption (max)

4.58W, 4.94W, 24.08W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

18 W

Total Power over Ethernet (PoE) budget

140 W

Power source

DC, PoE

Performance

Packet forwarding rate (1 Gbps)

14880 pps

Packet forwarding rate (10 Mbps)

1488000 pps

Packet forwarding rate (100 Mbps)

148800 pps

Wireless LAN features

IGMP snooping

✓

Design

Fanless

✓

Reset button

✓

LED indicators

Yes

Form factor

Packaging content

Power supply included

✗

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

VLAN support

✓

Number of VLANs

4094

Auto MDI/MDI-X

✓

Head-of-line (HOL) blocking

✓

Auto-negotiation

✓

10G support

✗

Flow control support

✓

Jumbo frames

9216

Half duplex

✓

Port mirroring

✓

Store-and-forward

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Console port

RJ-45

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

5, 8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

5, 8

Operational conditions

Operating altitude (imperial)

0 - 2000 m

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

[object Object],[object Object],[object Object]

Operating altitude

0 - 2000 m

Storage relative humidity (H-H)

[object Object],[object Object]

Heat dissipation

16.68BTU/h, 16.85BTU/h

Technical details

Certification

C-Tick, CE A, FCC A, ICES-003, VCCI A

Pallet gross weight (sea)

493100g, 563800g

Pallet height (sea)

1935mm, 2080mm

Pallet gross weight (air)

315200g, 563800g

Pallet height (air)

1350mm, 1935mm

Switch type

Managed, Unmanaged

Compliance certificates

BSMI, CB, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI, cUL

Memory

Flash memory

2 MB

Data transmission

Number of queues

Throughput

11.90 Mpps

Security

SSH/SSL support

✓

Broadcast storm control

✓

Static port security

✓

IGMP entries

128

DHCP features

DHCP client

Logistics data

Harmonized System (HS) code

85176990

Pallet gross width

1200 mm

Shipping (inner) case gross weight

14800g, 15300g

Shipping (inner) case net weight

13600g, 14200g

Pallet gross length

1100 mm

Shipping (inner) case height

243mm, 285mm

Shipping (inner) case length

545mm, 594mm

Shipping (inner) case width

406mm, 492mm

Product Details

Web UI Easy to use web interface to access management features VLANs Segment your network into VLANs. Easy deployment with automatic configuration Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration Energy Efficient Design Automatic power saving features to reduce power usage Simple. Easy. Smart. DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management. Smart Web UI The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities. Free Nuclias Connect remote network management software. Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management. PoE and PoE+, with budgets up to 370W The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras. Easy Troubleshooting The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors. Green Technology D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
