Allware

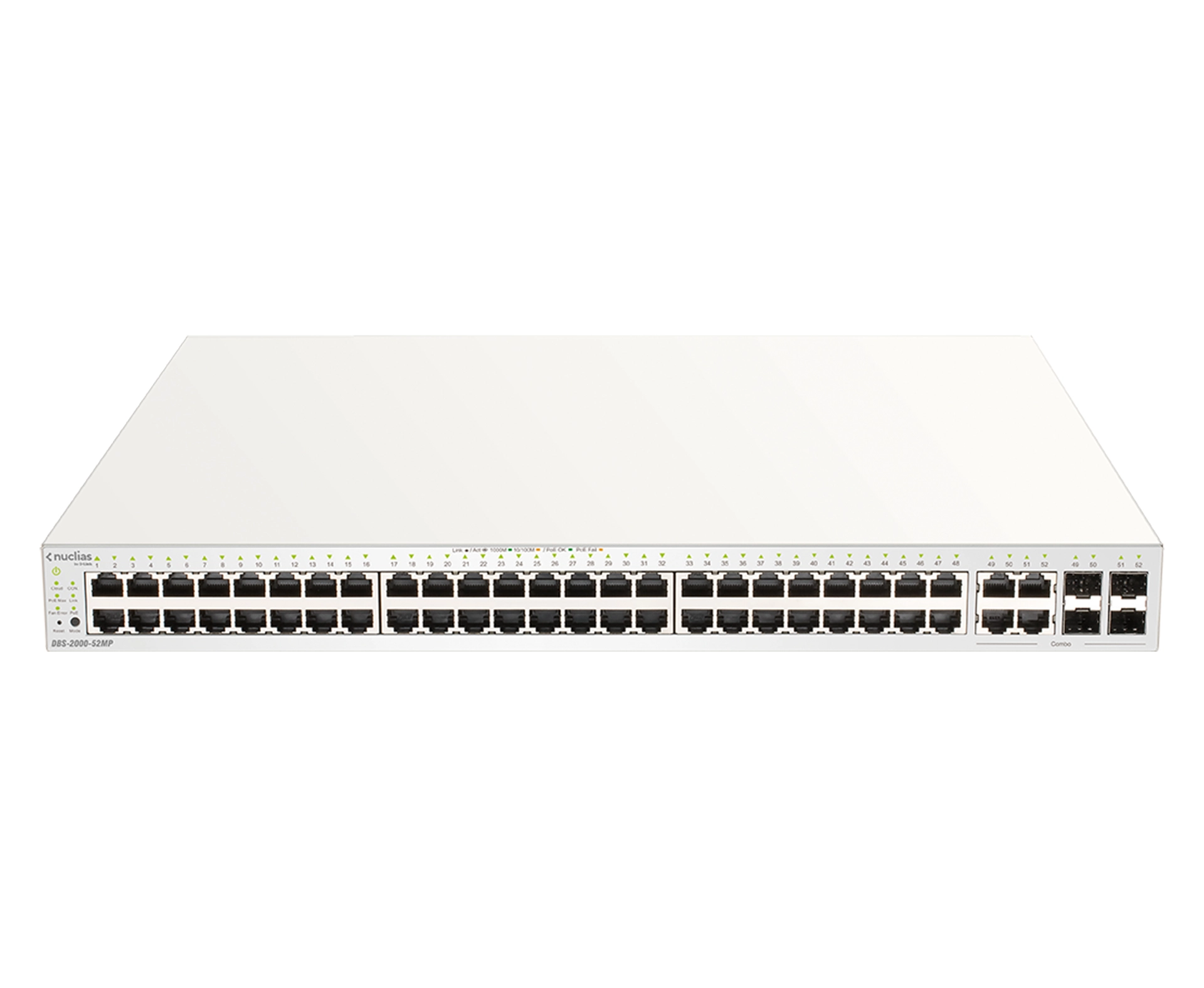

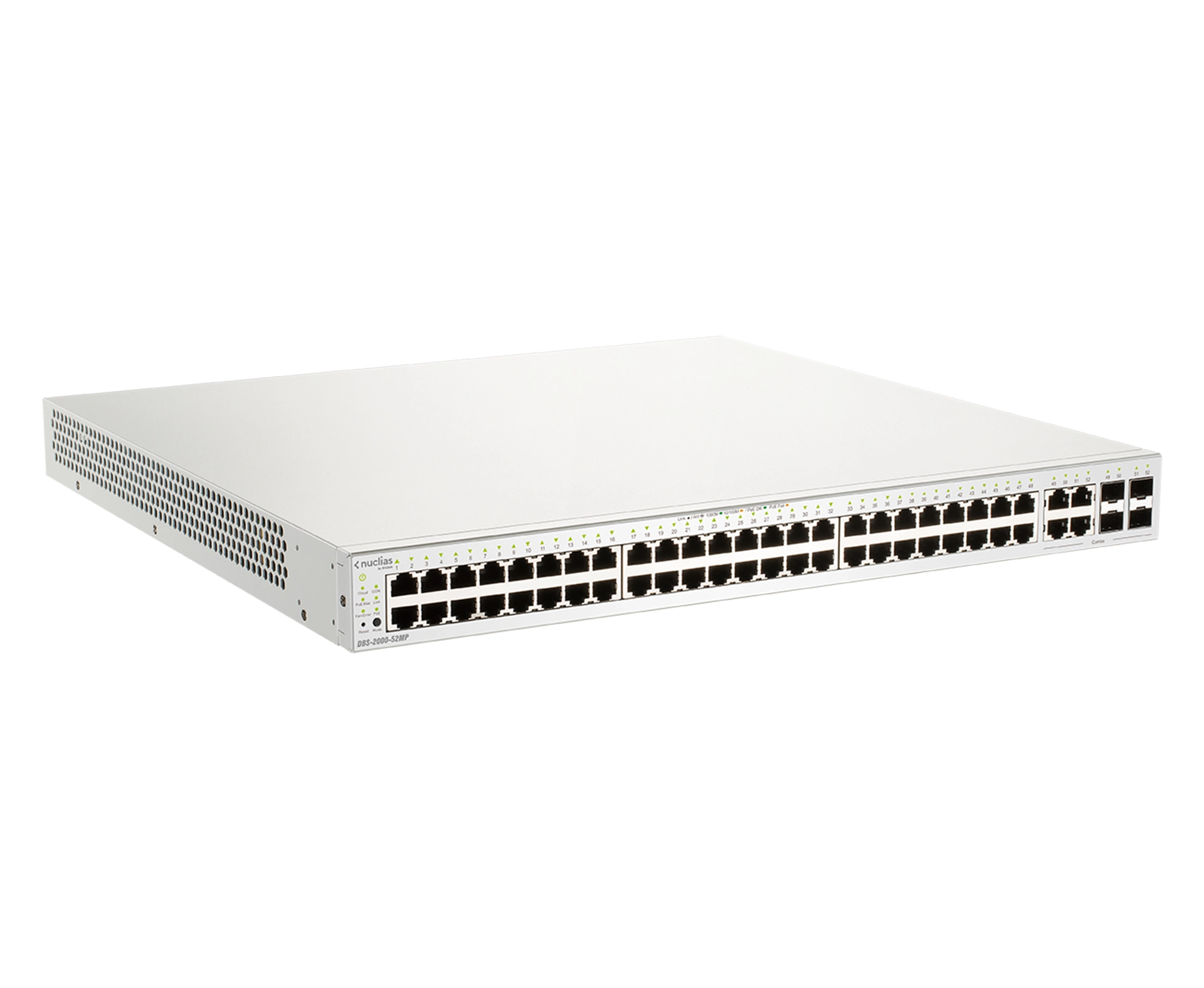

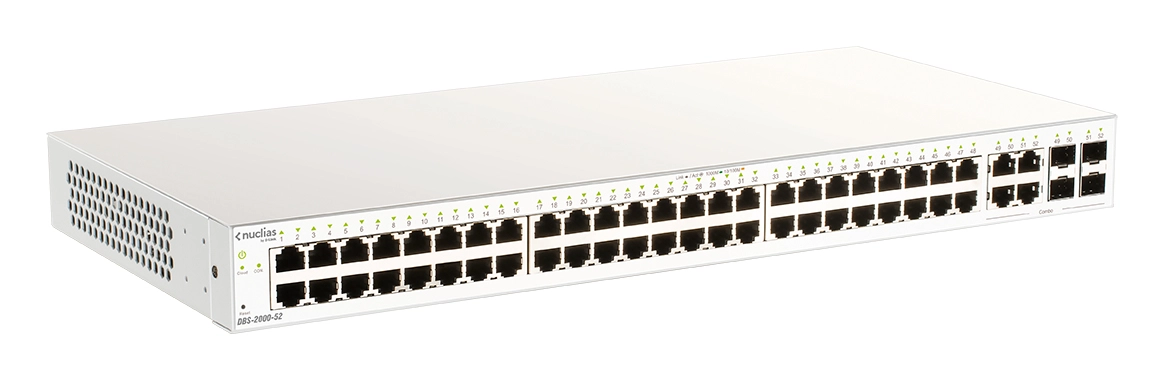

D-Link DBS-2000-52 52-ports

Best offer
AED
2 95148

Key Features

  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Switching capacity: 104Gbit/s
  • Forwarding rate: 77.4Mpps
  • Power source: DC/PoE
  • IGMP snooping: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
  • 10G support: No
  • Link aggregation: Yes
  • Console port: RJ-45
  • Combo SFP ports quantity: 4
  • Memory type: DDR3-SDRAM

Specifications

Features

Mean time between failures (MTBF)
236406 h
Internal memory
256 MB
Processor frequency
700 MHz
Security algorithms
WPA, WPA2
Rack mounting
Product colour
Grey, White
Packet buffer memory
12 MB
Switching capacity
104 Gbit/s
Forwarding rate
77.40 Mpps
Switch layer
L2

Packaging data

Package weight
8660 g
Package height
149 mm
Package depth
568 mm
Package width
558 mm

Weight & dimensions

Weight
6260 g
Height
44 mm
Depth
430 mm
Width
440 mm

Management features

Web-based management

Power

AC input voltage
100 - 240 V
Power consumption (max)
478.90 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W
Power source
DC/PoE

Wireless LAN features

IGMP snooping

Design

LED indicators
Yes

Computer system

Built-in processor

Network

Networking standards
IEEE 802.3ad, IEEE 802.3at
Auto MDI/MDI-X
Spanning tree protocol
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
10G support
Link aggregation

Ports & interfaces

Power over Ethernet (PoE) ports quantity
48
Console port
RJ-45
Combo SFP ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48

Operational conditions

Operating relative humidity (H-H)
0 - 95 %
Storage relative humidity (H-H)
0 - 95 %
Heat dissipation
1634.01 BTU/h

Technical details

Pallet gross weight (sea)
354800 g
Pallet height (sea)
1929 mm
Pallet gross weight (air)
242700 g
Pallet height (air)
1331 mm
Switch type
Managed

Memory

Flash memory
32 MB

Logistics data

Harmonized System (HS) code
85176990
Pallet gross width
1200 mm
Shipping (inner) case gross weight
18600 g
Shipping (inner) case net weight
17300 g
Pallet gross length
1100 mm
Shipping (inner) case height
598 mm
Shipping (inner) case length
574 mm
Shipping (inner) case width
315 mm

Solid state drive

Memory type
DDR3-SDRAM

Product Details

Cloud Networking, Refreshed The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible. Management Over the Cloud DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails. Easy Troubleshooting The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems. Advanced Security Features The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
