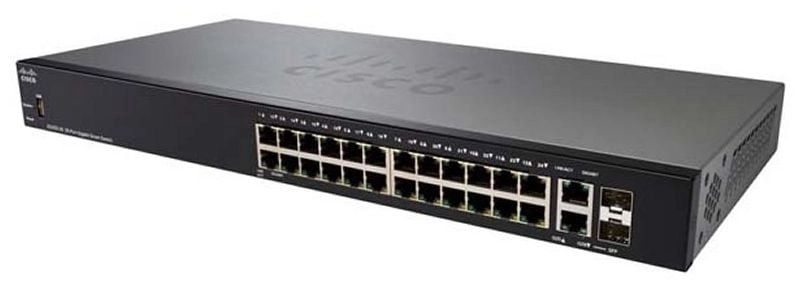

Cisco SG550X-24P-K9-NA 24-Ports

Key Features

Switch layer: L2/L3, L3
Physical stacking (units): 8
Basic switching RJ-45 Ethernet ports quantity: 24
10G Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 95.23Gbit/s
Throughput: 95.23Mpps
DHCP features: DHCP option 82, DHCP client, DHCP relay, DHCP server
Uplink ports quantity: 4
Access Control List (ACL) IPv4 entries: 2000
Access Control List (ACL) IPv6 entries: 2000
Number of queues: 8
Number of static routes: 8000
Number of IP interfaces: 256
Multicast Listener Discovery (MLD) snooping: v2

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

299949 h

Compatible operating systems

Linux, Mac OS X, Microsoft Windows

Internal memory

512 MB

Processor frequency

800 MHz

MIB support

CISCOSB-mcmngr-MIB

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS

Rack mounting

✓

Noise level

49.10 dB

Stackable

✓

Virtual LAN features

IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, VLAN mapping, Voice VLAN

Product colour

Black

Packet buffer memory

1.50 MB

Queue scheduling algorithms

Weighted Round Robin (WRR)

SFP+ module slots quantity

Access Control List (ACL)

✓

Sleep mode

✓

Switching capacity

128 Gbit/s

MAC address table

16000 entries

Authentication type

HWTACACS+, IEEE 802.1x

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Forwarding rate

95.23 Mpps

Multicast support

✓

Static route

✓

Multicast Listener Discovery (MLD) snooping

Throughput

95.23 Gbit/s

Switch layer

L2/L3, L3

Packaging data

Package weight

6760 g

Package height

108 mm

Package depth

545.10 mm

Package width

476 mm

Weight & dimensions

Weight

6190 g

Height

44 mm

Depth

440 mm

Width

350 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

ARP inspection

✓

Number of multicast groups filtered

4000

Power

Power connector

DC-in jack

Power plug type

Type C

Power consumption (typical)

80.20 W

AC input voltage

100 - 240 V

AC input frequency

50 Hz

Power consumption (max)

269.20 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

60 W

Total Power over Ethernet (PoE) budget

195 W

Number of power supply units

Redundant power supply (RPS) support

✓

Performance

Physical stacking (units)

Wireless LAN features

IGMP snooping

✓

System requirements

Minimum system requirements

Safari v5+

Design

Stacking

✓

Reset button

✓

LED indicators

Yes

Form factor

Computer system

Built-in processor

✓

Packaging content

Rubber feet

Quick start guide

✓

Resource CD

✓

Cables included

AC, Serial

Power supply included

✓

Rack mount kit

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Supported network protocols

IPv4, IPv6, PBR, RIPv2, VRRP, static IPv4/IPv6 routing

Management protocols

CLI, HTTP, HTTPS, RMON1, RMON2, RMON3, RMON9, SNMP, SNMP1, SNMPv1, SNMPv2c, SNMPv3, SNTP, SSH, TFTP, Telnet

VLAN support

✓

Number of VLANs

4094

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Ethernet LAN data rates

10, 100, 1000

Active link detection

✓

Cable length detection

✓

MAC address auto-learning supported

✓

Flow control support

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T

10G support

✓

Link aggregation

✓

Jumbo frames

9000

Policy-based routing

✓

Port mirroring

✓

Ports & interfaces

ExpressCard slot

✗

Power over Ethernet (PoE) ports quantity

Fiber optic connector

SFP

Cable types supported

Cat5, Cat5e, Cat6, Cat6a, Cat6e, Cat7, Fiber

Console port

RJ-45

USB 2.0 ports quantity

Combo SFP ports quantity

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

Uplink ports quantity

10G Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

2968.90 BTU/h

Technical details

Certification

CE, CE mark, CSA (CSA 22.2), FCC 15 (CFR 47) A, FCC Part 15 (CFR 47), FCC Part 15 (CFR 47) Class A, UL (UL 60950)

Switch type

Managed

Memory

Flash memory

256 MB

Protocols

Routing protocols

RIP-2, VRRP

IPv4 & IPv6 features

Dual stack IPv4/IPv6, IPv6 First Hop Security (FHS), IPv6 Telnet, IPv6 ping, IPv6 tracert

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of IP interfaces

256

Number of static routes

8000

Number of queues

Throughput

95.23 Mpps

Security

MAC address filtering

✓

IP Source Guard (IPSG)

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

DoS attack prevention

✓

IP-MAC-Port binding

✓

Authentication

Guest VLAN, Port-based authentication, Web-based authentication

Access Control List (ACL) IPv6 entries

2000

Access Control List (ACL) IPv4 entries

2000

DHCP features

DHCP option 82, DHCP client, DHCP relay, DHCP server

Ethernet LAN features

IP routing

✓

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Cisco 550X Series Stackable Managed Switches are next-generation stackable managed switches that provide 10 Gigabit Ethernet connections and advanced features to accelerate your growing business. These switches offer 16- to 48-port 10 Gigabit Ethernet connectivity for server and storage connection and high- performance aggregation, providing a solid foundation for your business applications today and in the future. The Cisco 550X Series provides 10 Gigabit Ethernet with both copper and fiber options, true stacking, power and fan redundancy, advanced security, and energy-saving technology to deliver the reliability and performance that demanding environments need. With easy configuration and management and limited lifetime warranty with next- business-day advance replacement, the Cisco 550X Series provides the ideal network foundation at a price you can afford. - Layer 3 - Managed - 22 10-Gb SFP+ slots + 2 combo 10-Gb copper/SFP+ plus 1 GE OOB management - Rack-mountable - Stackable

Files

Cisco 550X Series Stackable Managed Switches At-a-Glance

mmo_29891197_1487098274_8702_14021.pdf

PDF• 400.7 KB

Cisco 550X Series Switches Command Line Interface Reference Guide for Firmware Release 2.2.5

mmo_29891197_1487098302_3391_4061.pdf

PDF• 8.5 MB

Cisco 550XG Series 10G Stackable Managed Switches Quick Start Guide (English)

mmo_29891197_1487098313_7144_4061.pdf

PDF• 1.6 MB

Regulatory Compliance and Safety Information for the Cisco Switches (EMC Class A Devices)

mmo_29891197_1487098326_6714_5814.pdf

PDF• 3.4 MB

Product Brochure

mmo_29891197_1487098387_9107_4688.pdf

PDF• 634.8 KB

User manual

mmo_34353817_1515584552_9431_9170.pdf

PDF• 1.4 MB

Videos

Portfolio Overview Video

MP4• 8.8 MB

SX550X-24-K9-UK

MP4• 8.8 MB

SX550X-24F-K9-UK

MP4• 8.8 MB
