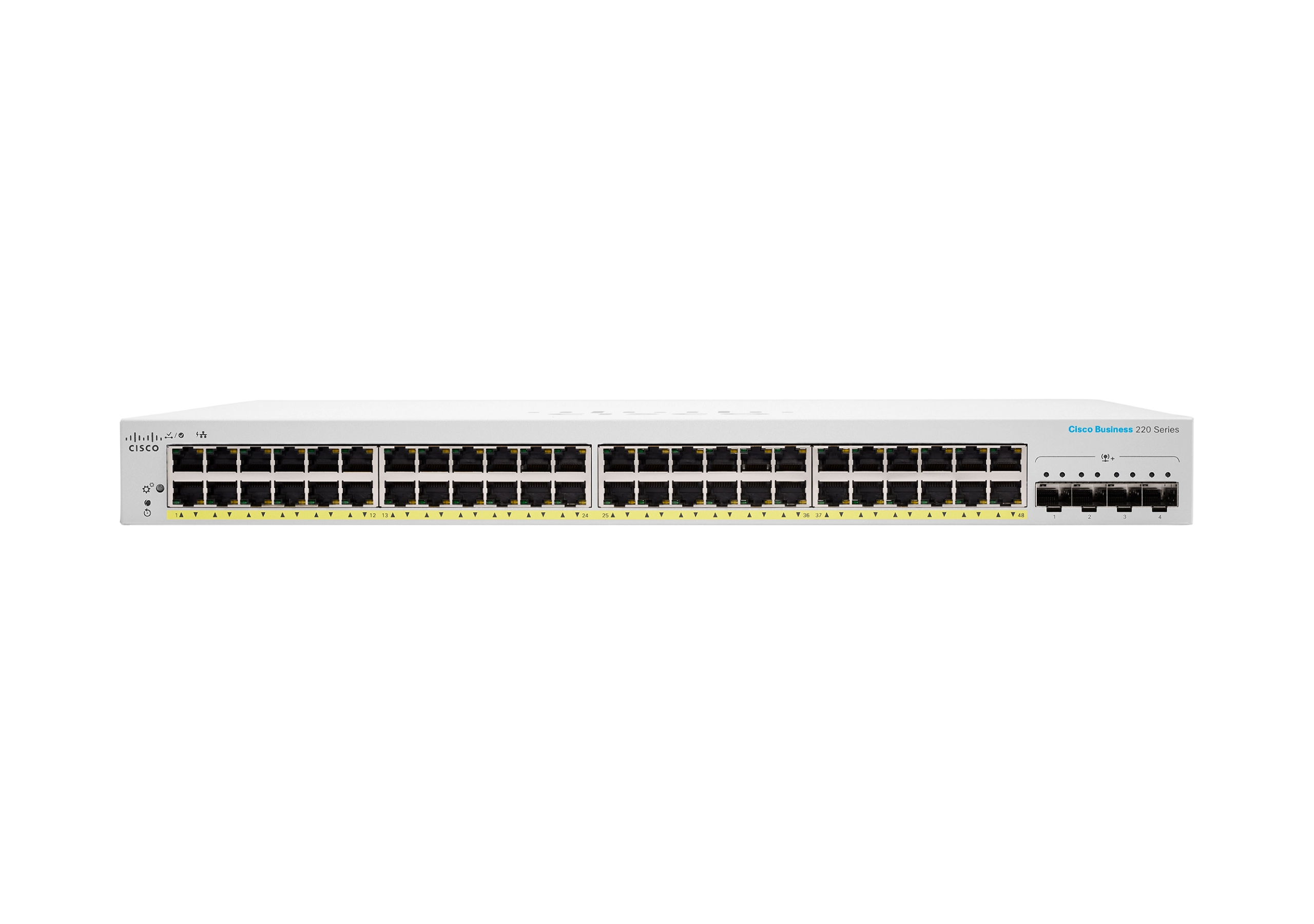

Cisco CBS220-48FP-4X-NA 48-ports

Name: Cisco CBS220-48FP-4X-NA 48-ports
Brand: Cisco
SKU: 347383
Availability: InStock

Best offer

AED

5 140¹⁸

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
DHCP features: DHCP client
Number of multicast groups filtered: 256
Port mirroring: Yes
Jumbo frames: 9216
IGMP entries: 256
SFP+ module slots quantity: 4
Switching capacity: 104, 176Gbit/s
MAC address table: 8192entries
Access Control List (ACL): Yes
Access Control List (ACL) rules: 512
Configuring Location Settings (CLI): Yes
Jumbo frames support: Yes

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

420.83 h

Market segment

Business

Internal memory

256 MB

MIB support

Quality of Service (QoS) support

✓

Security algorithms

SSL/TLS

Rack mounting

✓

Product colour

White

Packet buffer memory

12MB, 16MB

SFP+ module slots quantity

Switching capacity

104Gbit/s, 176Gbit/s

MAC address table

8192 entries

Access Control List (ACL)

✓

Access Control List (ACL) rules

512

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Forwarding rate

74.38 Mpps

Multicast support

✓

Switch layer

Packaging data

Package weight

5480g, 7270g, 7700g, 7910g

Package height

109.20 mm

Package depth

574 mm

Package width

419.10mm, 513.10mm

Weight & dimensions

Weight

3540g, 5290g, 5360g, 5650g

Height

44 mm

Depth

440 mm

Width

257mm, 350mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

Number of multicast groups filtered

256

Power

Power plug type

Type C

AC input voltage

110 - 220 V

Power consumption (typical)

52.60 W

Power consumption (max)

478.20 W

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

382W, 740W

Power source

Wireless LAN features

IGMP snooping

✓

Design

Reset button

✓

LED indicators

Activity, Link, Speed, System, Yes

Packaging content

Mounting hardware, Power cord or adapter, Switch, and Quick Start Guide

Power supply included

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

SNMP

VLAN support

✓

Number of VLANs

256

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

10G support

✓

Link aggregation

✓

Flow control support

✓

Jumbo frames

9216

Port mirroring

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Fiber optic connector

SFP

SFP module slots quantity

Fiber ports quantity

Installed SFP+ modules quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

140.58 BTU/h

Technical details

Switch type

Managed

Memory

Flash memory

64 MB

Protocols

GARP VLAN Registration Protocol (GVRP)

✓

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

IGMP entries

256

DHCP features

DHCP client

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Cisco Business CBS220-48FP-4X switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Files

User manual

mmo_93875760_1652981478_8837_9414.pdf

PDF• 817.7 KB

Videos

Product Feature Overview Video

MP4• 14.3 MB

Portfolio Overview Video

MP4• 5.7 MB

Unboxing Video

MP4• 36.9 MB
