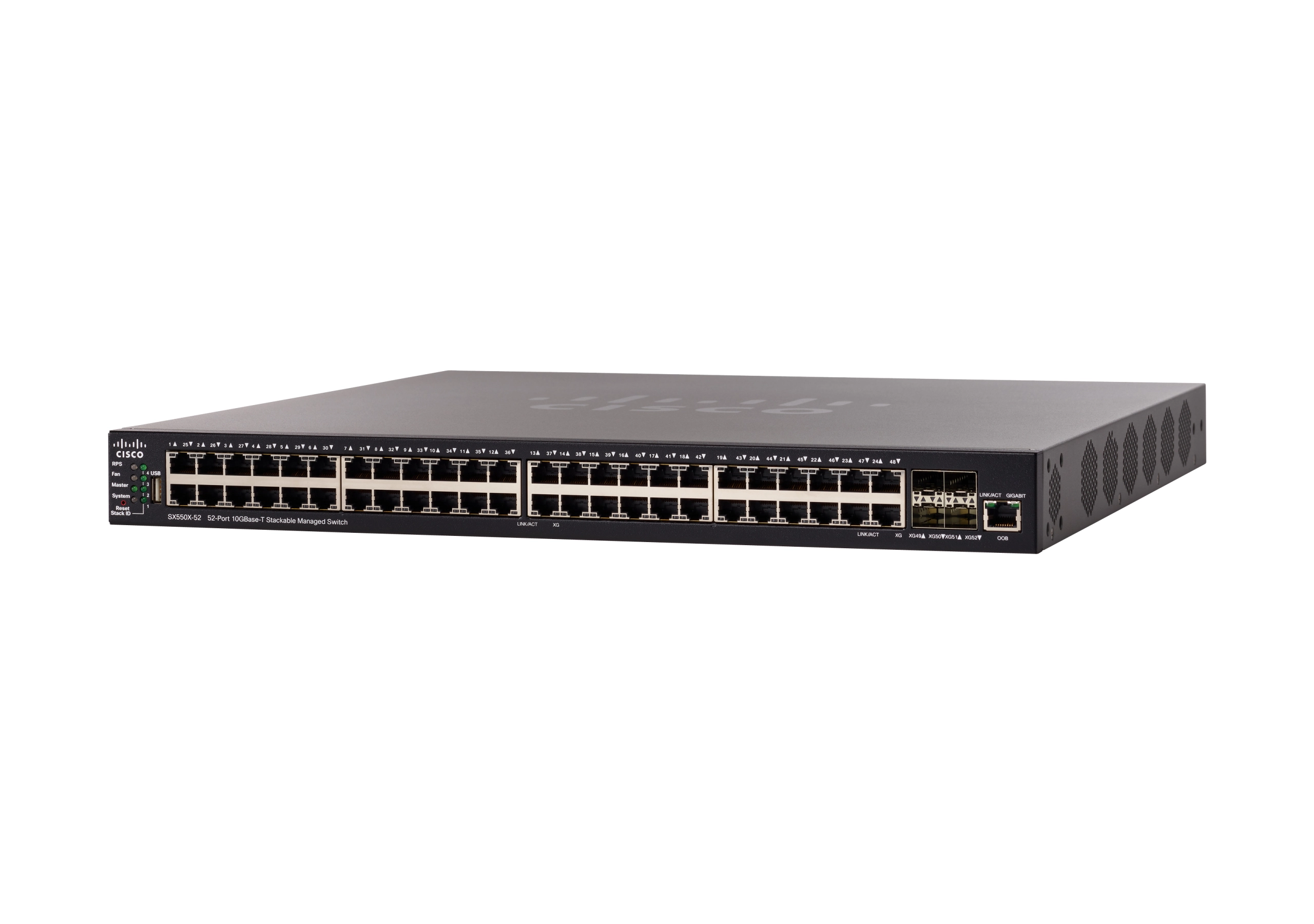

Cisco SG550X-48-K9-NA 48-ports

Name: Cisco SG550X-48-K9-NA 48-ports
Brand: Cisco
SKU: 346888
Availability: InStock

Best offer

AED

10 629¹⁷

Key Features

Switch layer: L3
Physical stacking (units): 8
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 130.94Mpps
DHCP features: DHCP server
Number of Virtual Output Queuing (VoQ) queues: 7000
Number of queues: 8
Number of static routes: 32, 7000
Number of IP interfaces: 256
Static route: Yes
Number of multicast groups filtered: 256
Gigabit Ethernet (copper) ports quantity: 48
Port mirroring: Yes
Jumbo frames: 9000

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

163264h, 248097h

Compatible operating systems

Linux, Mac OS X, Microsoft Windows

Internal memory

512 MB

Processor frequency

800 MHz

MIB support

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS, HTTPS, SSH, SSL/TLS

Rack mounting

✓

Stackable

✓

Virtual LAN features

Port-based VLAN, Private VLAN, Stacked VLAN, Tagged VLAN

Product colour

Black, Grey

Packet buffer memory

3 MB

SFP+ module slots quantity

2, 4

Access Control List (ACL)

✓

Switching capacity

176Gbit/s, 1040Gbit/s

MAC address table

16000entries, 32000entries

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Forwarding rate

130.94 Mpps

Multicast support

✓

Static route

✓

Switch layer

Packaging data

Package weight

5060g, 7170g, 8380g, 8600g

Package height

108mm, 116.10mm

Package depth

545.10mm, 575.10mm

Package width

388.10mm, 476mm, 598.40mm

Weight & dimensions

Weight

3730g, 5820g, 6690g, 7360g

Height

44 mm

Depth

440 mm

Width

257mm, 350mm, 450mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

ARP inspection

✓

Number of multicast groups filtered

256

Power

Power plug type

Type C

AC input voltage

100 - 240 V

AC input frequency

50 Hz

Power consumption (max)

52W, 494.30W, 893.10W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

60 W

Total Power over Ethernet (PoE) budget

382W, 740W

Power source

Redundant power supply (RPS) support

✓

Performance

Physical stacking (units)

Wireless LAN features

IGMP snooping

✓

Design

Reset button

✓

LED indicators

Yes

Form factor

Computer system

Built-in processor

✓

Packaging content

Cisco SG550X-48 Switch, Cisco SG550X-48MP Switch, Cisco SG550X-48P Switch, Cisco SG550X-52 Switch, DB-9 to RJ45 Serial Cable, EU Directives 1999/5/EC Compliance Information, Pointer Card with China RoHS, Power cord, Quick Start guide, Rack-Mount kit, Rubber feet, Technical support contacts

Quick start guide

✓

Resource CD

✓

Cables included

AC, Serial

Power supply included

✓

Rack mount kit

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Supported network protocols

PBR, RIPv2, VRRP, static IPv4/IPv6 routing

Management protocols

CLI, HTTP, HTTPS, RMON1, RMON2, RMON3, RMON9, SNMPv1, SNMPv2c, SNMPv3, SSH, Telnet

VLAN support

✓

Number of VLANs

4000, 4094

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Cable length detection

✓

Flow control support

✓

10G support

✓

Link aggregation

✓

Jumbo frames

9000

Port mirroring

✓

Ports & interfaces

Cable types supported

Cat5, Cat5e, Cat6a

Console port

RJ-45

Combo SFP ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

177.43BTU/h, 1686.62BTU/h, 3047.38BTU/h

Technical details

Certification

CE, CE mark, CSA (CSA 22.2), FCC 15 (CFR 47) A, FCC Part 15 (CFR 47) Class A, UL (UL 60950)

Switch type

Managed

Memory

Flash memory

256 MB

Data transmission

Number of IP interfaces

256

Number of static routes

32, 7000

Number of Virtual Output Queuing (VoQ) queues

7000

Number of queues

Throughput

130.94 Mpps

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

IP-MAC-Port binding

✓

Authentication

Guest VLAN, Port-based authentication

DHCP features

DHCP server

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Cisco SG550X-48MP Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use. With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.

Files

Product Brochure

mmo_34353826_1515580754_7925_11408.pdf

PDF• 366 KB

User manual

mmo_34353826_1515580765_5323_32262.pdf

PDF• 1.4 MB

Videos

Portfolio Overview Video

MP4• 8.8 MB

SG550X-48MP-K9-UK

MP4• 8.8 MB
