Cisco C9200L-24P-4G 24-Ports

Name: Cisco C9200L-24P-4G 24-Ports
Brand: Cisco
SKU: 347039
Availability: InStock

Best offer

AED

6 734⁹⁵

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
IPv4 multicast entries: 1024
IPv6 multicast entries: 1024
DHCP features: DHCP snooping
Number of static routes: 16
Static route: Yes

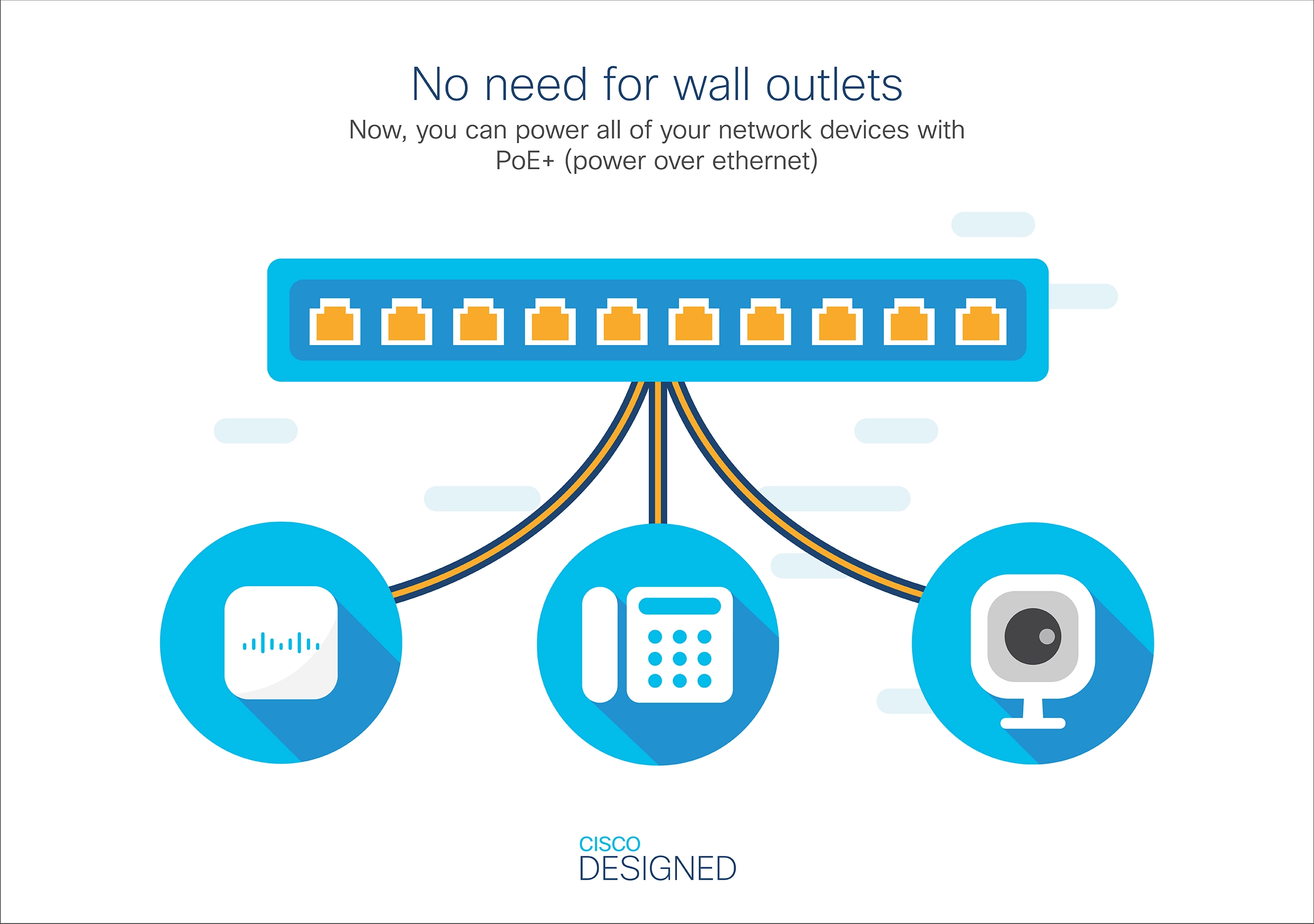

Power over Ethernet plus (PoE+) ports quantity: 24
Jumbo frames: 10240
IGMP entries: 1024
Switching capacity: 56Gbit/s
Full duplex: Yes
MAC address table: 16000entries
Access Control List (ACL): Yes

Offers (4)

4 offers

From

AED

6 734

CISCO Catalyst 9200 C9200L-24P-4G Layer 3 Switch - 24 X Gigabit Ethernet Network, 4 X Gigabit Ethernet Uplink - Manageable - Twisted Pair, Optical Fiber - Modular - 3 Layer Supported

Black

AED

6 734⁹⁵

Price History

Loading price history...

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

698220 h

Market segment

Business

Internal memory

512 MB

Processor frequency

800 MHz

MIB support

Quality of Service (QoS) support

✓

Product colour

Grey

Switching capacity

56 Gbit/s

Full duplex

✓

MAC address table

16000 entries

Access Control List (ACL)

✓

Traffic classification

✓

Authentication type

RADIUS

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Forwarding rate

41.67 Mpps

Multicast support

✓

Static route

✓

Switch layer

Packaging data

Package weight

5540 g

Package height

147.60 mm

Package depth

549.40 mm

Package width

390.70 mm

Weight & dimensions

Weight

3530 g

Height

44 mm

Depth

299 mm

Width

444.50 mm

Management features

Web-based management

✓

ARP inspection

✓

Power

Power plug type

Type C

AC input voltage

110 - 220 V

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

195 W

Wireless LAN features

IGMP snooping

✓

Design

LED indicators

Yes

Computer system

Processor model

ARM7

Built-in processor

✓

Packaging content

1 printed document, Accessory Kit, C1000-24P-4G-L Switch

Network

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u

VLAN support

✓

Number of VLANs

4094

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Ethernet LAN data rates

10, 100

10G support

✗

Link aggregation

✓

Jumbo frames

10240

Ports & interfaces

SFP module slots quantity

Console port

RJ-45/Mini-USB

USB 2.0 ports quantity

Power over Ethernet plus (PoE+) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating altitude (imperial)

0 - 3000 m

Operating relative humidity (H-H)

5 - 90 %

Non-operating altitude

0 - 4500 m

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

5 - 95 %

Technical details

Certification

AS/NZS 60950-1 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1 Second Edition, CISPR22 Class A, CISPR24, CNS13438 Class A EN55024 (including EN 61000-4-5), EN 60950-1 Second Edition, EN300386, EN55022 Class A, EN61000-3-2, EN61000-3-3, ICES003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24 Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU Common Language Equipment Identifier (CLEI) code, UL 60950-1 Second Edition, VCCI Class A

Switch type

Managed

Memory

Flash memory

256 MB

Data transmission

Number of static routes

Security

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

Authentication

Web-based authentication

IGMP entries

1024

DHCP features

DHCP snooping

Logistics data

Harmonized System (HS) code

85176990

Solid state drive

Memory type

DRAM

Multicast features

IPv6 multicast entries

1024

IPv4 multicast entries

1024

Product Details

The Cisco Catalyst 1000-24P-4G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.

Files

Product Brochure

mmo_76922924_1579517968_5631_9729.pdf

PDF• 837.3 KB

Installation Guide

mmo_76922924_1605798113_4752_12341.pdf

PDF• 8.4 MB
