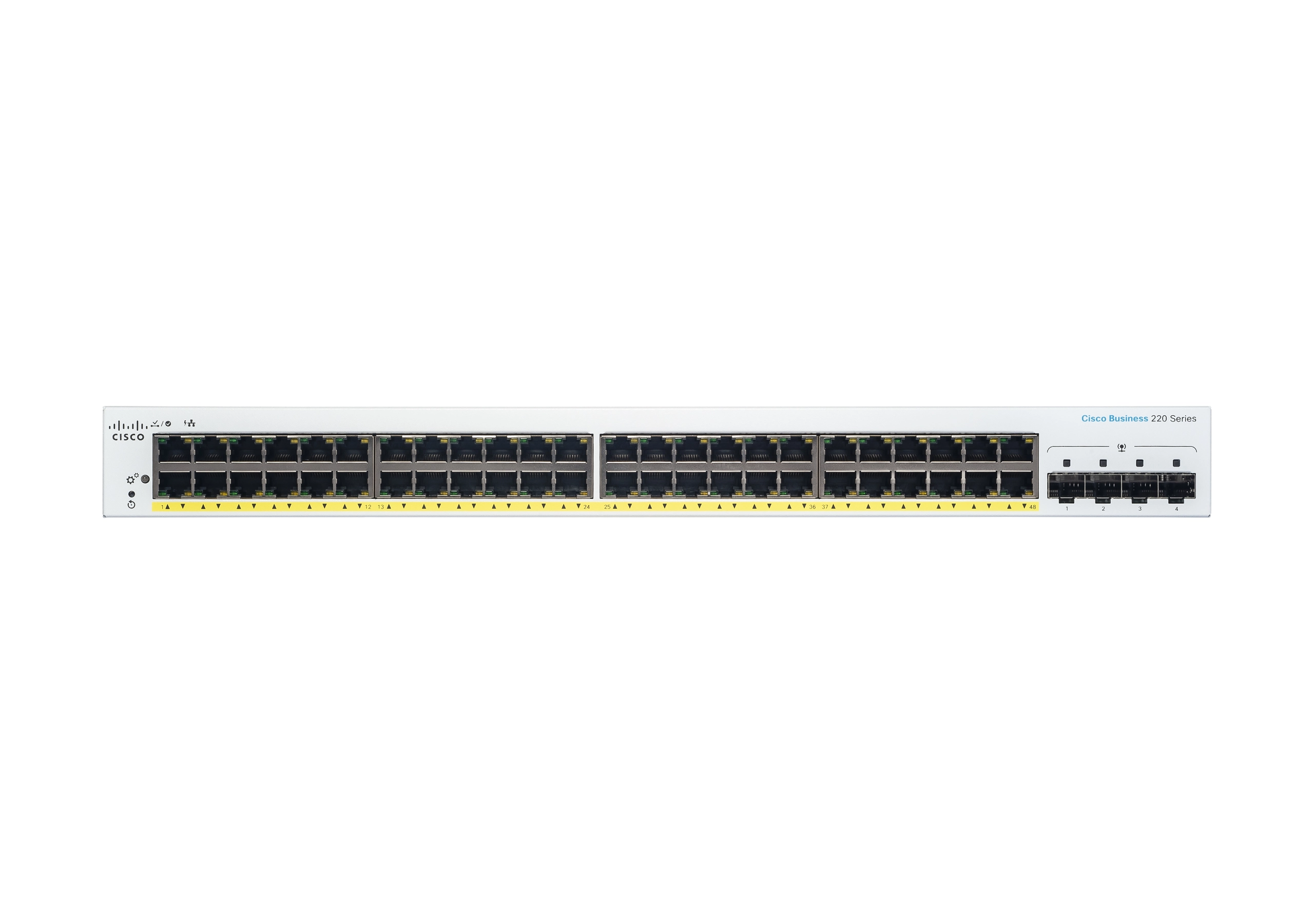

Cisco CBS250-48P-4G 48-ports

Best offer
AED
3 62500

Key Features

  • Switch layer: L2, L2/L3, L3
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • DHCP features: DHCP client, DHCP relay, DHCPv6 client
  • Number of queues: 8
  • Number of static routes: 32
  • Number of IP interfaces: 16
  • Multicast Listener Discovery (MLD) snooping: MLD v1/2
  • Static route: Yes
  • Number of multicast groups filtered: 256
  • Gigabit Ethernet (copper) ports quantity: 48
  • Port mirroring: Yes
  • Power over Ethernet plus (PoE+) ports quantity: 48
  • IP routing: Yes
  • Jumbo frames: 9000, 9216
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Country of origin
China
Mean time between failures (MTBF)
856329h, 1452667h
Market segment
Business
Internal memory
256MB, 512MB
Processor frequency
800 MHz
MIB support
Y
Cloud-managed
✓
Quality of Service (QoS) support
✓
Password protection
✓
Security algorithms
802.1x RADIUS, SSH, SSL/TLS
Rack mounting
✓
Noise level
37.30 dB
Stackable
✗
Virtual LAN features
Voice VLAN
Product colour
Grey, Silver, White
Packet buffer memory
3MB, 12MB
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
SFP+ module slots quantity
4
Access Control List (ACL)
✓
Access Control List (ACL) rules
512
Switching capacity
104Gbit/s, 176Gbit/s
MAC address table
8000entries, 8192entries
Authentication type
IEEE 802.1x, RADIUS
Configuring Location Settings (CLI)
✓
Jumbo frames support
✓
Forwarding rate
74.38Mpps, 77.38Mpps, 130.94Mpps
Multicast support
✓
Static route
✓
Multicast Listener Discovery (MLD) snooping
MLD v1/2
Switch layer
L2, L2/L3, L3

Packaging data

Package weight
5730g, 7210g, 7270g
Package height
95mm, 109.20mm
Package depth
571.80mm, 574mm
Package width
418.80mm, 480.80mm, 513.10mm

Weight & dimensions

Weight
3950g, 5290g, 5430g
Height
43.90mm, 44mm
Depth
439.90mm, 440mm
Width
287.80mm, 349.80mm, 350mm

Management features

Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓
Number of multicast groups filtered
256

Power

Power plug type
Type C
Power consumption (typical)
52.60 W
AC input voltage
100 - 240 V
Power supply location
Internal
AC input frequency
50 Hz
Power consumption (max)
478.20 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
195W, 370W, 382W
Power saving mode (EEE)
✓
Power source
AC
Number of power supply units
1

Wireless LAN features

IGMP snooping
✓

Design

Reset button
✓
LED indicators
Activity, Link, Speed, System, Yes
Form factor
1U
Redundant fans support
✗

Computer system

Built-in processor
✓

Packaging content

Packaging content
CBS250-48P-4G-UK Switch, CBS250-48P-4X-UK Switch, CBS250-48PP-4G-UK Switch, CBS250-48T-4G-UK Switch, CBS250-48T-4X Switch, Mounting hardware, Power cord or adapter, Switch, and Quick Start Guide
Quick start guide
✓
Cables included
AC
Power supply included
✓
Rack mount kit
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Management protocols
HTTP/HTTPS, SNMP, SNMP v1/2c/3, SNTP, TFTP, Telnet
VLAN support
✓
Number of VLANs
255, 256
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Ethernet LAN data rates
10, 100, 1000
Active link detection
✓
Cable length detection
✓
Flow control support
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
10G support
✓
Link aggregation
✓
Jumbo frames
9000, 9216
Port mirroring
✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity
48
SFP module slots quantity
4
Cable types supported
Cat5e
Console port
RJ-45/Mini-USB
USB 2.0 ports quantity
1
Combo SFP ports quantity
4
Power over Ethernet plus (PoE+) ports quantity
48
Gigabit Ethernet (copper) ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
165.96BTU/h, 174.06BTU/h, 1542.12BTU/h, 1610.19BTU/h

Technical details

Sustainability compliance
✓
Certification
CSA (CSA 22.2), FCC 15 (CFR 47) A, UL (UL 60950)
Switch type
Managed
Compliance certificates
CE, WEEE

Memory

Flash memory
64MB, 256MB

Protocols

IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL)
GARP VLAN Registration Protocol (GVRP)
✓

Data transmission

Number of IP interfaces
16
Number of static routes
32
Number of queues
8

Security

MAC address filtering
✓
SSH/SSL support
✓
Broadcast storm control
✓
Loop protection
✓
BPDU filtering/protection
✓
IP-MAC-Port binding
✓
Authentication
Guest VLAN, Port-based authentication
IGMP entries
256
DHCP features
DHCP client, DHCP relay, DHCPv6 client

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Solid state drive

Memory type
DRAM

Product Details

The Cisco Business CBS220-48P-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
