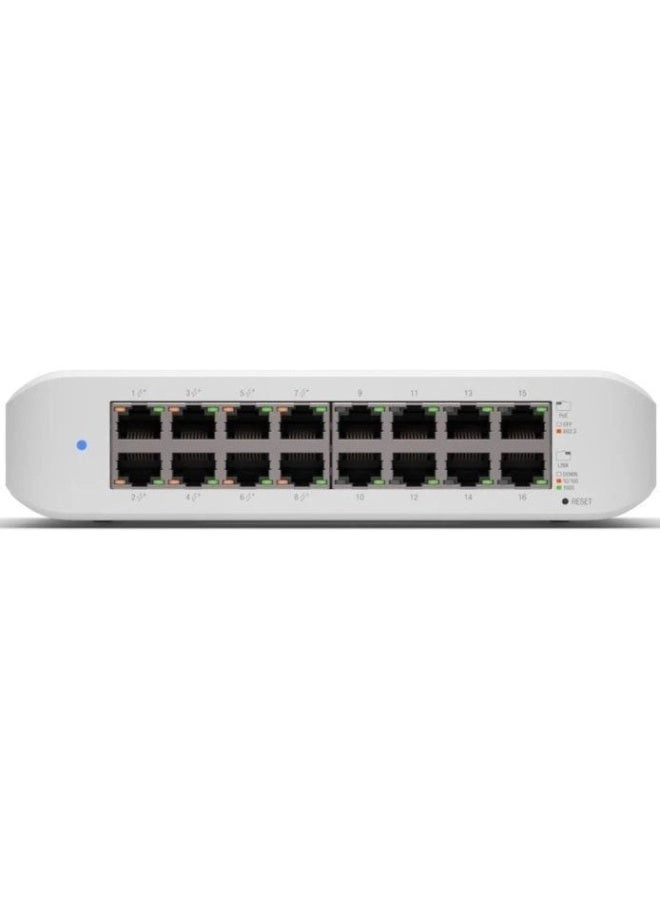

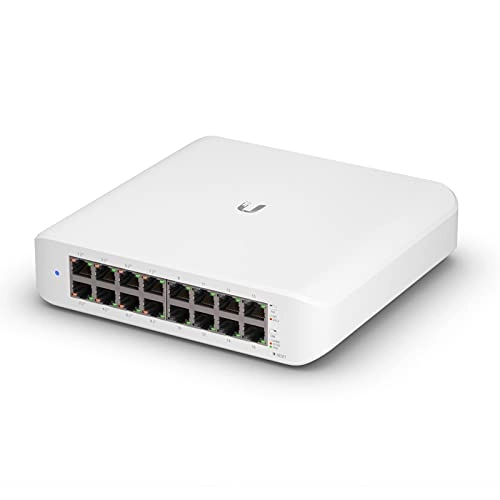

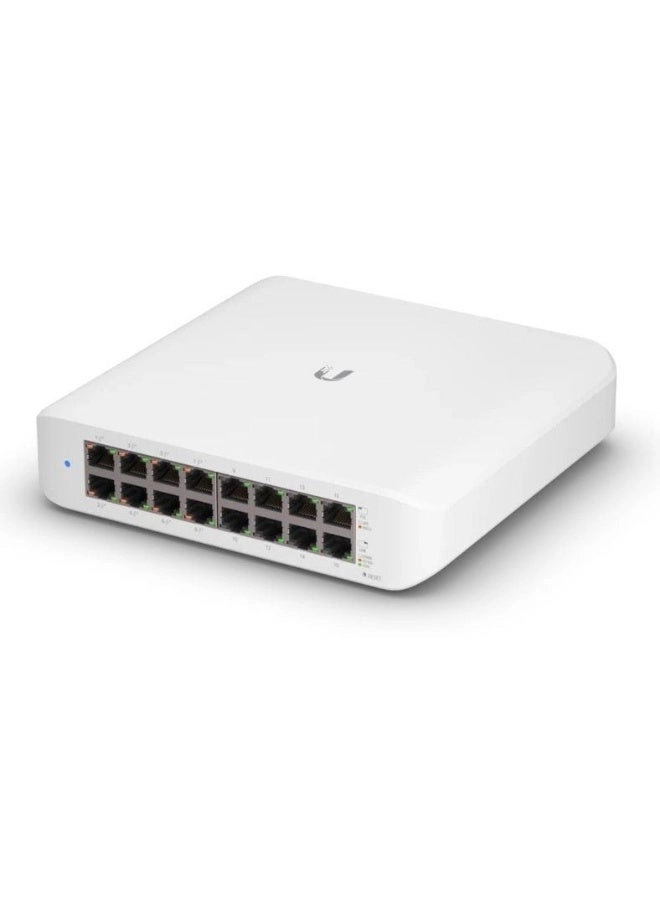

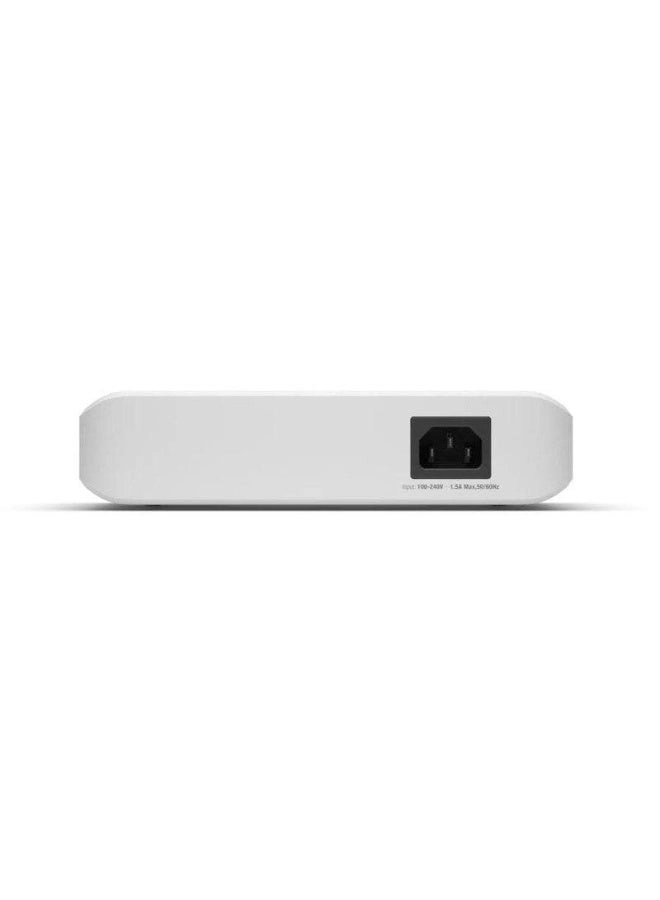

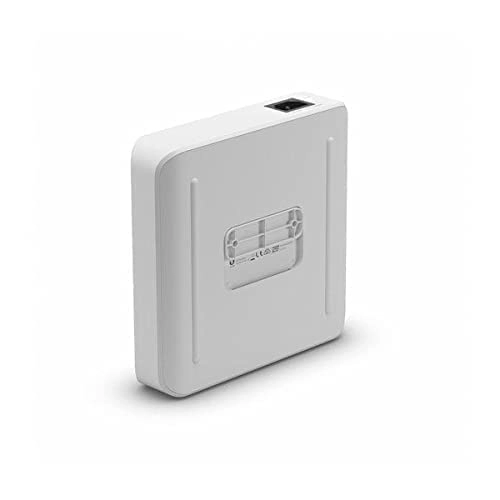

Ubiquiti USW-Lite-16-PoE 16-ports

The USW-L ite-16-PoE is a configurable Gigabit Layer 2 switch with six teen Gigabit Ethernet ports for your RJ45 Ethernet dev ices. Eight ports also offer auto-sensing 802.3at PoE+ that provides up to a total PoE wattag e of 45W for UniFi Access Points or other PoE devices. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-L ite-16-PoE offers basic Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

• (8) GbE, 802.3at PoE+ RJ45 ports • (8) GbE RJ45 ports • 45W total PoE supply • Fanless, silent cooling

Dimensions 191.7 x 185 x 43.7 mm(7.55 x 7.28 x 1.72") Weight 1.2 kg(2.65 lb) Hardware Total Non-Blocking Line Rate 16 Gbps Max. Power Consumption 15W Power Method Universal AC Input: 100-240VAC Power Supply Internal 60W AC/DC Power Supply Networking Interfaces (16) 10/100/1000 Mbps Ethernet RJ45 PoE Interfaces (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) Mangement Interface Ethernet In-Band Max PoE+ Wattage per Port by PSE 30W Modes SMB Layer 2 PoE Gigabit Ethernet Switch Operating Temperature -15 to 40° C (5 to 104° F) Operating Humidity 10 - 90% Noncondensing
